Toyota YARIS 后组合灯 — Figure 8111

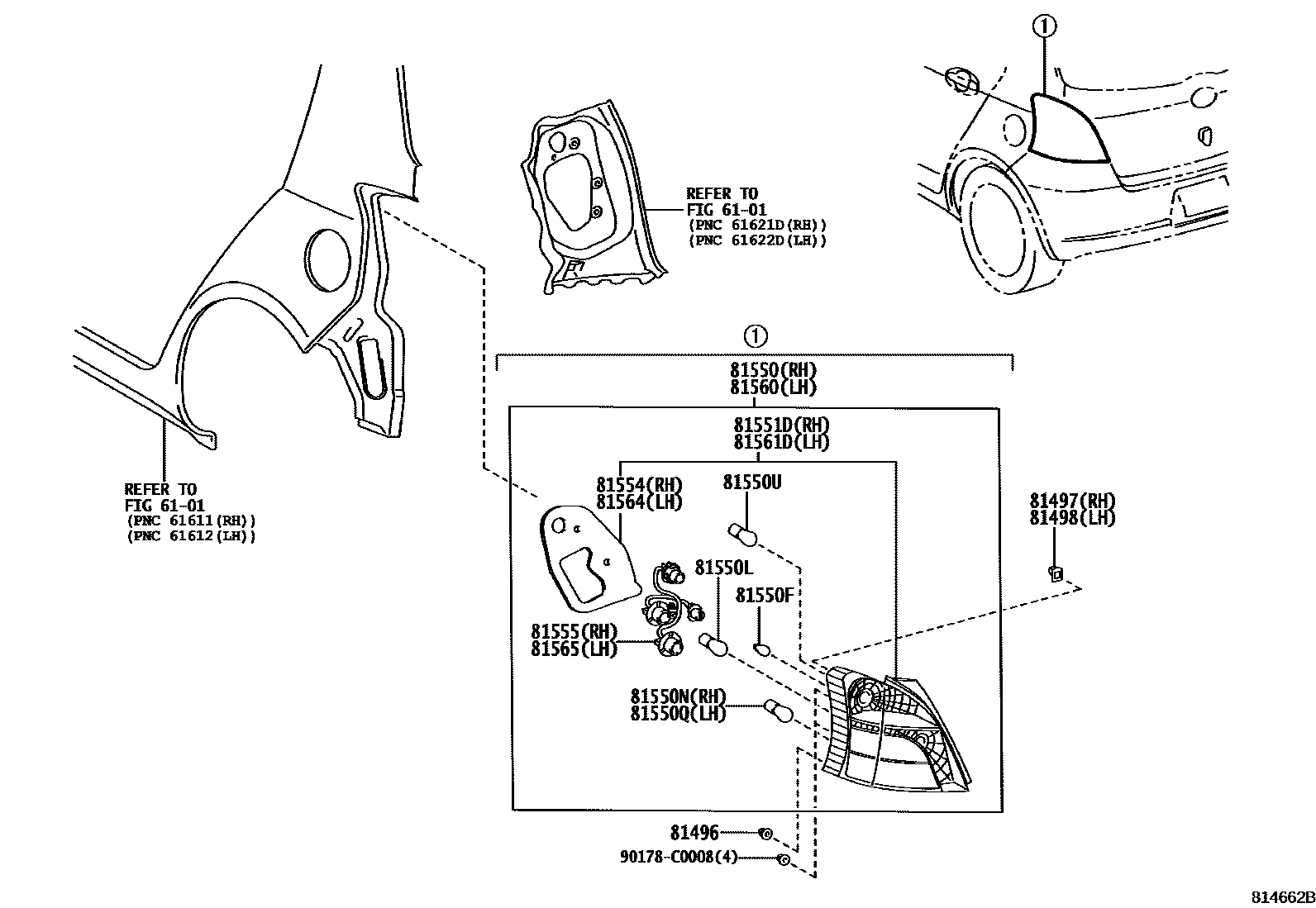

Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D030 |
| 81497 | Right rear combination lamp cover | 81497-0D040 |
| 81498 | Left rear combination lamp cover | 81497-0D040 |
| 81550 | Right rear combination light assembly | 81550-0D240 |
| 81550F | tail light bulb | 99132-12050 |
| 81550L | Rear turn signal light bulb | 90981-15009 |
| 81550N | reversing light bulb | 99132-11210 |
| 81550Q | Rear fog light bulb No. 1 | 99132-11210 |
| 81550U | brake light bulb | 99132-11210 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D240 |
| 81554 | Right rear combination lamp body gasket | 81554-0D240 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D240 |
| 81560 | Left rear combination light assembly | 81560-0D240 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D240 |
| 81564 | Left rear combination lamp body gasket | 81564-0D240 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-0D240 |
