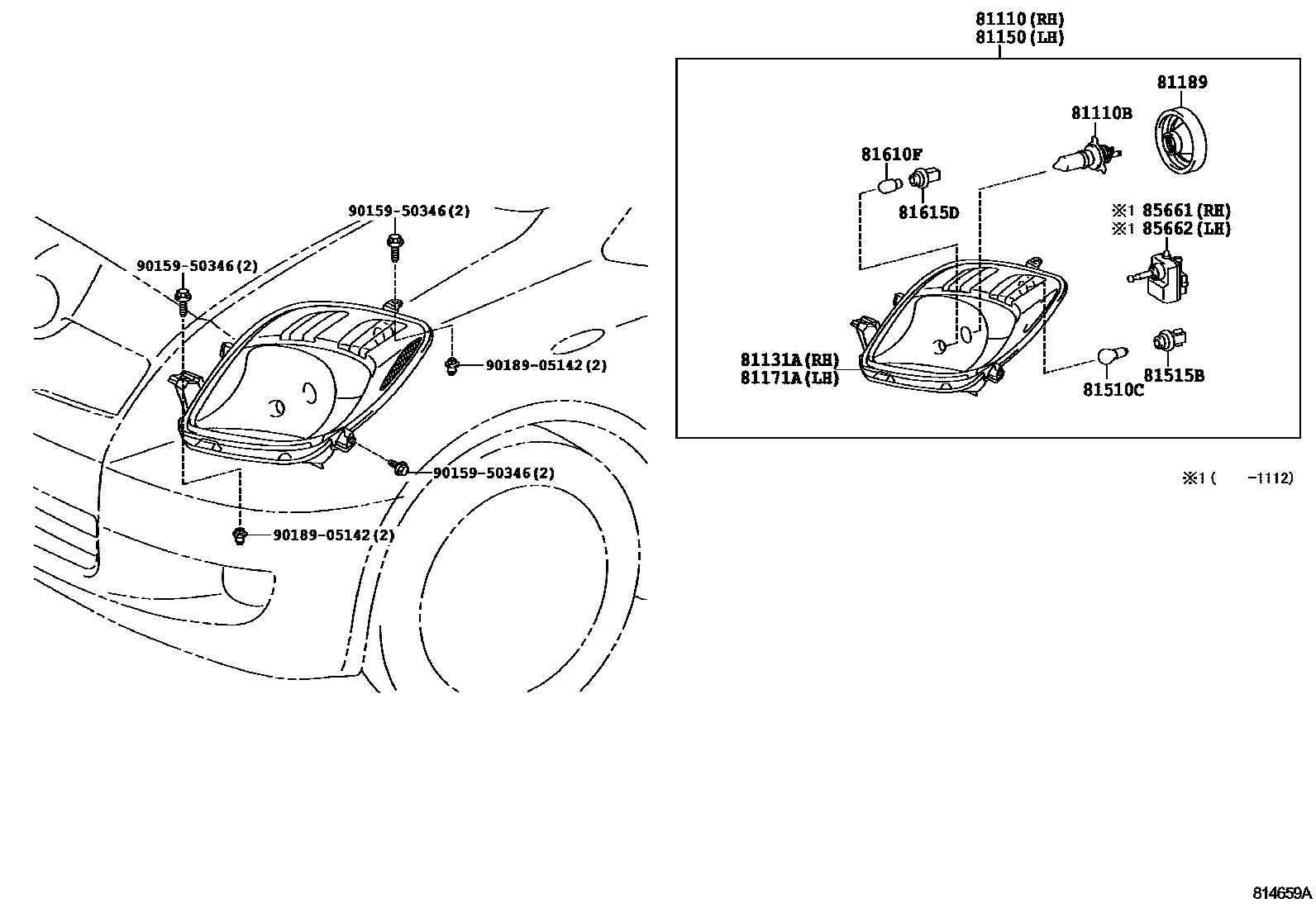

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0D320 · 81110-0D490 |
| 81110B | Bulb (for headlight No. 1) | 90981-CN001 |
| 81131A | Right headlight assembly | 81130-0D320 · 81130-0D490 |
| 81150 | Left headlight assembly | 81150-0D320 · 81150-0D490 |
| 81171A | Left headlight assembly | 81170-0D320 · 81170-0D490 |
| 81189 | headlight cover | 81139-52570 |
| 81510C | Bulb (for front turn signal lamp) | 90981-CF001 |
| 81515B | Front turn signal lamp holder | 81515-52570 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-52570 |
| 85661 | Right headlight beam height adjustment motor | 85661-52010 |
| 85662 | Left headlight beam height adjustment motor | 85661-52010 |
