Toyota YARIS 挡泥板和扰流板 — Figure 7601

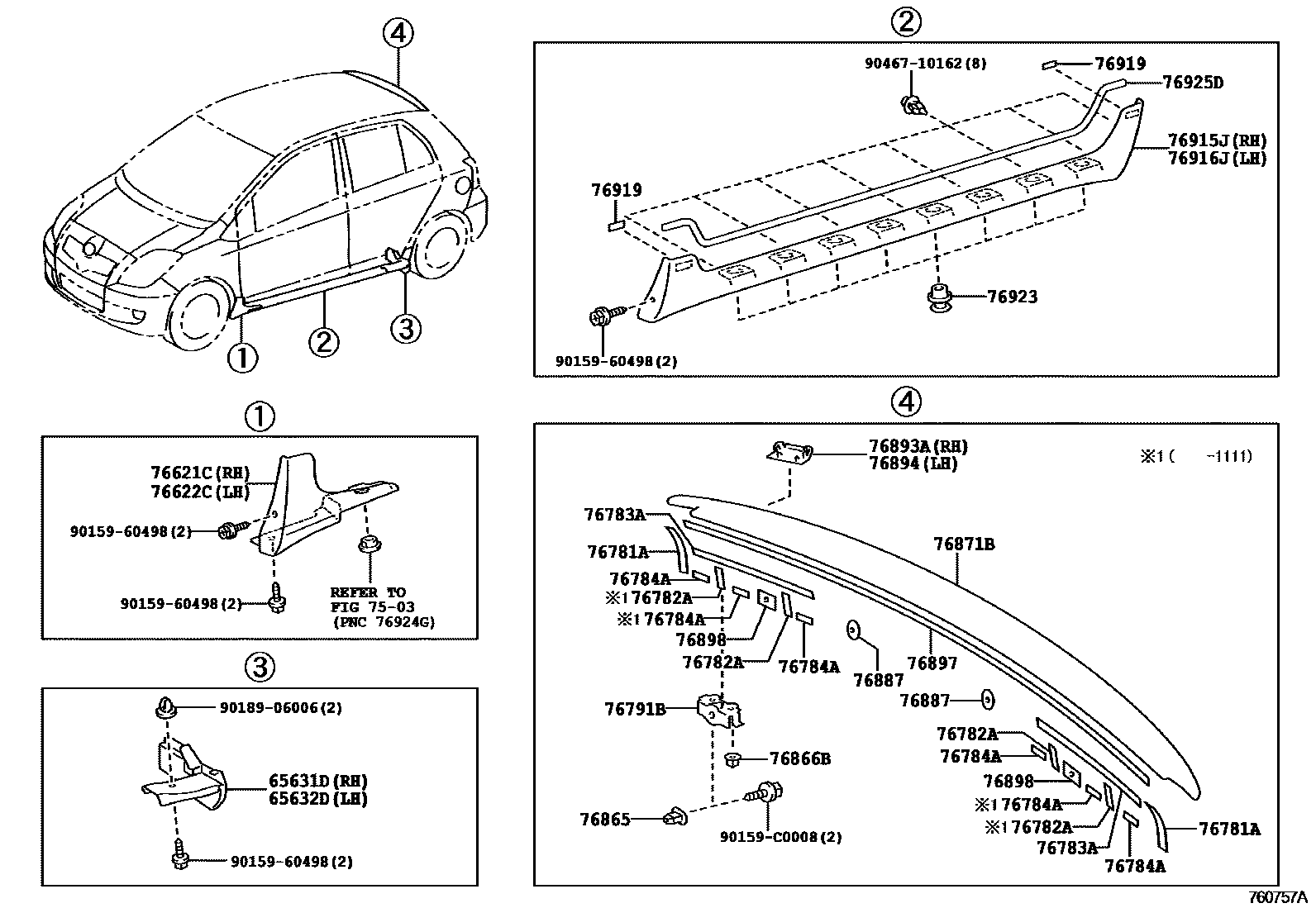

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0D030 |
| 65632D | Left rear wheel house front panel | 65632-0D030 |
| 76621C | Right front fender fender | 76621-0D060 |
| 76622C | Left front fender fender | 76622-0D060 |
| 76781A | No. 1 rear upper spoiler tape | 76781-0D010 |
| 76782A | No. 2 rear upper spoiler tape | 76782-0D010 |
| 76783A | No. 1 rear lower spoiler tape | 76783-0D020 |
| 76784A | No. 2 rear lower spoiler tape | 76784-0D020 |
| 76791B | Rear spoiler bracket | 76791-0D010 · 76792-0D010 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-0D010 |
| 76866B | No. 2 rear spoiler fixing piece | 76866-0D010 |
| 76871B | rear spoiler cover | 76871-0D905 |
| 76887 | Rear spoiler seal | 76887-0D010 |
| 76893A | Right rear spoiler cover | 76893-0D902 |
| 76894 | Left rear spoiler cover | 76894-0D902 |
| 76897 | Right rear spoiler protection strip | 76897-0D030 |
| 76898 | Left rear spoiler protection strip | 76898-0D030 |
| 76915J | right fender | 76915-0D906 |
| 76916J | left fender | 76916-0D906 |
| 76919 | Side fender liners | 76919-0D050 · 76919-0D060 |
| 76923 | Side fender fixings | 76923-0D010 |
