Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 10 PNC and OE references.

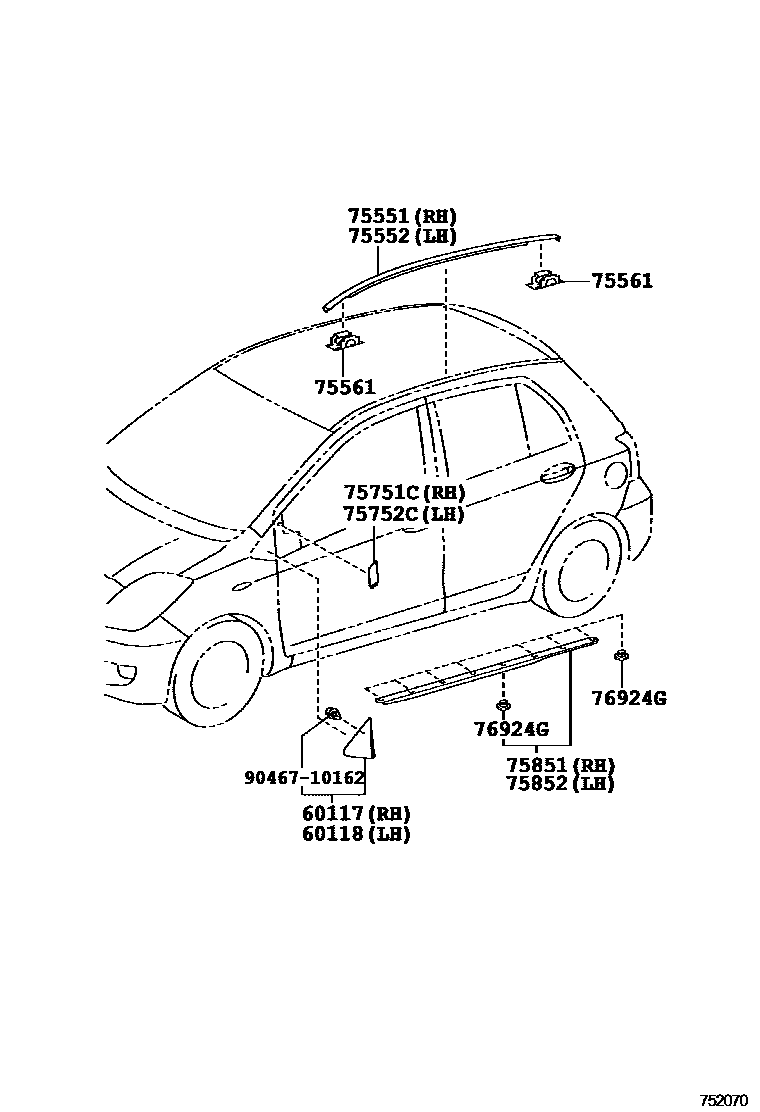

Toyota YARIS 侧防护条 EPC diagram — 752070
侧防护条 — 752070 (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0D100
60118Left front pillar upper cover sub-assembly60118-0D100
75551Drainage groove side decorative strip on the right side of the roof75551-0D100
75552Drainage groove side decorative strip on the left side of the roof75551-0D100
75561No. 1 roof drain channel side decorative strip clip75561-52040
75751CRight front door window frame front protective strip75751-0D030
75752CLeft front door window frame front protective strip75752-0D030
75851Right side door sill panel protective strip75851-0D030
75852Left side door sill panel protective strip75852-0D030
76924GDoor sill panel protective strip fixings76924-0D020
