Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

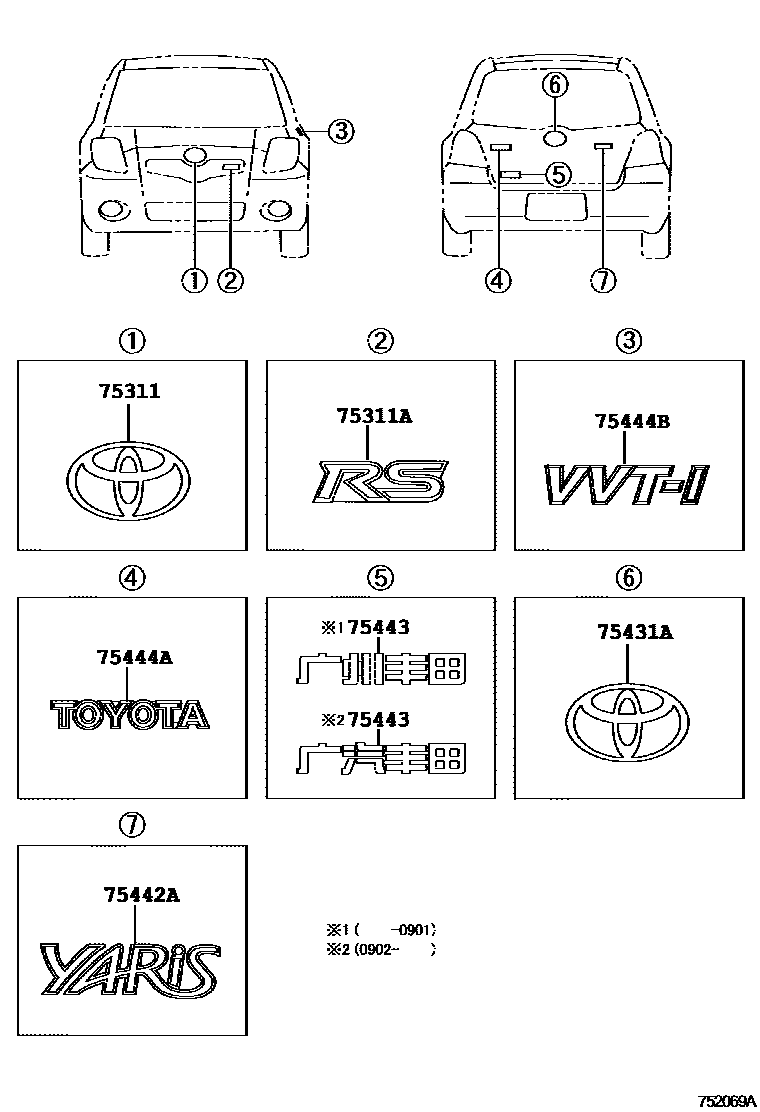

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-0D100 · 90975-02176 · 90975-C2003 |
| 75311A | Front No. 1 nameplate | 75312-0D030 |
| 75431A | No. 1 sign on back door | 75312-0D040 |
| 75442A | No. 2 nameplate on back door | 75442-0D090 |
| 75443 | No. 3 nameplate on back door | 75446-06010 · 75446-06020 |
| 75444A | No. 4 nameplate on back door | 75446-0D080 |
| 75444B | Front fender nameplate | 75443-0D050 · 75443-0D060 |
