Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

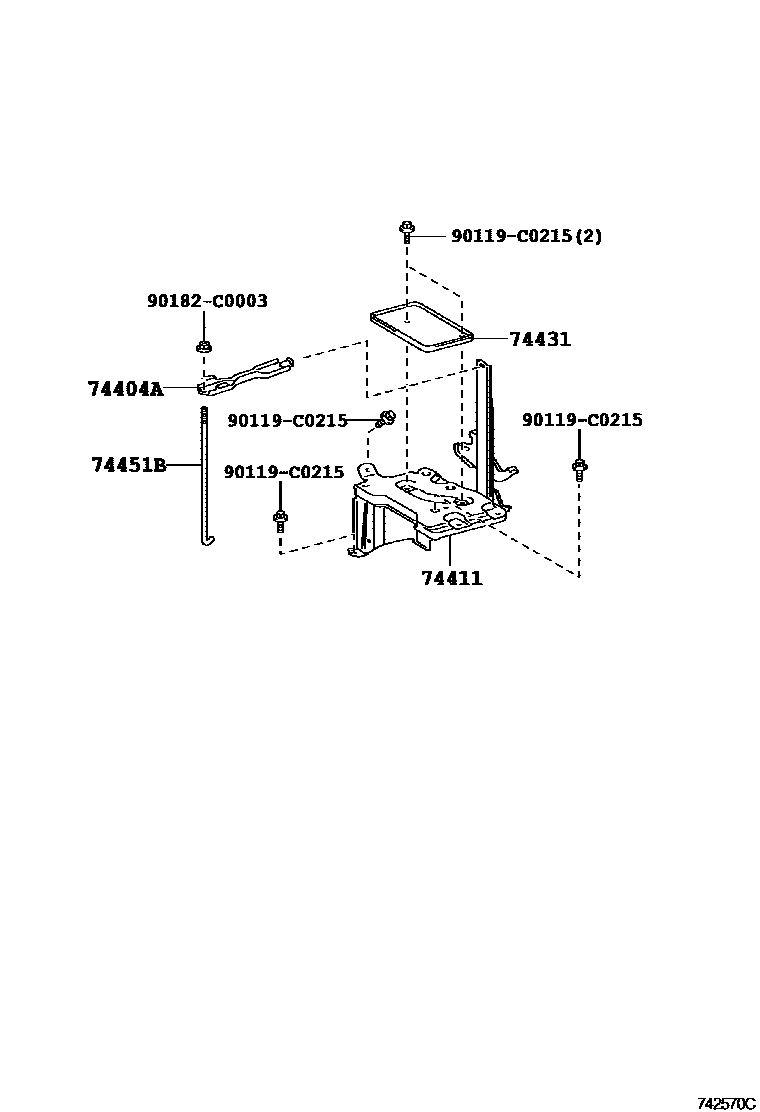

Toyota YARIS battery holder EPC diagram — 742570C
battery holder — 742570C (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0D100
74411battery holder74410-0D080
74431battery tray74431-0D150
74451BBattery clamp bolt74451-0D060
