Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

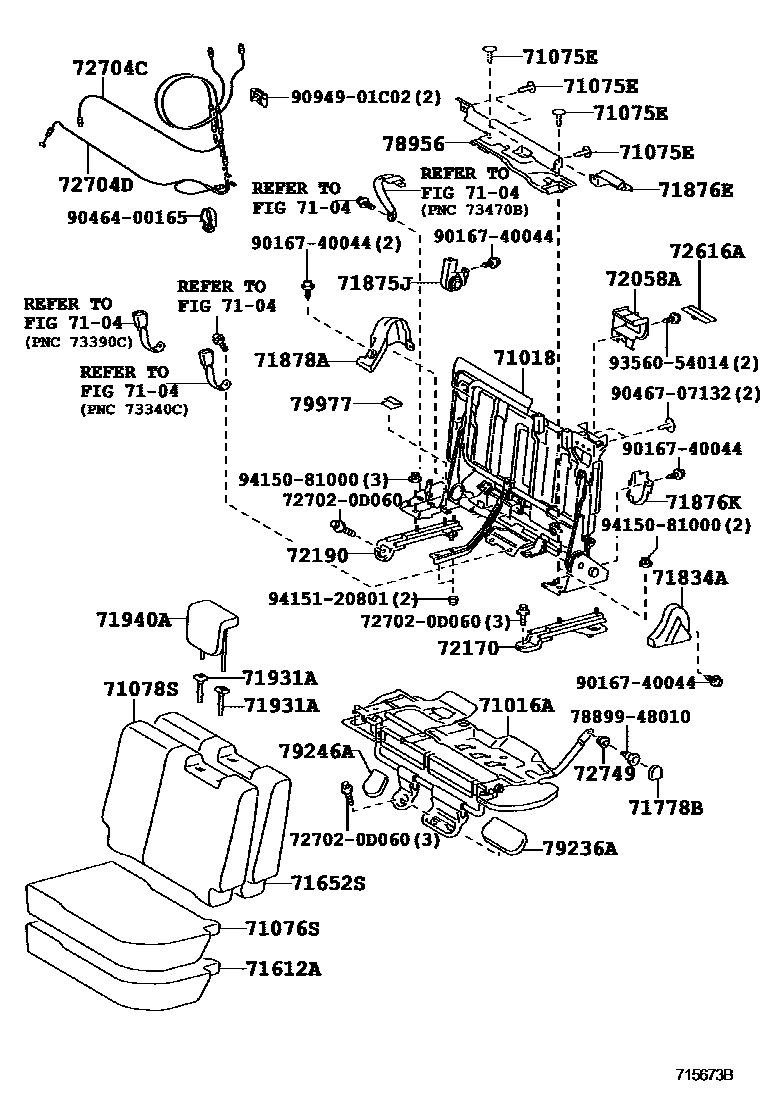

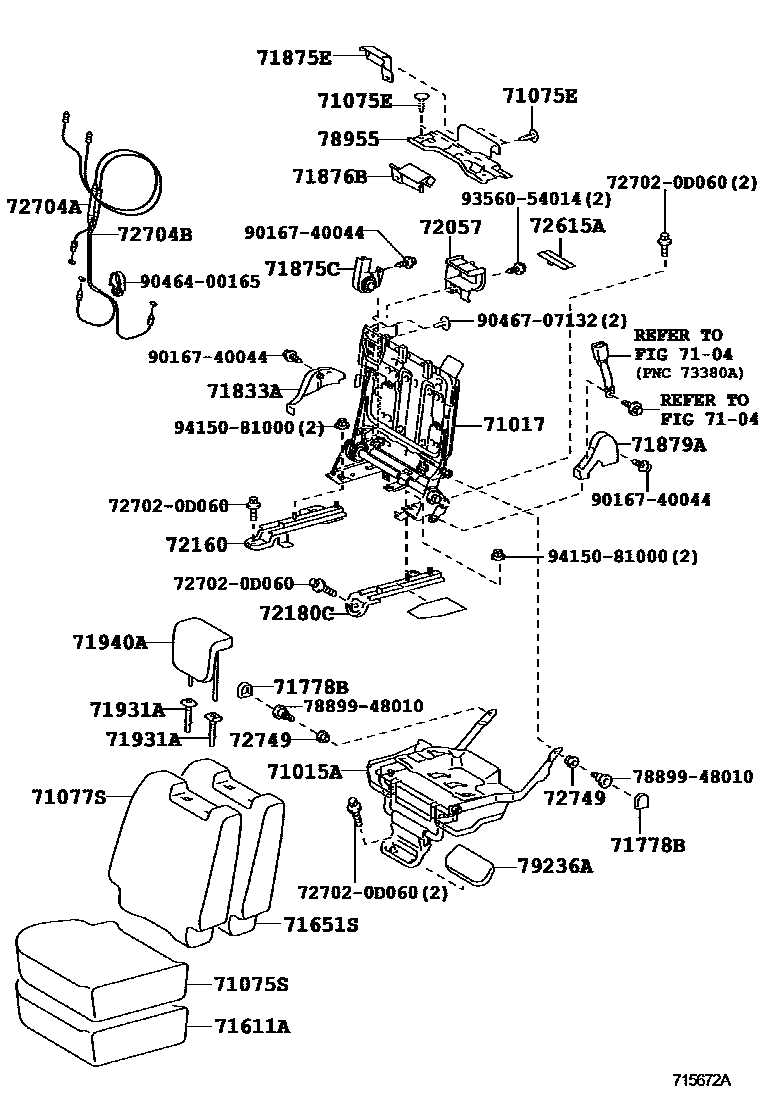

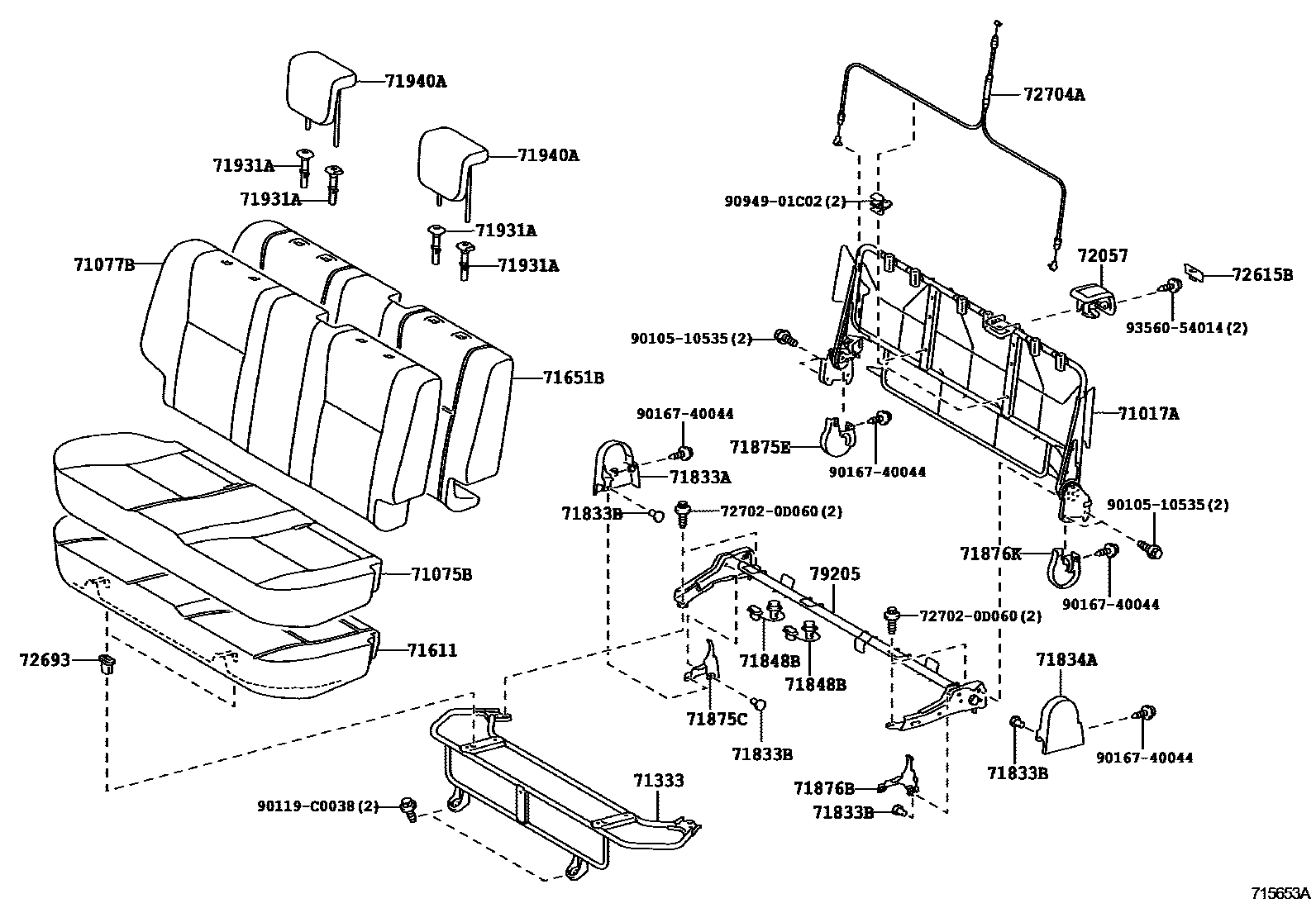

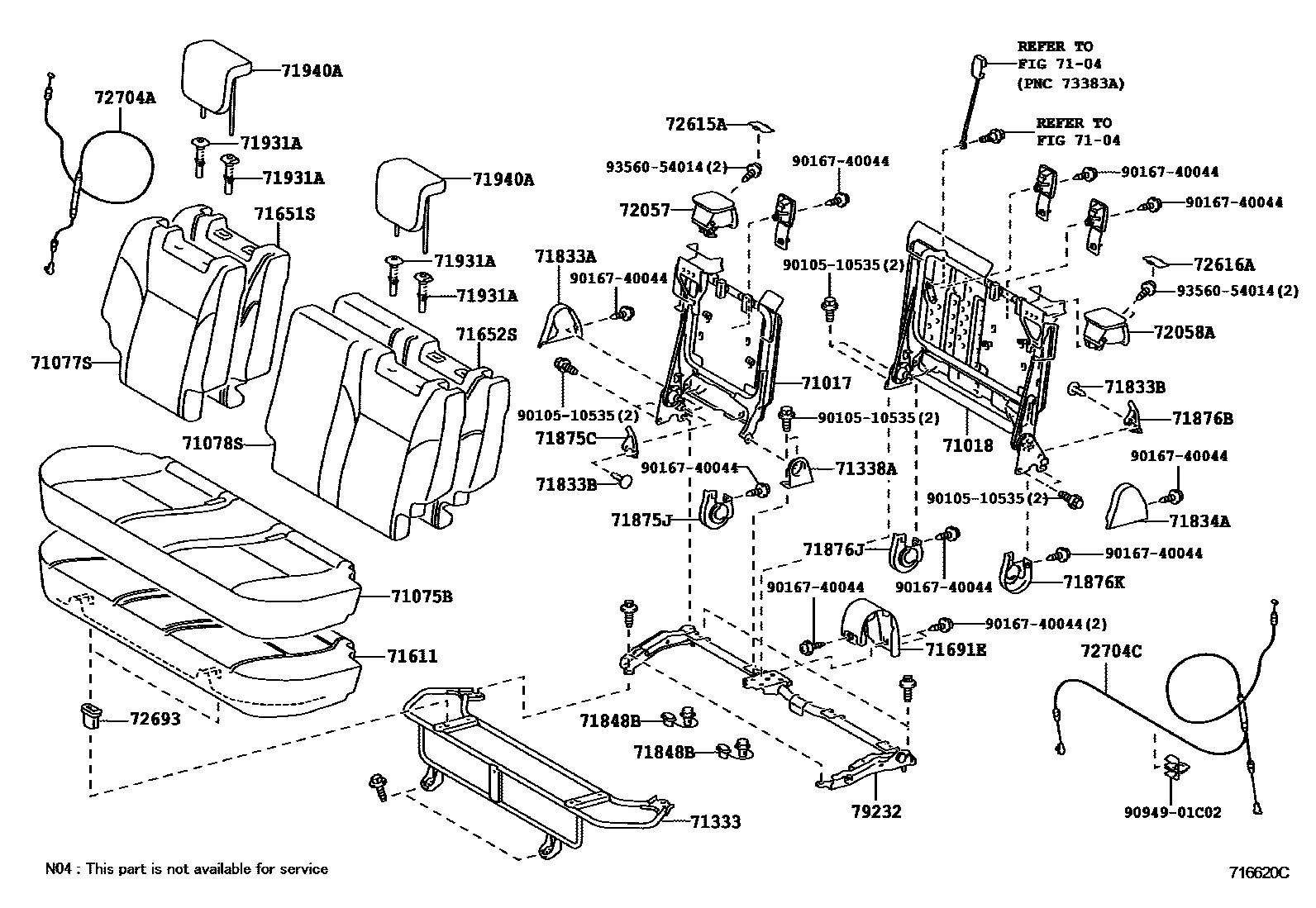

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-0D130 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-0D040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-0D190 · 71017-0D260 |
| 71017A | Rear seat back frame sub-assembly | 71017-0D180 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D090 · 71018-0D110 |
| 71333 | Rear seat No. 1 seat cushion and legs | 71333-0D040 |
| 71338A | Footboard of rear seat No. 2 | 71338-52010 |
| 71611 | Rear seat cushion cushion | 71503-0D120 · 71503-0D200 |
| 71611A | Rear right seat cushion | 71611-0D040 |
| 71612A | Rear left seat cushion | 71612-0D030 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-0D140 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D150 · 71651-0D230 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D120 · 71652-0D150 |
| 71848B | Right seat adjuster cover | 71848-0D020 |
| 72160 | Rear right seat outer slide rail assembly | 72160-52020 |
| 72170 | Rear left seat outer slide rail assembly | 72170-52030 |
| 72180C | Rear right seat inner slide rail assembly | 72160-52030 |
| 72190 | Rear left seat inner slide rail assembly | 72170-52020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-52030 · 72704-52110 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-52050 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-52040 |
| 72704D | Rear No. 2 seat backrest inclination control cable | 72704-52060 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 79205 | No. 2 seat support sub-assembly | 79205-0D010 |
| 79232 | Right leg support for rear seat No. 2 | 79232-0D030 |
| 79977 | Seat back felt pad | 79977-0D020 |
