Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

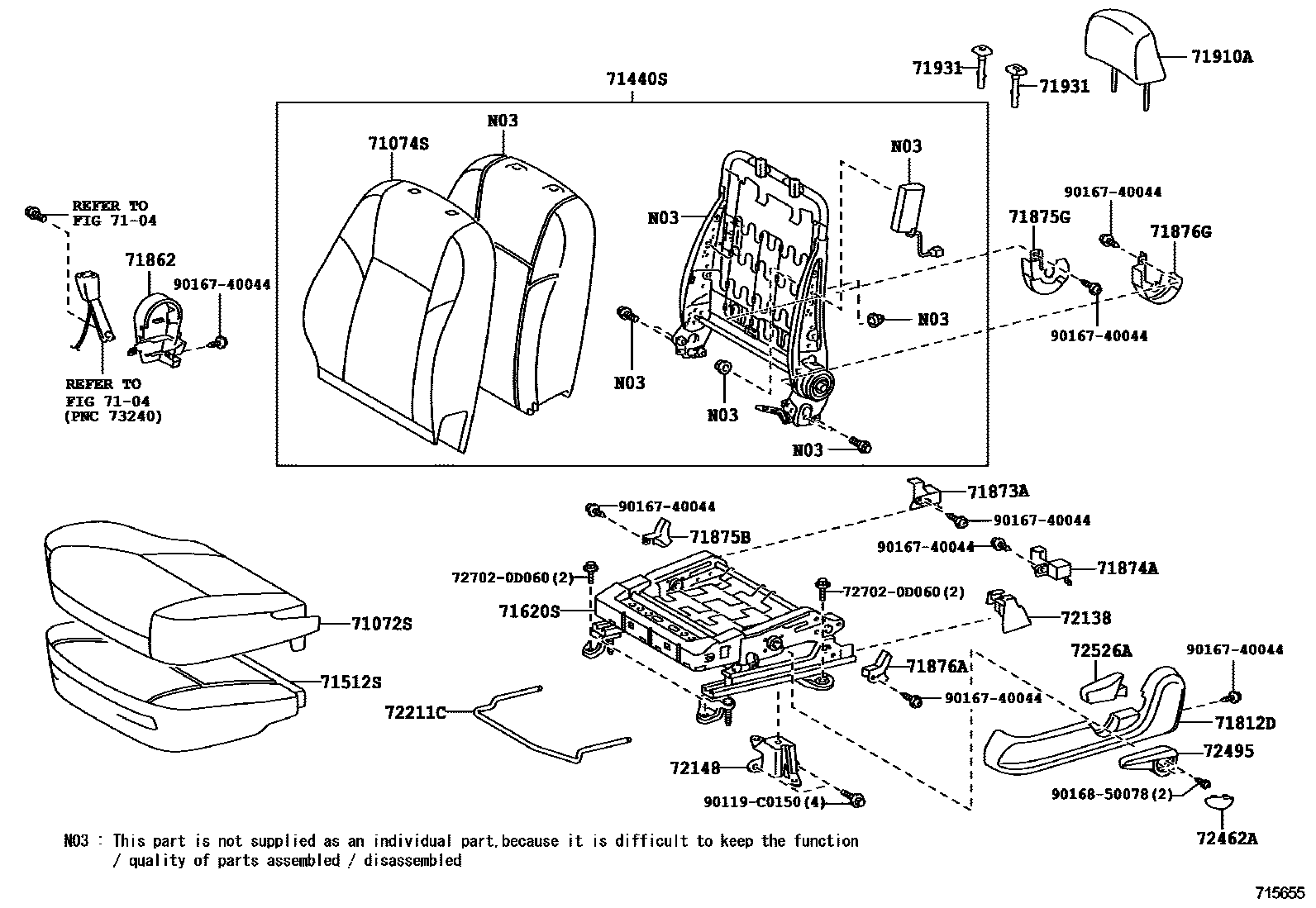

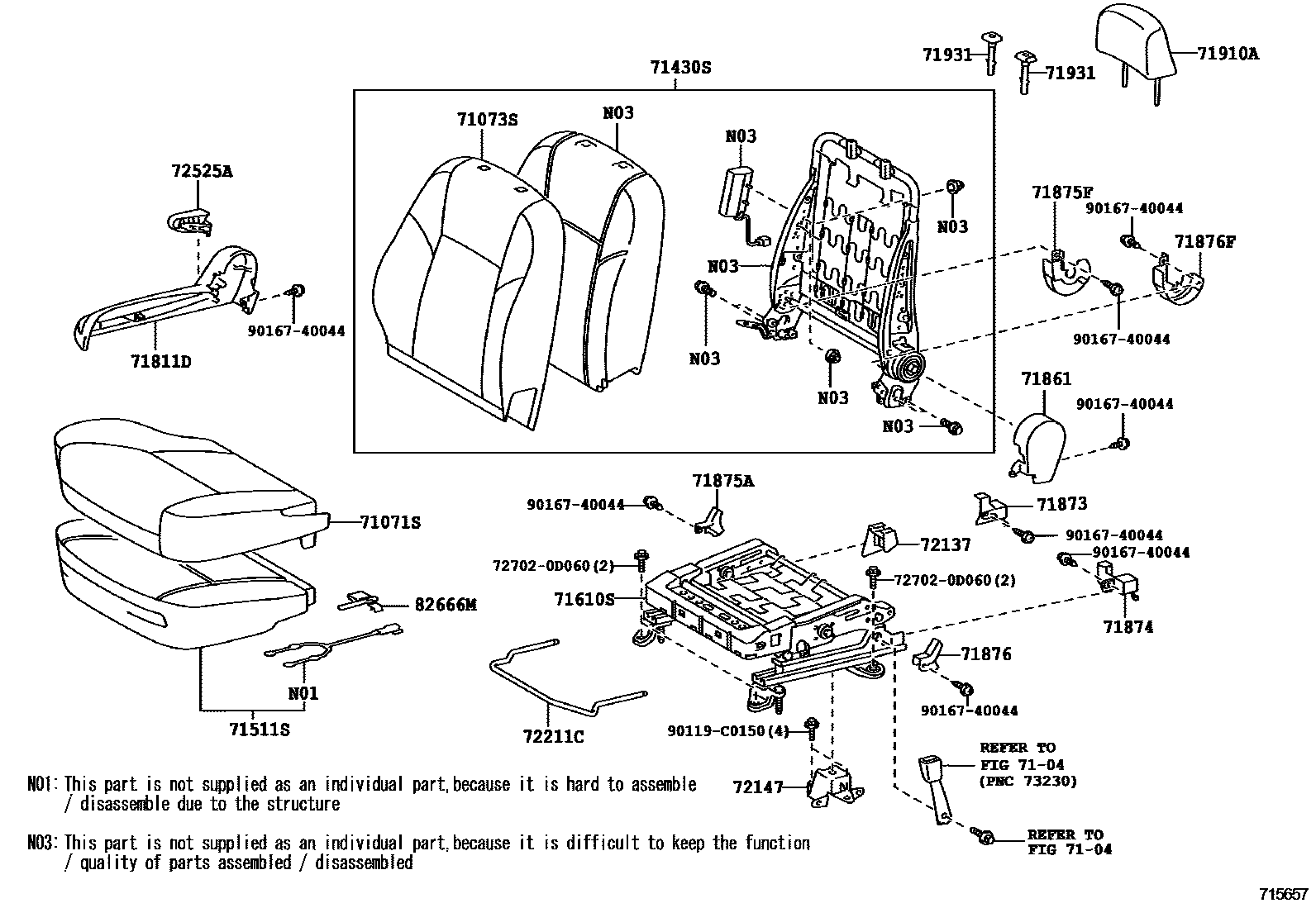

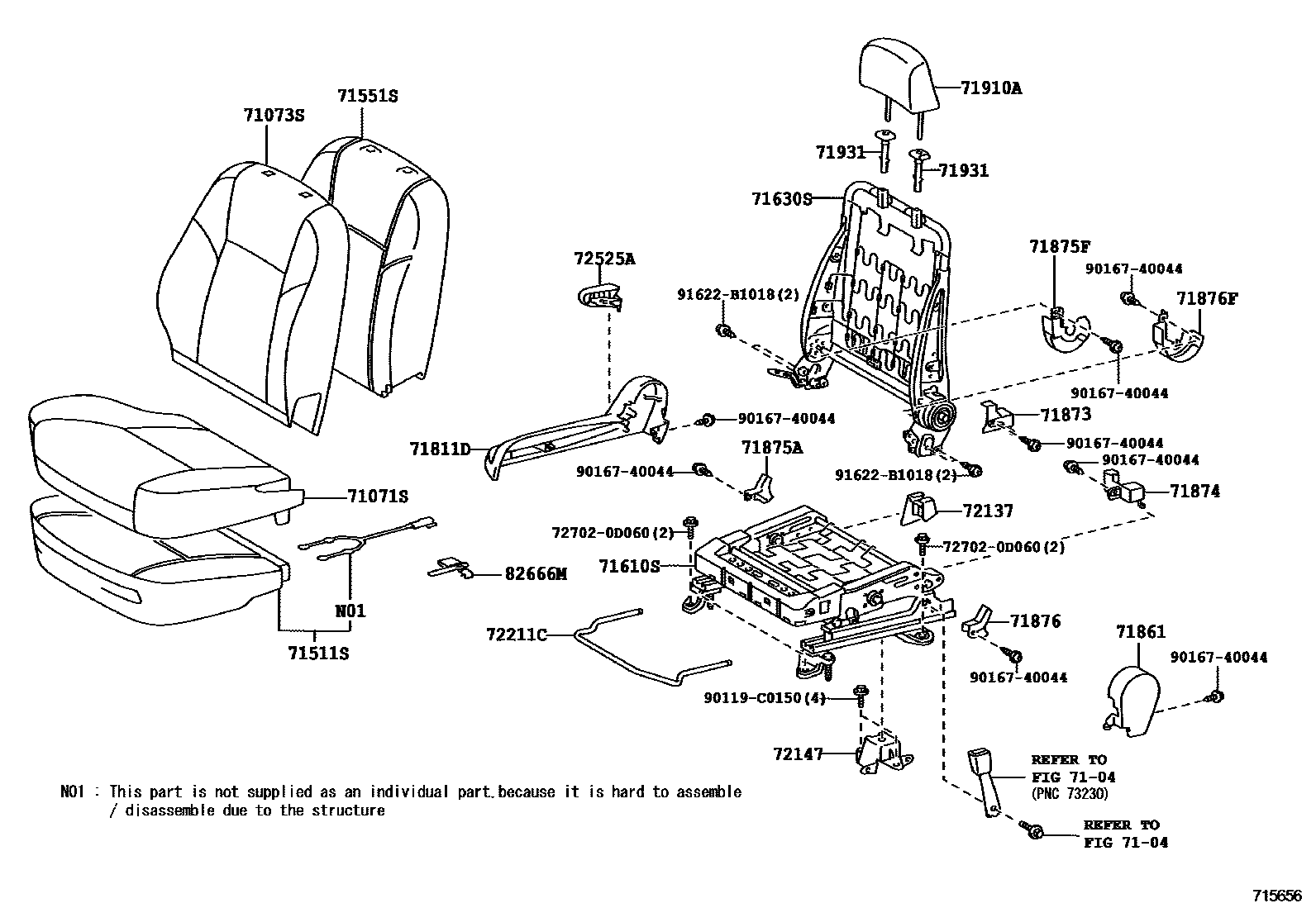

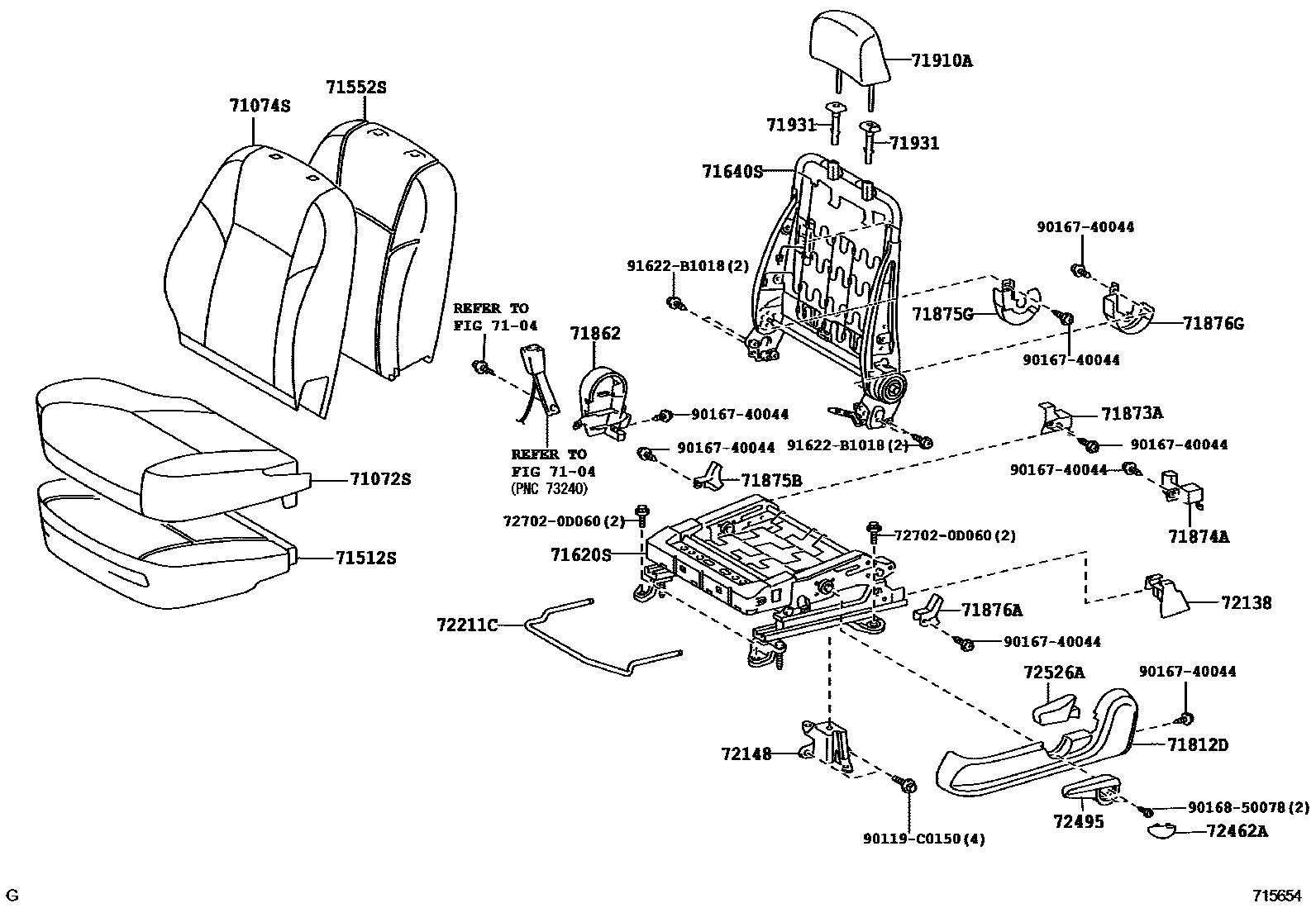

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0D010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D100 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D200 |
| 71552S | Front left seat back cushion (for split seats) | 71551-0D200 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0D100 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0D100 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0D190 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0D160 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-06340 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06340 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-06370 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06370 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D030 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D060 |
| 72211C | Seat slide adjustment handle | 72211-0D100 |
| 82666M | Connector holder | 82666-12420 · 82666-58030 |
