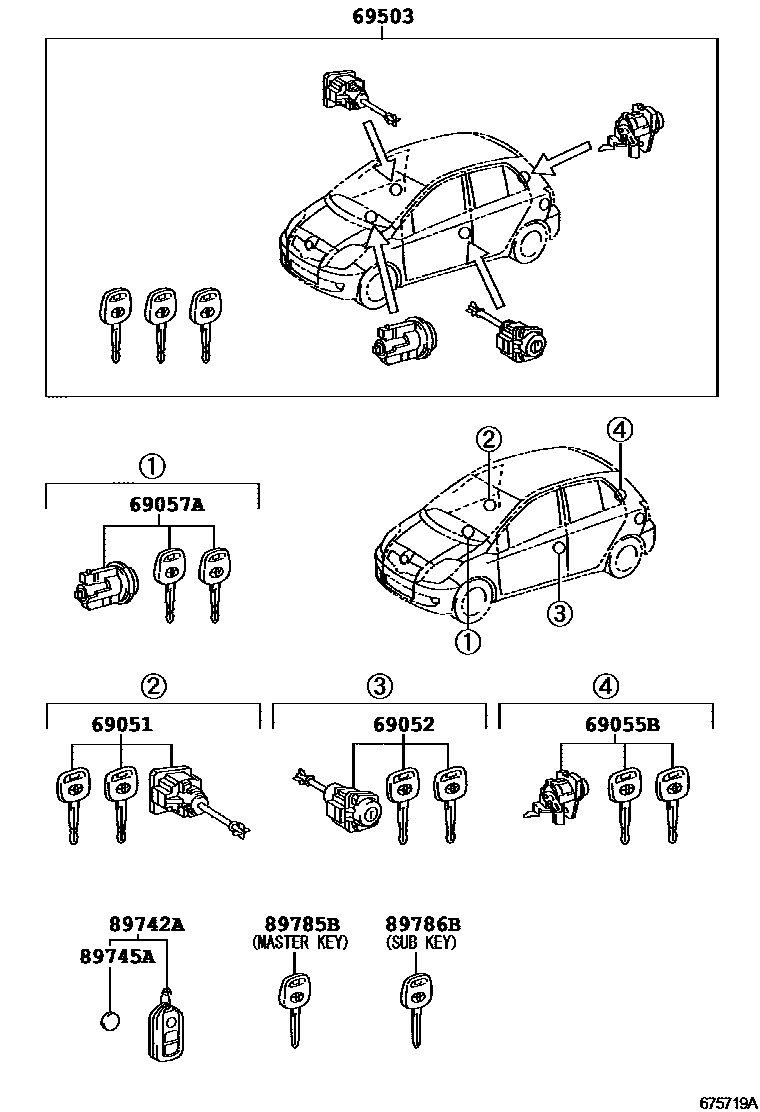

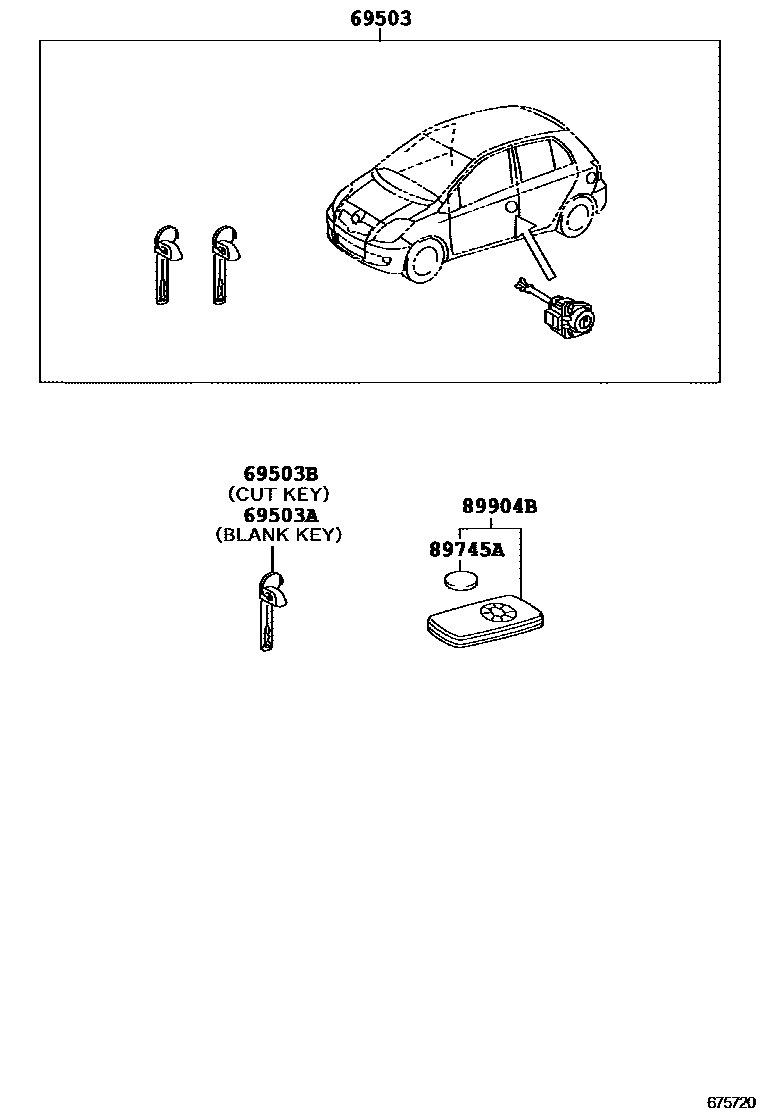

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D120 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D120 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0D110 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0D190 · 69057-0F030 |
| 69503 | Door lock cylinder components | 69005-0D290 · 69005-0D291 · 69005-0D300 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 89742A | remote key | 89742-0D010 · 89742-0D011 |
| 89745A | Transmitter battery | 89745-45010 · 89745-50020 · 89745-52020 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D040 · 89904-0D041 |
