Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 2 images and 11 PNC and OE references.
PNC and OE references

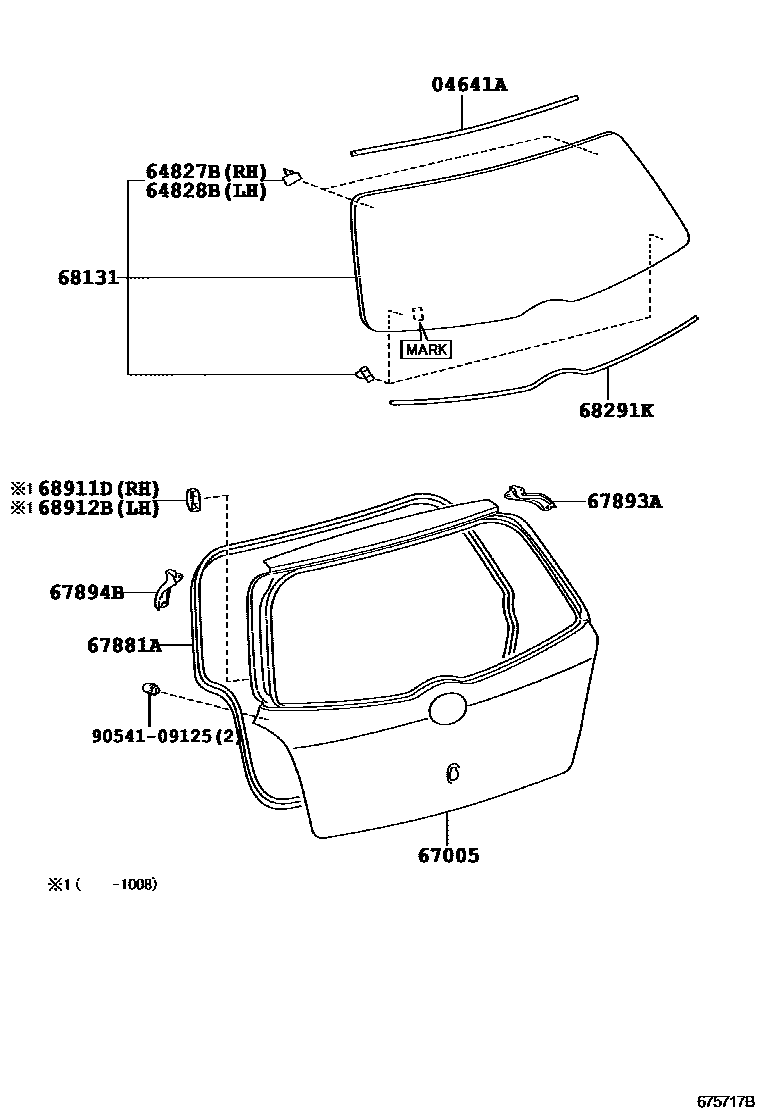

| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 64813-0D100 |
| 64827B | Catch on the right side of the back window glass | 64827-0D040 · 64827-0D050 |
| 64828B | Catch on the left side of the back window glass | 64828-0D040 · 64828-0D050 |
| 67005 | Rear door panel sub-assembly | 67005-0D060 · 67005-0D070 |
| 67881A | Back door seal | 67881-0D040 |
| 67893A | Back door panel No. 1 protective piece | 67893-0D020 |
| 67894B | Back door panel No. 2 protective piece | 67894-0D020 |
| 68131 | back door glass | 68105-0D080 · 68105-0D090 |
| 68291K | Back window glass sealing strip assembly | 64814-0D030 |
| 68911D | Back door right support rod cover | 68911-0D020 |
| 68912B | Back door left support rod cover | 68912-0D020 |
