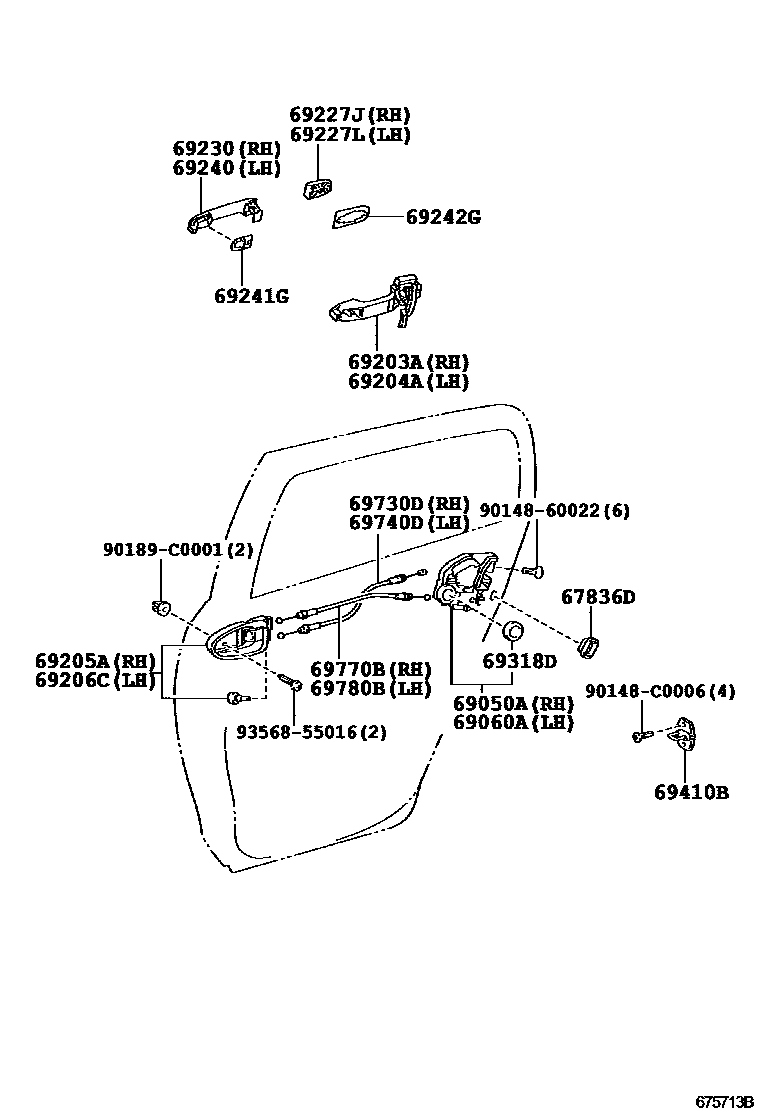

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836D | Rear door lock child restraint cover | 67836-06020 |
| 69050A | Right rear door lock assembly with motor | 69050-06111 · 69050-0D150 |
| 69060A | Left rear door lock assembly with motor | 69060-06111 · 69060-0D150 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0D080 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0D080 |
| 69241G | Rear door front exterior handle pad | 69241-48020 |
| 69242G | Rear door rear outer handle pad | 69242-02070 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0P010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0D110 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0D110 |
| 69770B | Right rear door inner lock cable assembly | 69770-0D100 |
| 69780B | Left rear door inner lock cable assembly | 69770-0D100 |
