Toyota YARIS 后门板和后门玻璃 — Figure 6705

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

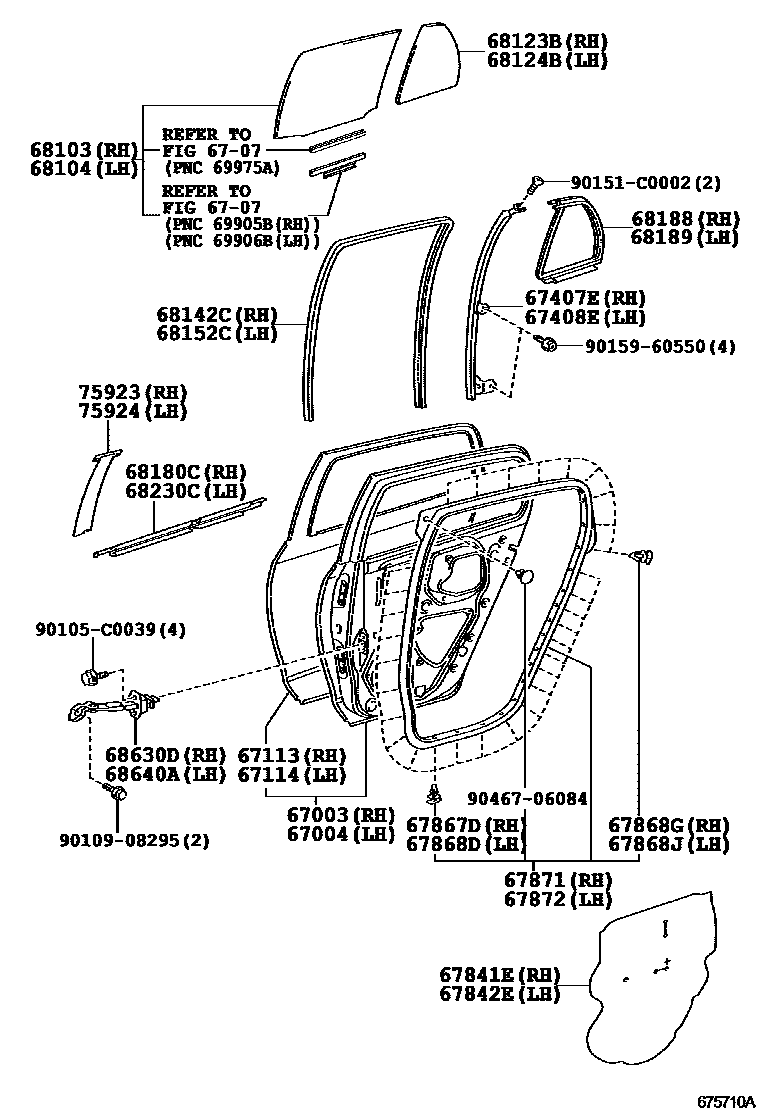

Toyota YARIS 后门板和后门玻璃 EPC diagram — 675710A
后门板和后门玻璃 — 675710A (200805 – 999999)

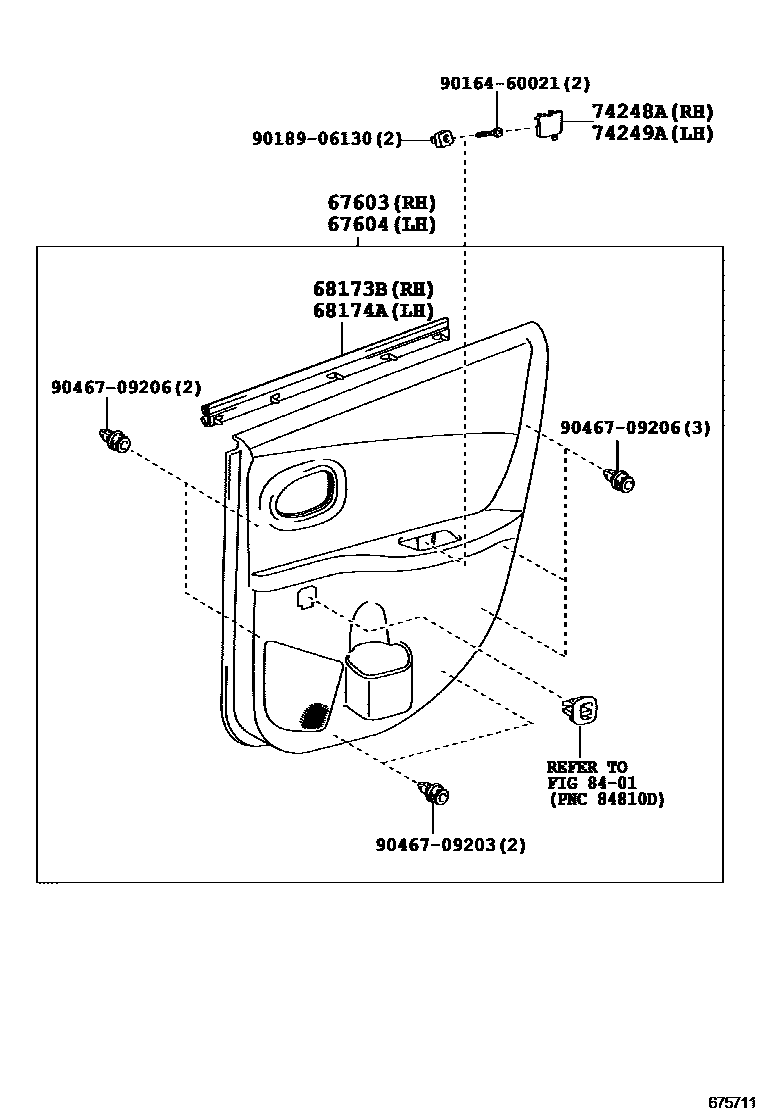

Toyota YARIS 后门板和后门玻璃 EPC diagram — 675711
后门板和后门玻璃 — 675711 (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-0D210
67004Left rear door panel sub-assembly67004-0D190
67113Right rear door outer panel67113-52160
67114Left rear door outer panel67114-52160
67407ERight rear door window divider sub-assembly67407-0D060
67408ELeft rear door window divider sub-assembly67408-0D060
67841ERight rear door access hole cover67841-0D080 · 67841-0D090
67842ELeft rear door access hole cover67841-0D080 · 67841-0D090
67867DRight rear door seal strip fixing67868-0D030
67868DLeft rear door seal strip fixing67867-0D090
67868Gdoor seal fixings67867-0D110
67868Jdoor seal fixings67867-0D100
67871Right rear door sealing strip67871-0D080
67872Left rear door sealing strip67872-0D080
68103Right rear door glass sub-assembly68130-0D140
68104Left rear door glass sub-assembly68140-0D140
68123BRight rear door corner window glass68123-0D120
68124BLeft rear door corner window glass68124-0D120
68142CRight rear door glass lift slot68142-0D080
68152CLeft rear door glass lift slot68152-0D080
68173BRight rear door glass inner sealing strip68173-0D090
68174ALeft rear door glass inner sealing strip68174-0D090
68180CRight rear door glass outer sealing strip assembly68180-0D080
68188Right rear door corner window seal68188-0D090
68189Left rear door corner window seal68189-0D090
68230CLeft rear door glass outer sealing strip assembly68230-0D080
68630DRight rear door opening limiter assembly68630-0D110 · 68630-0D111
68640ALeft rear door opening limiter assembly68630-0D110 · 68630-0D111
75923No. 2 right side light-shielding film75923-0D020
75924No. 2 left shading film75924-0D020
