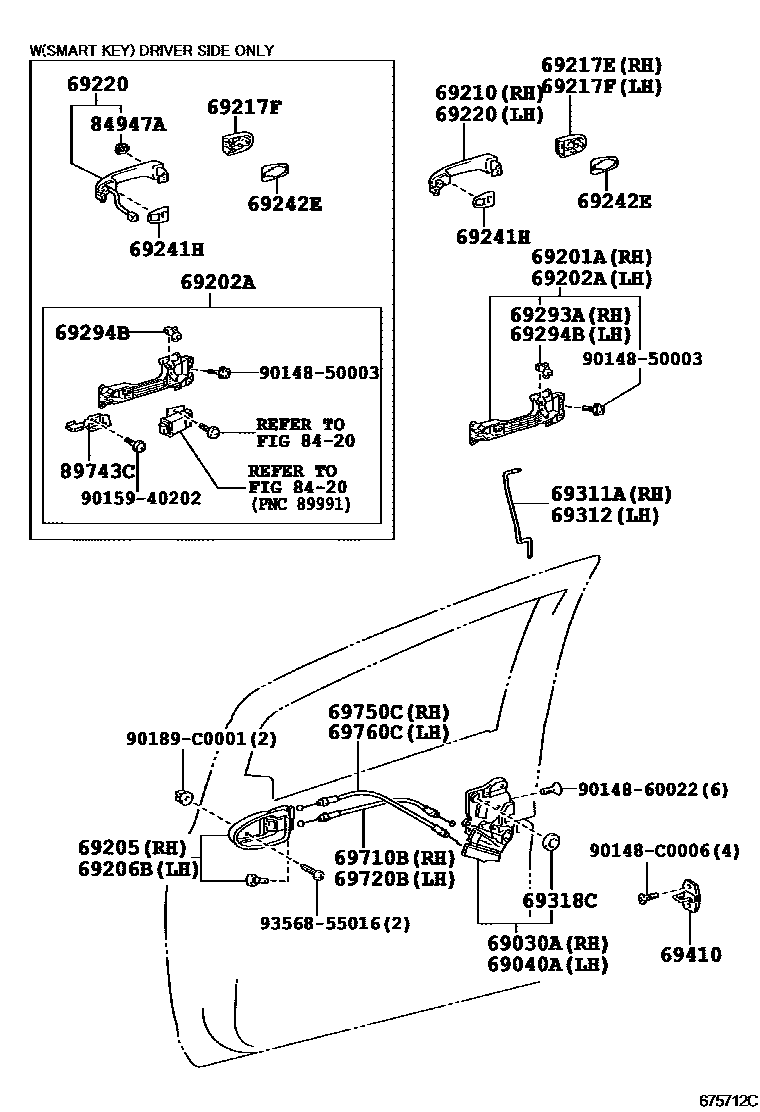

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-06221 · 69030-0D280 · 69030-0D310 |
| 69040A | Left front door door lock assembly with motor | 69040-06191 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02100 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02070 · 69202-02080 |
| 69241H | Front door exterior handle pad | 69241-02070 |
| 69242E | Front door rear outer handle pad | 69242-02070 |
| 69293A | Front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-0D120 |
| 69312 | Left front door lock opening lever | 69312-0D120 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0P010 |
| 69710B | Right front door lock remote control cable assembly | 69710-0D140 |
| 69720B | Left front door lock remote control cable assembly | 69710-0D140 |
| 69750C | Right front door inner lock cable assembly | 69750-0D100 |
| 69760C | Left front door inner lock cable assembly | 69750-0D100 |
| 84947A | Door electronic key switch cover | 84947-68010 |
| 89743C | Electronic key harness bracket | 89743-47020 |
