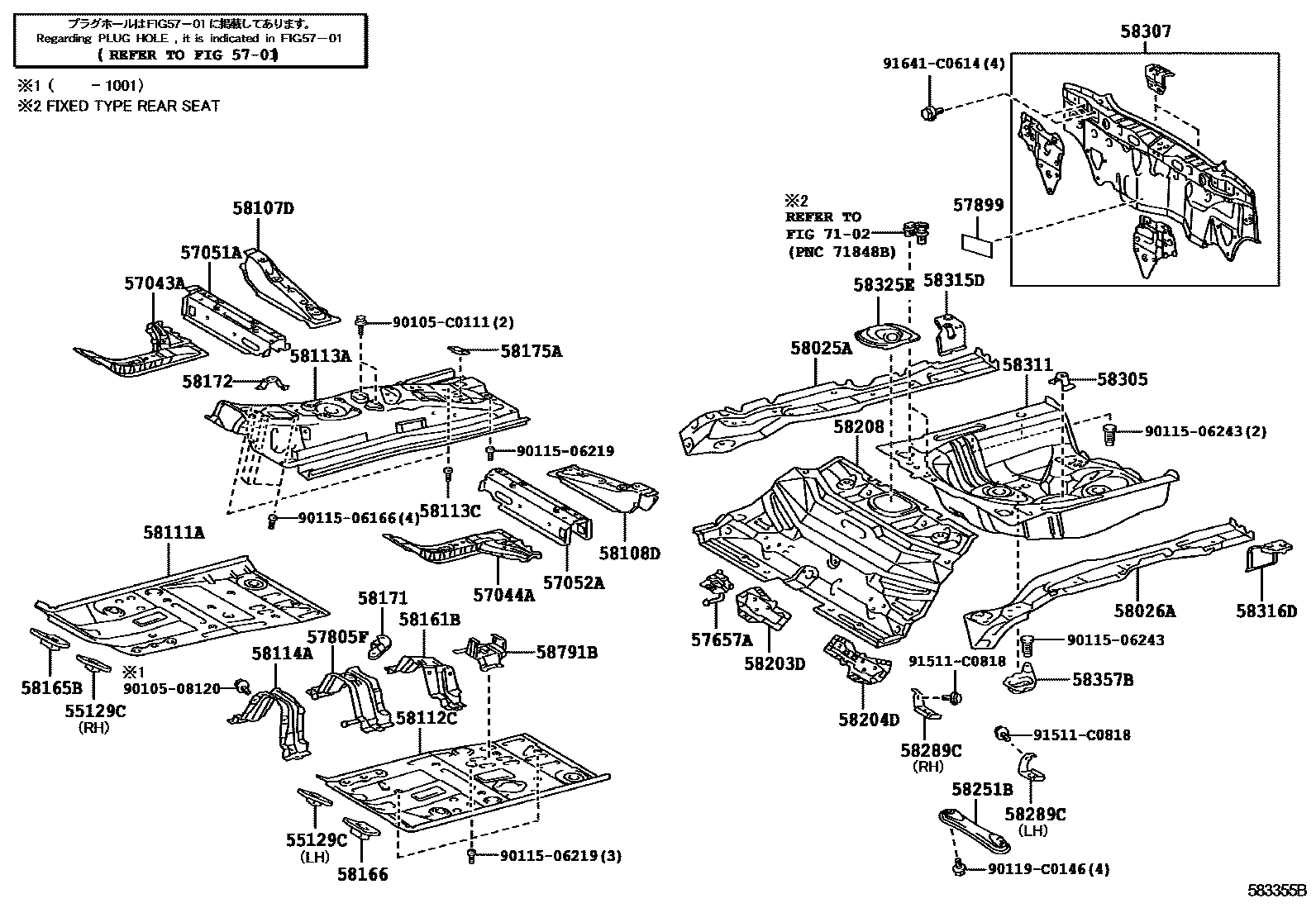

Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801
Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129C | Front panel hole cover | 55129-0D120 · 55139-0D040 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0D030 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0D060 |
| 57051A | Front floor right cross member sub-assembly | 57051-0D020 |
| 57052A | Front floor left cross member sub-assembly | 57052-0D020 |
| 57657A | No. 2 exhaust pipe mounting bracket | 51904-0D020 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-0D080 |
| 57899 | rear floor seal | 57899-0D010 |
| 58025A | Front floor right longitudinal beam plate sub-assembly | 58025-0D010 |
| 58026A | Front floor left longitudinal beam plate sub-assembly | 58026-0D010 |
| 58107D | Front cross member to front panel right reinforcement sub-assembly | 58107-0D020 |
| 58108D | Left front cross member to front panel reinforcement sub-assembly | 58108-0D020 |
| 58111A | Front floor right bottom panel | 58111-0D070 |
| 58112C | Front floor left bottom panel | 58112-0D904 |
| 58113A | front floor center panel | 58113-0D905 |
| 58113C | Welding bolts (for front floor center panel) | 90115-06243 |
| 58114A | front floor reinforcement | 58114-0D080 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-0D070 |
| 58165B | Front floor right cover | 58165-0D030 |
| 58166 | Front floor left cover | 58166-0D030 |
| 58171 | Parking brake base reinforcement | 58171-0D040 |
| 58172 | No. 3 ECU mounting bracket | 58172-0D020 |
| 58175A | No. 1 parking brake base reinforcement | 58175-0D010 |
| 58203D | Rear right seat outer hinge bracket sub-assembly | 58203-0D020 |
| 58204D | Rear left seat outer hinge bracket sub-assembly | 58204-0D020 |
| 58208 | central floor base | 58211-0D060 · 58211-52240 |
| 58251B | front floor bracket | 58251-0D050 |
| 58289C | Rear floor brake hose bracket | 58289-0D060 · 58299-0D060 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-0D050 |
| 58307 | Body lower back panel sub-assembly | 58307-0D090 |
| 58311 | rear floor pan | 58311-0D060 |
| 58315D | Rear floor pan right extension | 58315-0D050 |
| 58316D | Rear floor pan left extension | 58316-0D050 |
| 58325E | Rear floor access hole cover | 58325-0D040 |
| 58357B | No. 3 right actuator cover bracket | 58357-0D040 |
| 58791B | jack bracket | 58791-0D080 |
