Toyota YARIS 前围板和挡风玻璃 — Figure 5503

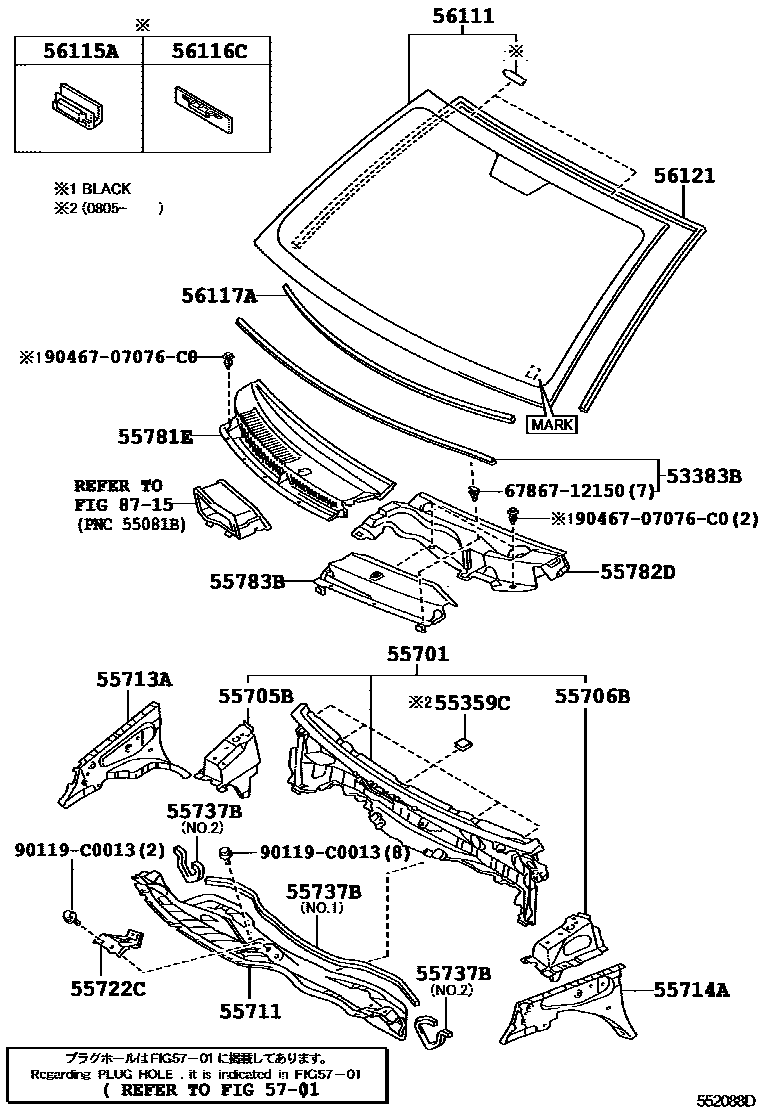

Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0D100 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-52160 |
| 55701 | Front apron sub-assembly | 55700-0D160 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0D080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0D070 |
| 55711 | Front outer panel | 55701-0D120 |
| 55713A | Right front wall upper side panel | 55713-0D070 |
| 55714A | Left front wall upper side panel | 55714-0D070 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-0D050 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0D110 · 55737-0D120 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0D160 |
| 55782D | Ventilation grille on left front apron | 55709-0D060 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-0D130 |
| 56111 | windshield | 56101-0D905 · 56101-0D906 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56121 | windshield seal | 56121-0D020 · 56121-0D030 |
