Toyota YARIS 仪表板和手套箱 — Figure 5501

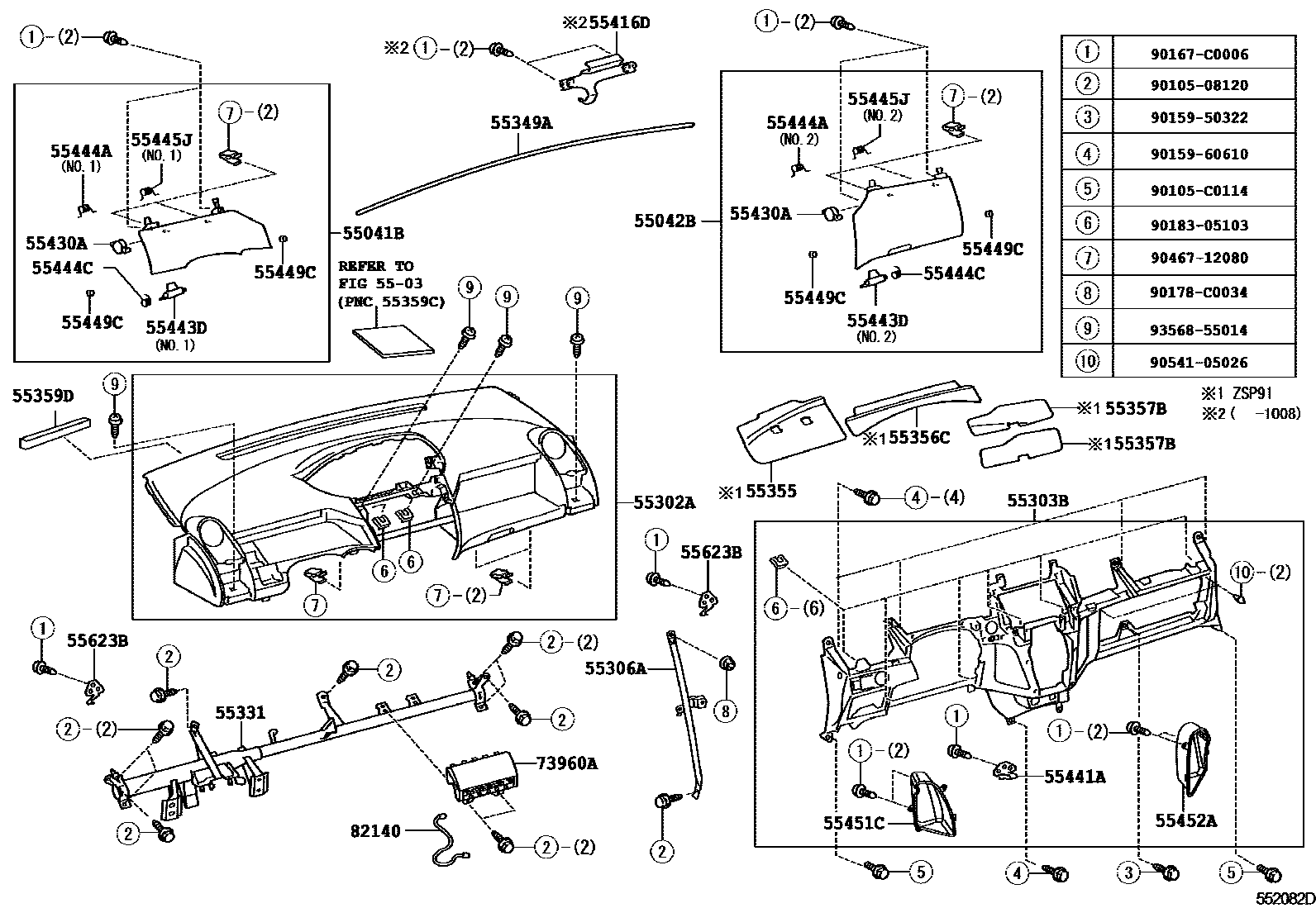

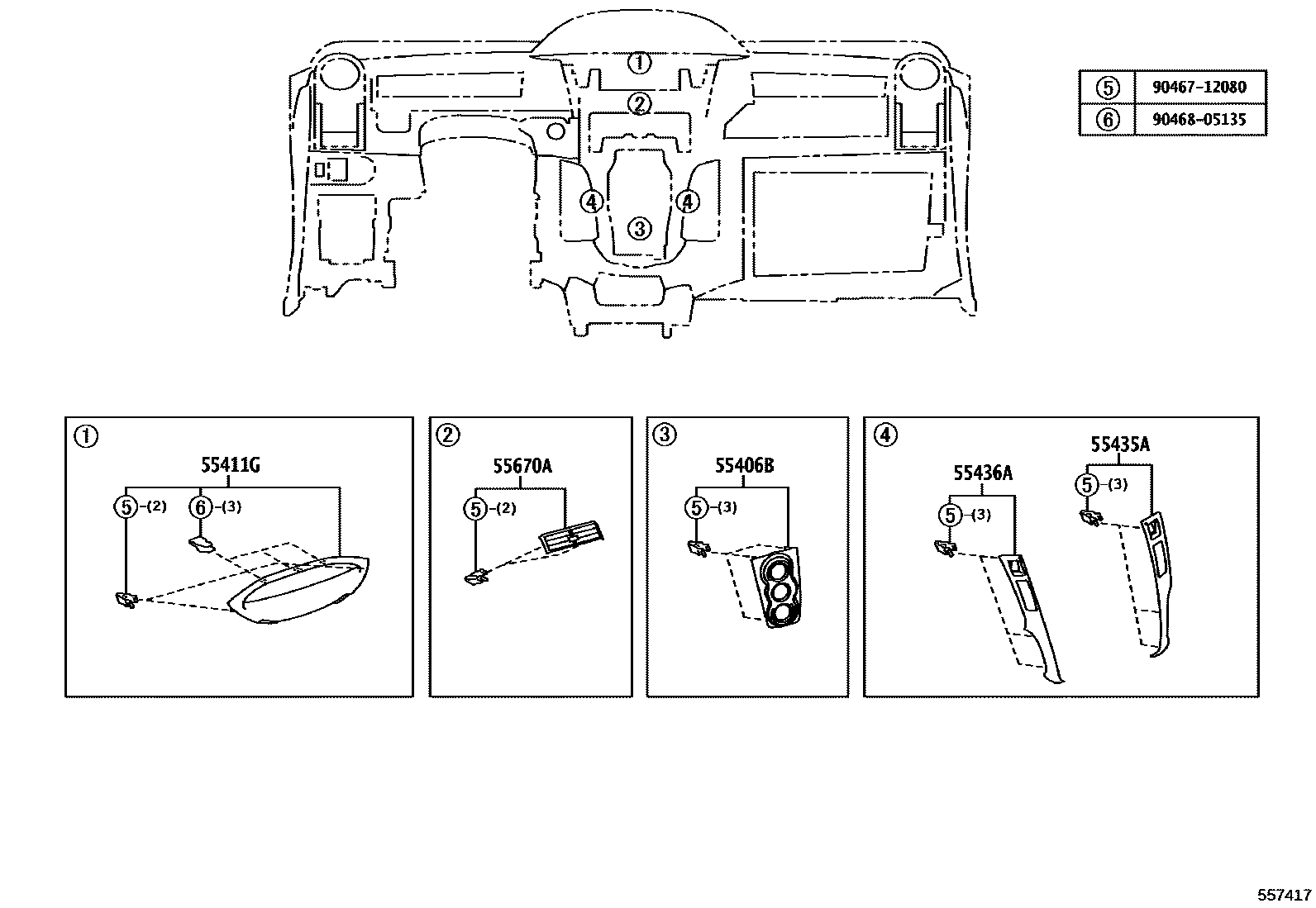

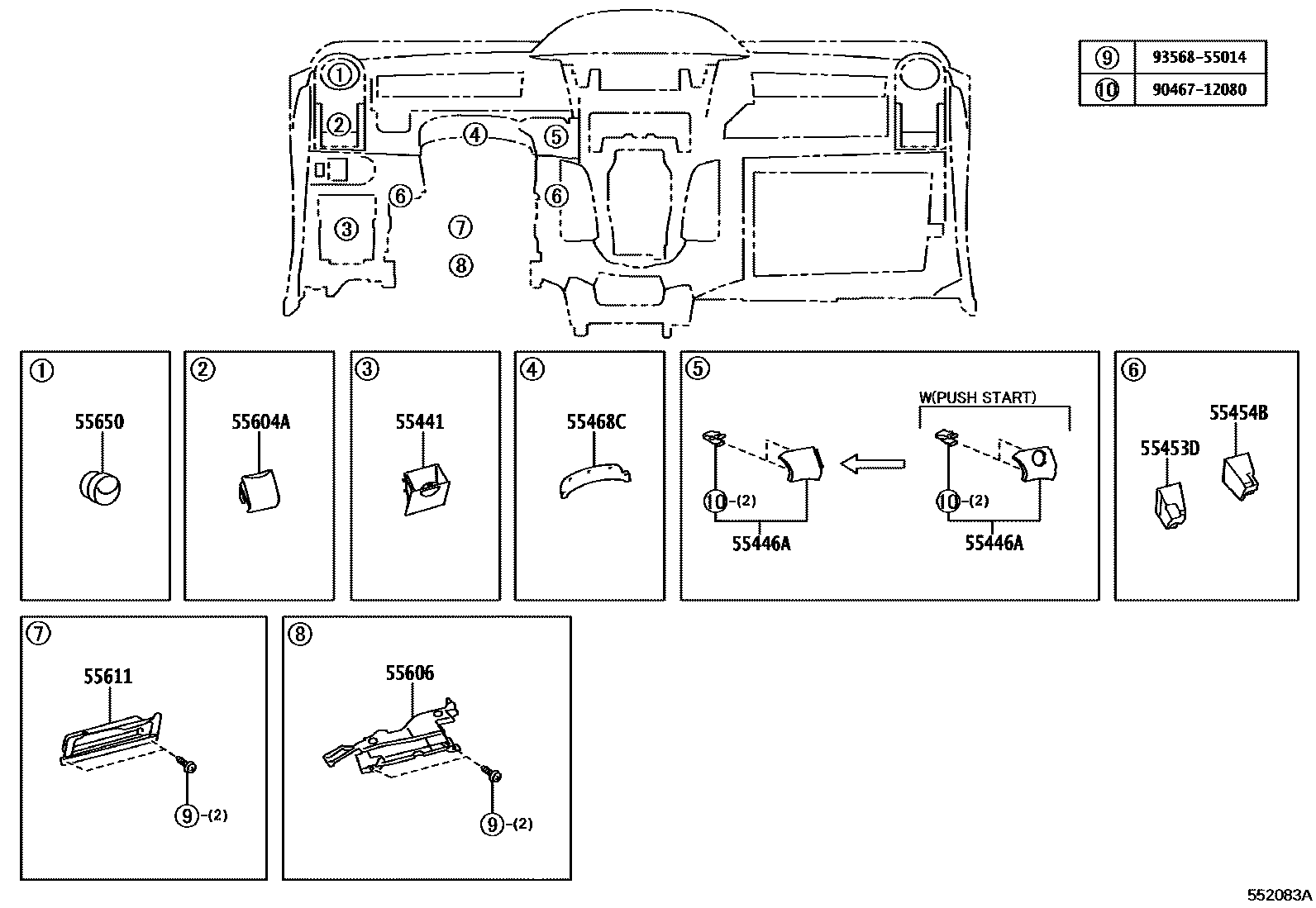

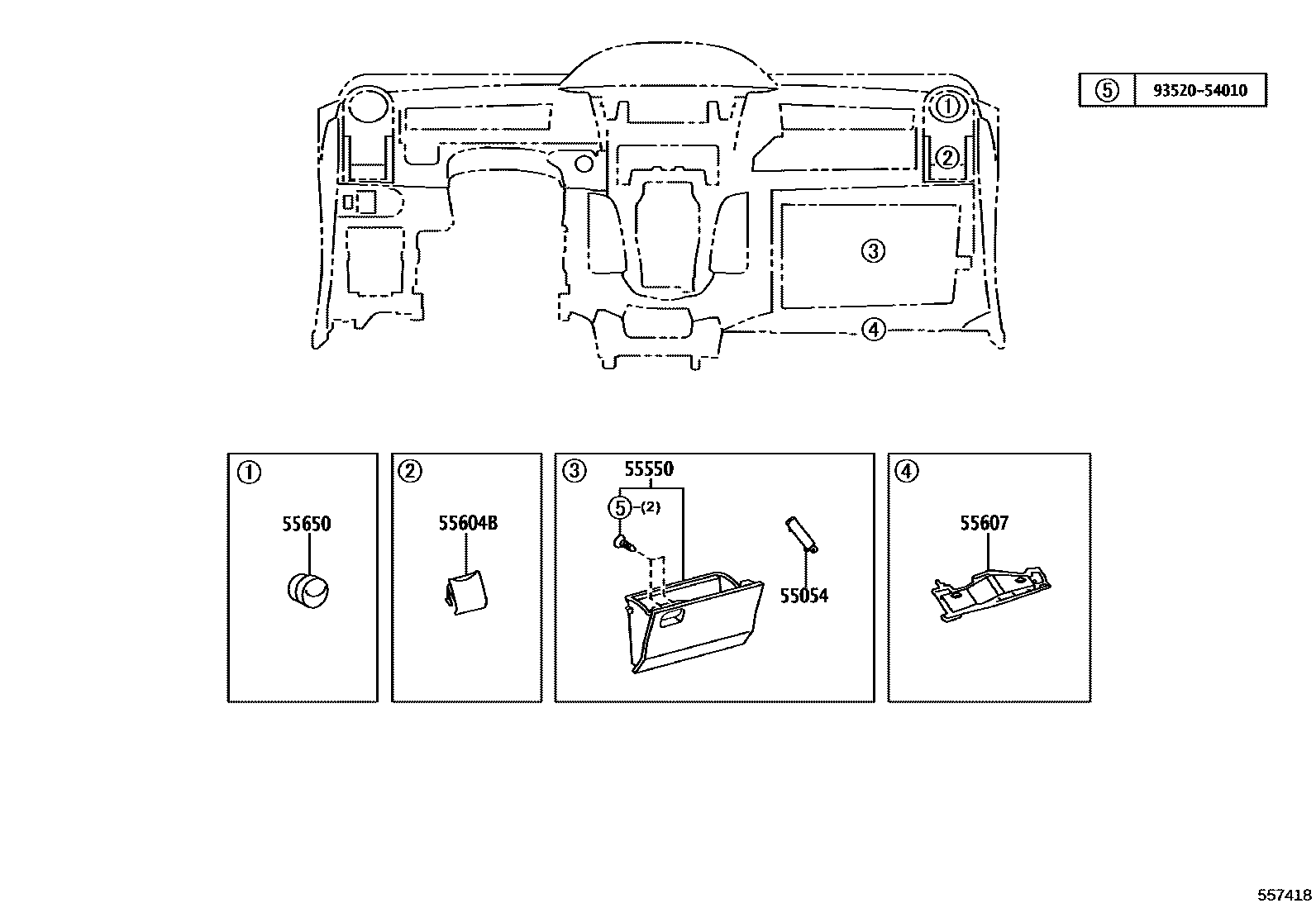

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D160 |
| 55331 | Dashboard reinforcement | 55330-0D320 |
| 55349A | Dashboard cushion | 55349-0D090 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D080 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D090 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D120 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-0D070 |
| 55416D | Instrument panel pad No. 2 bracket | 55416-0D010 |
| 55430A | Instrument cluster decorative panel damper assembly | 55430-52020 |
| 55441A | Dashboard storage box spring | 55444-52250 |
| 55444A | Dashboard storage box spring | 55444-52230 · 55444-52270 |
| 55444C | Dashboard storage box spring | 55478-52020 |
| 55445J | Dashboard storage box spring | 55445-52160 · 55445-52180 |
| 55449C | Dashboard No. 2 decorative panel cushion | 55449-28020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-0D040 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-0D040 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D080 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D070 |
| 55623B | Dashboard cup holder spring | 55623-52020 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D080 |
| 82140 | Instrument panel wiring harness assembly | 82140-0D030 |
