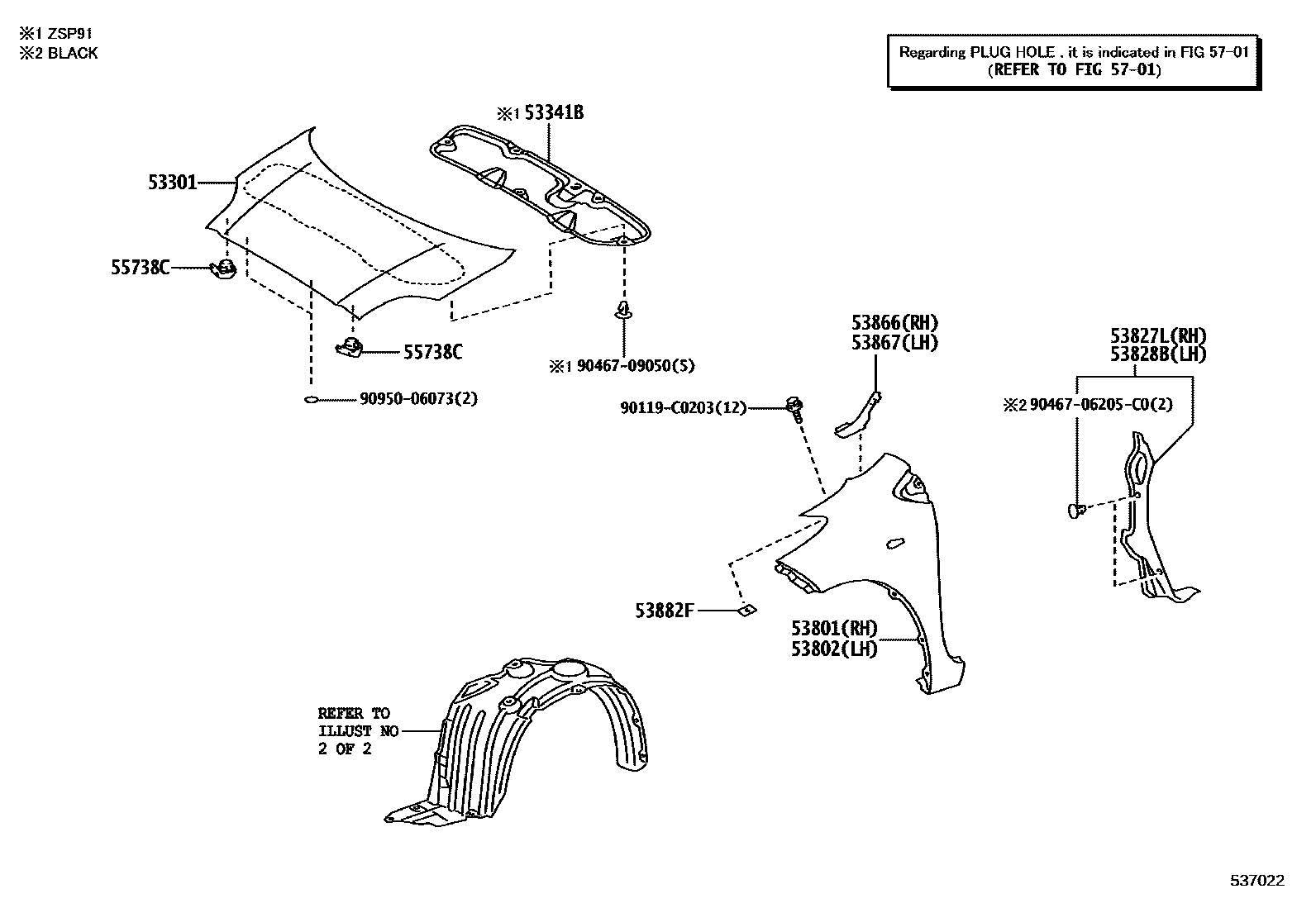

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0D070 |
| 53341B | engine cover gasket | 53341-0D100 |
| 53801 | Right front fender sub-assembly | 53811-0D130 · 53811-52210 |
| 53802 | Left front fender sub-assembly | 53812-0D130 · 53812-52210 |
| 53827L | Right front fender side panel protector | 53827-0D050 |
| 53828B | Left front fender side panel protector | 53828-0D050 |
| 53866 | Right front fender to cowl side seal | 53866-0D060 |
| 53867 | Left front fender to cowl side seal | 53867-0D060 |

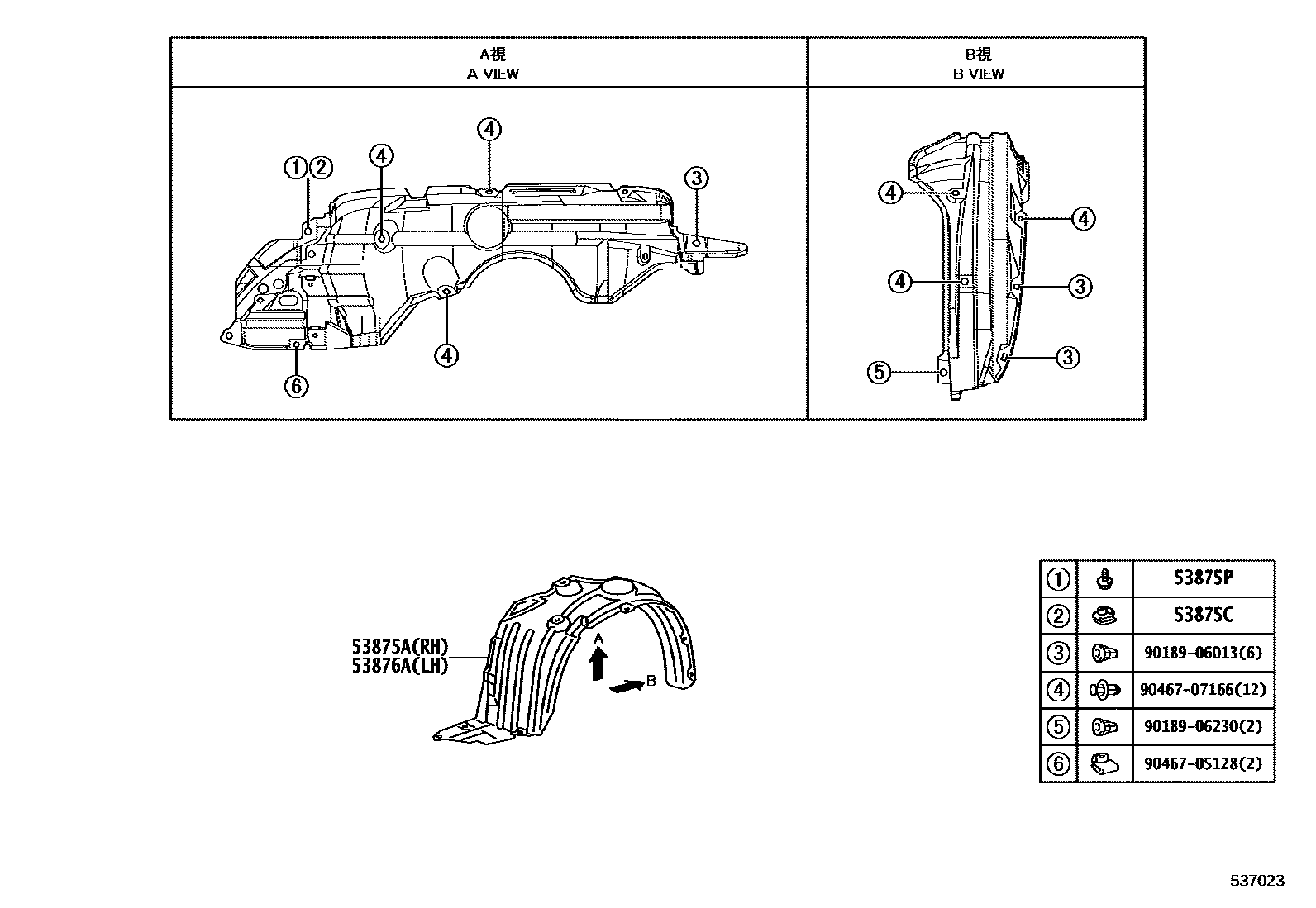

| 53875A | Right front fender lining | 53875-0D090 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | Screw No. 1 | 90159-C0013 |
| 53876A | Left front fender lining | 53876-0D090 |
| 53882F | front fender seal | 53882-16030 |
| 55738C | Engine cover right block | 55738-0D040 |
