Toyota YARIS 后保险杠及附件 — Figure 5202

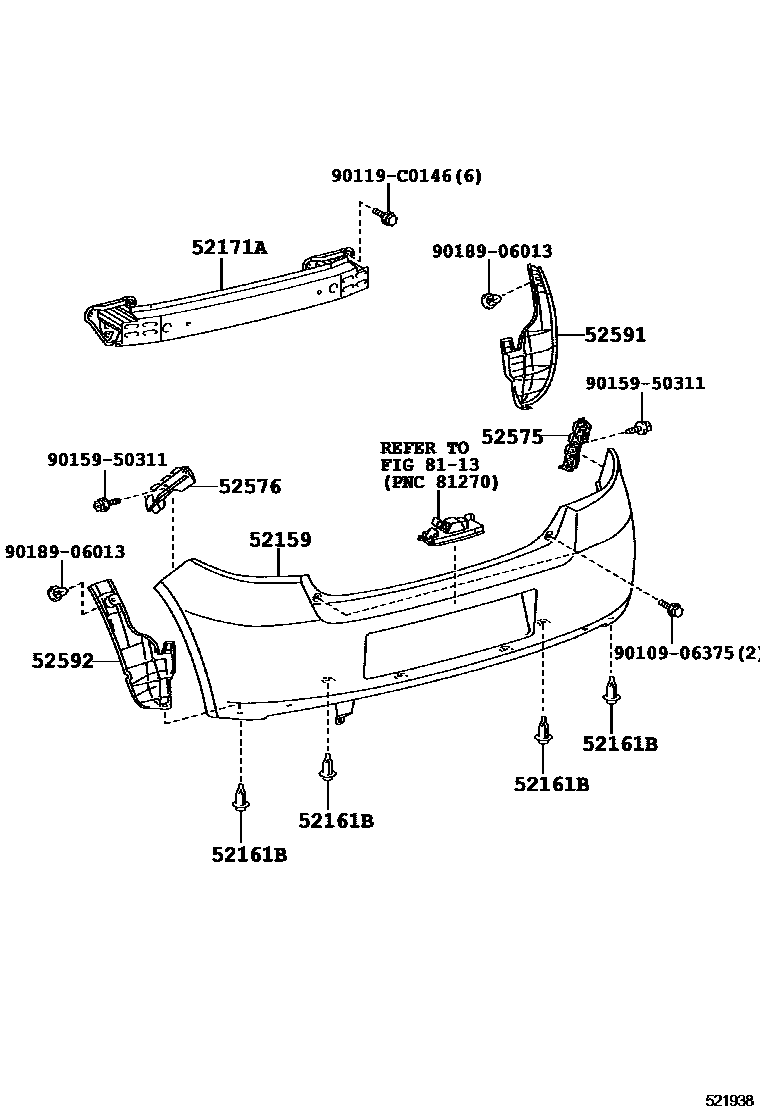

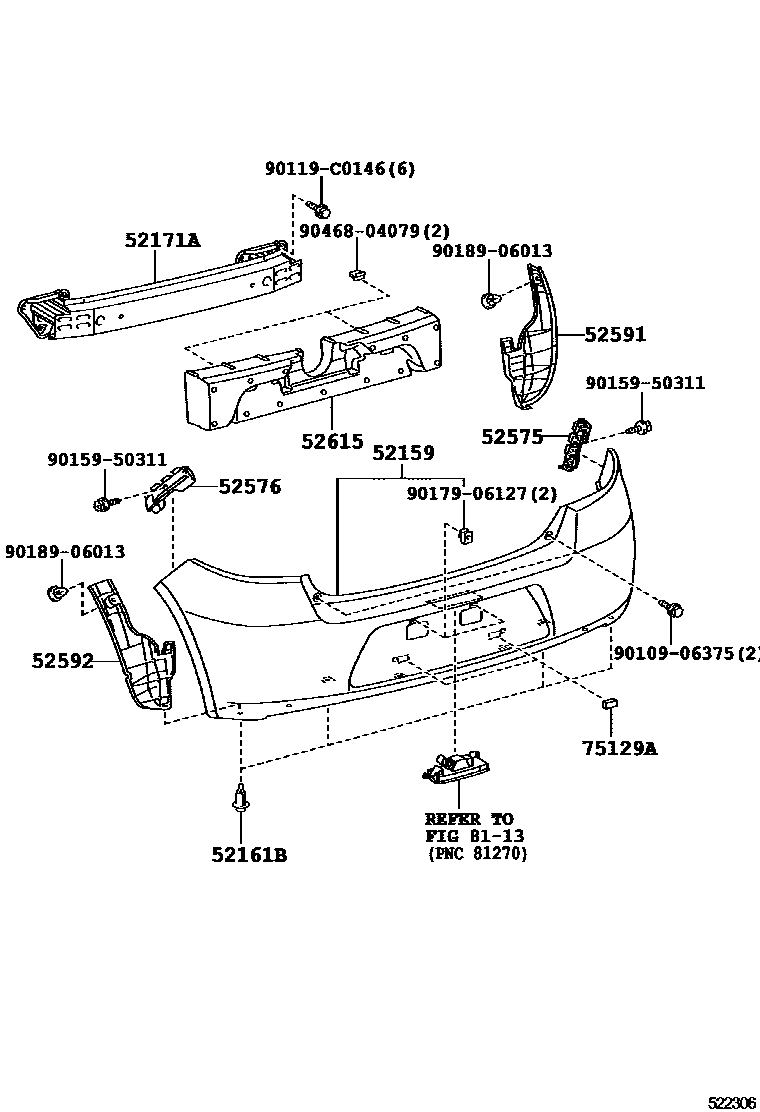

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0D985 · 52159-0D990 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-0D050 · 52023-0D070 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D080 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D080 |
| 52591 | Rear bumper right seal | 52591-0D090 |
| 52592 | Rear bumper left seal | 52592-0D090 |
| 52615 | Rear bumper energy absorber | 52615-0D030 |
| 75129A | rear license plate cushion | 75129-0D010 |
