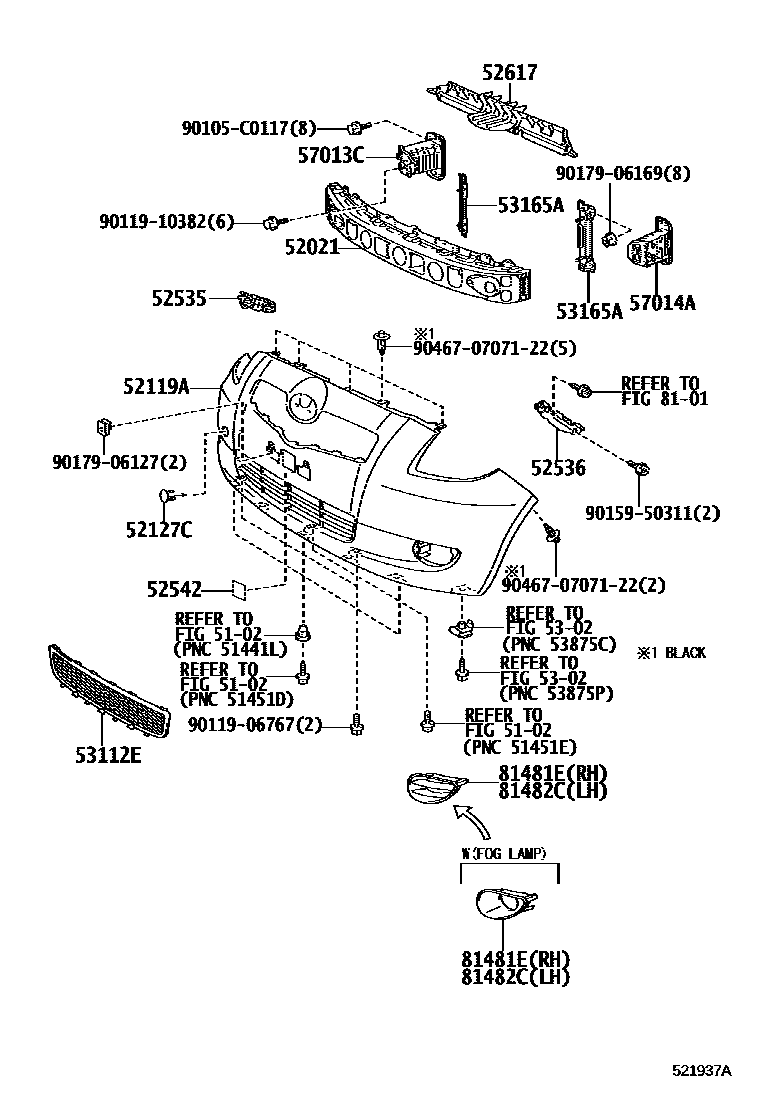

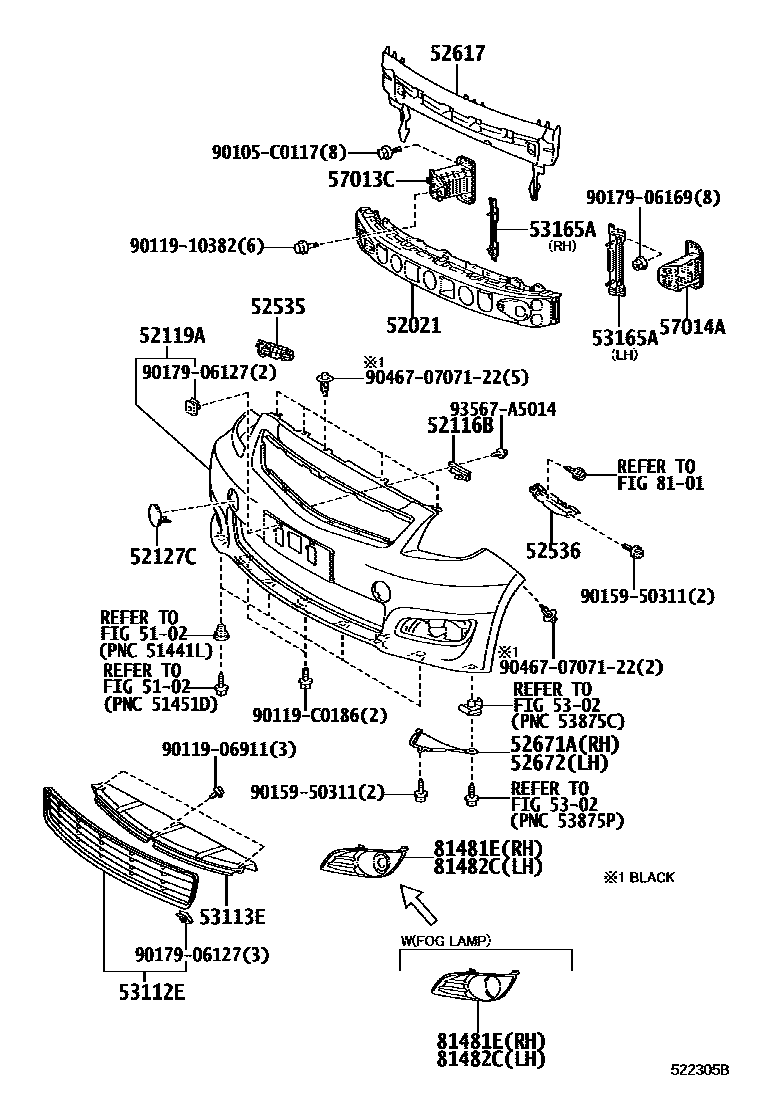

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D100 |
| 52116B | front bumper fixings | 52116-0D040 |
| 52119A | front bumper cover | 52119-0D999 · 52119-0U901 |
| 52127C | Front bumper hole cover | 52127-0D908 · 52127-0D913 |
| 52535 | Front bumper right side fixing bracket | 52535-0D040 |
| 52536 | Front bumper left fixed bracket | 52536-0D040 |
| 52542 | Front bumper center seal | 52542-0D020 |
| 52617 | Radiator upper bracket shock absorber | 52617-0D030 · 52617-0D060 |
| 52671A | Front bumper arm right extension section | 52671-0D010 |
| 52672 | Front bumper arm left extension | 52672-0D010 |
| 53112E | No. 1 radiator lower grille | 53112-0D080 · 53112-0D230 |
| 53113E | No. 2 radiator lower grille | 53113-0D010 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-0D040 · 53165-0D040 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0D020 · 57013-0D021 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0D020 |
| 81481E | Right fog light cover | 81481-0D030 · 81481-0D040 · 81481-0D160 · 81481-0D170 |
| 81482C | Left fog light cover | 81482-0D040 · 81482-0D050 · 81482-0D170 · 81482-0D180 |
