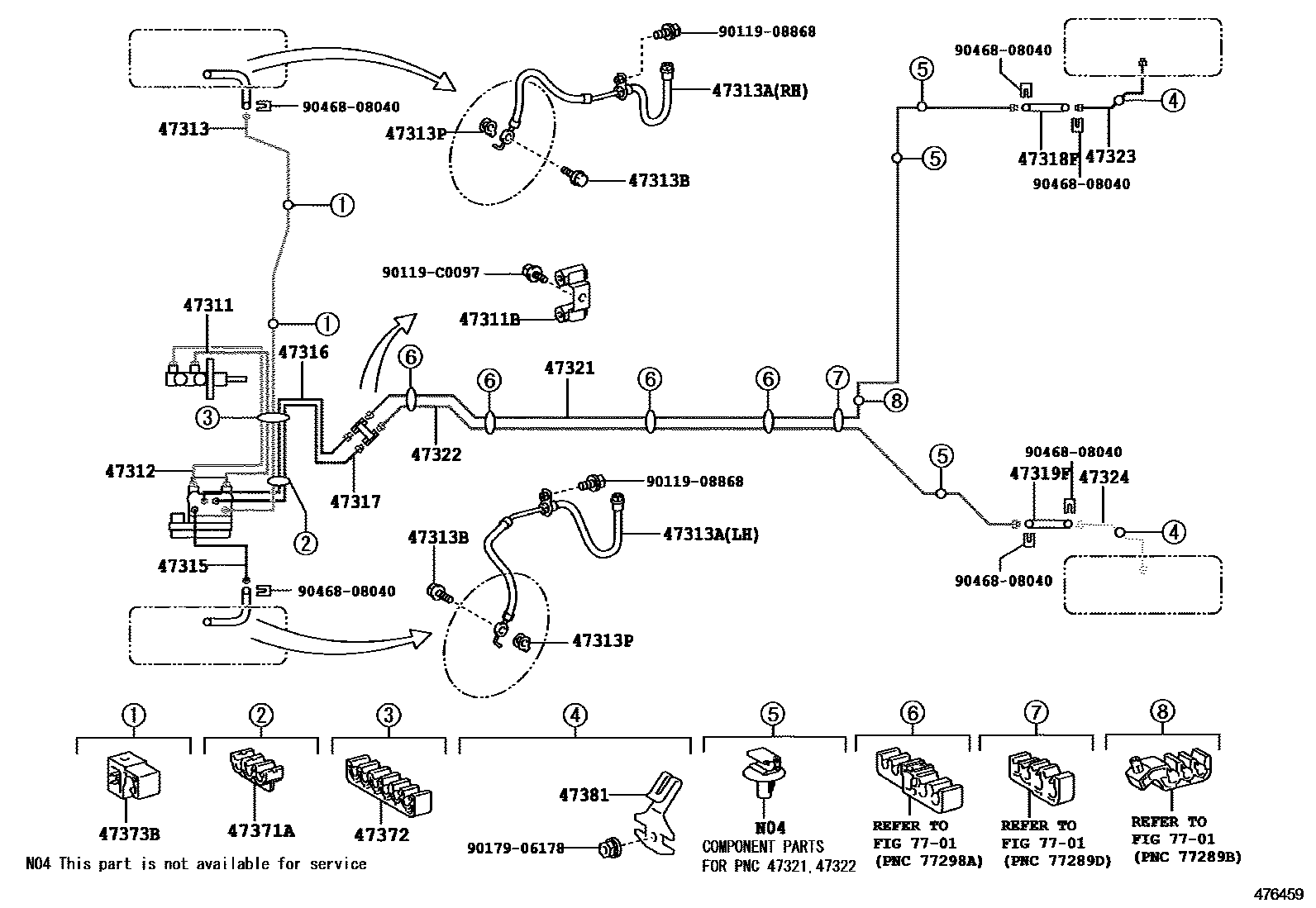

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

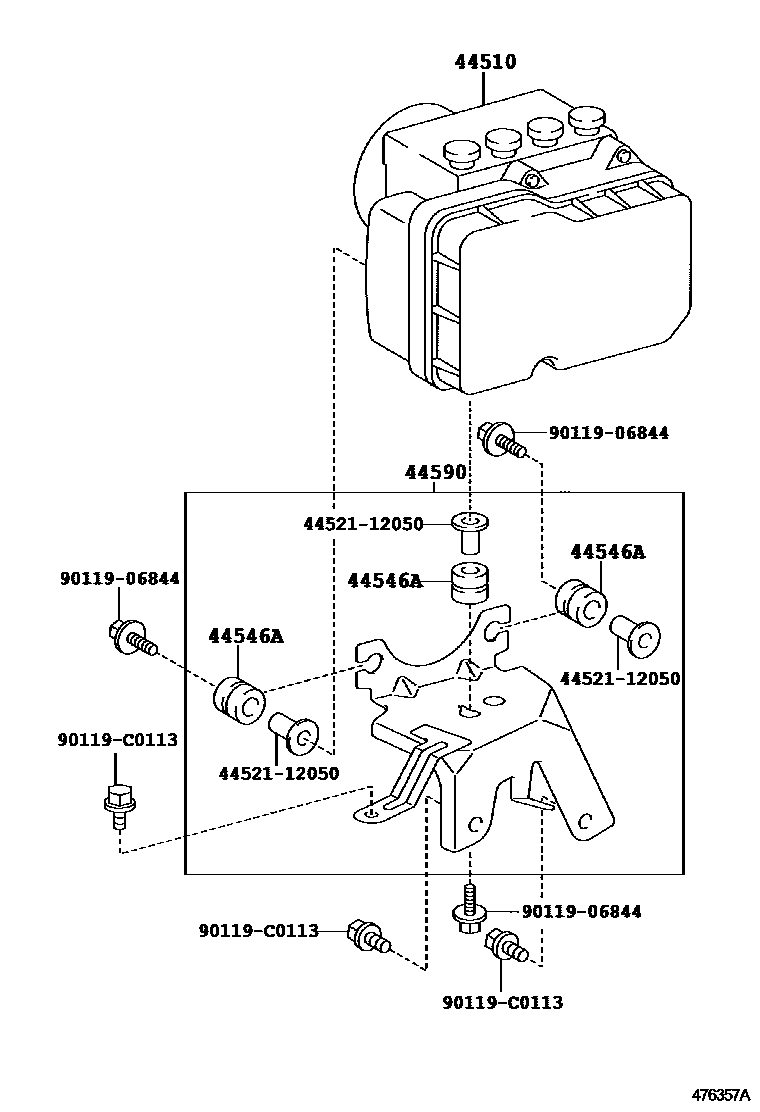

| 44510 | brake actuator assembly | 44050-0D080 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-52170 |
| 47311 | No. 1 front brake pipe | 47311-0D300 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-C0001 |
| 47312 | No. 2 front brake pipe | 47312-0D270 |
| 47313 | No. 3 front brake pipe | 47313-0D180 |
| 47313A | No. 1 front flexible hose | 90947-C2010 · 90947-C2011 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-0D240 |
| 47316 | No. 6 front brake pipe | 47316-0D190 |
| 47317 | No. 7 front brake pipe | 47317-0D190 |
| 47318F | Right rear flexible hose | 90947-C2012 |
| 47319F | Left rear flexible hose | 90947-C2013 |
| 47321 | No. 1 rear brake pipe | 47321-0D210 |
| 47322 | No. 2 rear brake pipe | 47322-0D210 |
| 47323 | No. 3 rear brake pipe | 47323-0D150 |
| 47324 | No. 4 rear brake pipe | 47324-0D150 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
