Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 3 images and 26 PNC and OE references.

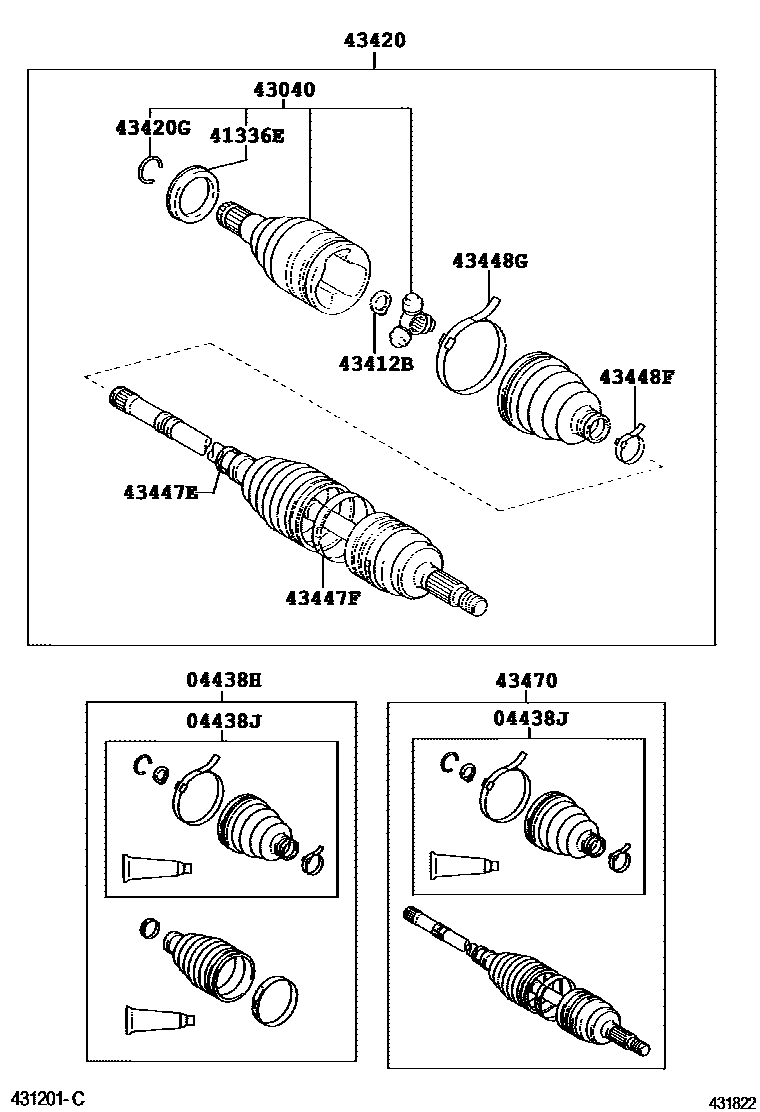

Toyota YARIS Front Drive Shaft EPC diagram — 431822
Front Drive Shaft — 431822 (200805 – 999999)

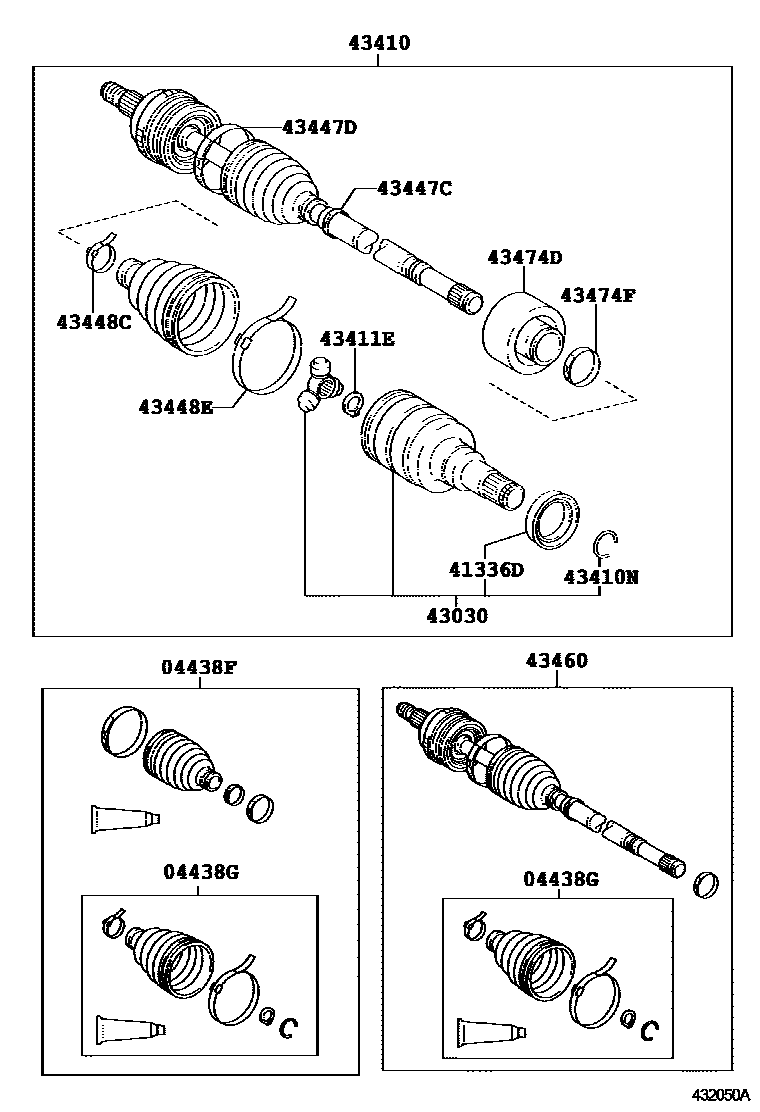

Toyota YARIS Front Drive Shaft EPC diagram — 432050A
Front Drive Shaft — 432050A (200805 – 999999)

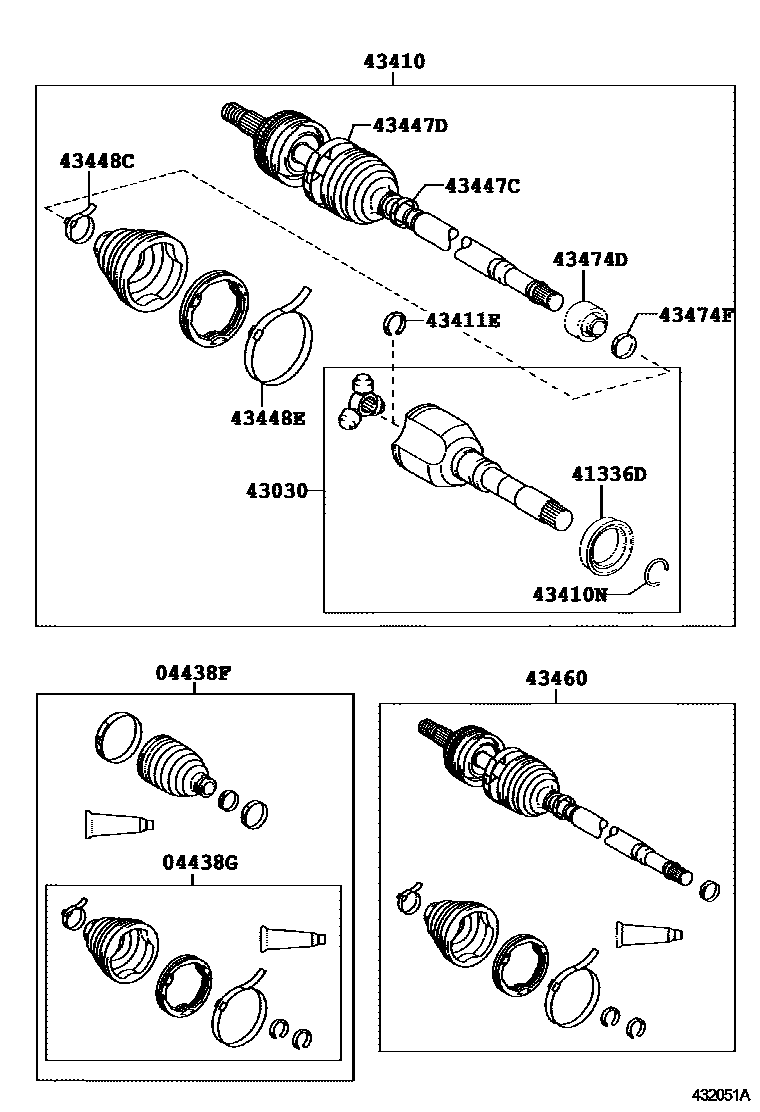

Toyota YARIS Front Drive Shaft EPC diagram — 432051A
Front Drive Shaft — 432051A (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D181 · 04427-0D182 · 04427-0D191
04438GRight front drive shaft inner universal joint dust boot assembly04437-02310 · 04437-0D140
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-02460 · 04428-0D171 · 04428-0D172
04438JLeft front drive shaft inner universal joint dust boot assembly04437-02310 · 04437-0D140
41336DRight front driveshaft dust cover41336-12010
41336ELeft front driveshaft dust cover41336-12010
43030Right front drive shaft inner universal joint assembly43040-02110 · 43403-10011
43040Left front drive shaft inner universal joint assembly43040-02110 · 43403-10011
43410Right front driveshaft assembly43410-0D300 · 43410-0D310
43410NHole snap ring (for right front driveshaft)90521-26004
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-12070 · 90520-22001
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-12070 · 90520-22001
43420Left front drive shaft assembly43420-0D220 · 43420-0D230
43420GHole snap ring (for left front driveshaft)90521-26004
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-12230 · 42345-52260
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-12240 · 42345-52250
43447EClamp (for left front axle outer universal joint dust cover)42345-12230 · 42345-52260
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-12240 · 42345-52250
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0D420 · 42345-12230
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-12180 · 90949-01146
43448FClamp (for left front axle inner universal joint dust cover)42345-0D420 · 42345-12230
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-12180 · 90949-01146
43460Right front outer drive universal joint shaft assembly43460-09S60 · 43460-09S71
43470Left front outer drive universal joint shaft assembly43470-09V70 · 43470-09V81
43474DRight front driveshaft shock absorber43474-0D100 · 43474-0W050
43474FClamp (for right front driveshaft shock absorber)42345-06420
