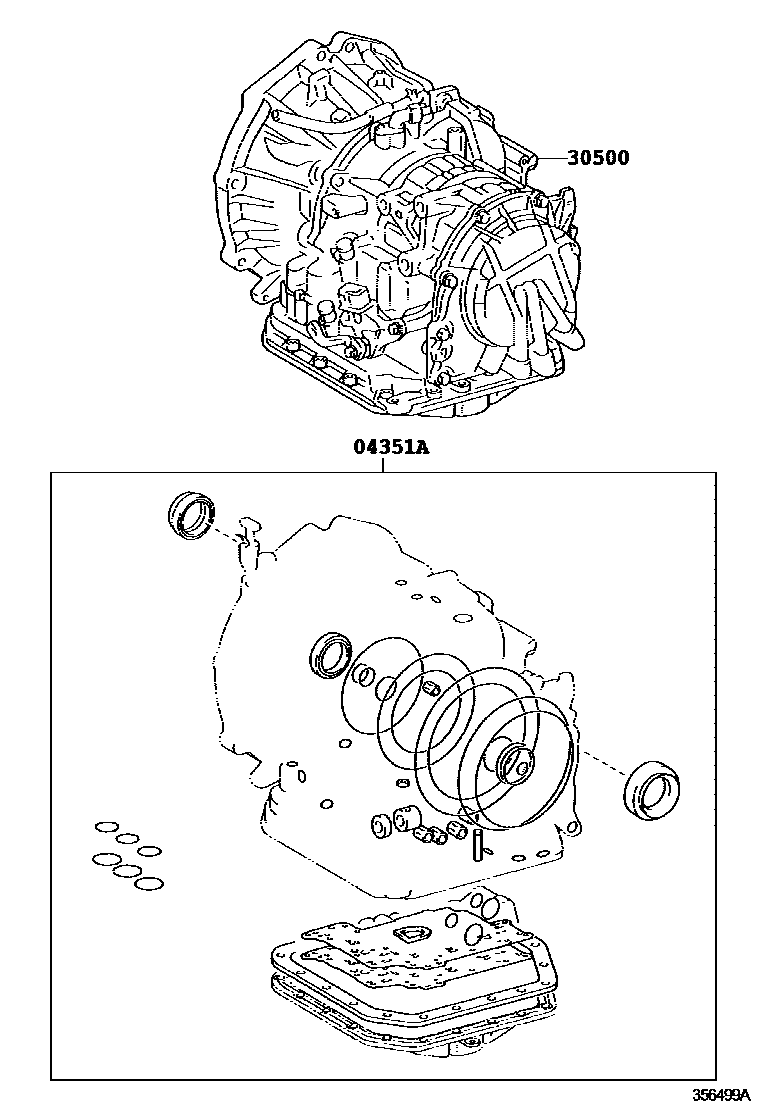

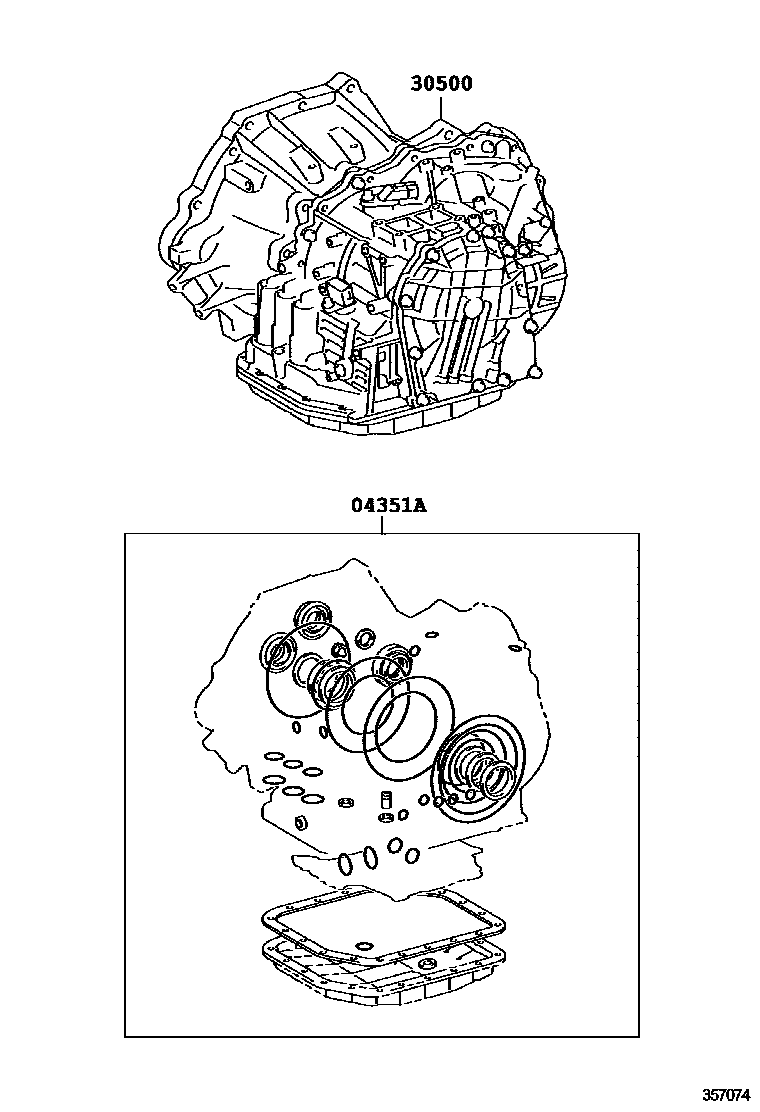

Toyota YARIS 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota YARIS EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-52510 · 04351-52511 · 04351-52512 · 04351-52513 · 04351-52540 |
| 30500 | Automatic transmission axle assembly | 30500-52340 · 30500-52410 · 30500-52470 · 30500-52480 |
