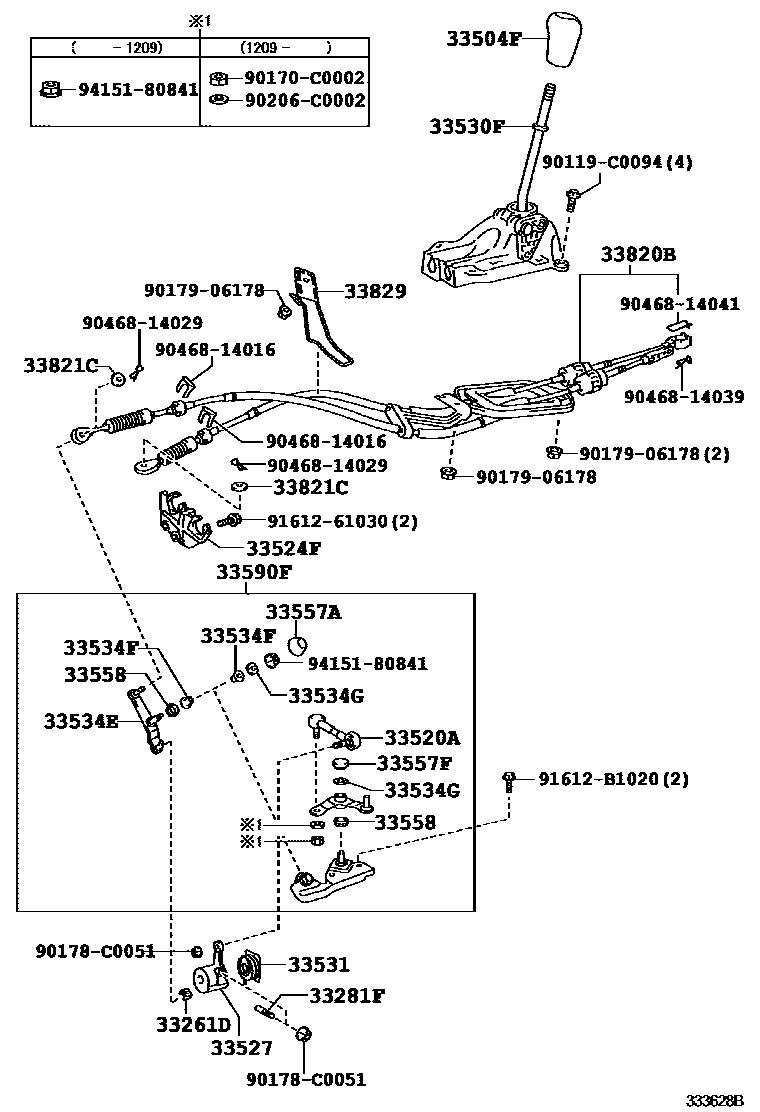

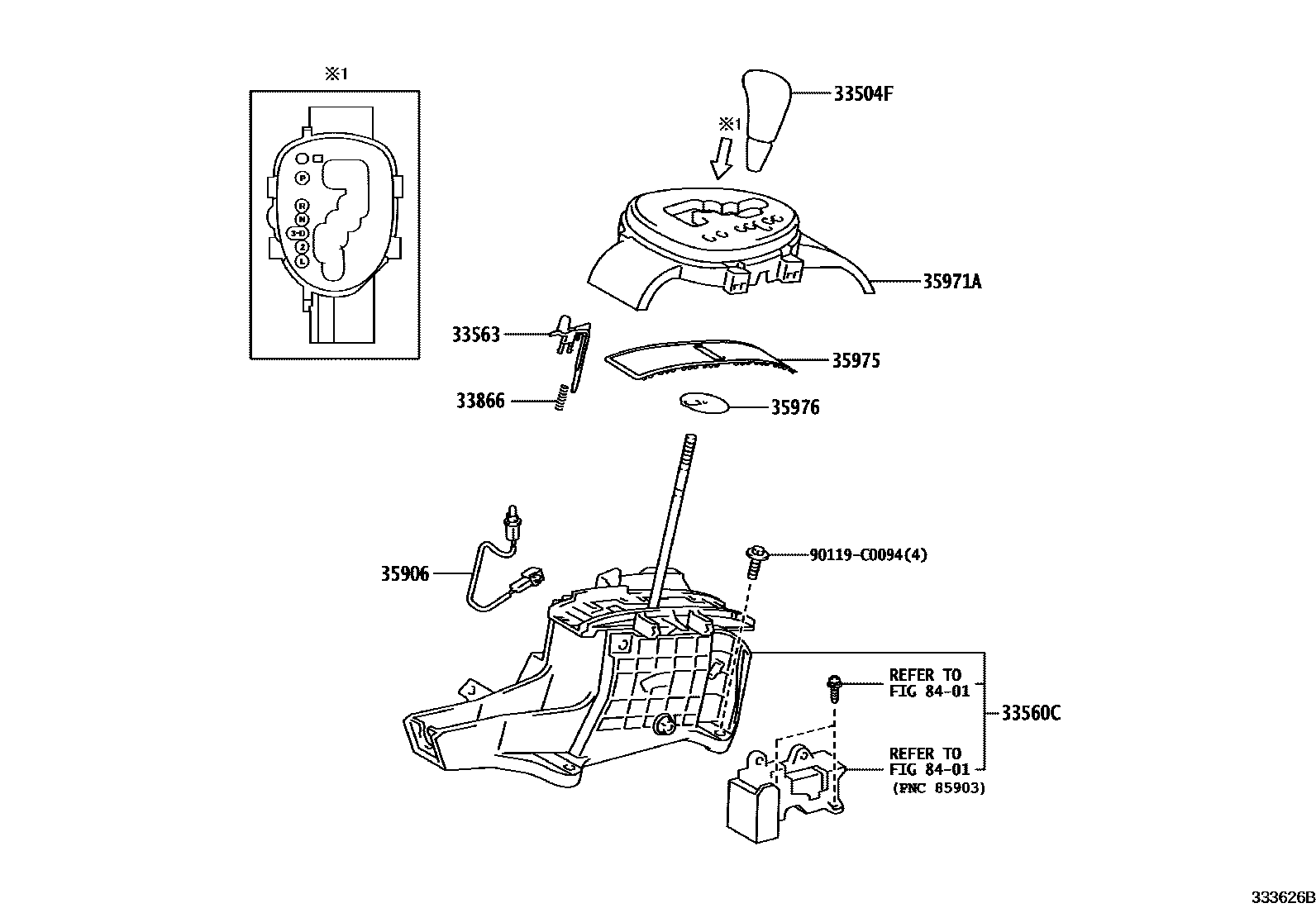

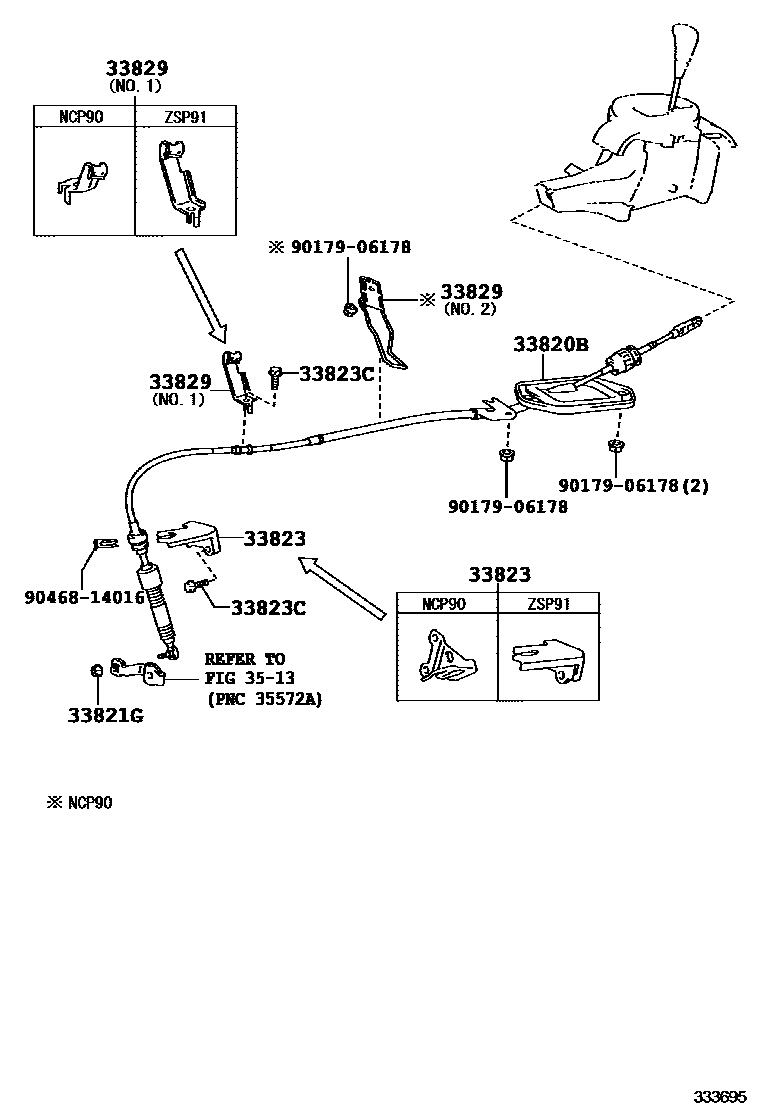

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-0D010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-02030 |
| 33527 | Gear shift lever (for floor shift) | 33527-0D010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D060 |
| 33531 | Dust boot (for shift lever) | 33531-0D030 |
| 33534E | No. 2 gear selection right-angle lever | 33534-0D010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-C0001 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-0D030 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-0D020 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-0D010 |
| 33560C | Lower shift lever assembly | 33560-0D090 |
| 33563 | Shift lock release button | 33563-0D040 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-0D010 |
| 33820B | Transmission control cable assembly | 33820-0D230 · 33820-0D240 · 33820-0D250 · 33820-0D261 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90178-C0034 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D050 · 33823-0D060 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 |
| 33829 | Transmission control cable bracket | 33829-0D040 · 33829-0D051 · 33829-52092 |
| 33866 | Shift lock release spring | 33866-02020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0D060 |
| 35971A | Position indicator light upper shell | 35971-0D160 · 35971-0D170 |
| 35975 | Slide cover (for position indicator light) | 35975-0D040 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D060 |
