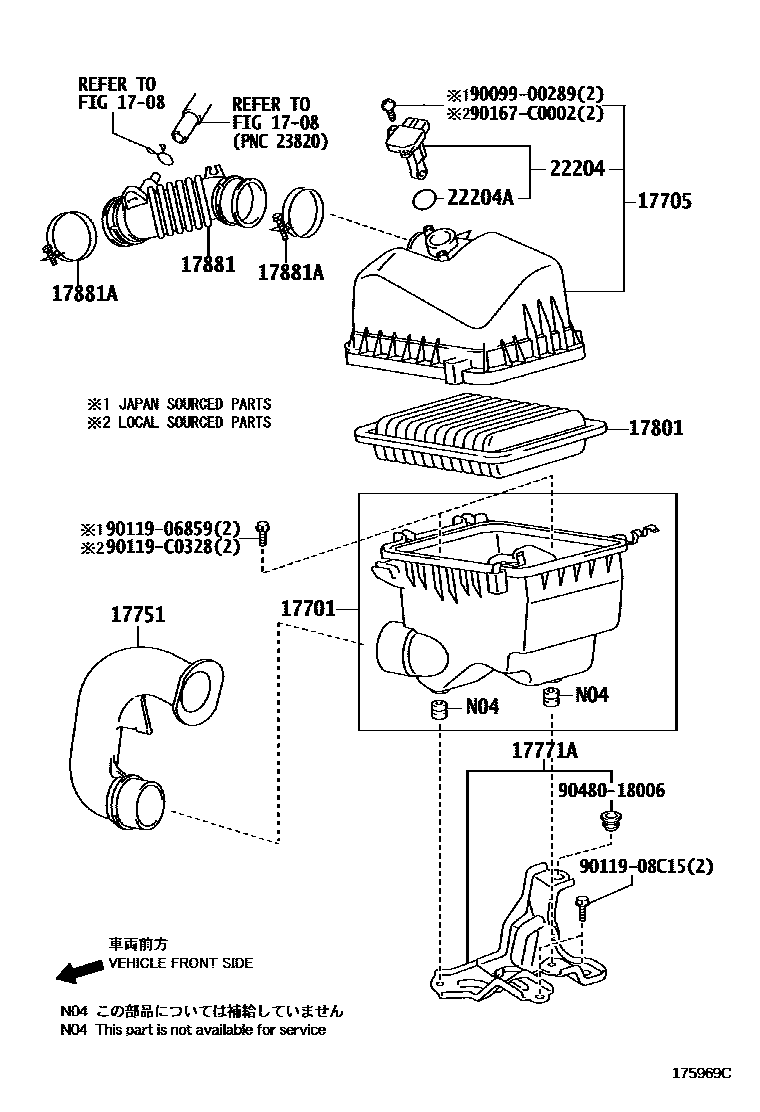

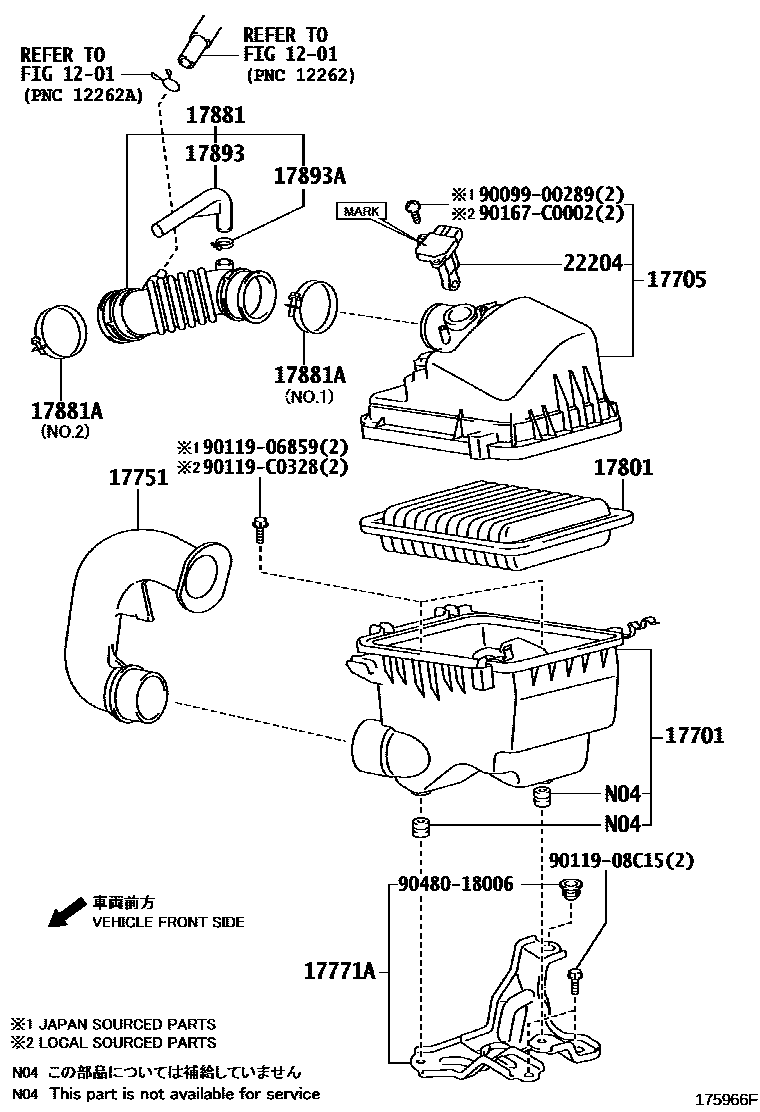

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-0T030 · 17701-0T050 |
| 17705 | Air filter cover sub-assembly | 17705-0M070 · 17705-0T070 · 17705-0T160 · 17705-0T161 |
| 17751 | No. 1 air filter air inlet | 17751-0T090 |
| 17771A | air filter bracket | 17771-21050 |
| 17801 | Air filter element sub-assembly | 17801-0T020 |
| 17881 | No. 1 air cleaner hose | 17880-0M080 · 17880-0T080 · 17880-0T260 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 · 96111-10750 · 96111-10780 |
| 17893 | Intake resonator | 17893-0T010 · 17893-0T040 |
| 17893A | hose clamp | 96111-10330 |
| 22204 | Intake air flow meter assembly | 22204-0T010 · 22204-0T040 · 22204-22010 · 22204-28010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
