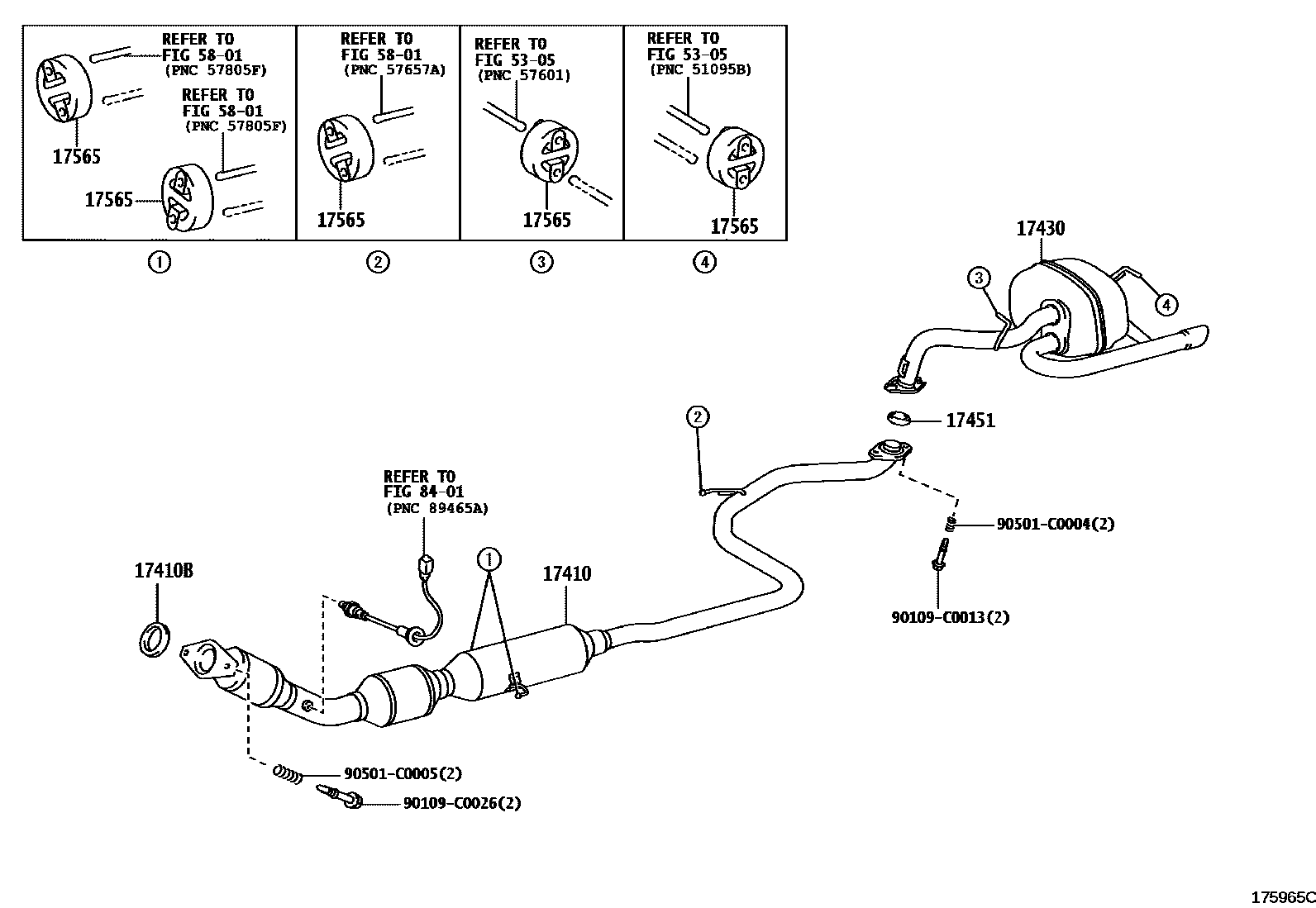

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0M140 · 17410-0M141 · 17410-0M142 · 17410-0M190 · 17410-0T100 · 17410-0T101 · 17410-0T102 · 17410-0T530 · 17410-0T590 |
| 17410B | Exhaust pipe gasket | 17451-0J050 · 17451-0T010 |
| 17430 | Exhaust tailpipe assembly | 17430-0T100 · 17430-0T101 · 17430-0T102 |
| 17451 | Exhaust pipe gasket | 17451-0T030 · 17451-0T031 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0T030 · 17565-0T060 |
