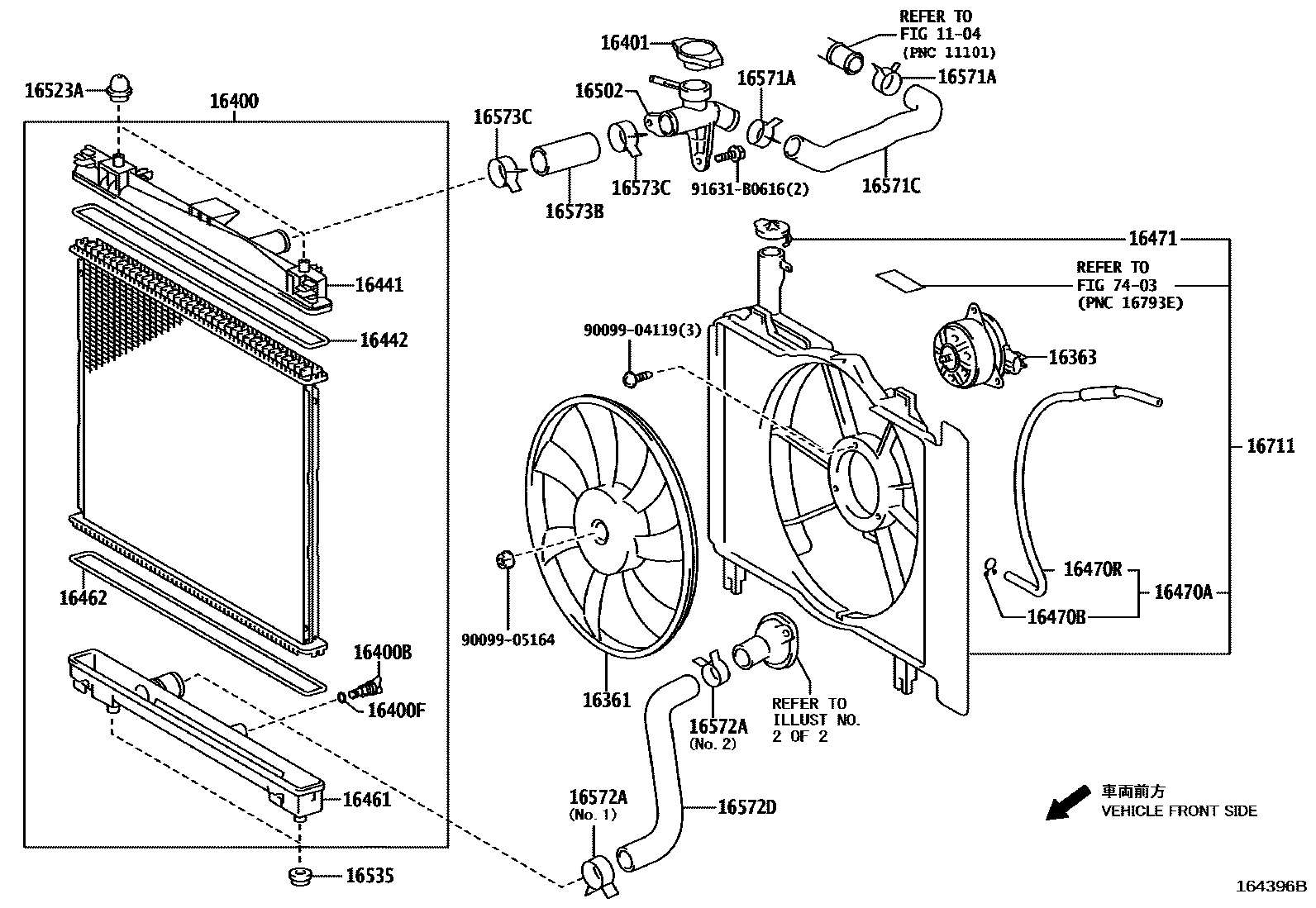

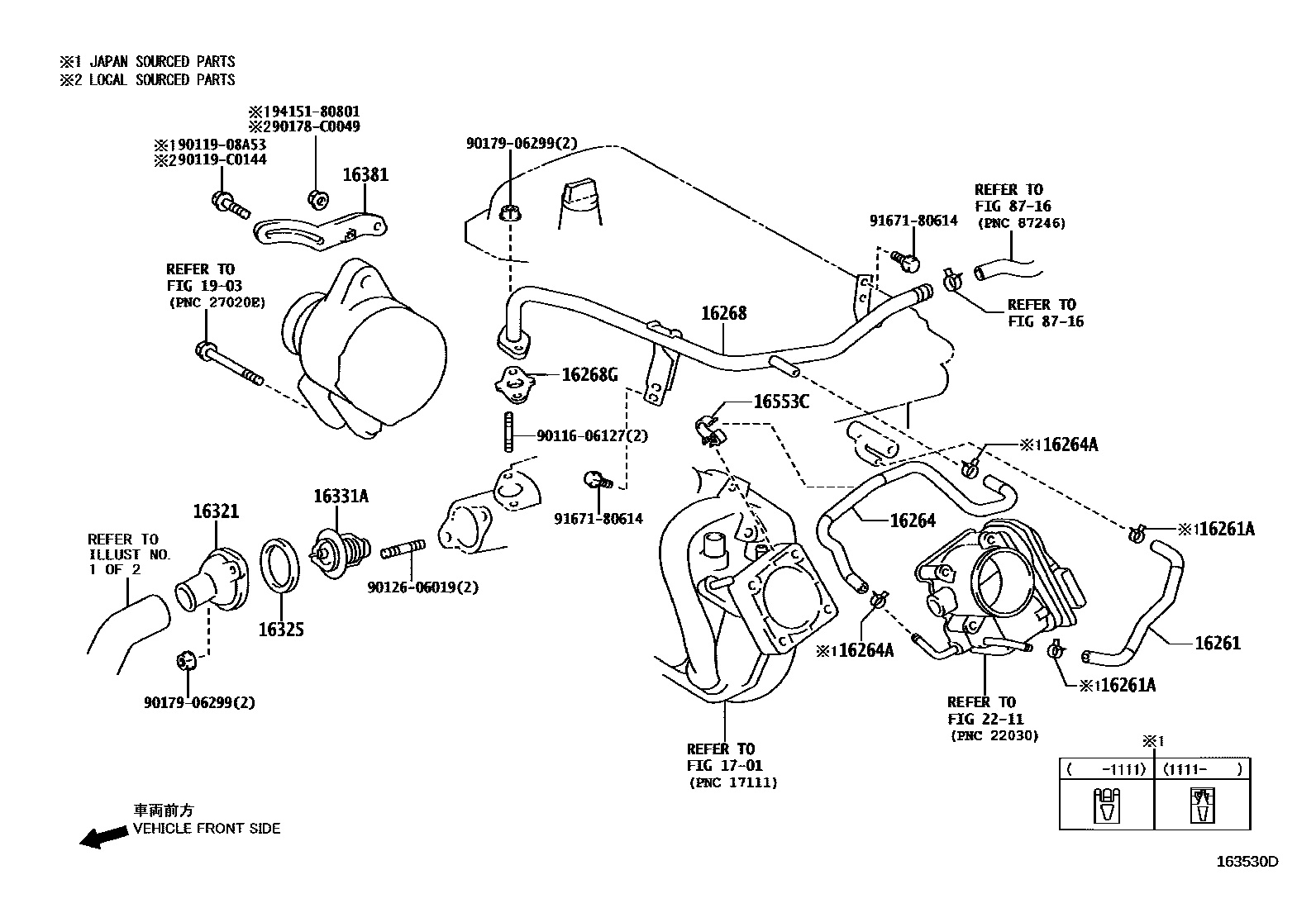

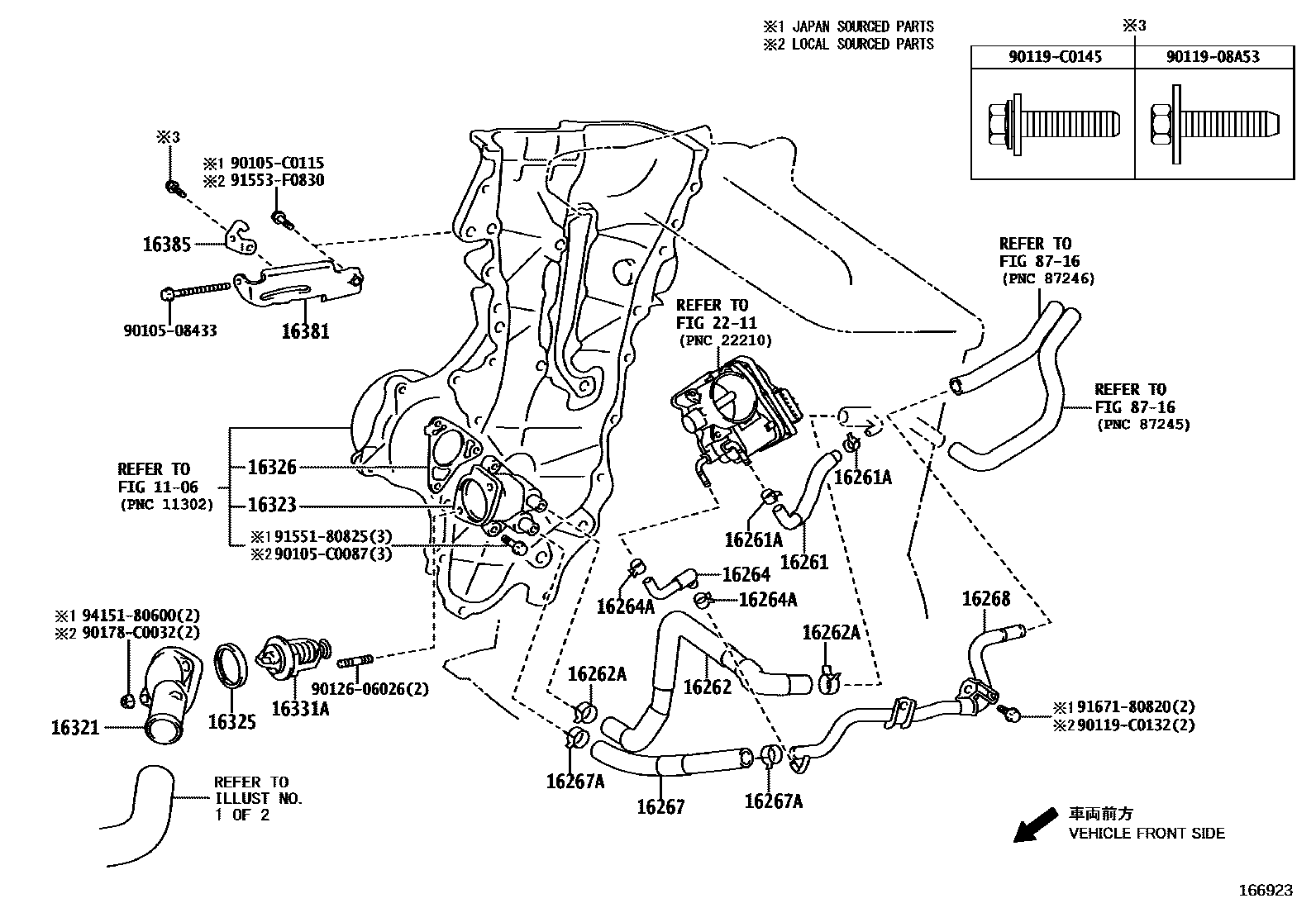

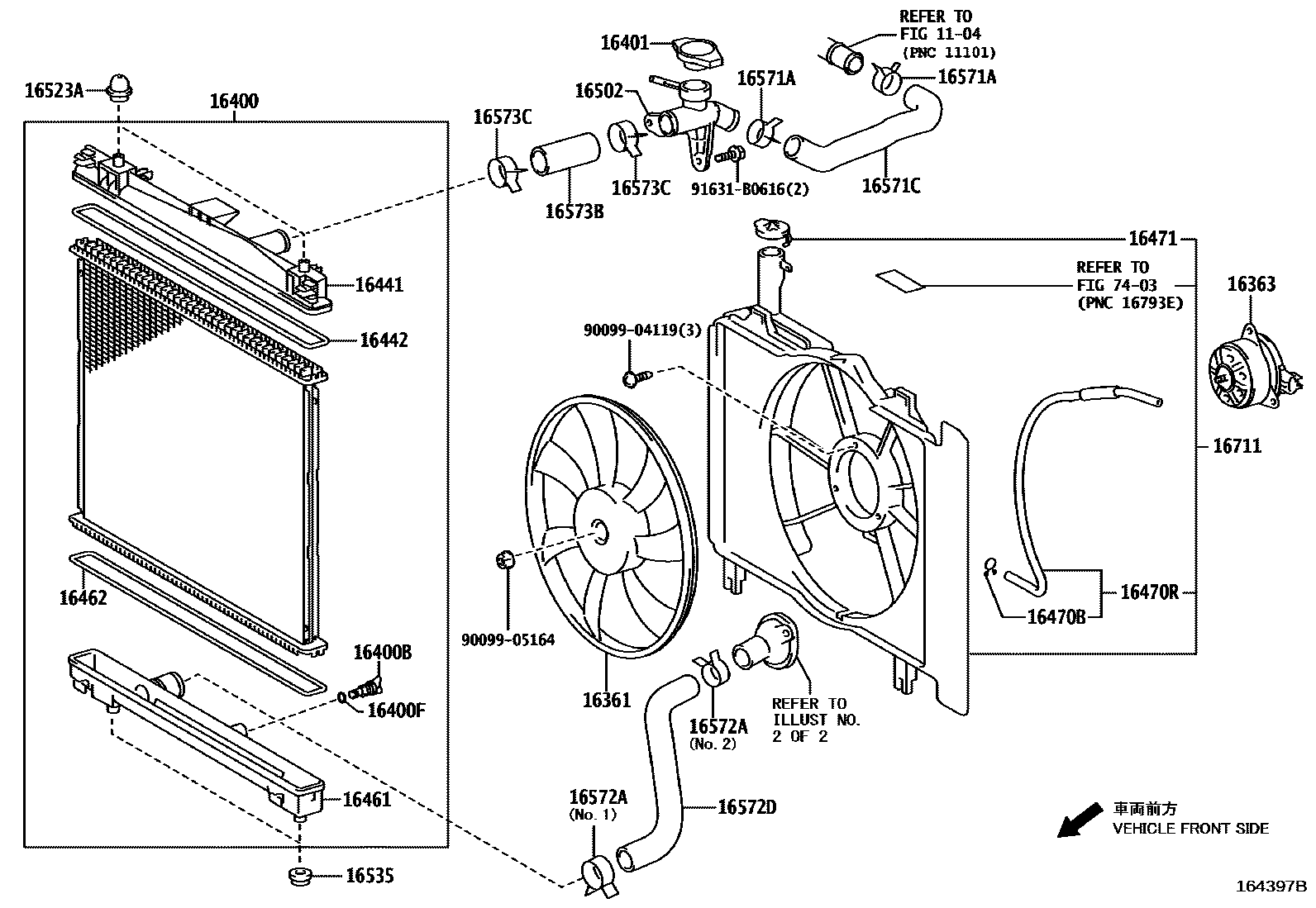

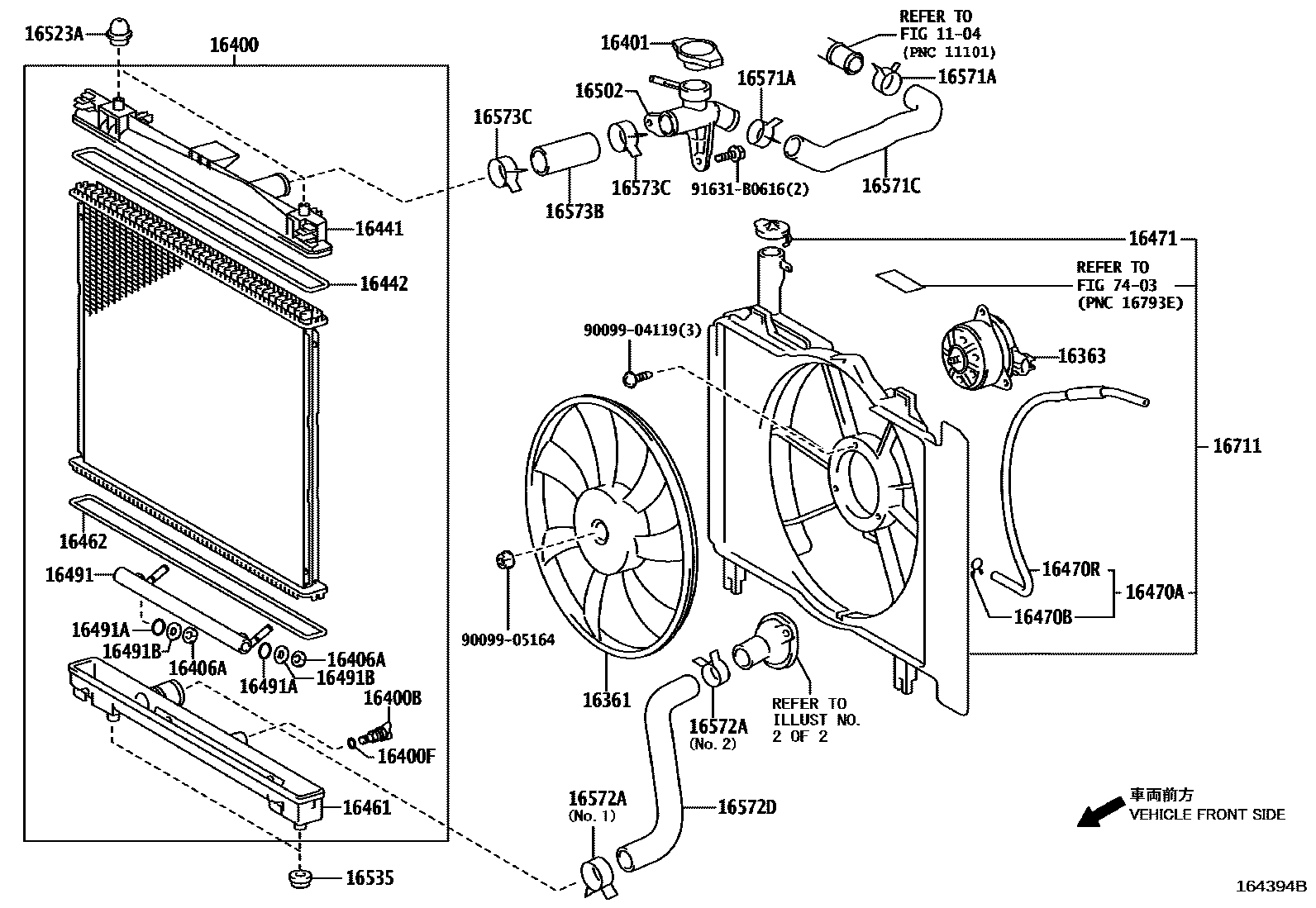

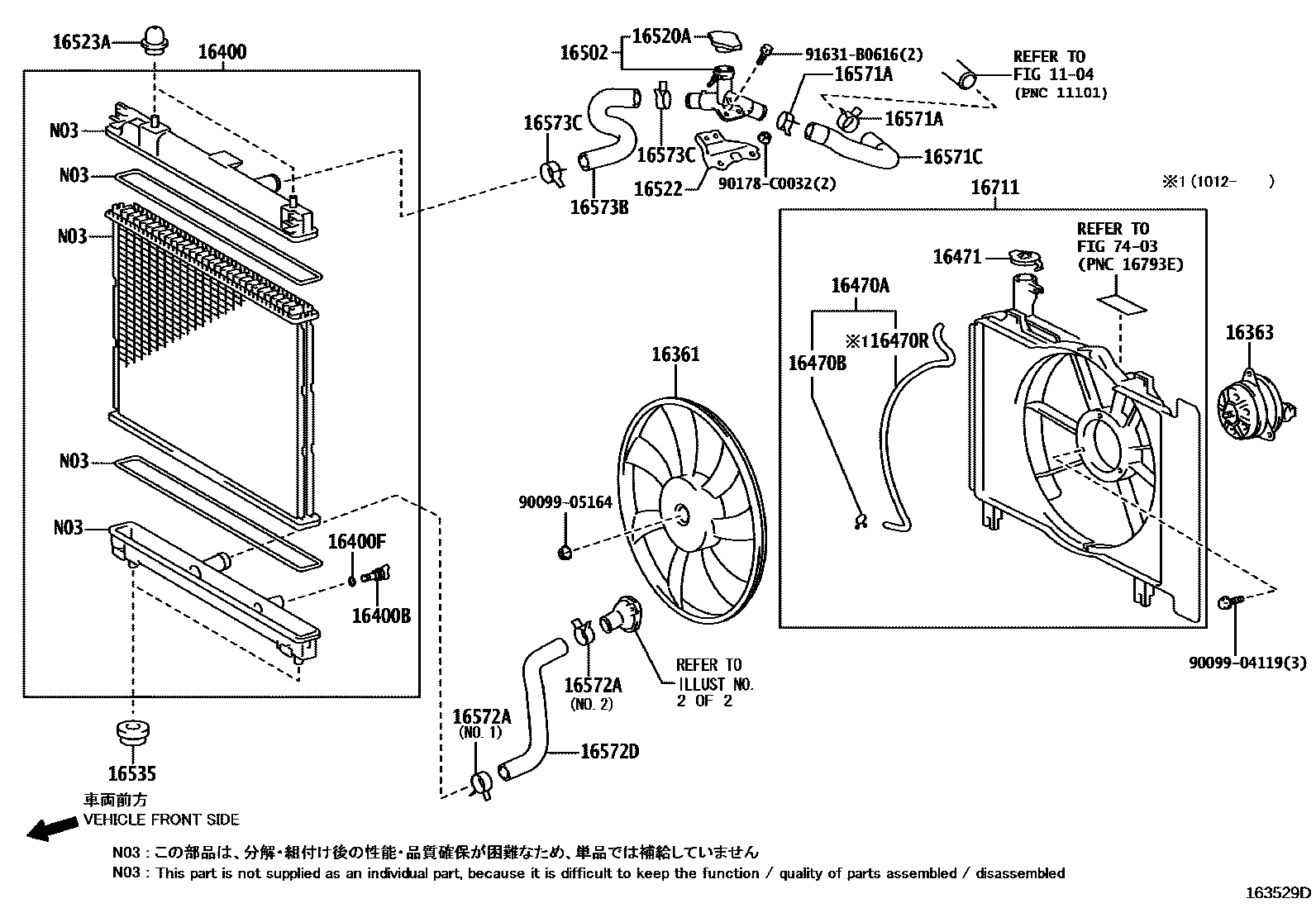

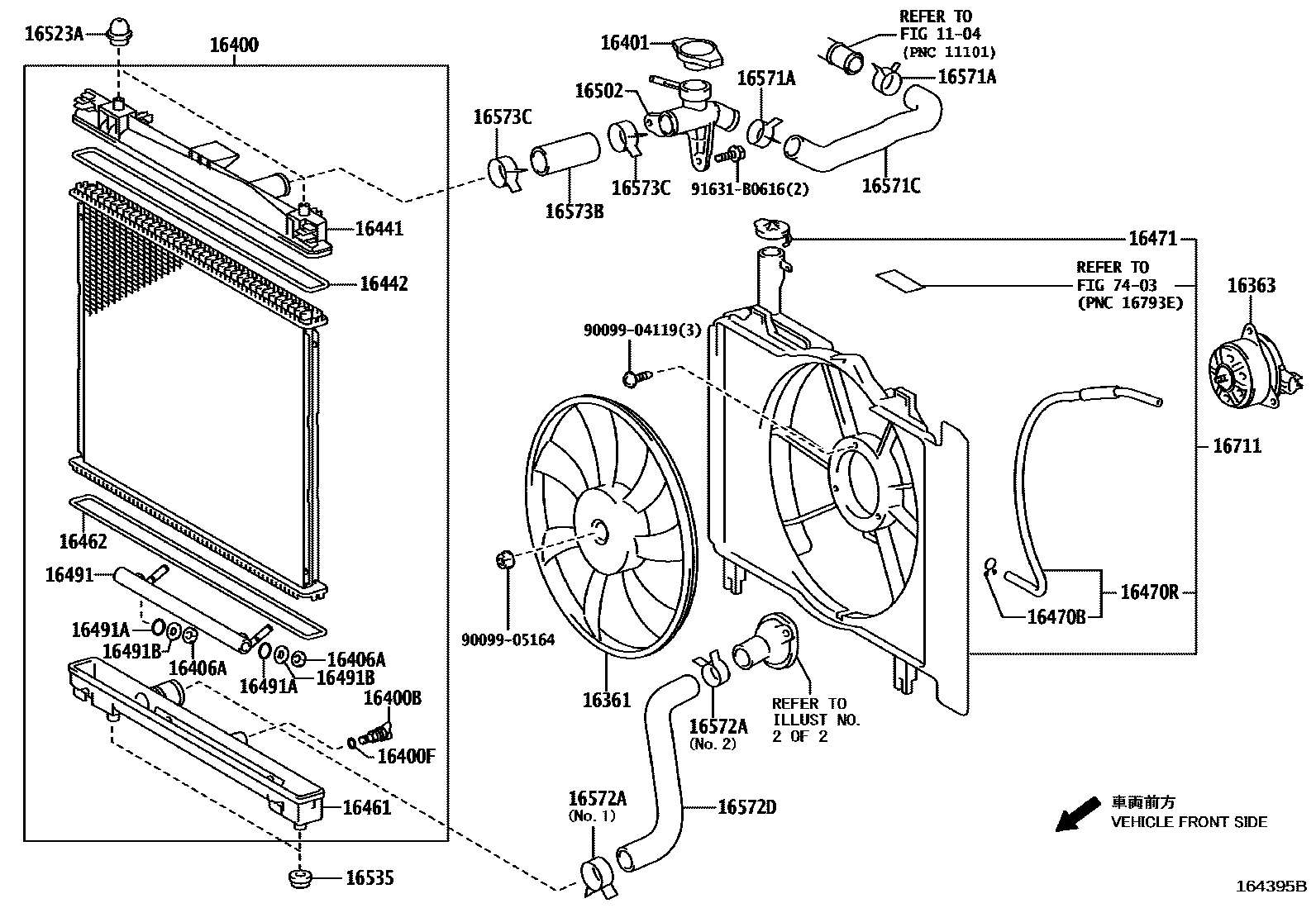

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-21090 · 16261-37031 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 90467-13054 · 96136-41501 · 96137-41501 |
| 16262 | water inlet hose | 16262-0T010 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-21070 · 16264-37031 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 90467-13054 · 96136-41501 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T020 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0014 · 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T070 · 16268-21022 · 16268-37031 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-21021 |
| 16321 | water inlet | 16321-21020 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-0T040 · 16323-37020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T010 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03093 · 90916-03129 · 90916-03144 · 90916-03145 · 90916-C3003 |
| 16361 | Fan | 16361-0T050 |
| 16363 | cooling fan motor | 16363-0T040 |
| 16381 | Fan belt adjustment lever | 16381-21020 · 16381-37010 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0M170 · 16400-0M180 · 16400-0T130 · 16400-0T140 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-0M180 · 16441-0T140 |
| 16442 | O-ring (for radiator tank) | 16442-0M180 · 16442-0T140 |
| 16461 | Radiator lower tank | 16461-0M170 · 16461-0M180 · 16461-0T130 · 16461-0T140 |
| 16462 | O-ring (for radiator lower tank) | 16462-0M180 · 16462-0T140 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0M090 · 16377-0T050 · 16378-21210 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470R | No. 2 hose (for radiator reservoir) | 16378-0M090 · 16378-0T050 · 16378-37020 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-0T010 |
| 16491 | Oil cooler (for ATM) | 16491-8C000 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16502 | Water injection port sub-assembly | 16502-0M010 · 16502-0T010 |
| 16520A | Water injection port cover sub-assembly | 16401-31480 |
| 16522 | Water injection port bracket | 16522-21010 |
| 16523A | Radiator bracket cushion | 16523-0M070 |
| 16535 | Radiator lower support | 90480-22025 |
| 16553C | hose clamp | 16581-21010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33006 |
| 16571C | Radiator hose No. 1 | 16571-0M070 · 16571-0T030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33006 · 90467-34004 · 90467-37005 |
| 16572D | Radiator hose No. 2 | 16572-0M070 · 16572-0T030 |
| 16573B | Radiator hose No. 3 | 16573-0M050 · 16573-0T010 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16711 | fan cover | 16711-0M070 · 16711-0T050 |
