Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

Toyota YARIS Oil Filter EPC diagram — 151467A
Oil Filter — 151467A (200805 – 999999)

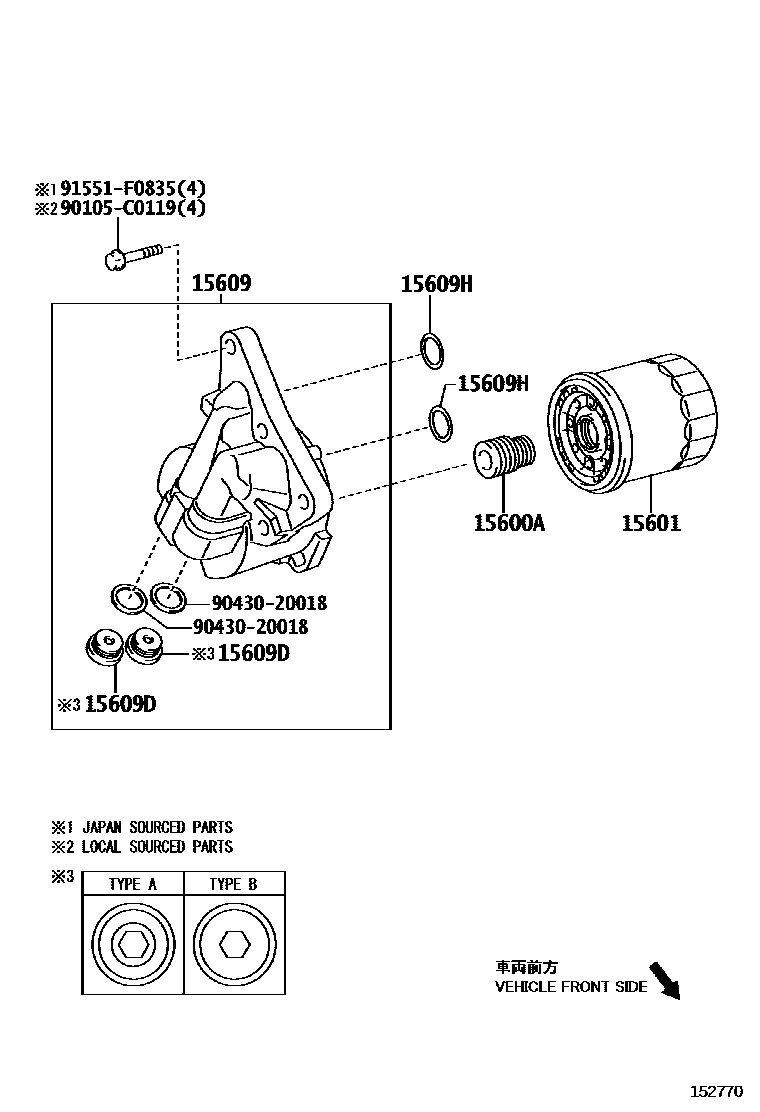

Toyota YARIS Oil Filter EPC diagram — 152770
Oil Filter — 152770 (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04004 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-CA003
15609Oil filter bracket sub-assembly15609-0T010 · 15609-37010
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90341-20012
15609HO-ring (for oil filter bracket)90301-C0033 · 96721-24020 · 96723-24020
