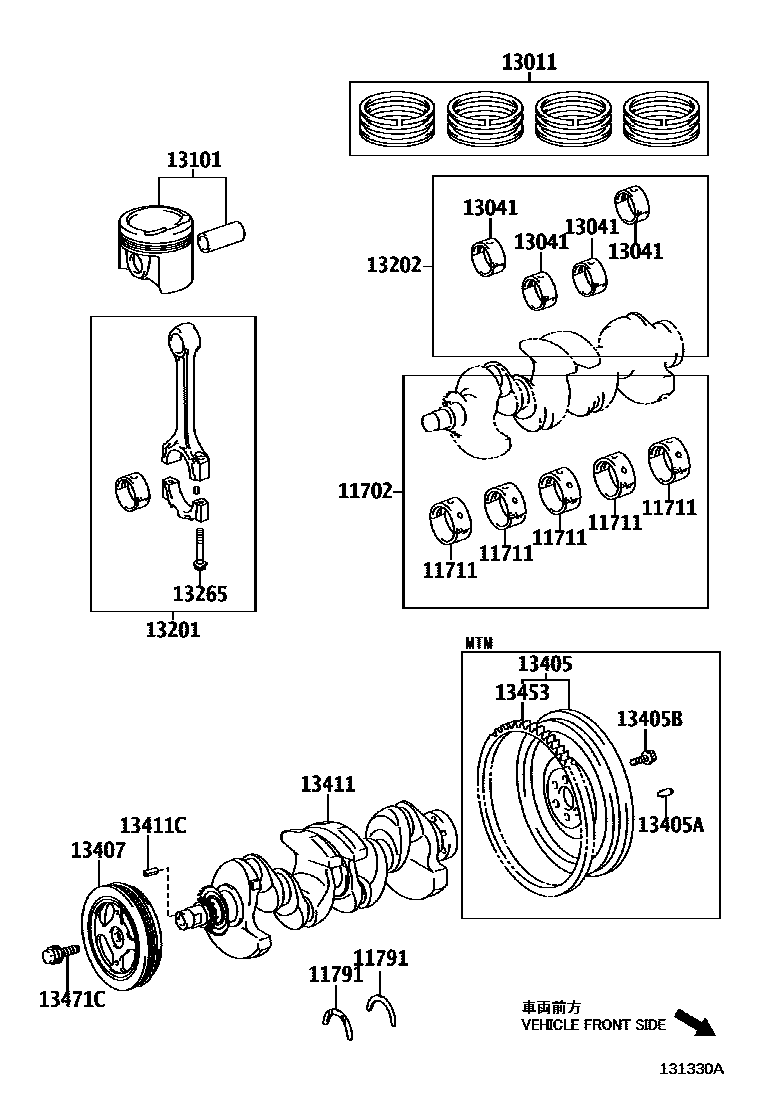

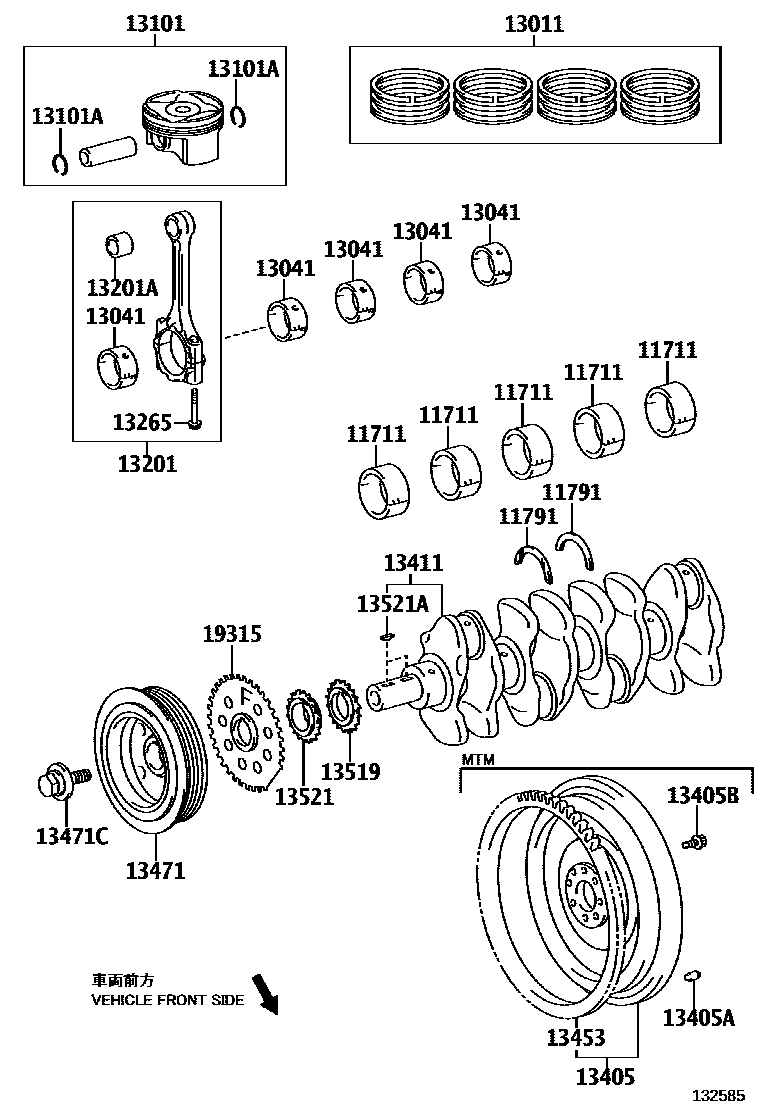

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21031 |
| 11791 | Thrust washer on crankshaft | 11791-0T020 · 11791-22020 · 11792-22020 · 11793-22020 |
| 13011 | Piston ring assembly | 13011-0T020 · 13011-21050 · 13011-37090 |
| 13101 | Piston sub-assembly with pin | 13101-0T020 · 13101-21080 · 13101-37081 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09870 · 13201-29715 · 13201-39185 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-21022 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13405 | Flywheel sub-assembly | 13405-0T010 · 13405-21020 · 13405-37050 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90913-01024 · 90913-01027 |
| 13407 | Crankshaft damper sub-assembly | 13407-21031 · 13407-21032 |
| 13411 | crankshaft | 13401-0T010 · 13401-21030 · 13401-37010 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 |
| 13453 | flywheel ring gear | 13453-0T010 · 13453-10010 |
| 13471 | crankshaft pulley | 13470-0T010 · 13470-37020 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 · 90119-C0124 |
| 13519 | Oil pump driving gear | 13519-0T010 · 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0T040 · 13521-37010 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-37010 · 19315-37020 |
