Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

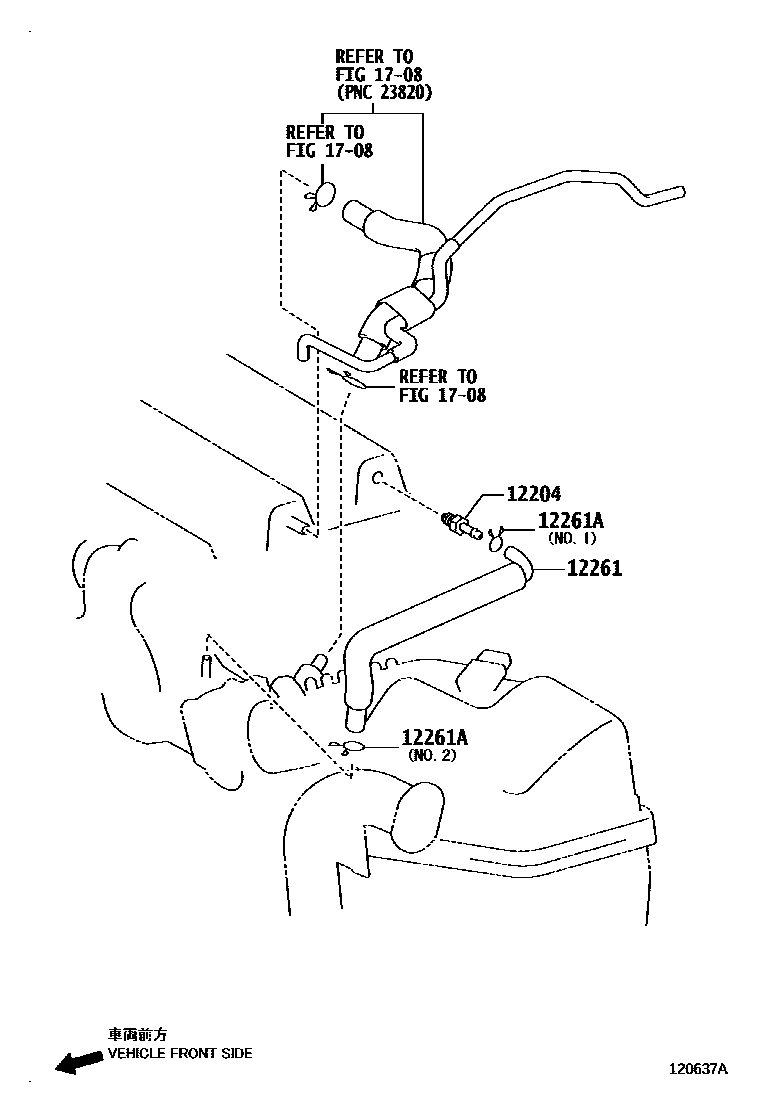

Toyota YARIS Ventilation Hose EPC diagram — 120637A
Ventilation Hose — 120637A (200805 – 999999)

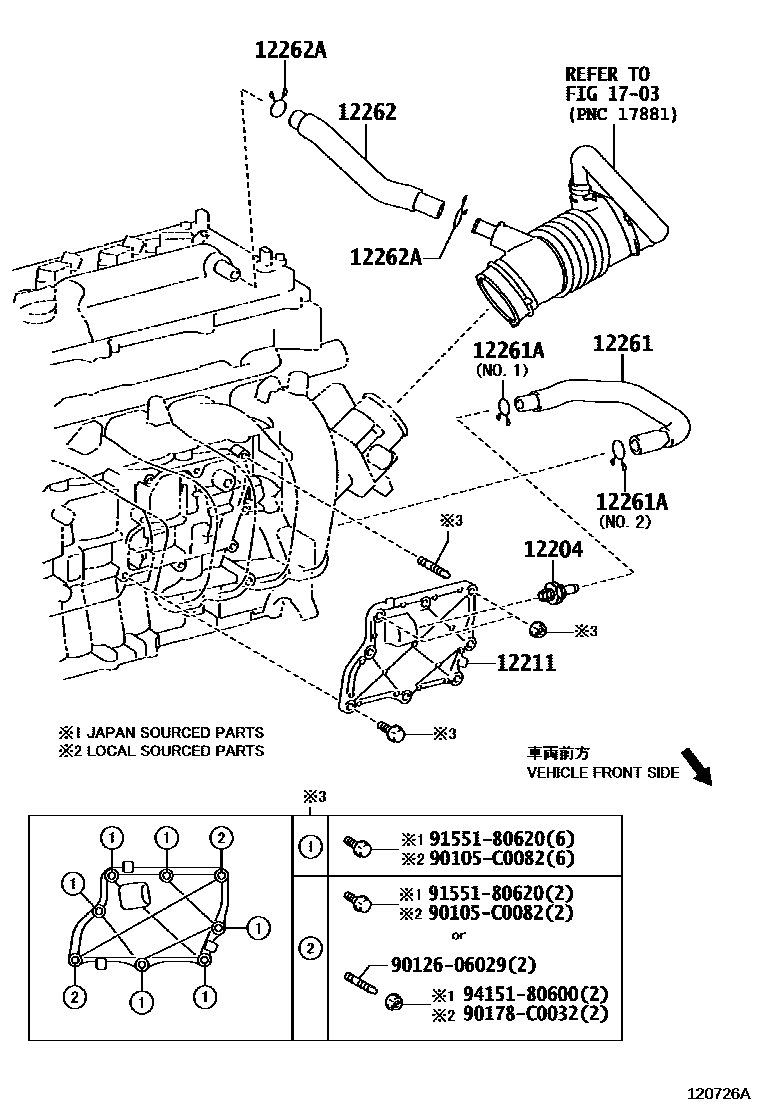

Toyota YARIS Ventilation Hose EPC diagram — 120726A
Ventilation Hose — 120726A (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21012 · 12204-21013 · 12204-37010
12211Ventilation box No. 112211-37010
12261Ventilation Hose12261-0T020 · 12261-21030 · 12261-37040
12261AClip or clip (for vent hose)90466-23003 · 90467-15120 · 90467-22010 · 90467-23002 · 90467-24038
12262Ventilation hose No. 212262-0T020 · 12262-37020
12262AClamp (for vent hose No. 2)90467-21004
