Toyota YARIS Engine Mounting — Figure 1107

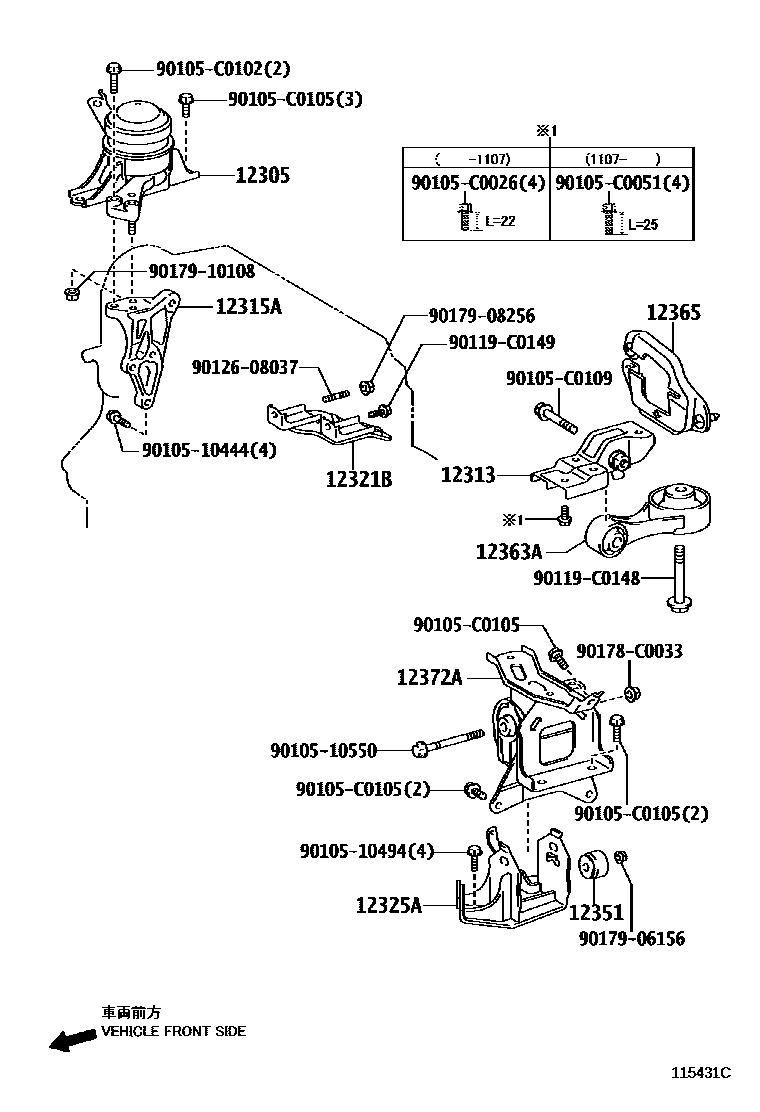

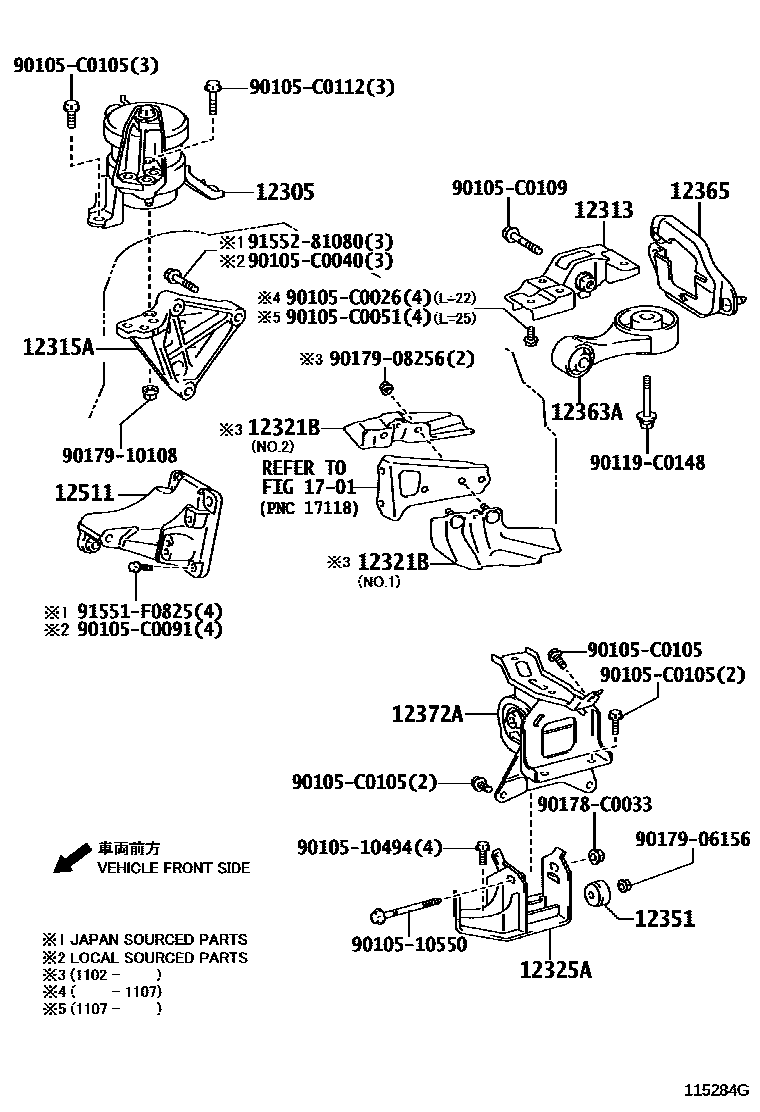

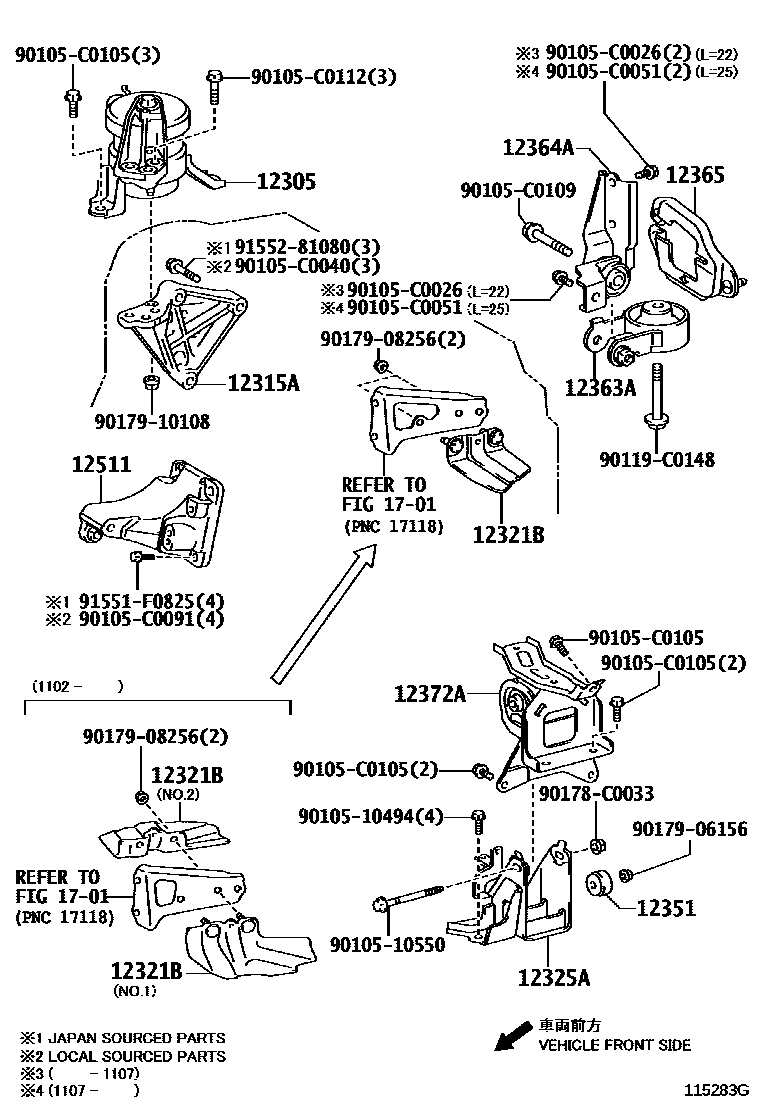

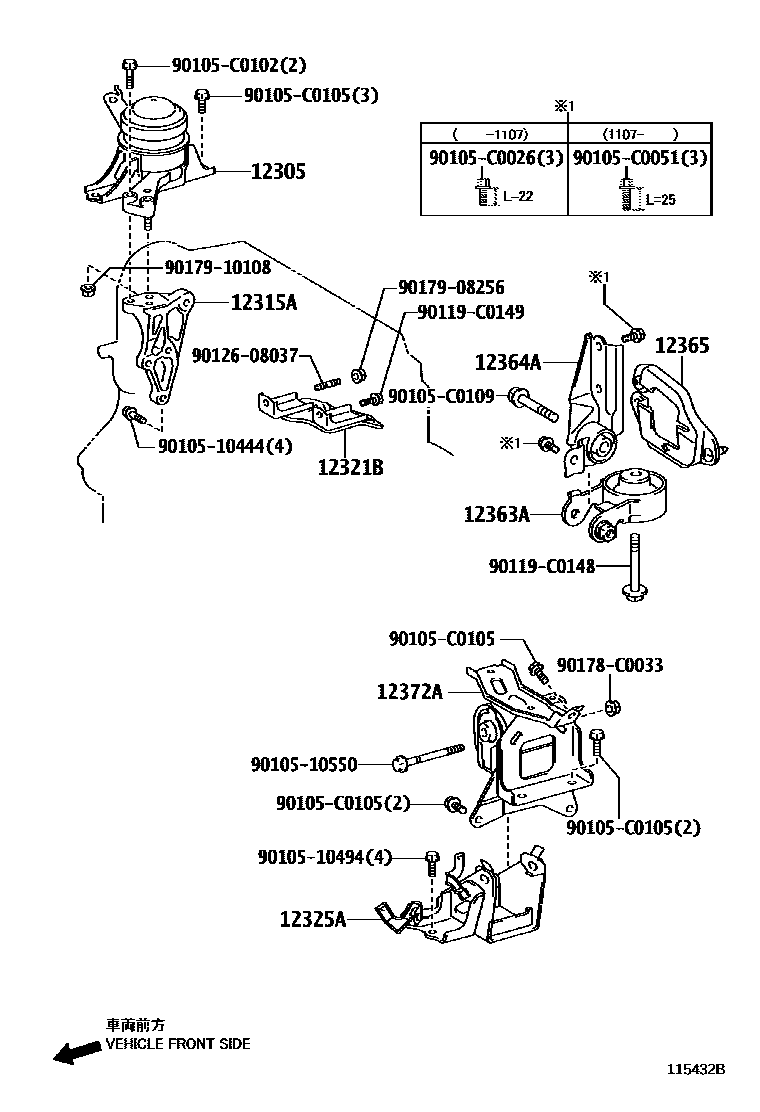

Toyota YARIS EPC diagram 1107, Engine Mounting, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0M060 · 12305-0M061 · 12305-0M070 · 12305-0M071 · 12305-0T030 · 12305-0T040 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0M020 · 12313-0T010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T020 · 12315-21031 · 12315-21032 · 12315-21033 · 12315-37040 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-0D030 · 43409-0D040 · 43409-12060 · 43409-52020 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0M090 · 12325-0M100 · 12325-0T050 · 12325-0T060 |
| 12351 | engine mount shock absorber | 12351-21090 |
| 12363A | Engine movement control lever | 12363-0M040 · 12363-0M050 · 12363-0T010 · 12363-0T020 |
| 12364A | Engine lateral control lever | 12364-0M030 · 12364-0T010 |
| 12365 | Engine motion control lever cover | 12365-40010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0M080 · 12372-0M090 · 12372-0T030 · 12372-0T040 |
| 12511 | No. 1 generator bracket | 12511-0T010 · 12511-37010 |
