Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 2 PNC and OE references.

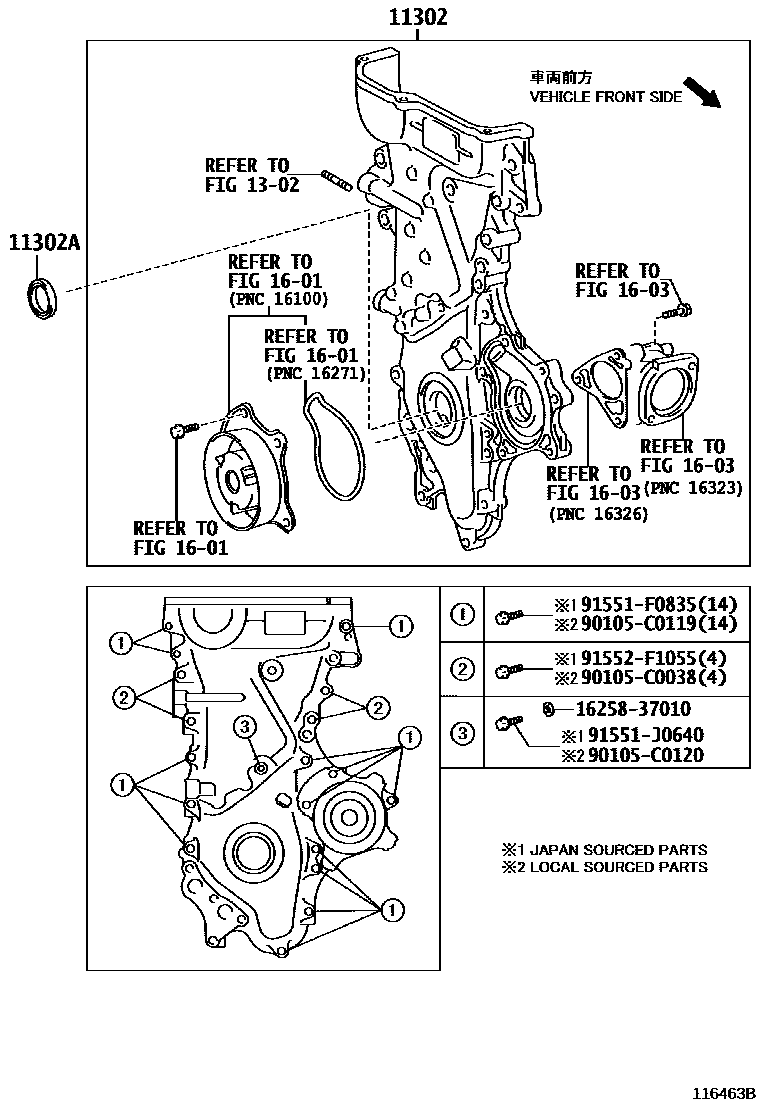

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 116463B
Timing Gear Cover & Rear End Plate — 116463B (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T060 · 11310-0T061 · 11310-37020
11302AOil seal (for timing chain or timing belt cover)90311-38089 · 90311-T0024
