Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

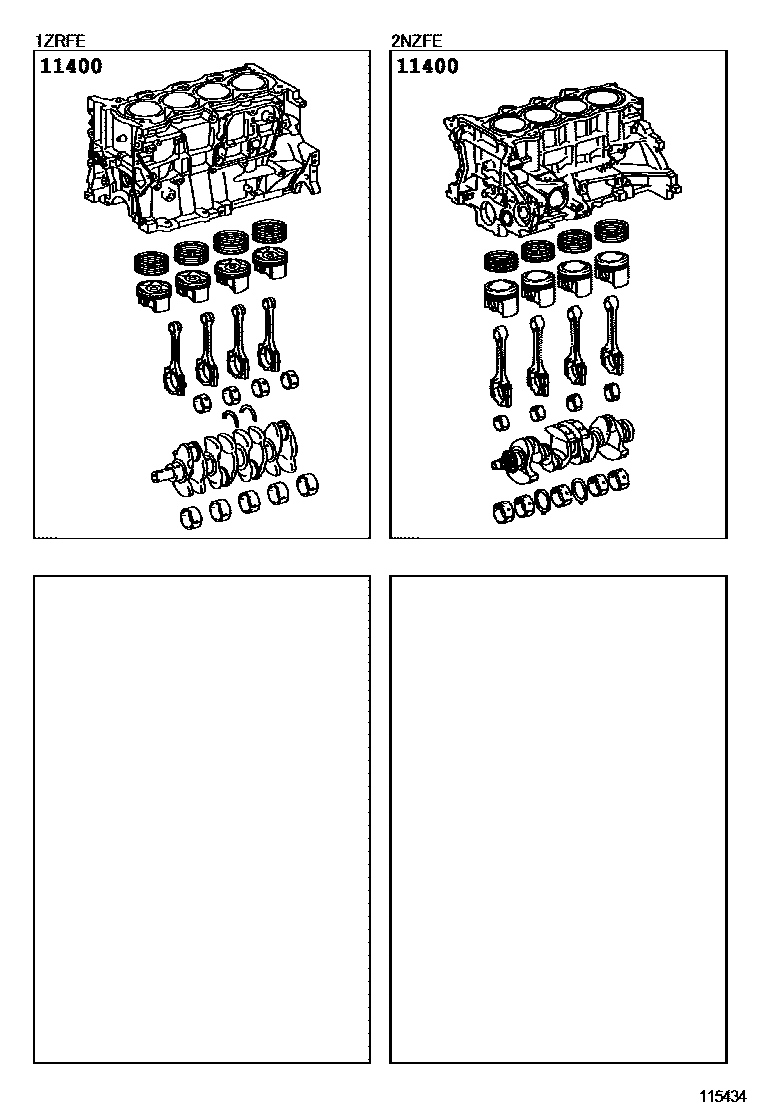

Toyota YARIS Short Block Assembly EPC diagram — 115434
Short Block Assembly — 115434 (200805 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0T030 · 11400-21150 · 11400-37110 · 11400-37111
