Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

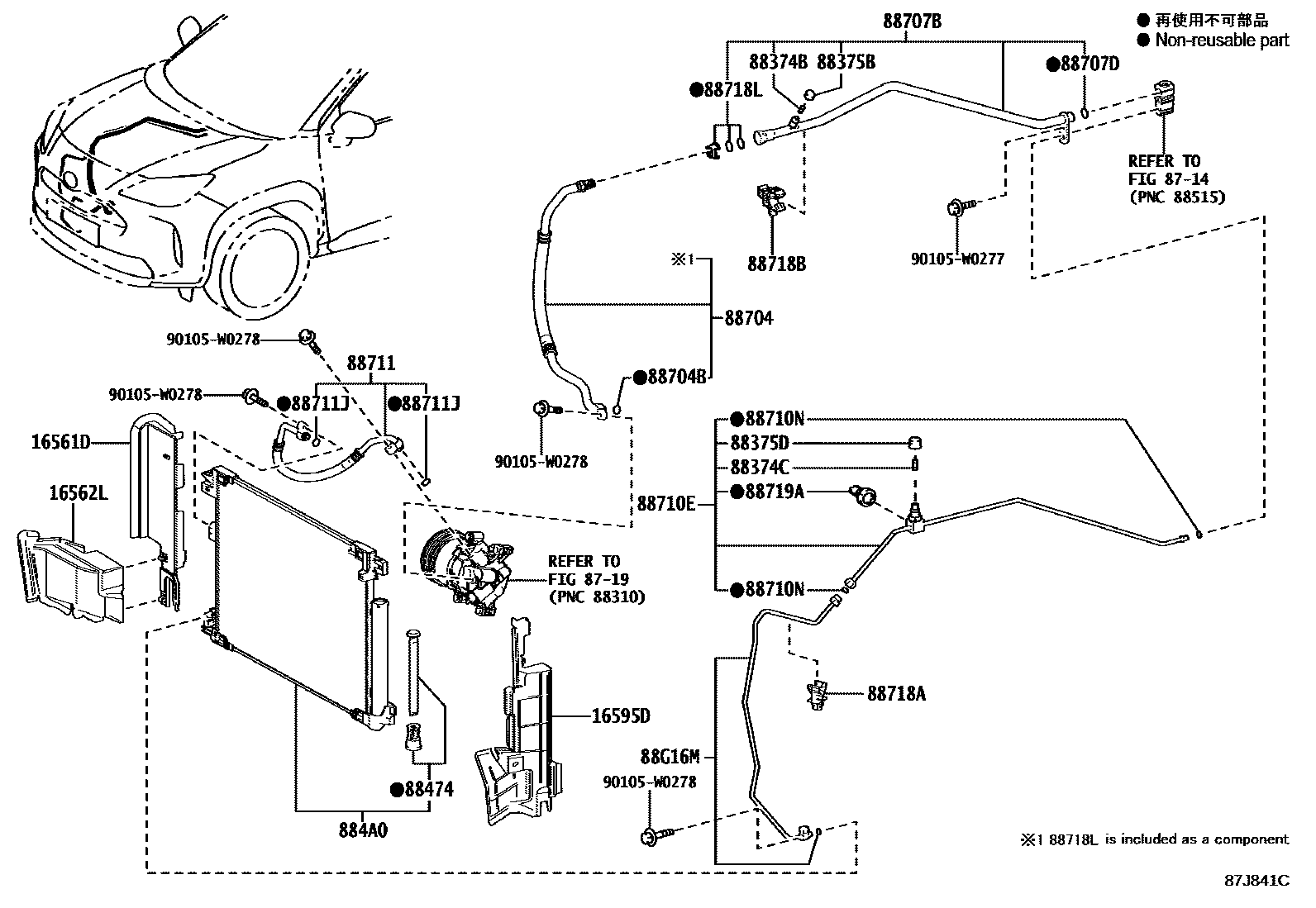

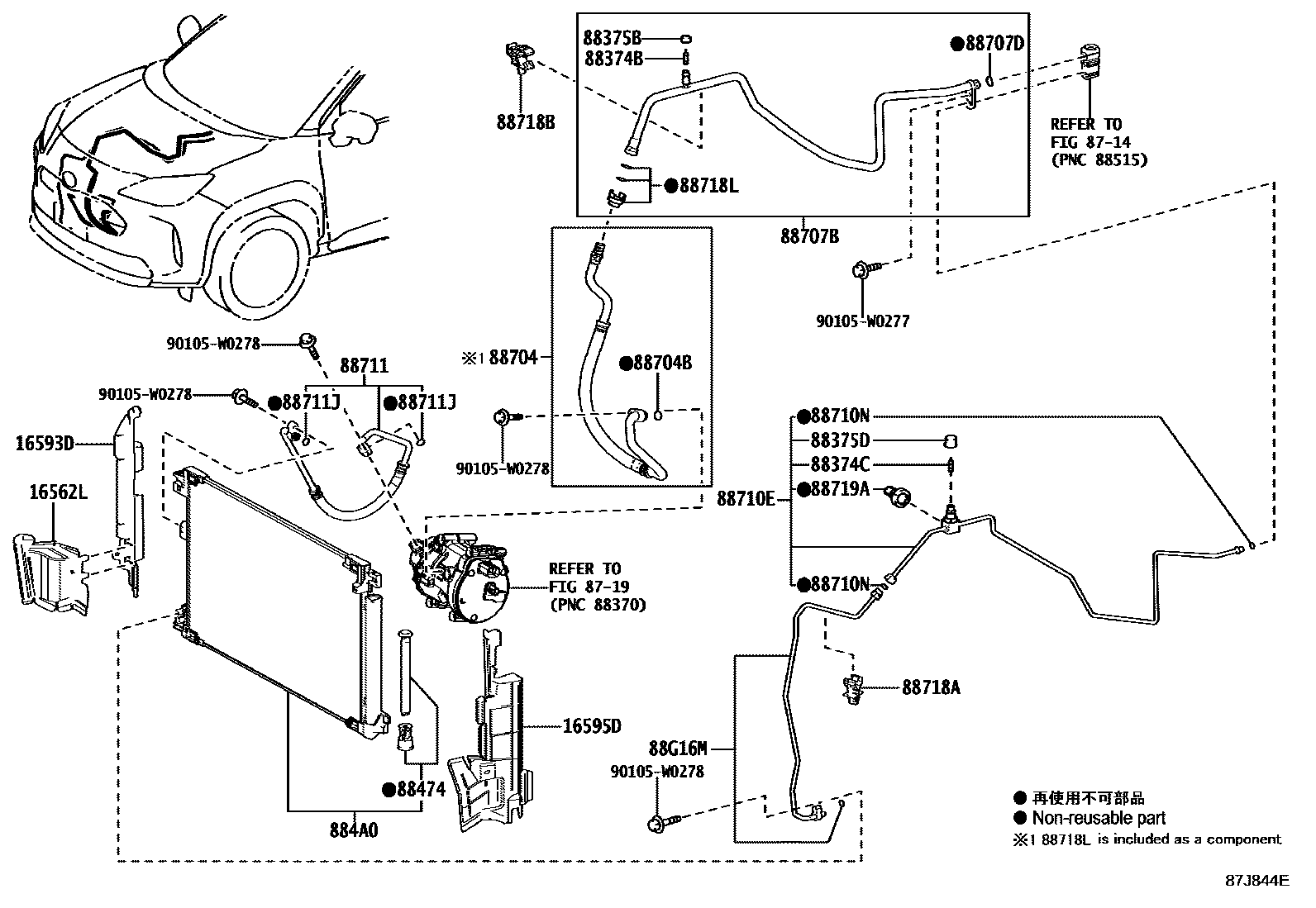

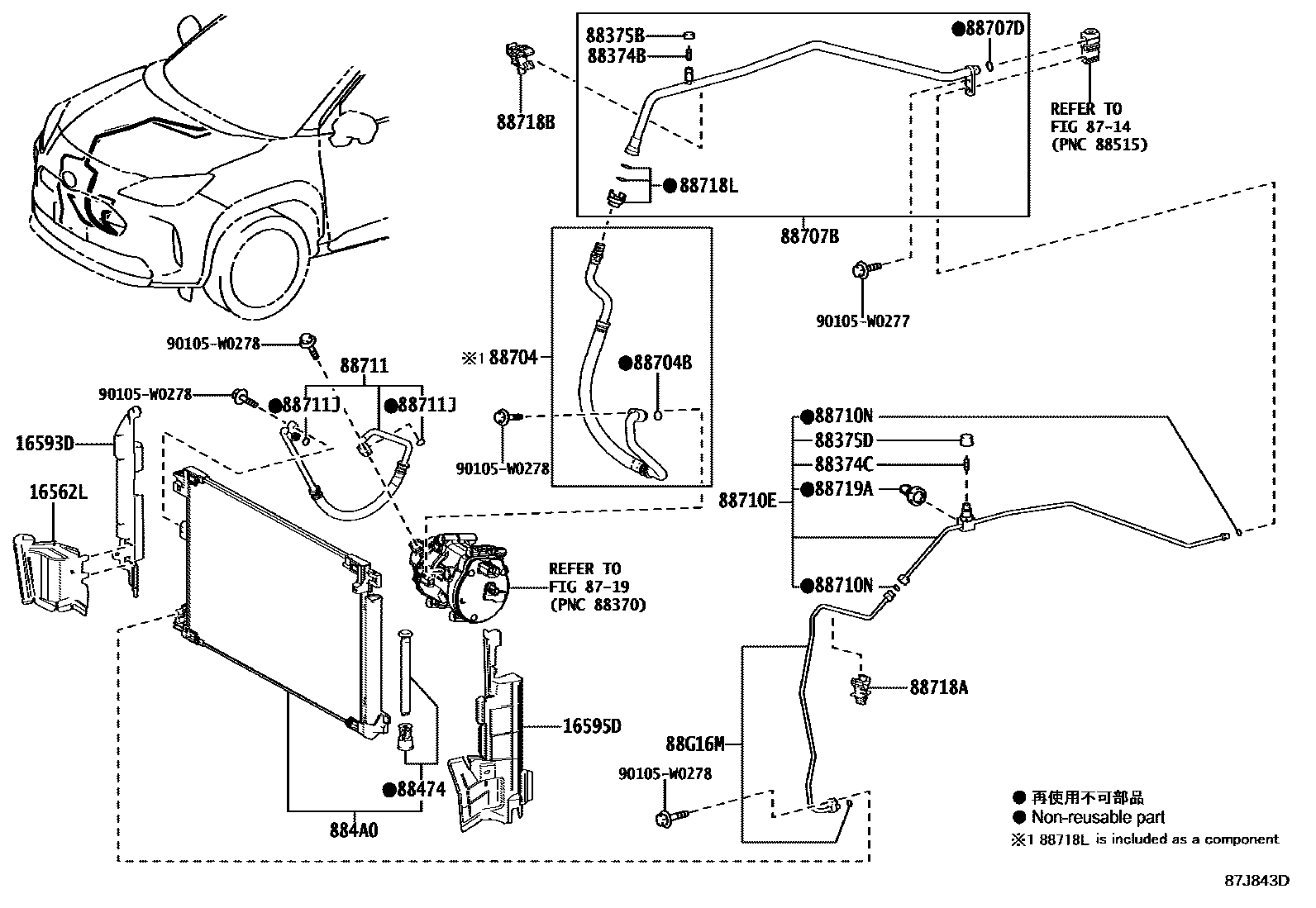

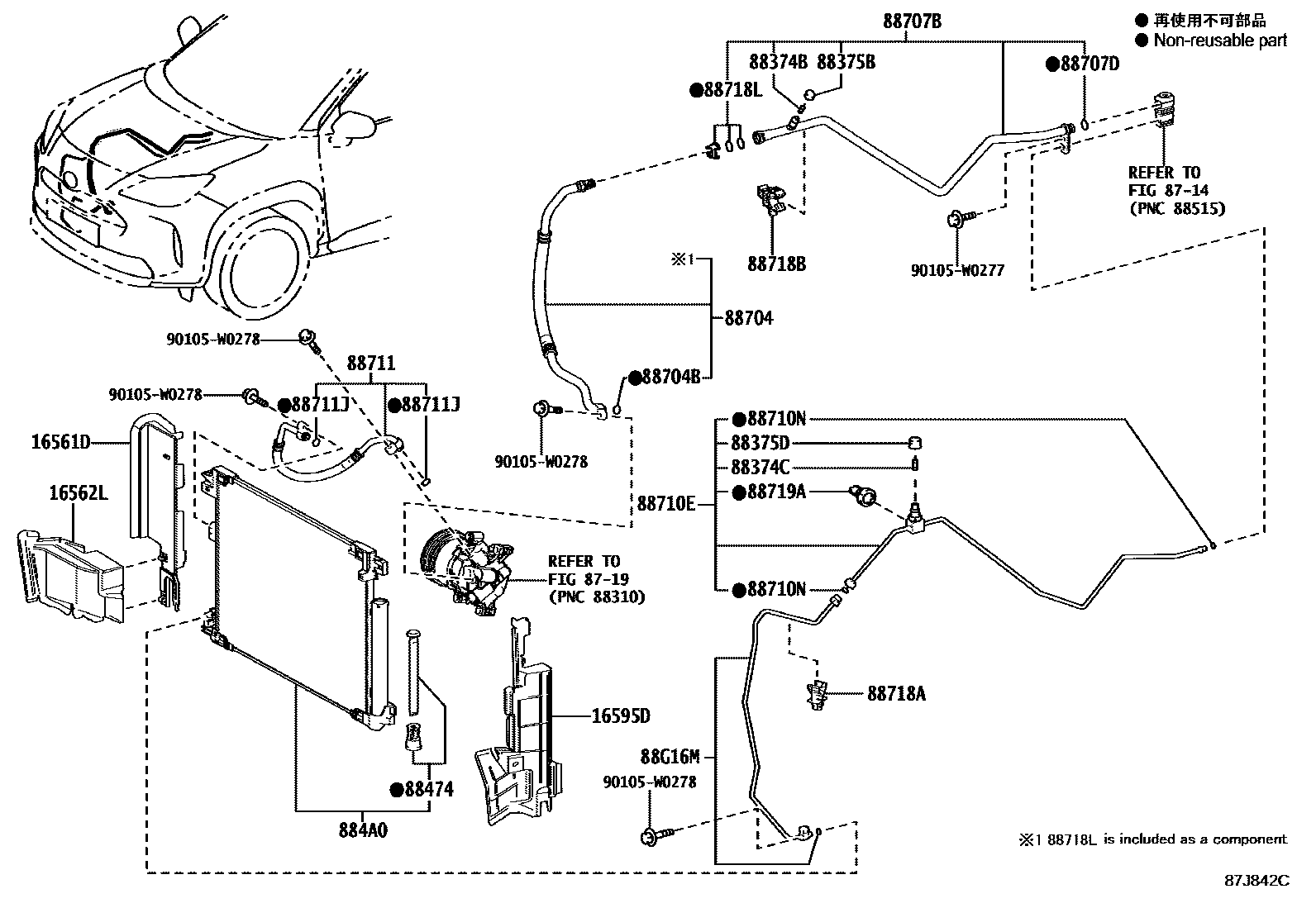

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561D | JOINT, RADIATEUR AU SUPPORT, NO.1 | 16561-K0020 |
| 16562L | JOINT, RADIATEUR AU SUPPORT, NO.2 | 16562-F3010 · 16562-F3020 |
| 16593D | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-K0020 |
| 16595D | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-F3030 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30020 · 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-K0010 · 884A0-K0020 · 884A0-K0030 |
| 88704 | Oil suction hose sub-assembly | 88704-K0020 · 88704-K0030 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90068-14010 · 90099-14121 |
| 88707B | Suction pipe B sub-assembly | 88707-K0010 · 88707-K0020 · 88707-K0031 · 88707-K0040 · 88707-K0090 · 88707-K0100 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90068-14038 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-K0030 · 88710-K0040 · 88710-K0050 · 88710-K0060 · 88710-K0110 · 88710-K0120 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90068-14039 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-K0020 · 88711-K0030 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90068-14009 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0D190 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-K0010 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88G16M | TUYAU, LIQUIDE, NO.1 | 88716-K0020 · 88716-K0050 |
