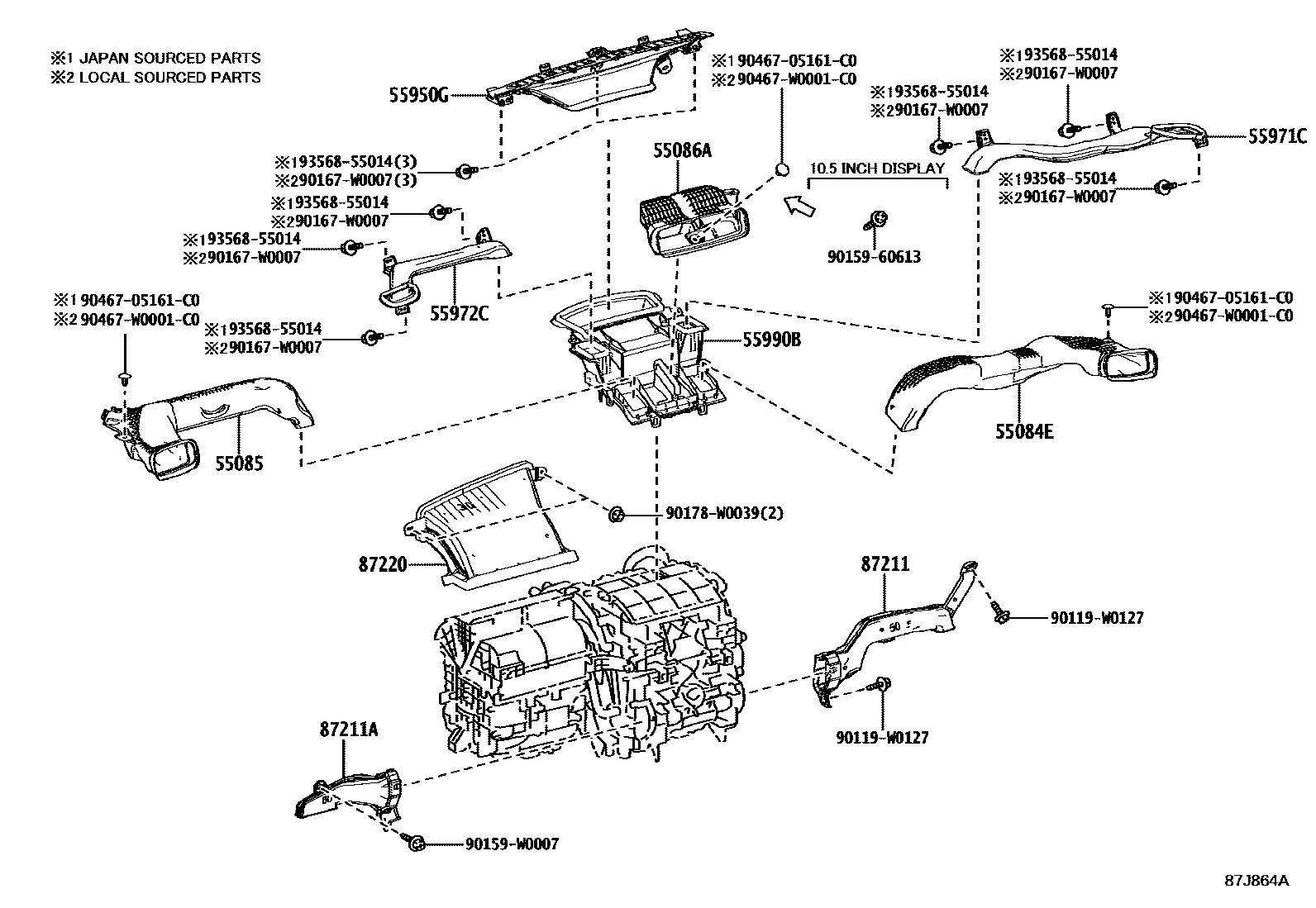

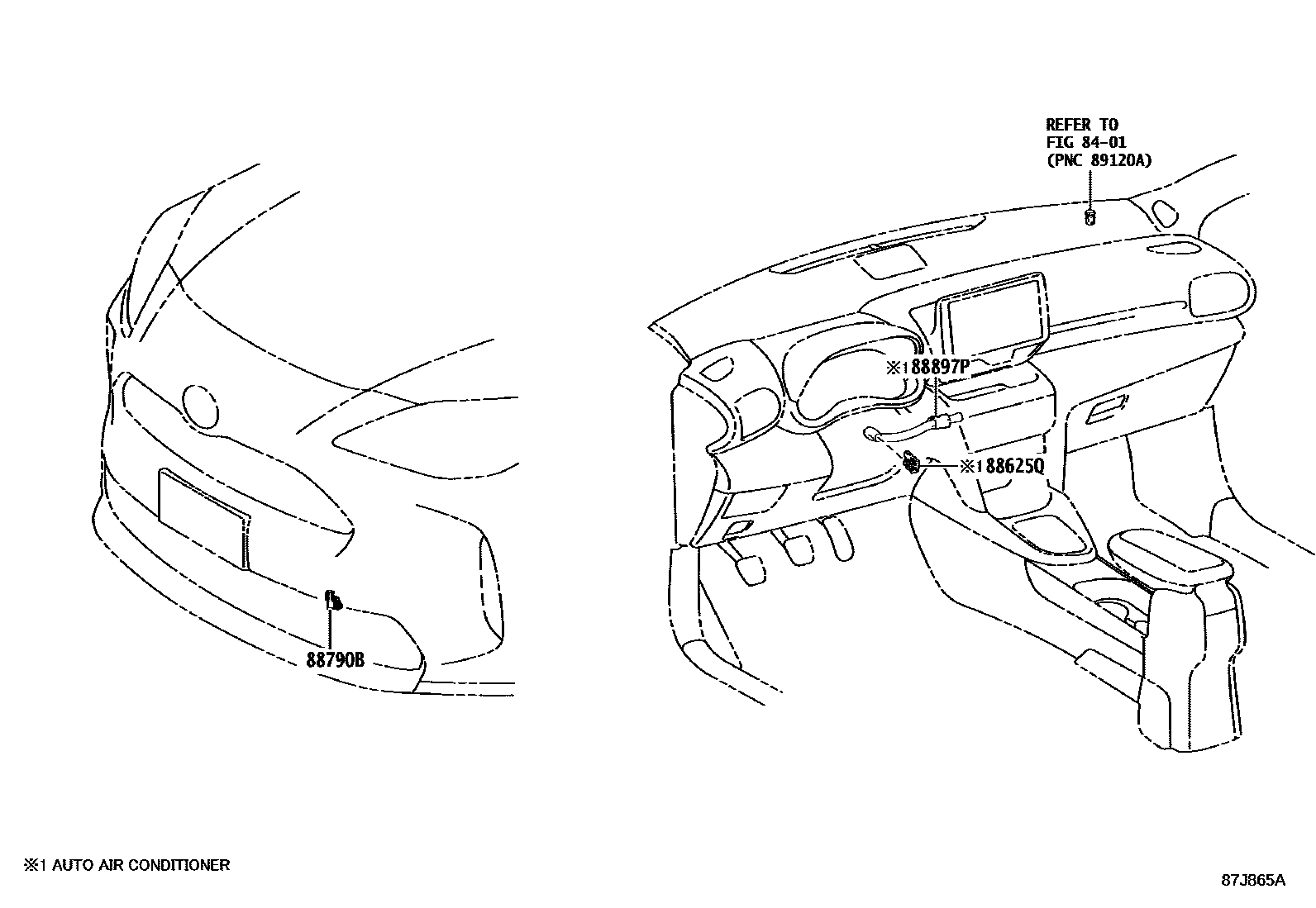

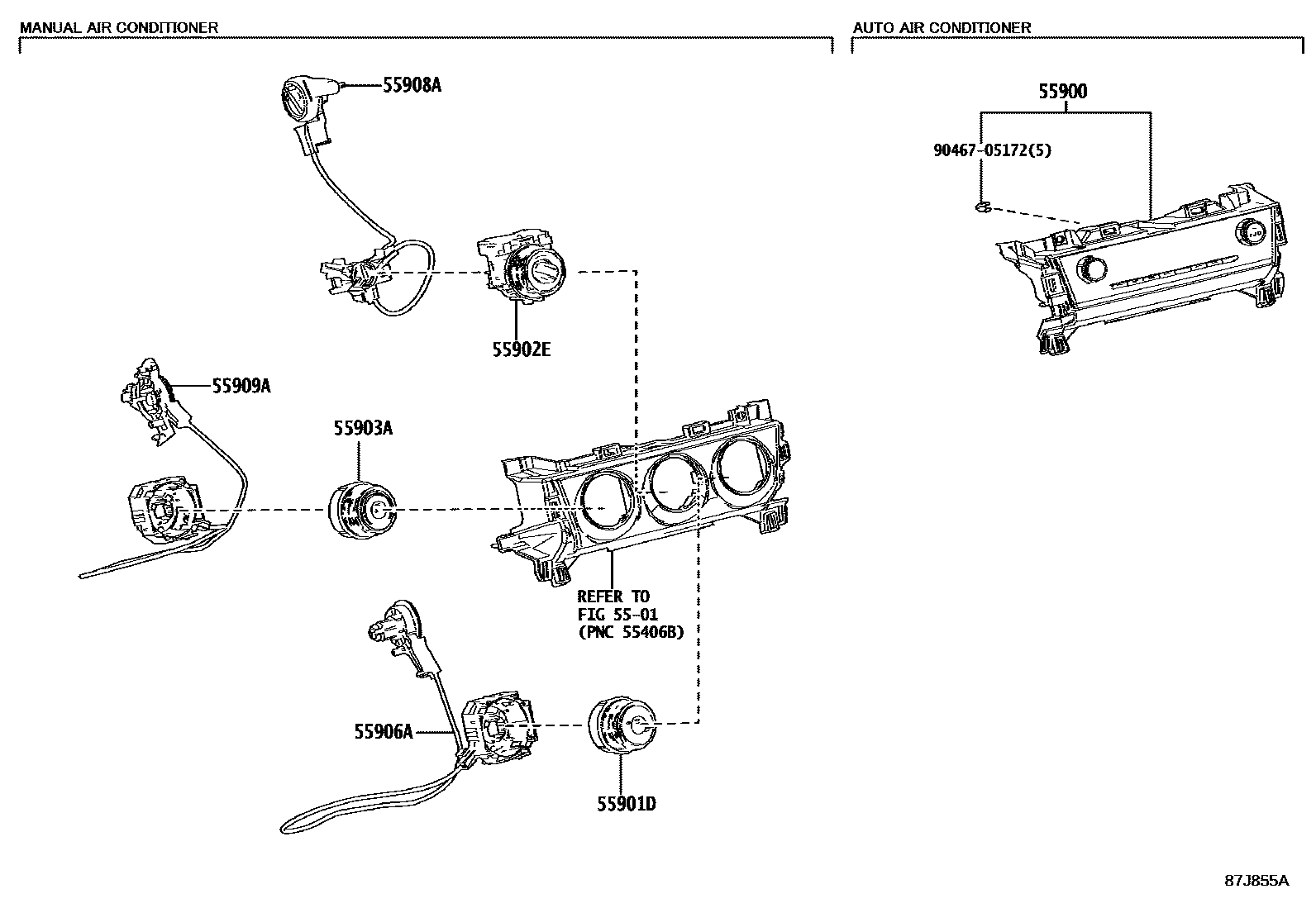

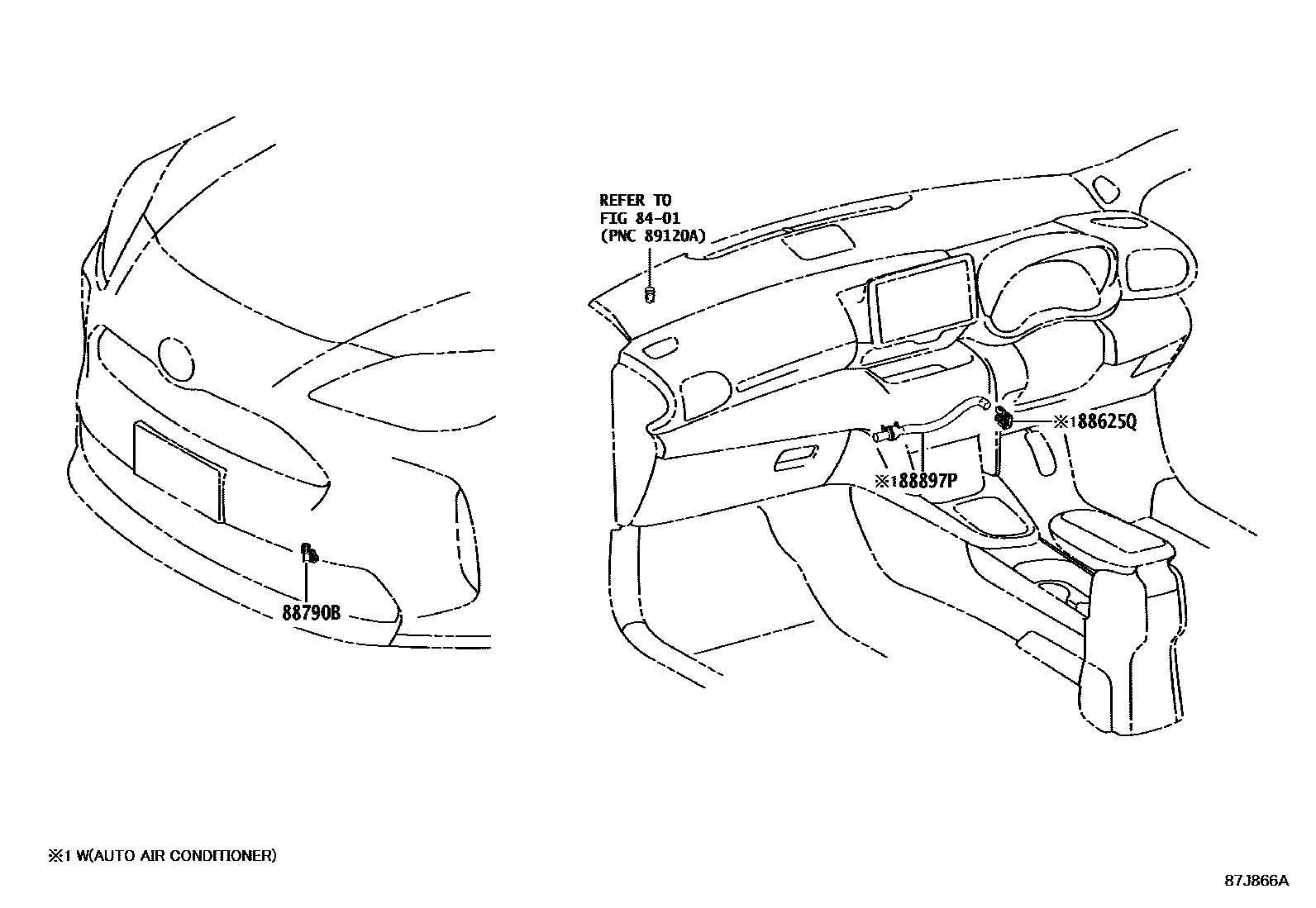

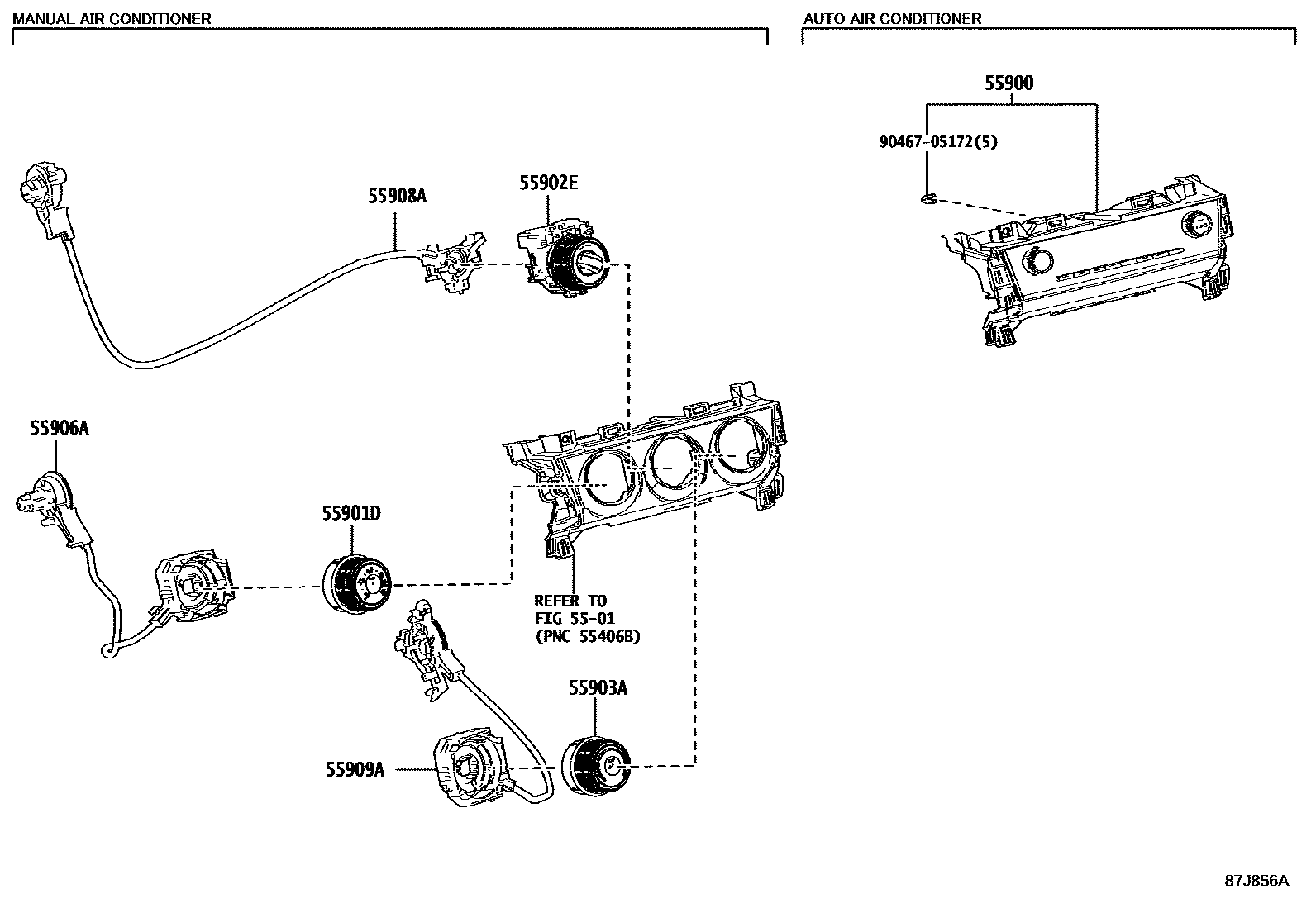

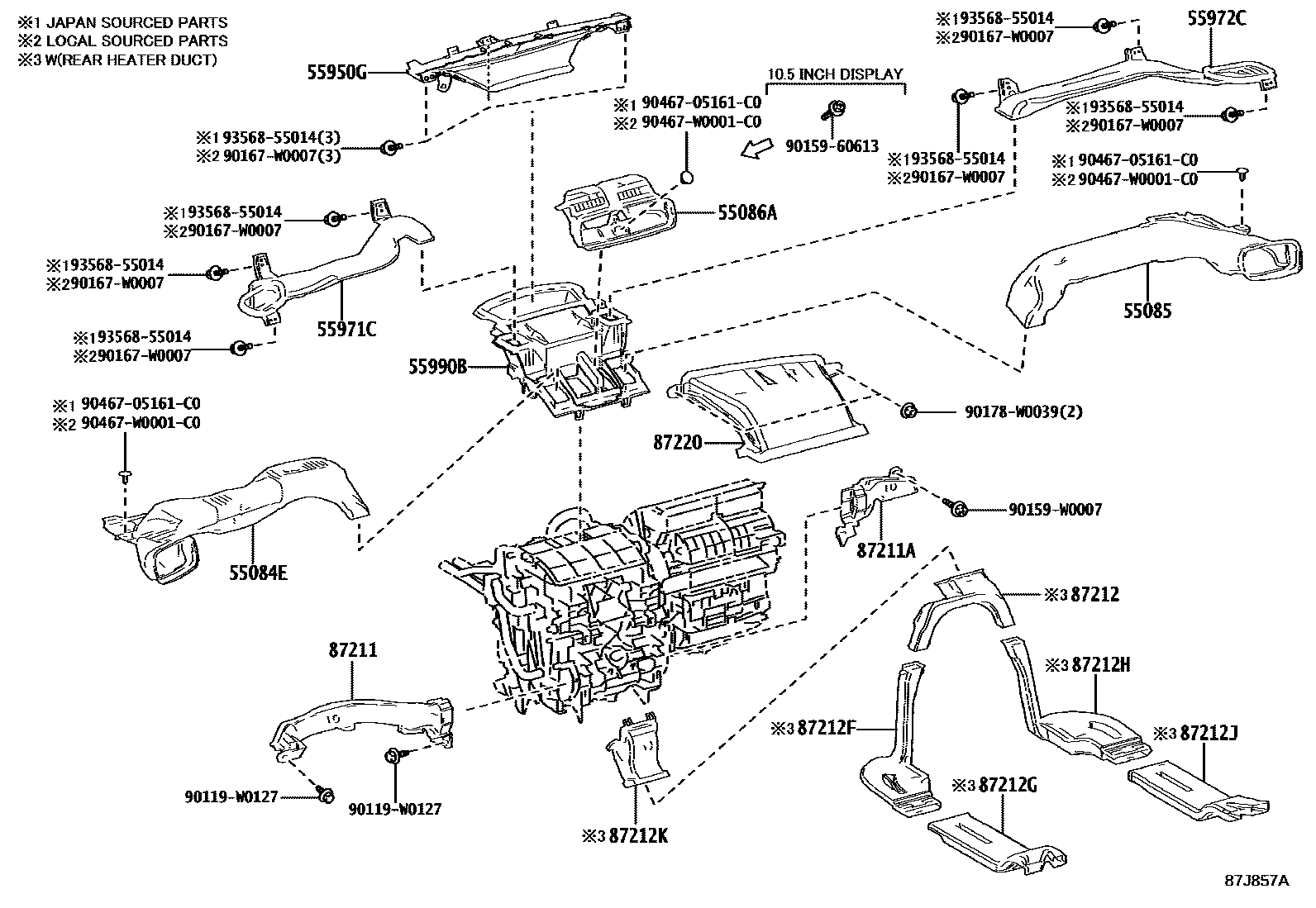

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0D350 · 55084-0D360 · 55084-K0030 · 55084-K0040 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0D260 · 55085-0D270 · 55085-0D290 · 55085-K0020 · 55085-K0030 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-0D040 · 55086-0D050 · 55086-K0030 · 55086-K0040 |
| 55900 | Air conditioning control assembly | 55900-0DC60 · 55900-0DC61 · 55900-0DC70 · 55900-0DC71 · 55900-0DC80 · 55900-0DC81 · 55900-0DC90 · 55900-0DC91 · 55900-0DD00 · 55900-0DD01 · 55900-0DP80 · 55900-0DP90 · 55900-0DQ00 · 55900-0DQ10 · 55900-0DQ20 |
| 55901D | No. 1 heater control sub-assembly | 55901-K0040 · 55901-K0050 |
| 55902E | No. 2 heater control sub-assembly | 55902-K0040 · 55902-K0050 |
| 55903A | No. 3 heater control sub-assembly | 55903-K0030 · 55903-K0060 |
| 55906A | Defroster damper control cable sub-assembly | 55906-K0011 · 55906-K0021 |
| 55908A | Intake air valve control cable sub-assembly | 55908-K0010 · 55908-K0020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-K0011 · 55909-K0021 |
| 55950G | Defroster nozzle assembly | 55950-K0020 · 55950-K0030 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-K0020 · 55971-K0030 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-K0020 · 55972-K0030 |
| 55990B | Lower defroster nozzle assembly | 55990-K0020 |
| 87211 | No. 1 air duct | 87211-K0011 · 87211-K0030 |
| 87211A | Duct No. 2 | 87211-K0020 · 87211-K0040 |
| 87212 | No. 1 rear air duct | 87215-K0010 |
| 87212F | No. 2 rear air duct | 87213-K0010 |
| 87212G | No. 3 rear air duct | 87217-K0010 |
| 87212H | No. 4 rear air duct | 87212-K0010 |
| 87212J | No. 5 rear air duct | 87216-K0010 |
| 87212K | No. 6 rear air duct | 87114-K0050 |
| 87220 | Air duct assembly | 87220-K0010 · 87220-K0020 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-K0010 |
