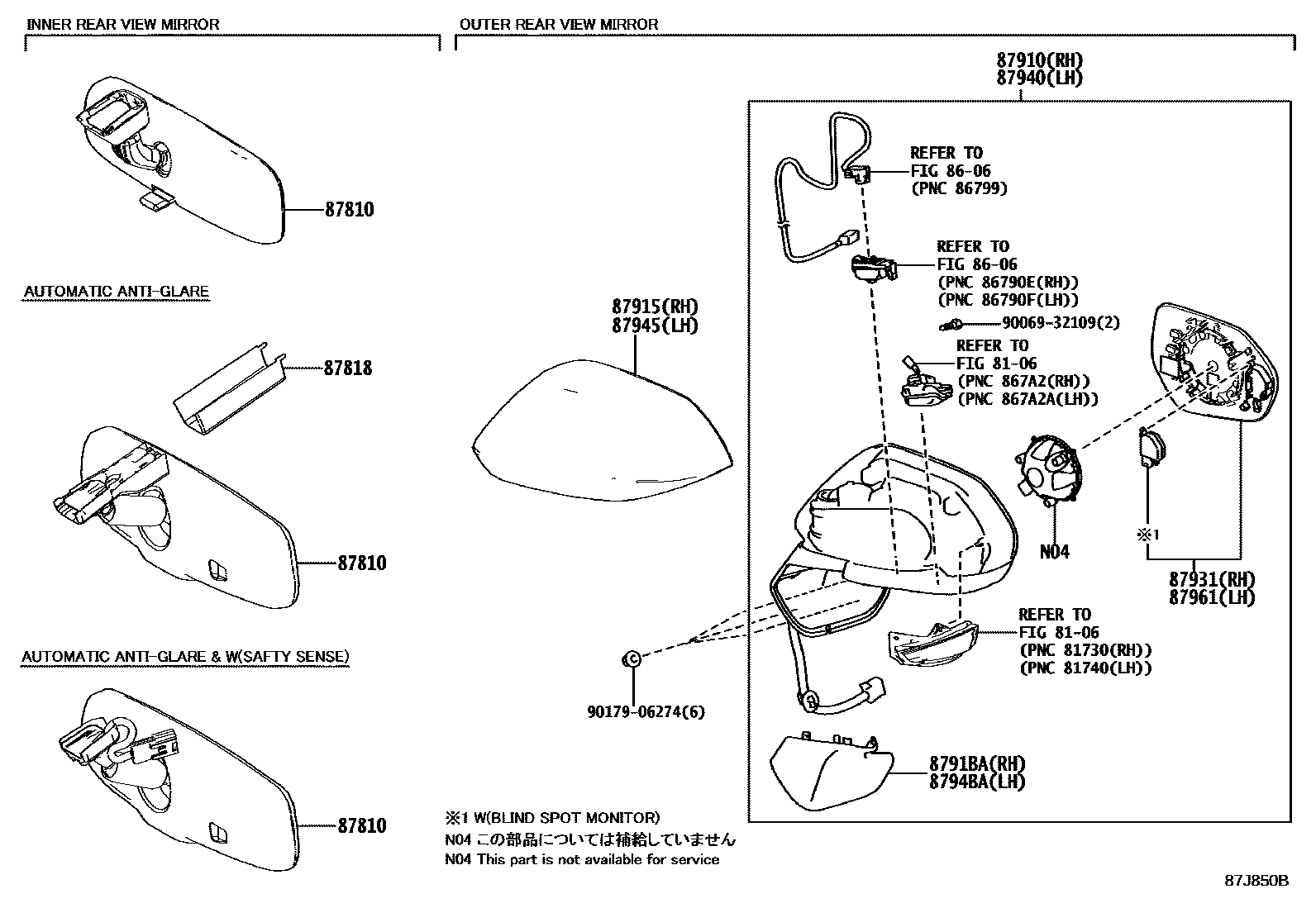

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-28140 · 87810-52041 · 87810-K0050 · 87810-K0060 |
| 87818 | Interior rearview mirror cover | 87818-24010 |
| 87910 | Right exterior rearview mirror assembly | 87910-0DE30 · 87910-0DE40 · 87910-0DE50 · 87910-0DE70 · 87910-0DE80 · 87910-0DE90 · 87910-0DF10 · 87910-0DF30 · 87910-0DF60 · 87910-0DF80 |
| 87915 | Right exterior rearview mirror cover | 87915-02380 · 87915-0D590 |
| 8791BA | CACHE, RETROVISEUR EXT, MD NO.3 | 8791B-0DE30 · 8791B-0DE80 |
| 87931 | Right exterior rearview mirror | 87931-0DE30 · 87931-0DE50 |
| 87940 | Left exterior rearview mirror assembly | 87940-0DE30 · 87940-0DE40 · 87940-0DE50 · 87940-0DE70 · 87940-0DE80 · 87940-0DE90 · 87940-0DF10 · 87940-0DF20 · 87940-0DF50 · 87940-0DF70 |
| 87945 | Left exterior rearview mirror cap | 87945-02370 · 87945-0D590 |
| 8794BA | CACHE, RETROVISEUR EXT, MG NO.3 | 8794B-0DE30 · 8794B-0DE80 |
| 87961 | Left exterior rearview mirror | 87961-0DE30 · 87961-0DE50 |
