Toyota YARIS 预碰撞安全系统 — Figure 8617

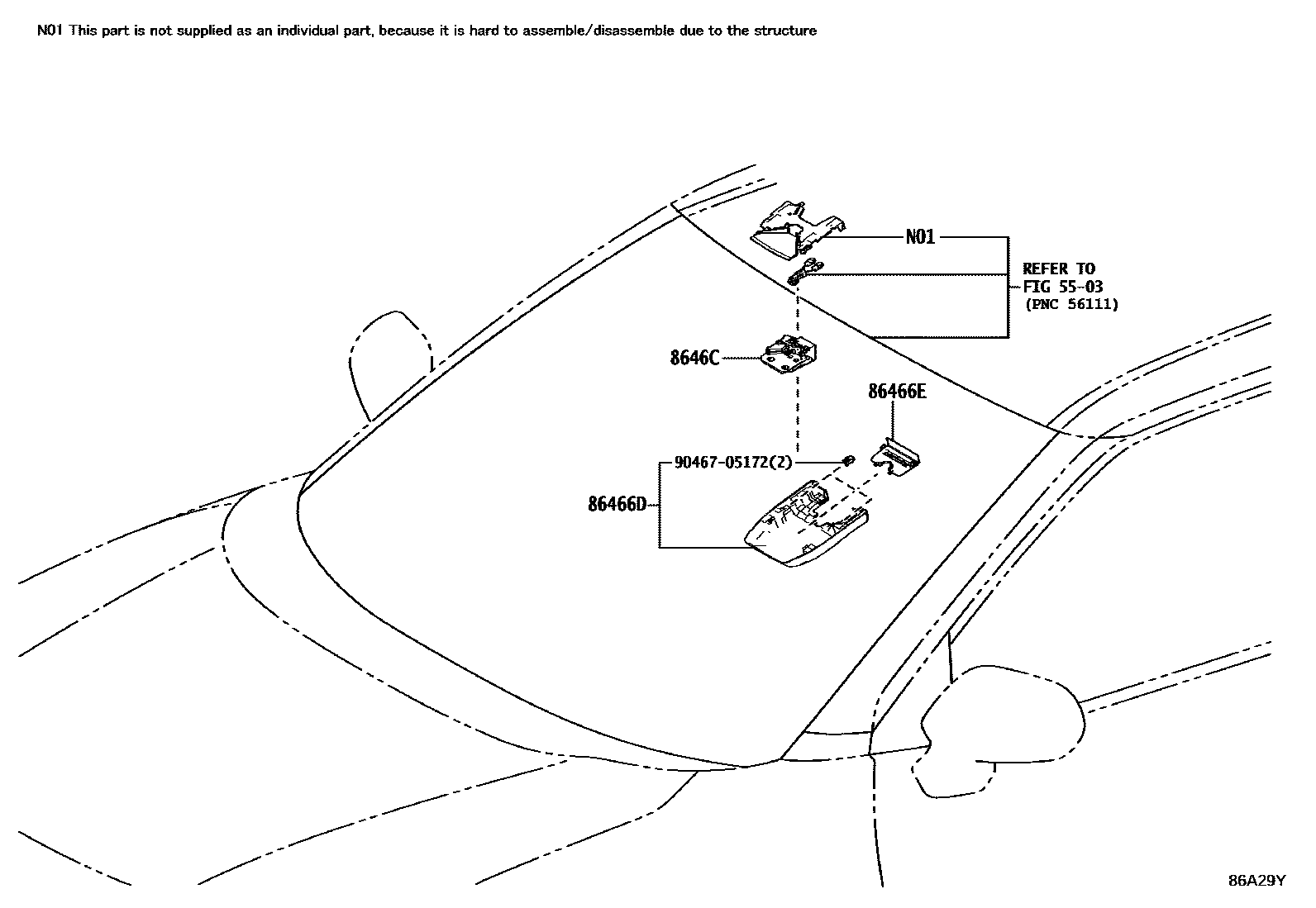

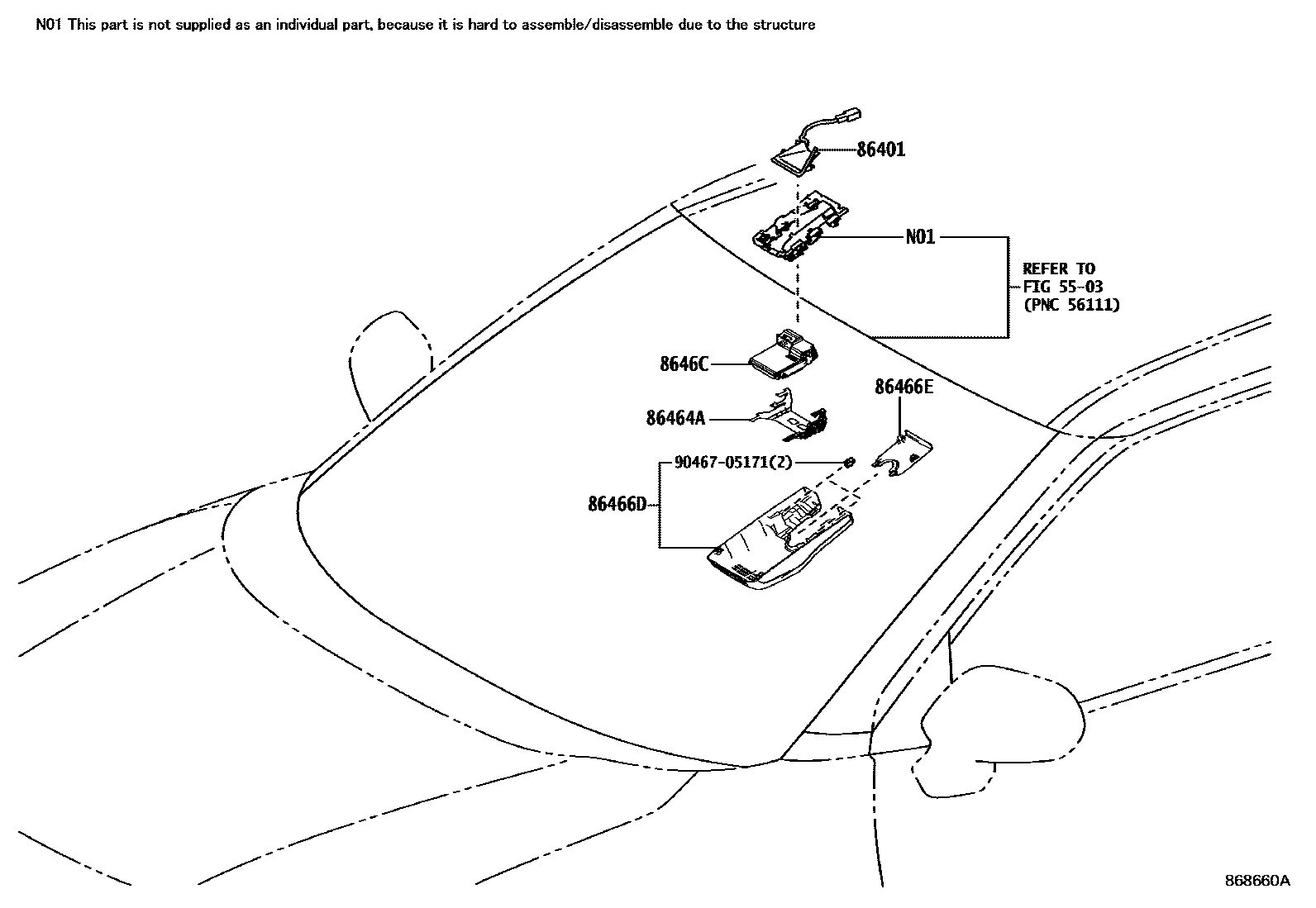

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | SS-ENS. CAPOT, RECONNAISSANCE AVANT AV/CHAUFFAGE | 86401-K0010 |
| 86464A | VERROU, RECONNAISSANCE AVANT | 86464-K0010 |
| 86466D | CACHE, RECONNAISSANCE AVANT, NO.1 | 86466-0D040 · 86466-K0010 |
| 86466E | CACHE, RECONNAISSANCE AVANT, NO.2 | 86466-K0020 · 86467-0D040 |
| 8646C | CAMERA, RECONNAISSANCE AVANT | 8646C-0D010 · 8646C-52290 |
