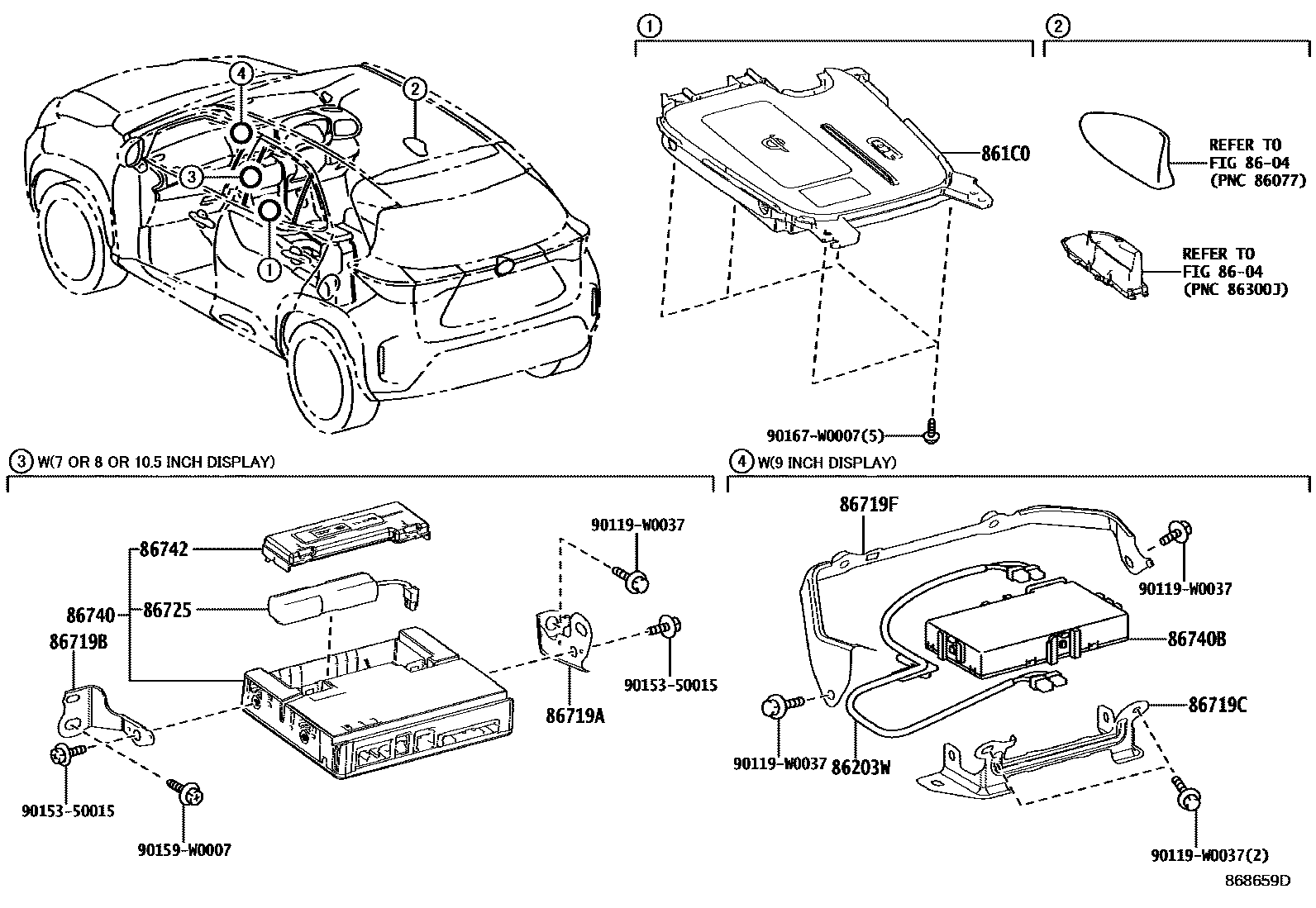

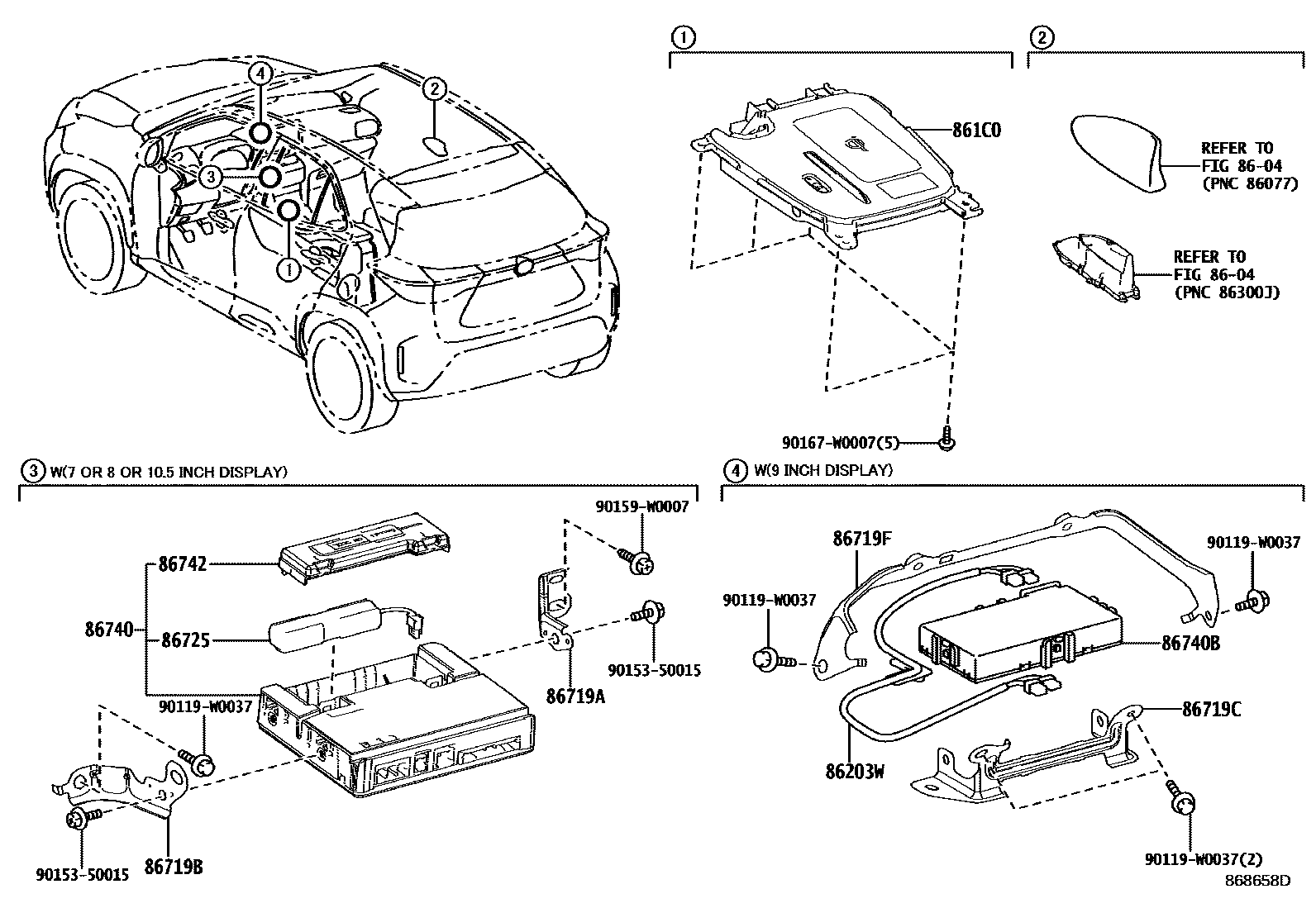

Toyota YARIS 车载电话和呼救装置 — Figure 8615
Toyota YARIS EPC diagram 8615, 车载电话和呼救装置, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE | 861C0-0D010 · 861C0-0D020 · 861C0-0D030 · 861C0-0D060 · 861C0-K0010 |
| 86203W | SOUS-ENS. CABLAGE, RADIO | 86203-YP020 |
| 86719A | Phone holder No. 1 | 86719-K0010 · 86719-K0050 |
| 86719B | Phone holder No. 2 | 86719-K0020 · 86719-K0060 |
| 86719C | No. 3 phone holder | 86719-YP020 |
| 86719F | PLATINE FIXATION TELEPHONE NO.4 | 86457-K0050 · 86457-K0090 |
| 86725 | mobile phone battery | 86725-78010 · 86725-78011 |
| 86740 | Telephone transceiver assembly | 86740-02240 · 86740-02270 · 86740-0D030 · 86740-0D031 · 86740-0D040 · 86740-0D041 |
| 86740B | ENS EMETTEUR-RECEPTEUR, TELEPHONE, NO.2 | 86740-YP010 |
| 86742 | transceiver cover | 86742-0D020 |
