Toyota YARIS 倒车影像和摄像头 — Figure 8606

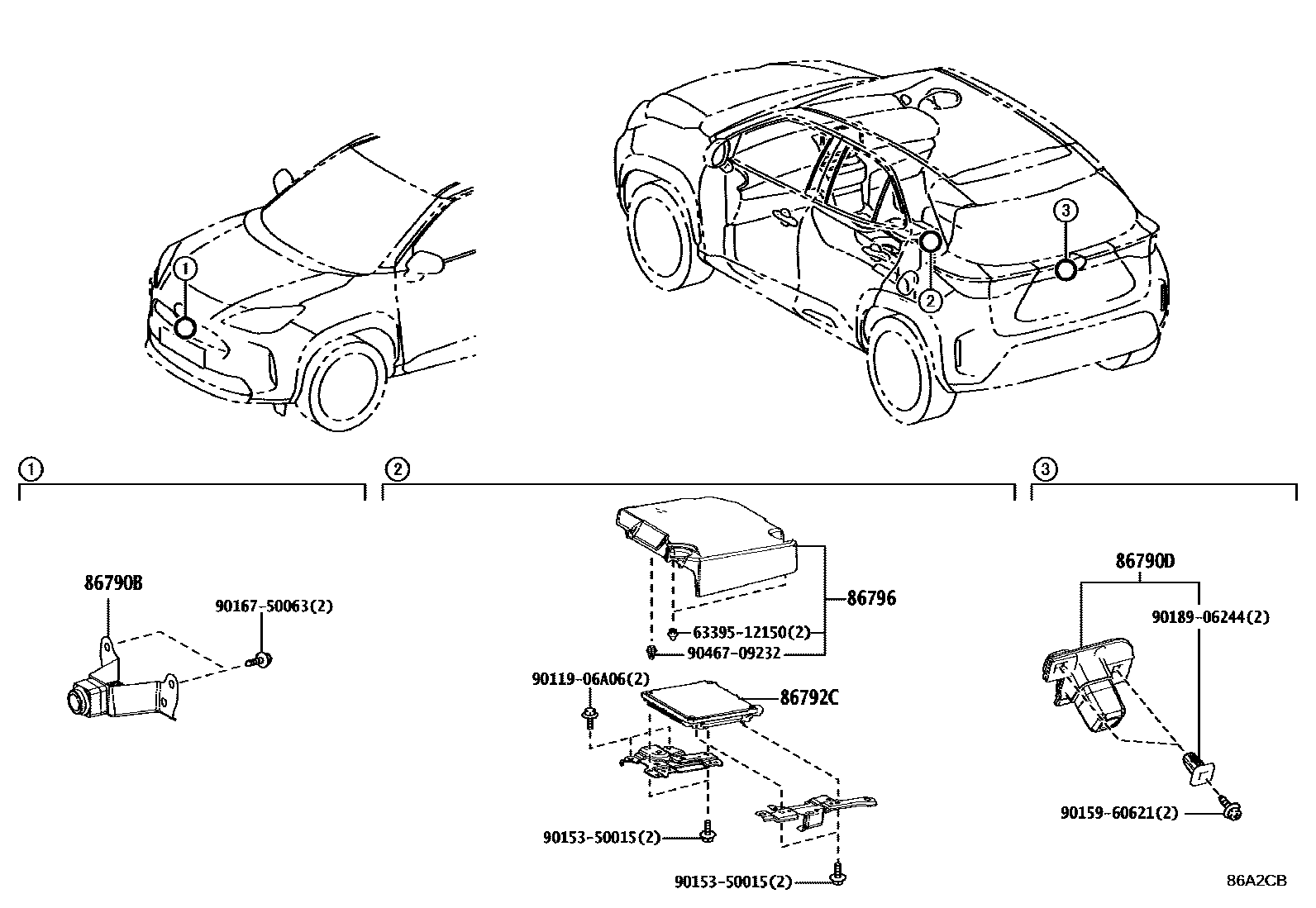

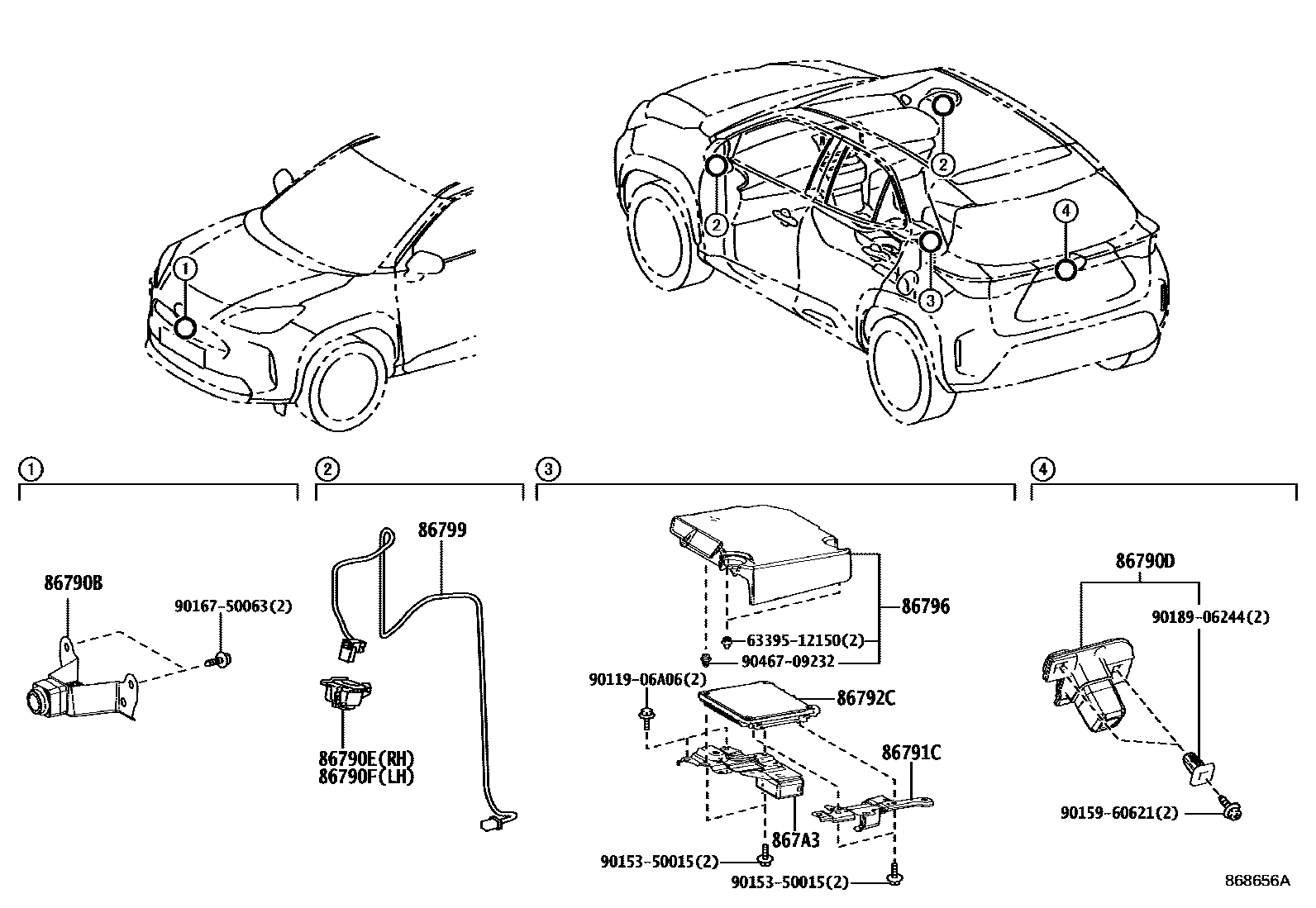

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0D100 · 86790-0D160 |
| 86790D | Rear reversing image camera assembly | 86790-0D070 · 86790-0D120 · 86790-0D140 · 86790-0D150 · 86790-52640 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86795-K0020 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86795-K0010 |
| 86791C | SUPPORT, ORDINATEUR ASSISTANCE STATIONNEMENT, NO.1 | 86791-52250 · 86791-K0020 |
| 86792C | Parking assist ECU | 86792-52120 · 86792-52390 · 86792-52400 |
| 86796 | Parking assist ECU cover | 86796-K0010 · 86796-K2010 |
| 86799 | Reversing image camera wiring harness | 86799-52030 |
| 867A3 | CIRCUIT, ASSISTANCE ECLAIRAGE STATIONNEMENT | 867A3-K0010 |
