Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.

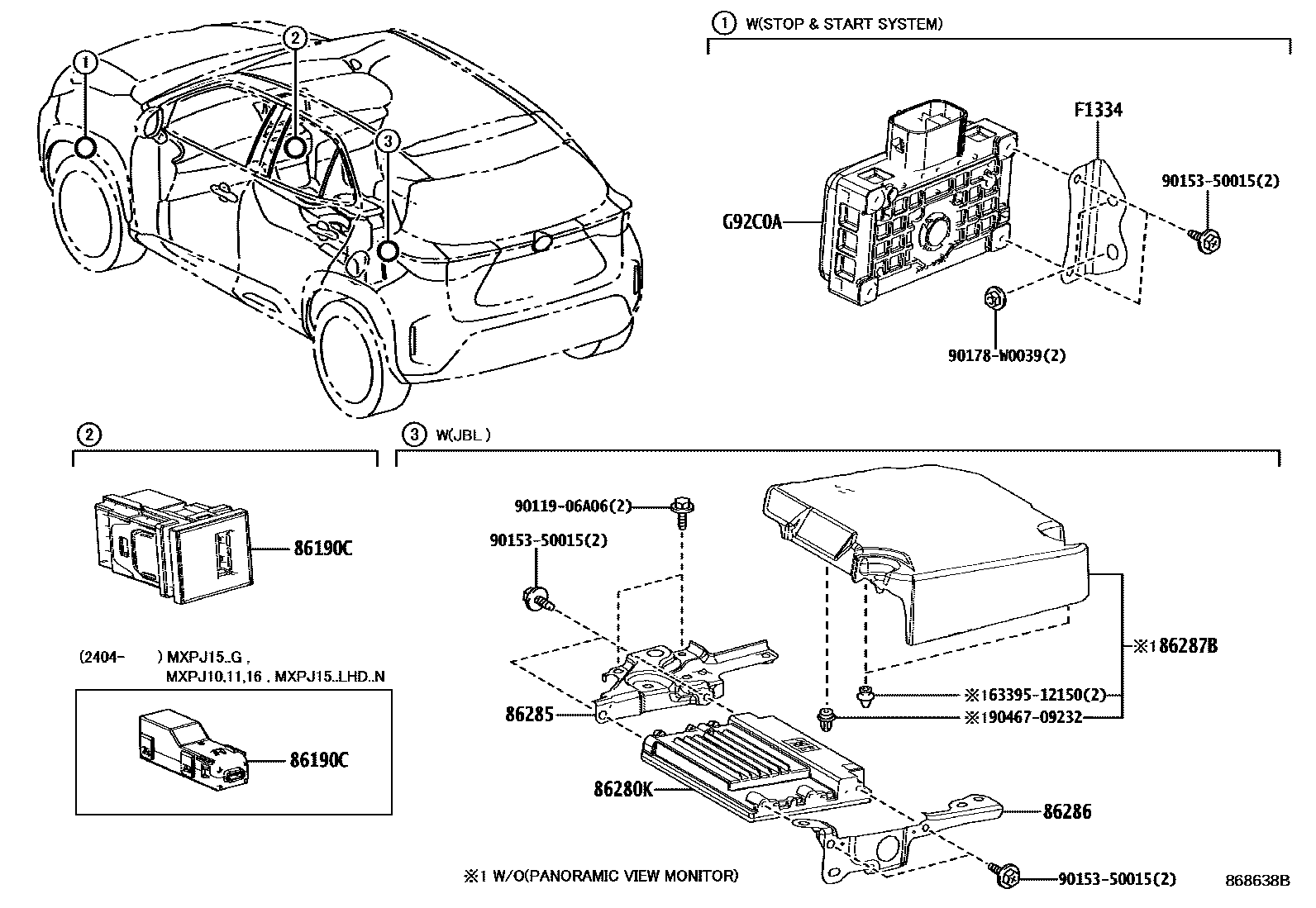

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868638B
收音机、放大器和冷凝器 — 868638B (202107 – 999999)

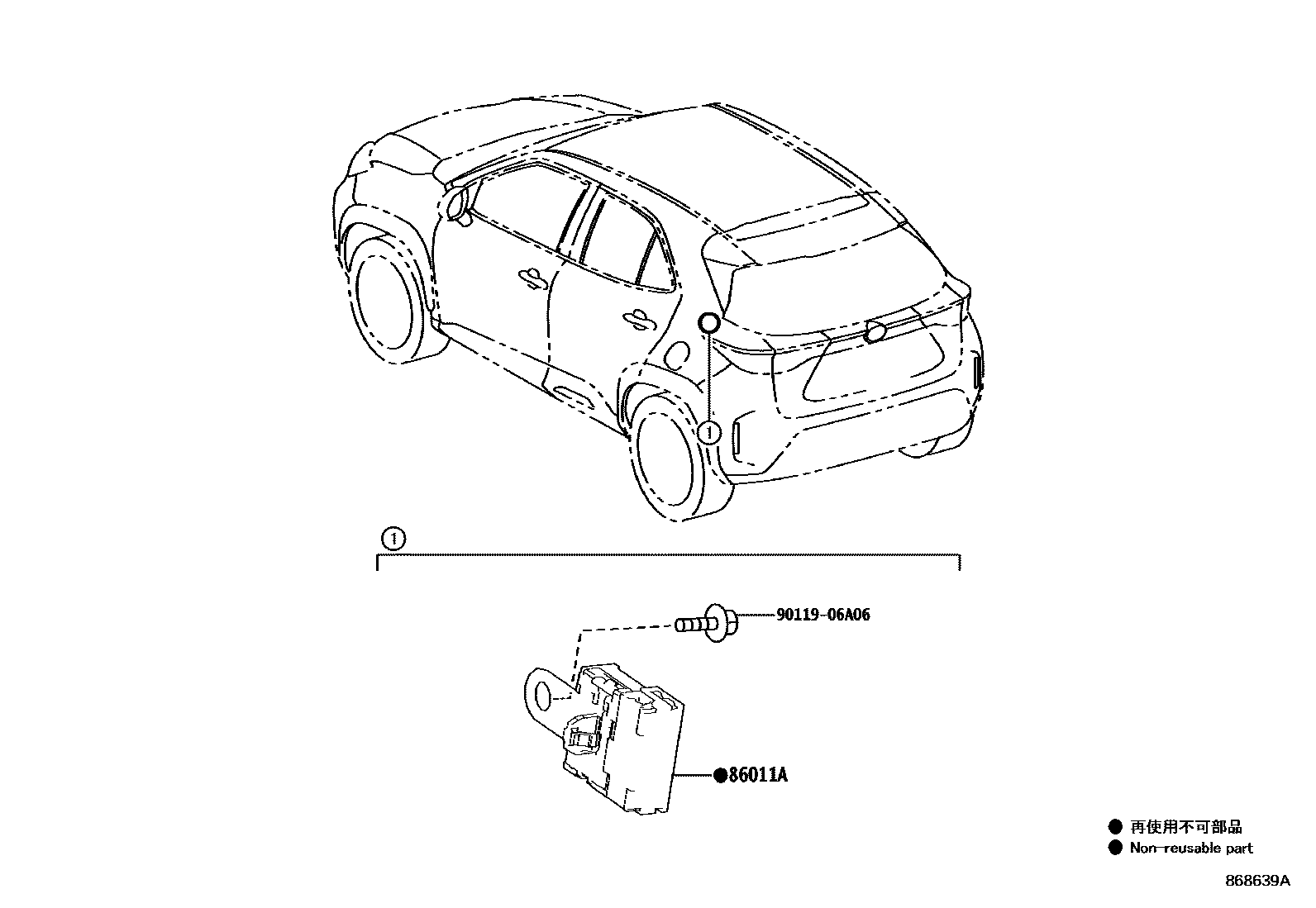

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868639A
收音机、放大器和冷凝器 — 868639A (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04189 · 90980-04213
86190CStereo socket connector assembly No. 186190-12070 · 86190-46010
86280KStereo parts amplifier assembly86280-0D020 · 86280-0D040
86285Amplifier Stand No. 186285-K0010
86286Amplifier Stand No. 286286-K0010
86287Bamplifier cover86796-K0010
F1334SUPPORT, COMMANDE CONVERTISSEUR, NO.1F1334-K0010
G92C0AENS. CONVERTISSEUR, VEHICULE ECO-RUNG92C0-30020
