Toyota YARIS 挡风玻璃刮水器 — Figure 8501

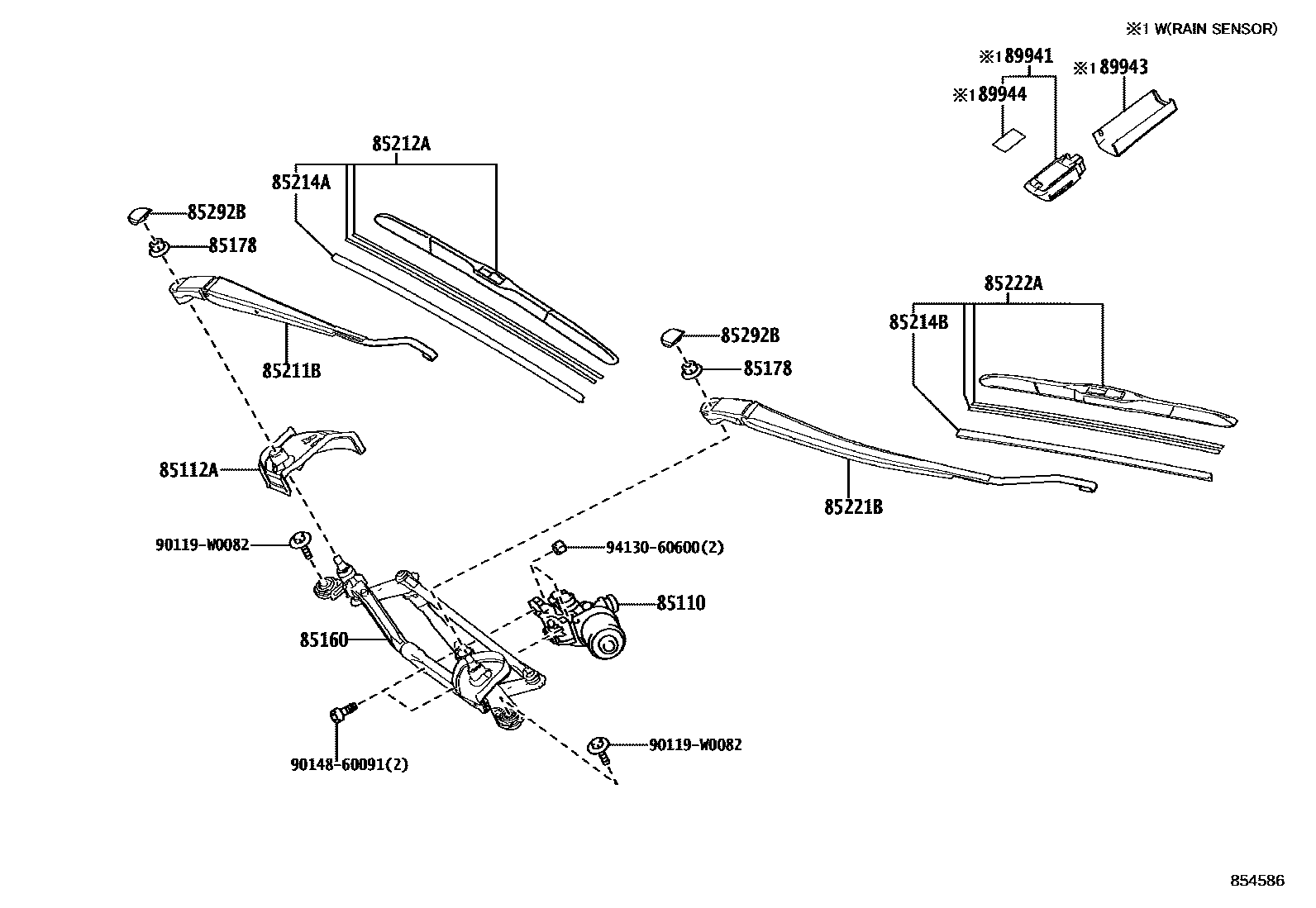

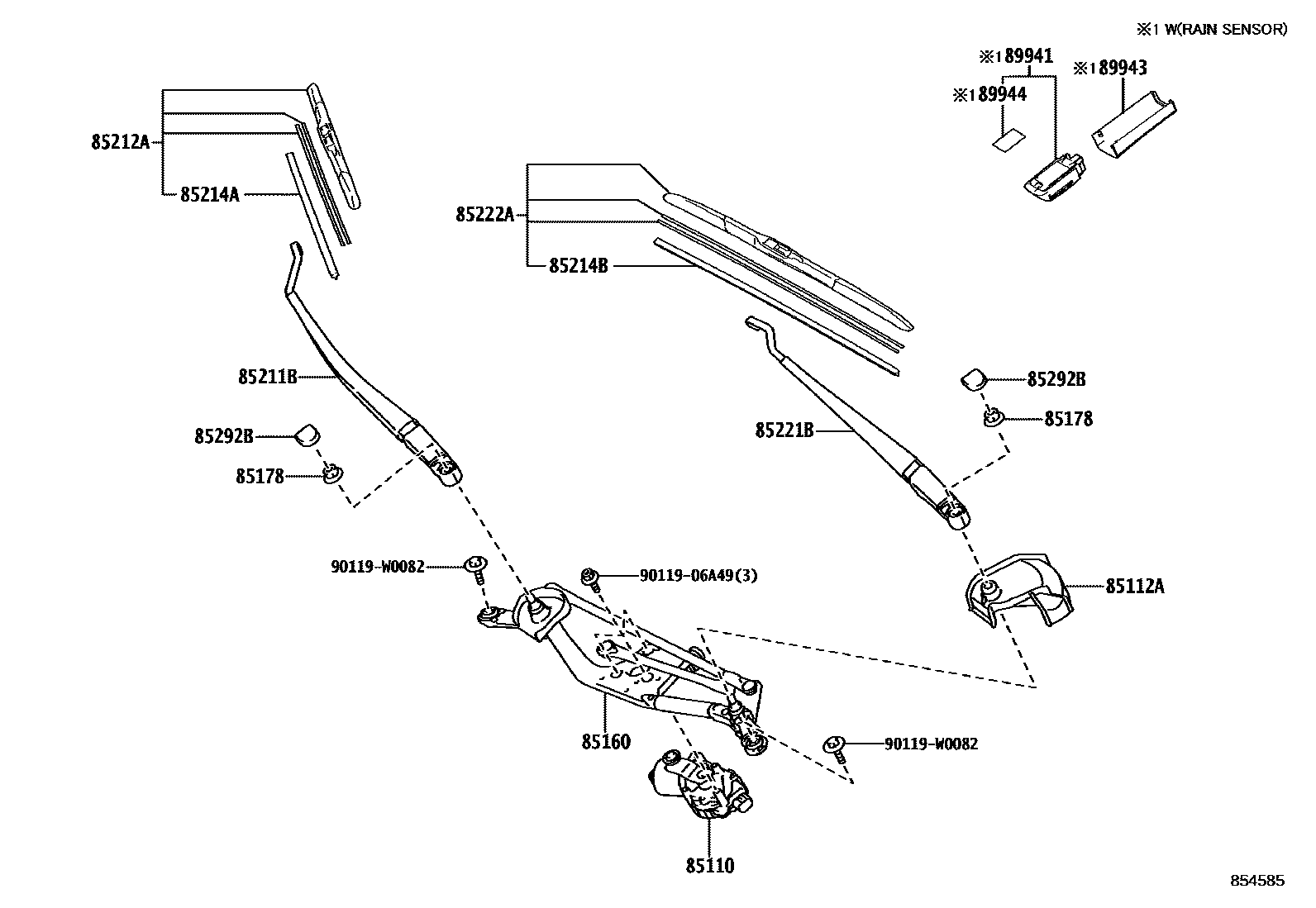

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-K0110 · 85110-K0120 |
| 85112A | No. 1 windshield wiper shaft cover | 85112-0D010 · 85112-0D020 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0D330 · 85150-0D340 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-0D230 · 85211-0D290 |
| 85212A | Right front wiper blade | 85212-K0020 · 85212-K0030 |
| 85214A | Right wiper rubber strip | 85214-28090 · 85214-30380 |
| 85214B | Left wiper rubber strip | 85214-28090 · 85214-30380 |
| 85221B | Left front wiper arm | 85221-0D230 · 85221-0D240 |
| 85222A | Left front wiper blade | 85222-K0020 · 85222-K0030 |
| 85292B | Front wiper arm cap | 85292-0F010 |
| 89941 | rain sensor | 89941-0D040 |
| 89943 | Rain sensor cover | 89943-30010 · 89943-52060 |
| 89944 | Rain sensor tape | 89944-42020 |
