Toyota YARIS 防盗装置 — Figure 8424

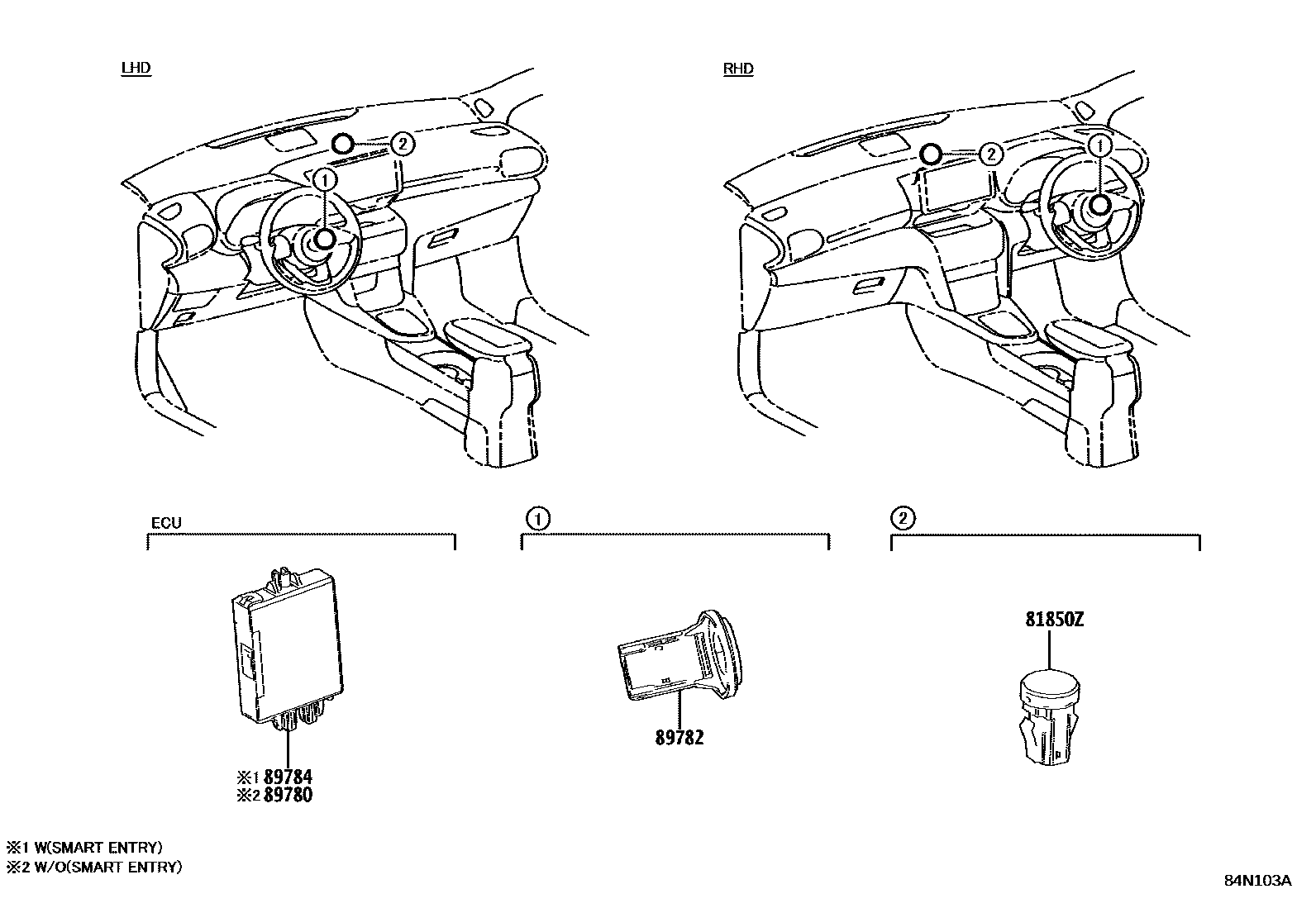

Toyota YARIS EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-0D020 |
| 89780 | Transceiver key ECU assembly | 897H0-02010 · 897H0-02011 |
| 89782 | transceiver key coil | 89782-02120 |
| 89784 | Shutdown code system ECU | 89784-02220 · 89784-02260 · 89784-02270 · 89784-K0011 |
