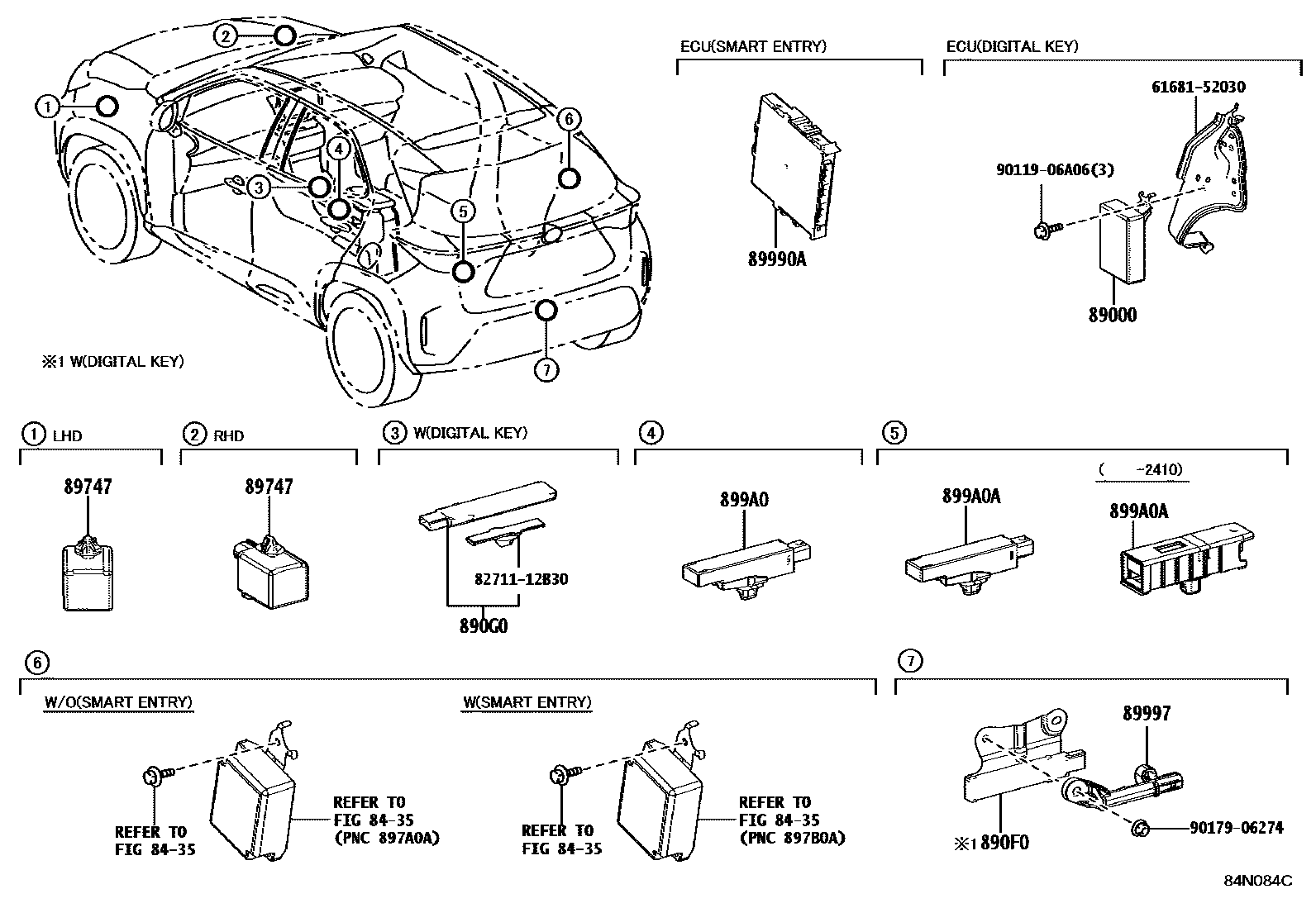

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | ENS. ORDINATEUR, CLE NUMERIQUE | 89000-52080 · 89000-52081 |
| 890F0 | ENS. RECEPTEUR, CLE NUMERIQUE DE COFFRE BLE | 890E0-52060 |
| 890G0 | ENS. RECEPTEUR, CLE NUMERIQUE INT BLE | 890G0-V1010 |
| 89747 | Remote door lock buzzer | 89747-05010 |
| 89990A | Smart key ECU assembly | 899H0-0D010 · 899H0-0D020 · 899H0-0D080 · 899H0-0D090 · 899H0-0D150 · 899H0-0D160 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02220 · 899A0-K0030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02220 · 899A0-02230 · 899A0-0D270 |
