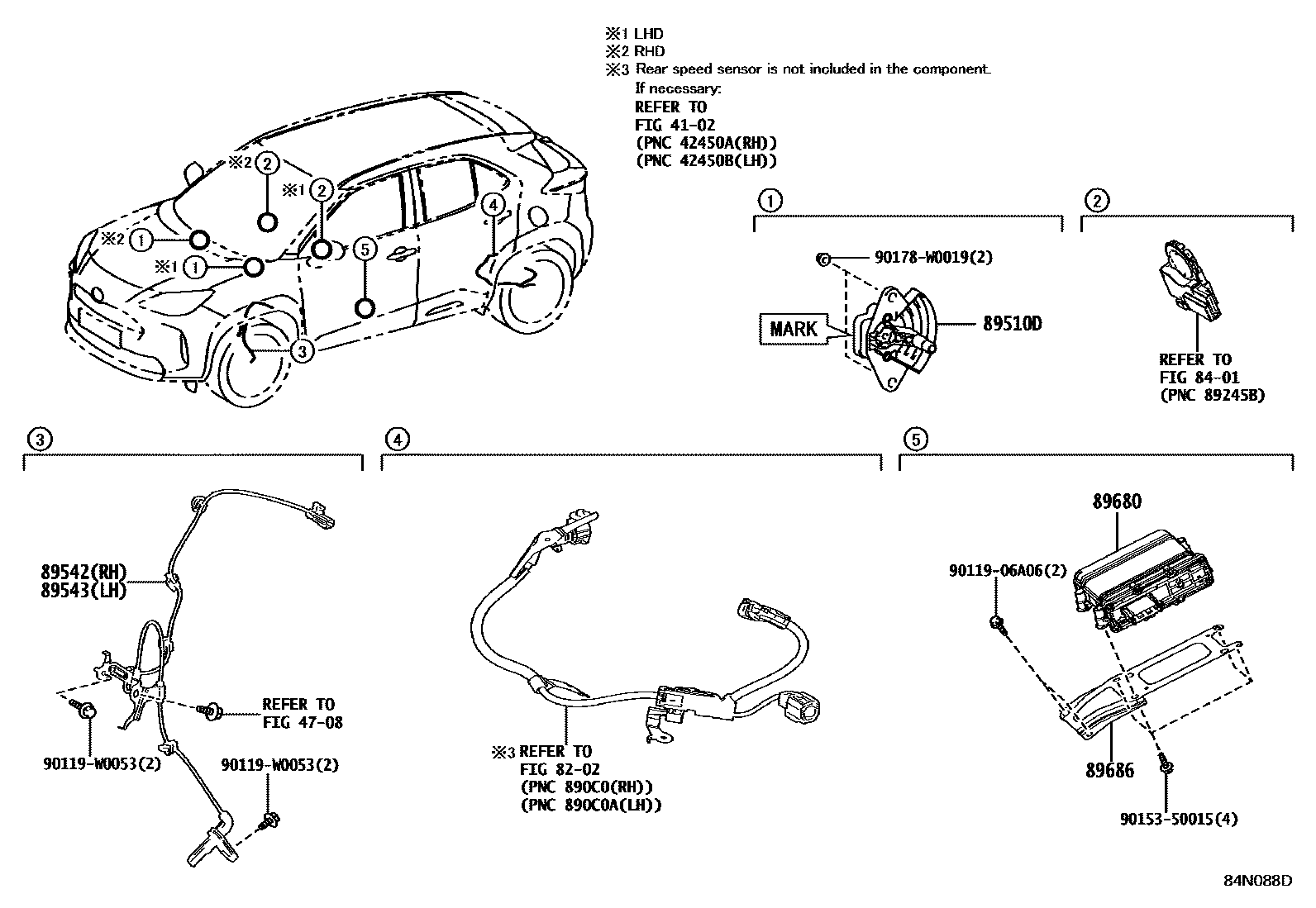

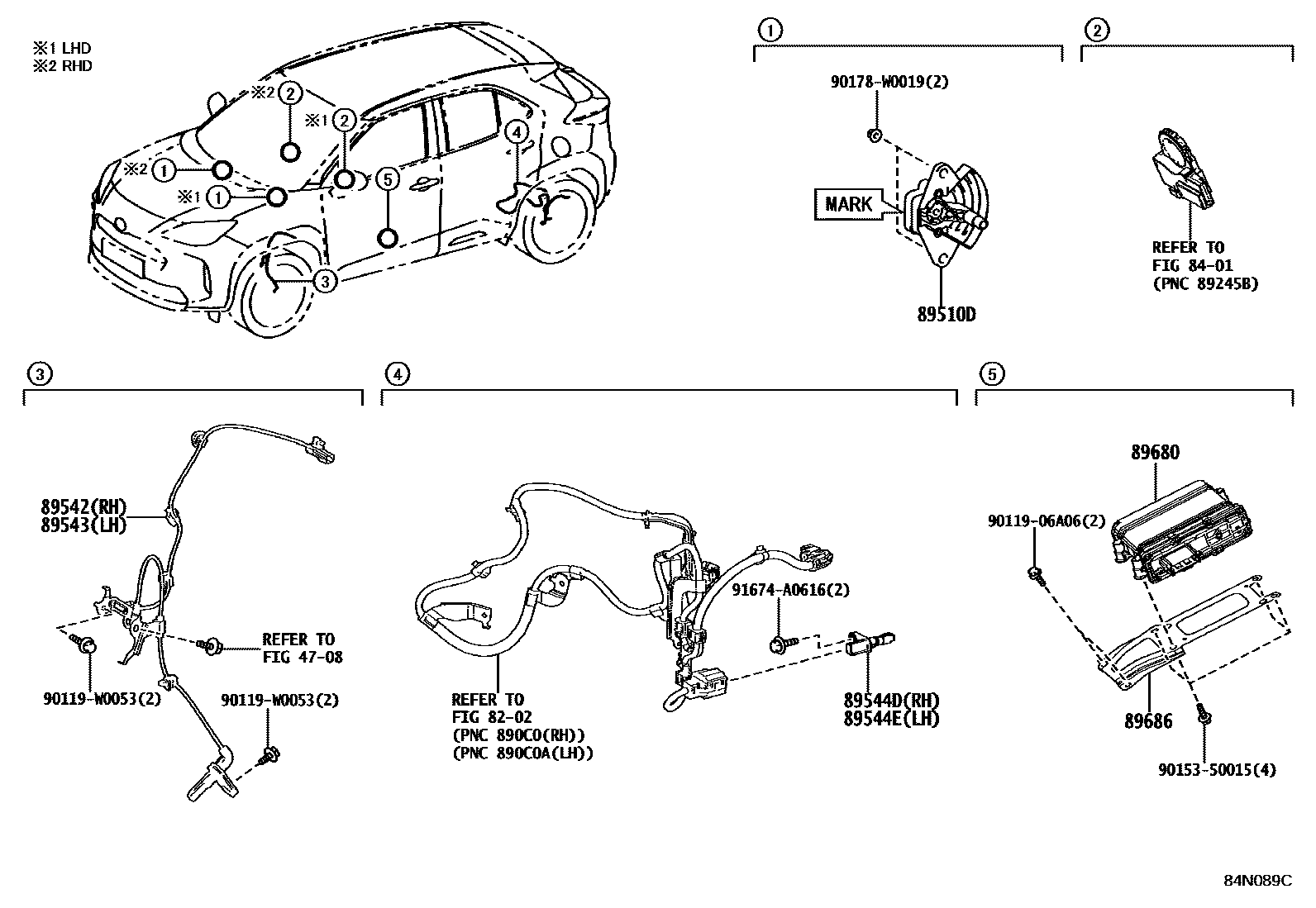

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-K0010 · 89510-K0011 · 89510-K0020 · 89510-K0021 |
| 89542 | Right front wheel speed sensor | 89542-0D130 · 89542-K0020 |
| 89543 | Left front wheel speed sensor | 89543-0D130 · 89543-K0020 |
| 89544D | CAPTEUR, CONTROLE DERAPAGE, ARR MD | 89544-0D090 · 89544-0D110 · 89544-F4020 |
| 89544E | CAPTEUR, CONTROLE DERAPAGE, ARR MG | 89544-0D090 · 89544-0D110 · 89544-F4020 |
| 89680 | Brake control power supply assembly | 89680-K0010 |
| 89686 | No. 1 brake control power bracket | 89686-K0010 |
