Toyota YARIS 超速档和电子控制变速器 — Figure 8410

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 7 PNC and OE references.

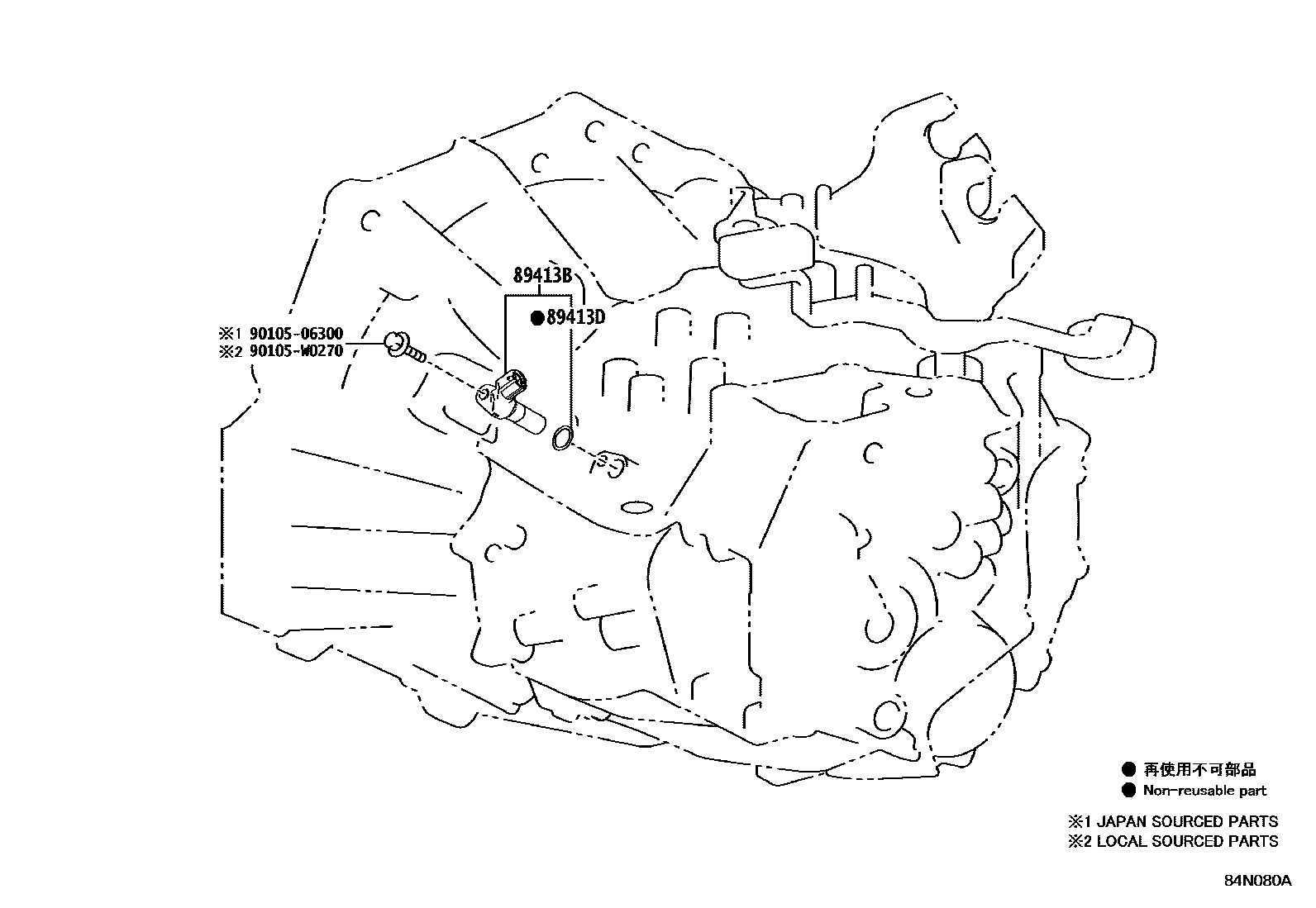

Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84N080A
超速档和电子控制变速器 — 84N080A (202107 – 999999)

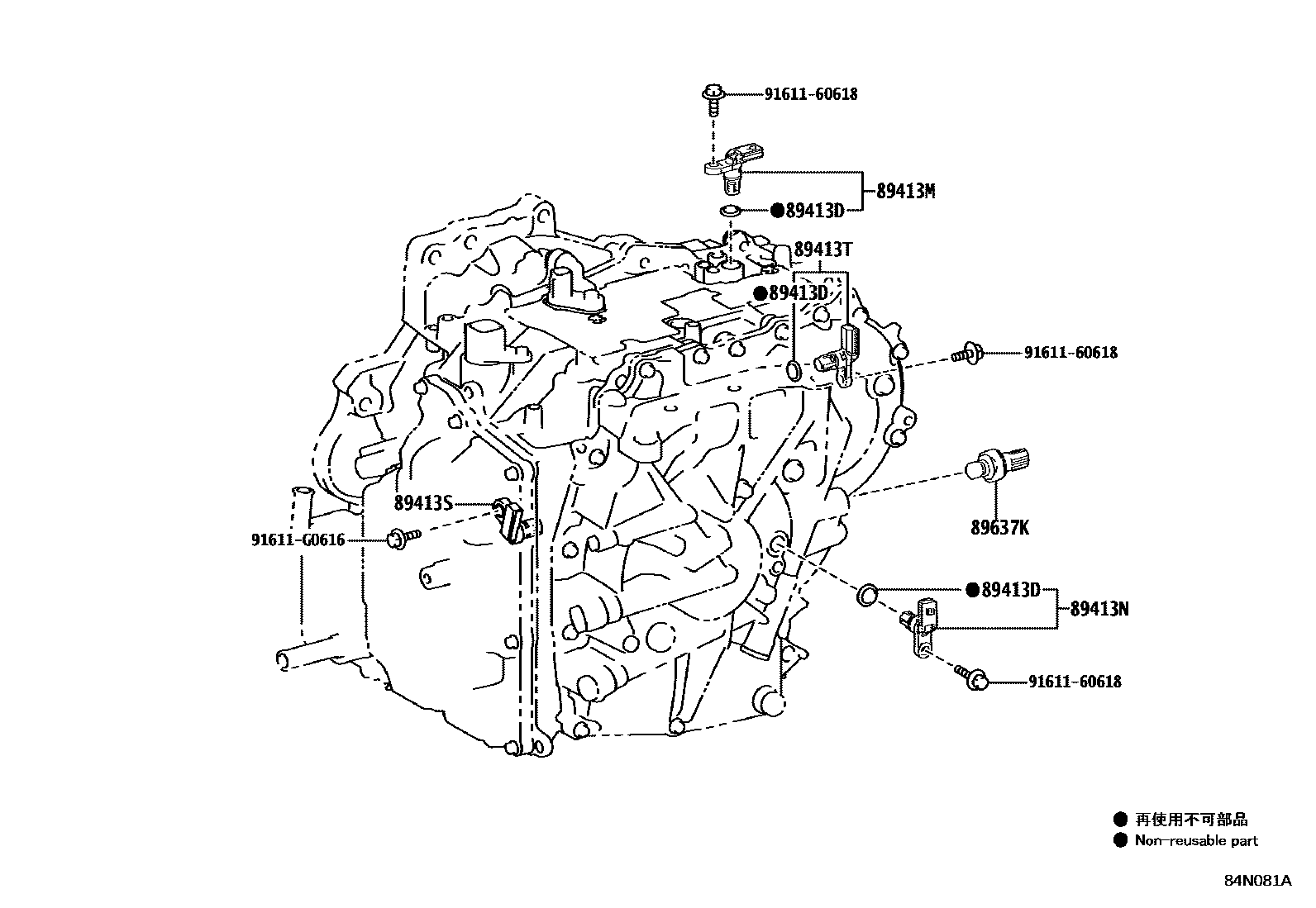

Toyota YARIS 超速档和电子控制变速器 EPC diagram — 84N081A
超速档和电子控制变速器 — 84N081A (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413BTransmission speed sensor89413-22010
89413DO-ring (for transmission speed sensor)90301-11008
89413MCAPTEUR, REVOLUTION DE LA TRANSMISSION, (NOUT)89413-12010
89413NCAPTEUR, REVOLUTION DE LA TRANSMISSION, (NT)89413-12010
89413SCAPTEUR, REVOLUTION DE LA TRANSMISSION, (NC)89413-11021
89413TCAPTEUR, TOURS TRANSMISSION (NSS)89413-12010
89637Koil pressure sensor89637-12040
