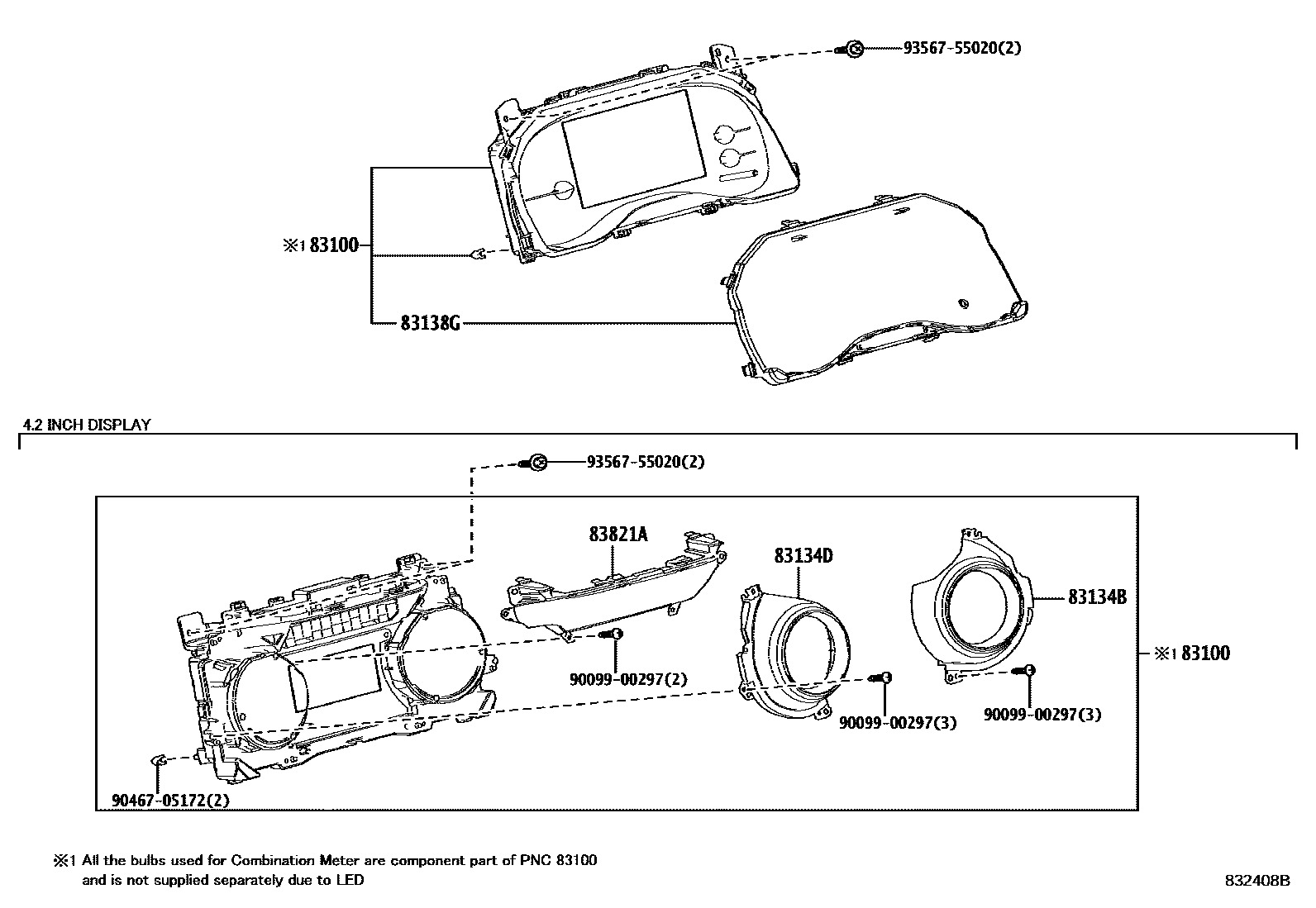

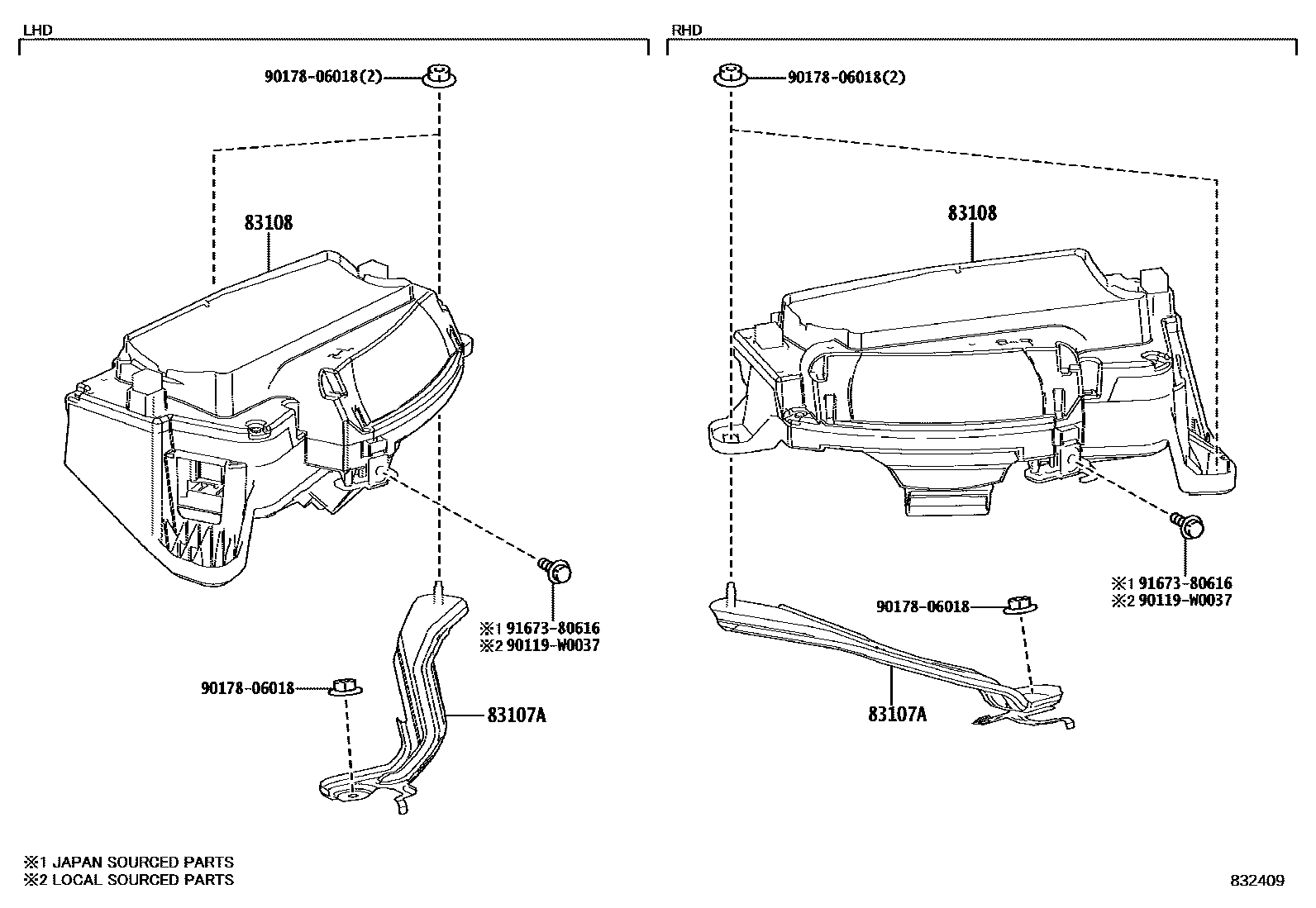

Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0DZ30 · 83800-0DZ50 · 83800-0UX50 · 83800-0UX70 · 83800-F5B00 · 83800-F5B01 · 83800-F5B10 · 83800-F5B11 · 83800-F5B20 · 83800-F5B21 · 83800-F5B60 · 83800-F5B70 · 83800-F5C40 · 83800-F5C50 · 83800-F5D70 · 83800-F5D71 · 83800-F5D80 · 83800-F5D81 · 83800-F5D82 · 83800-F5M40 · 83800-F5M50 |
| 83107A | SOUS-ENS. SUPPORT, INSTR, NO.1 | 83107-K0011 · 83107-K0051 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-0D010 · 83108-0D020 · 83108-0D050 · 83108-0D051 · 83108-0D060 · 83108-0D061 |
| 83134B | Combination instrument cover No. 2 | 83822-K0200 |
| 83134D | Combination instrument cover No. 3 | 83823-K0200 |
| 83138G | Instrument cluster glass | 83852-F5C40 · 83852-F5D30 · 83852-F5D50 |
| 83821A | Combination instrument cover No. 1 | 83821-K0200 |
