Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 22 images and 1 PNC and OE references.

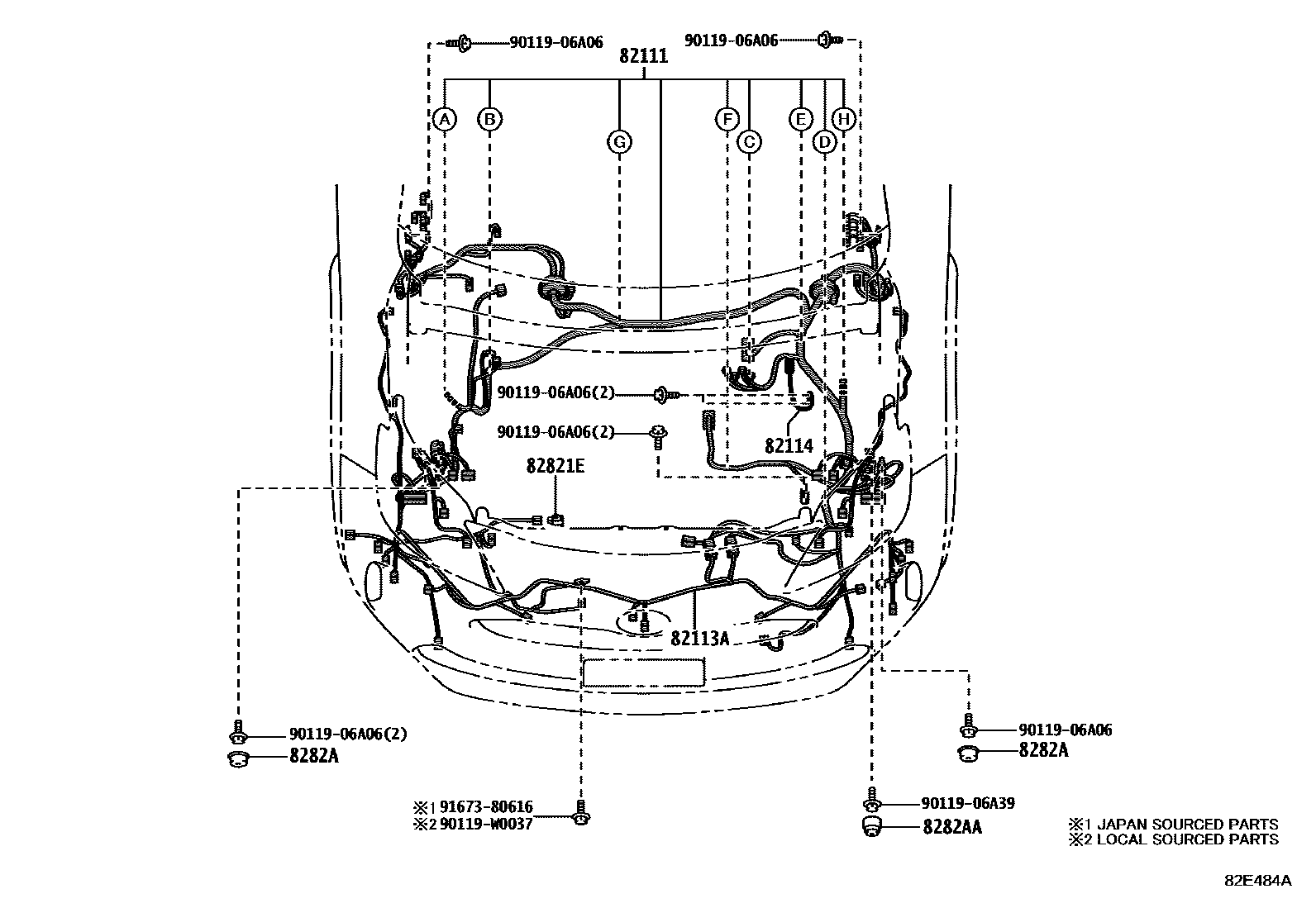

线束和卡夹 — 82E484A (202107 – 999999)

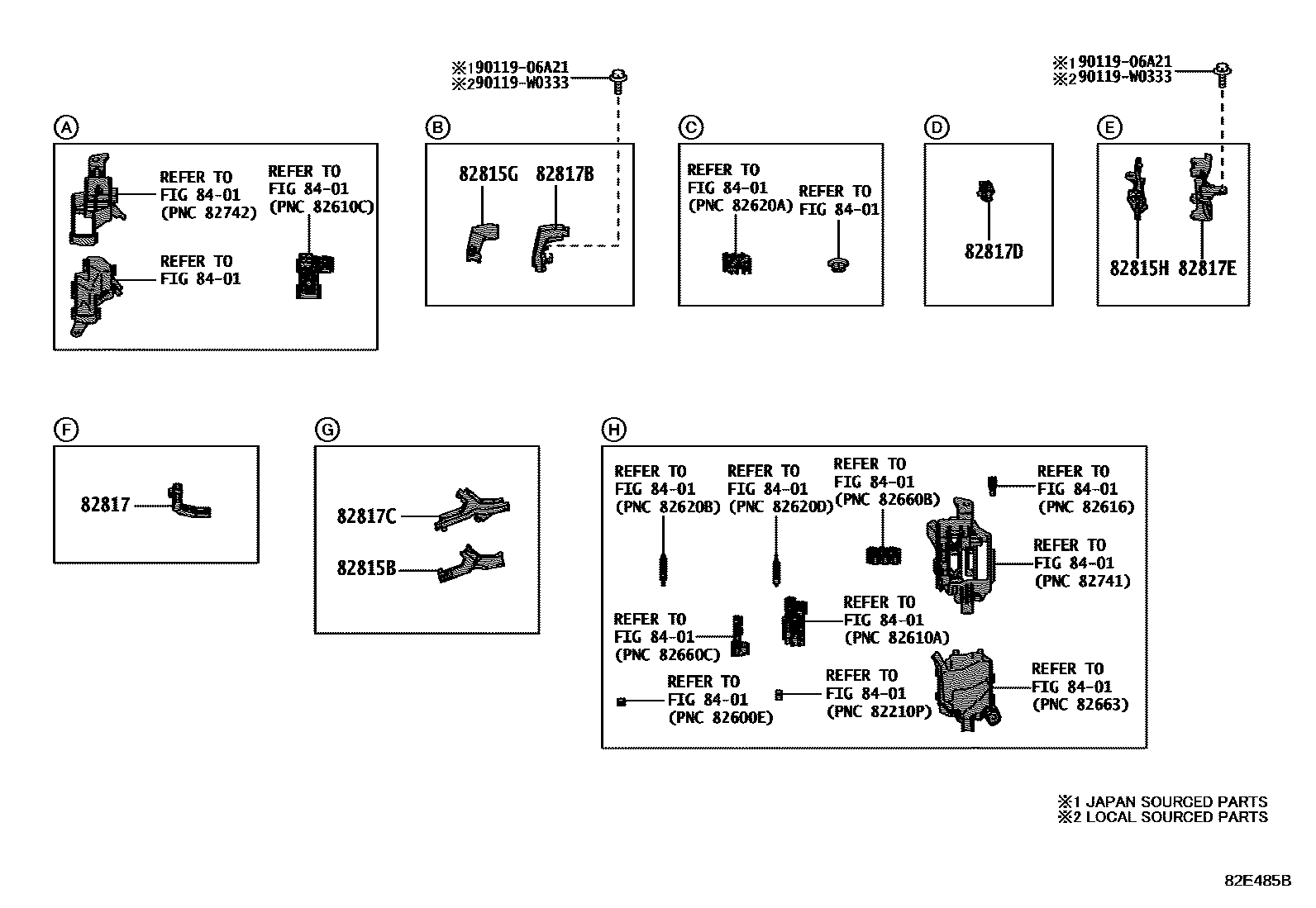

线束和卡夹 — 82E485B (202107 – 999999)

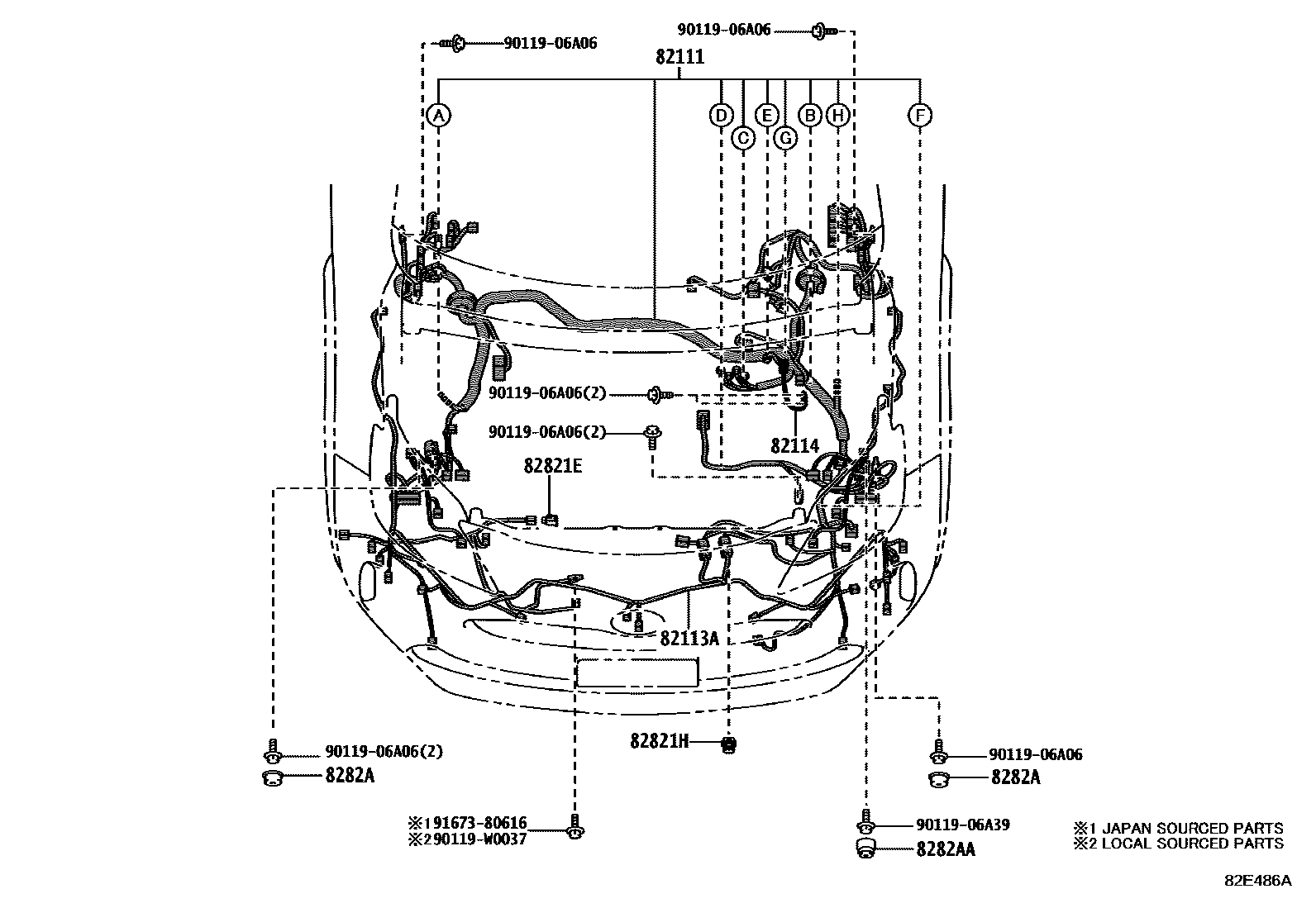

线束和卡夹 — 82E486A (202107 – 999999)

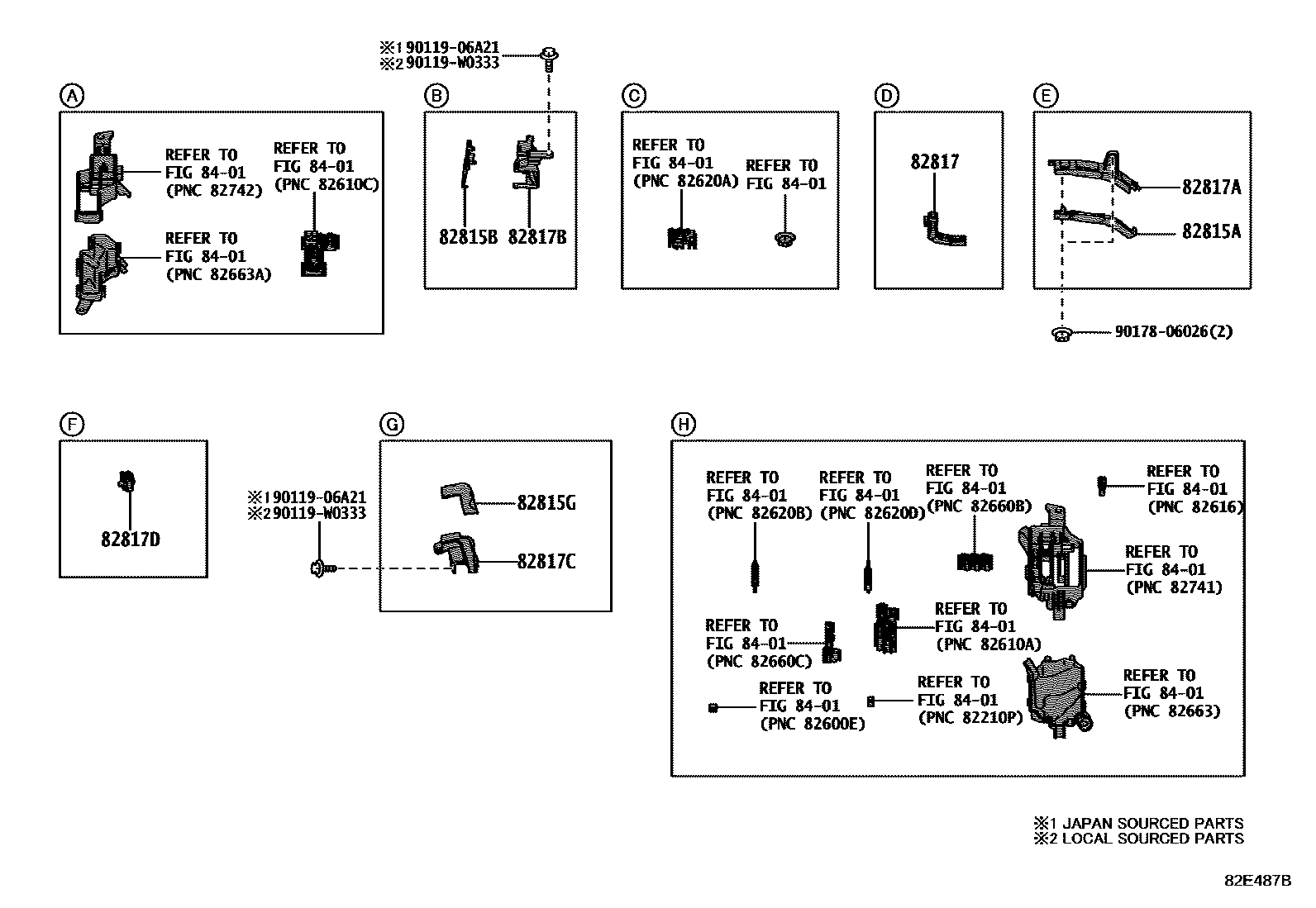

线束和卡夹 — 82E487B (202107 – 999999)

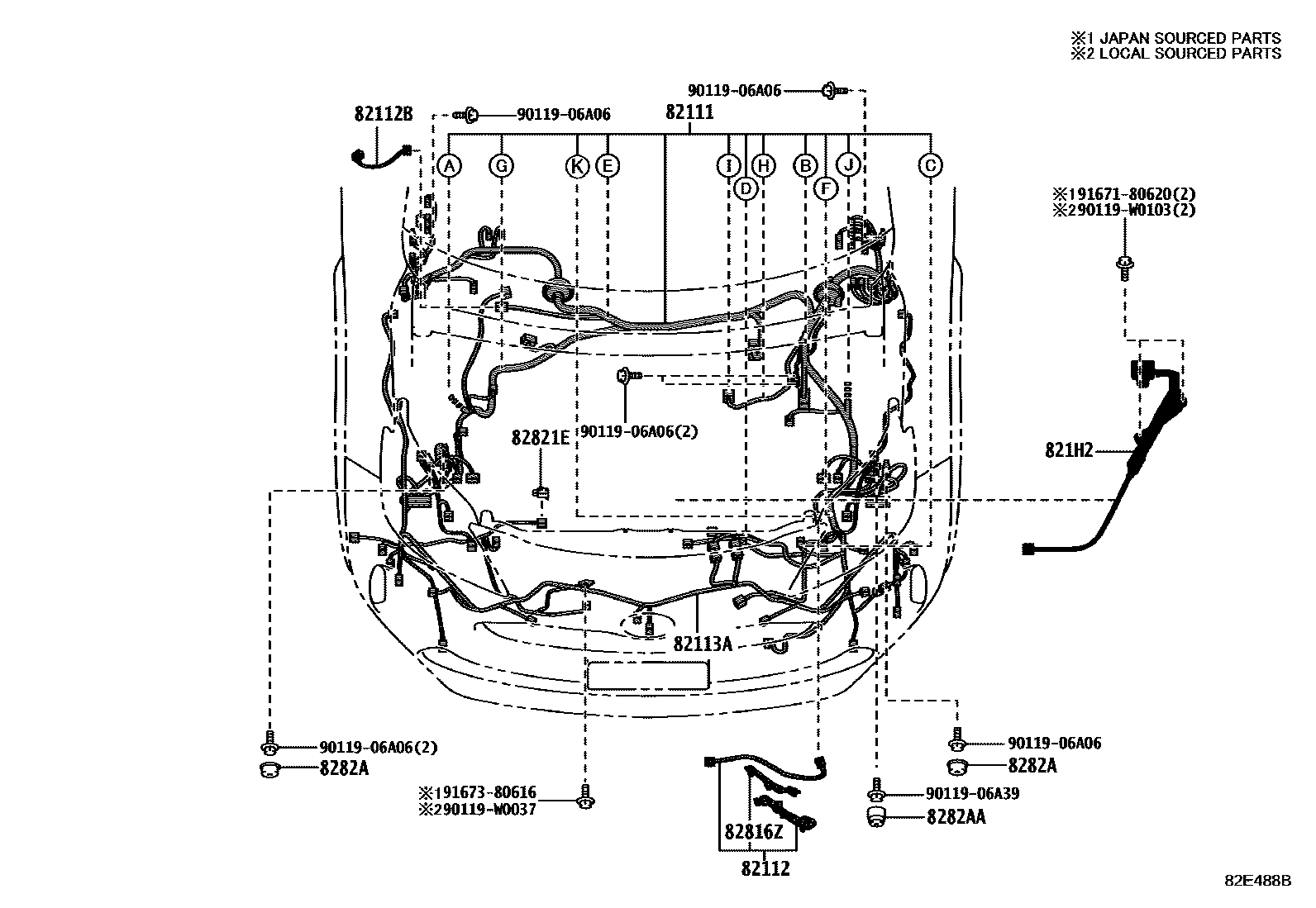

线束和卡夹 — 82E488B (202107 – 999999)

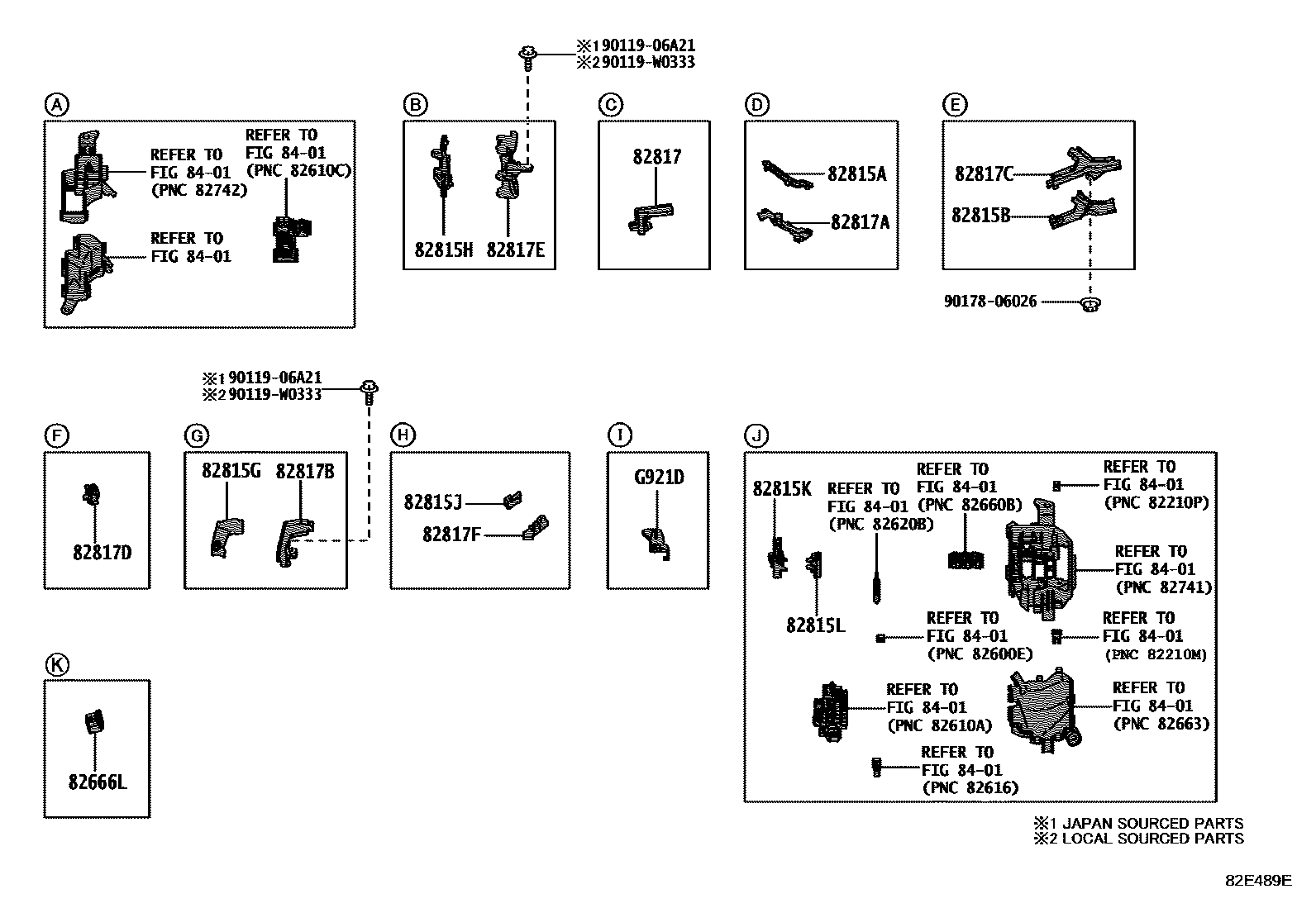

线束和卡夹 — 82E489E (202107 – 999999)

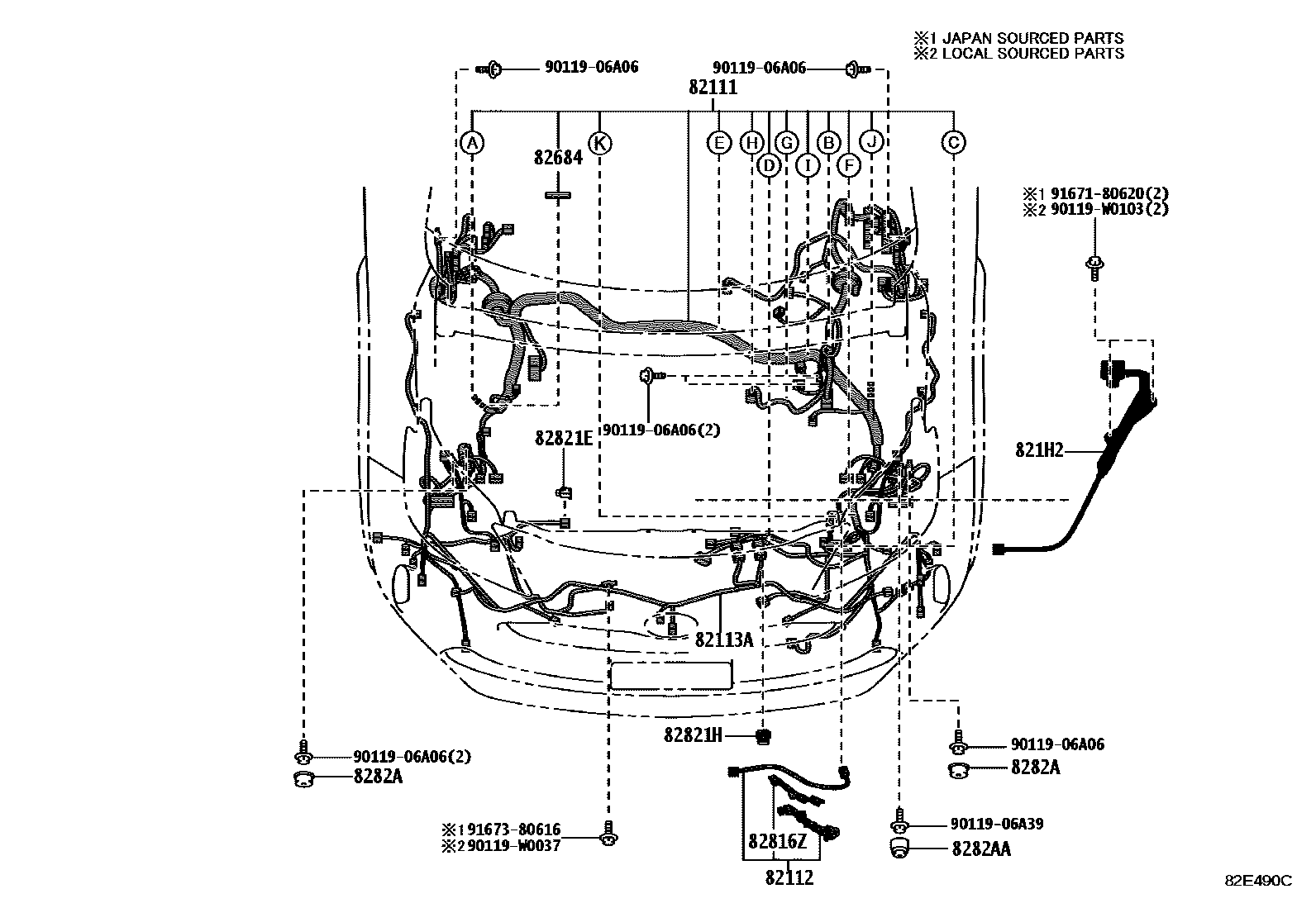

线束和卡夹 — 82E490C (202107 – 999999)

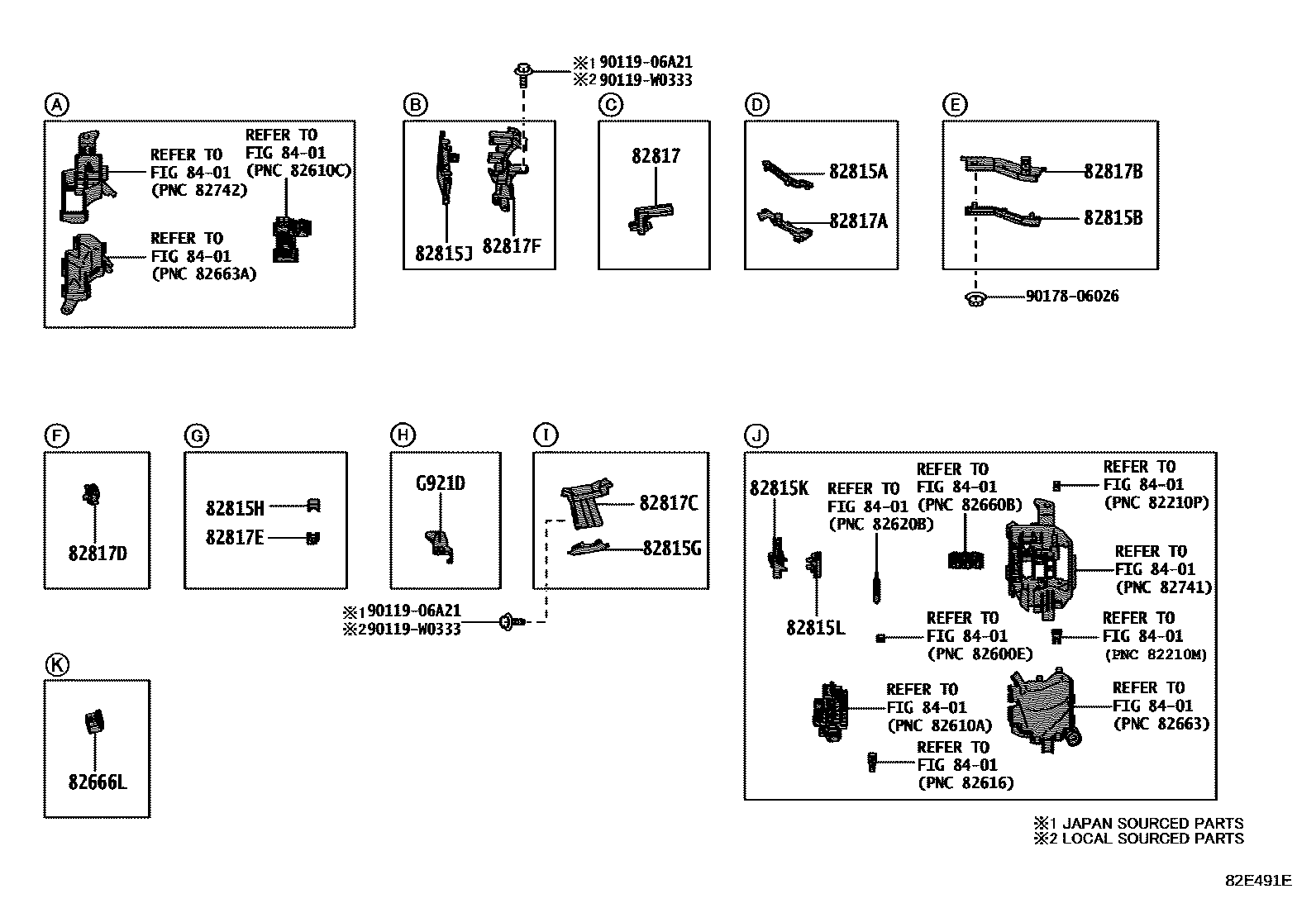

线束和卡夹 — 82E491E (202107 – 999999)

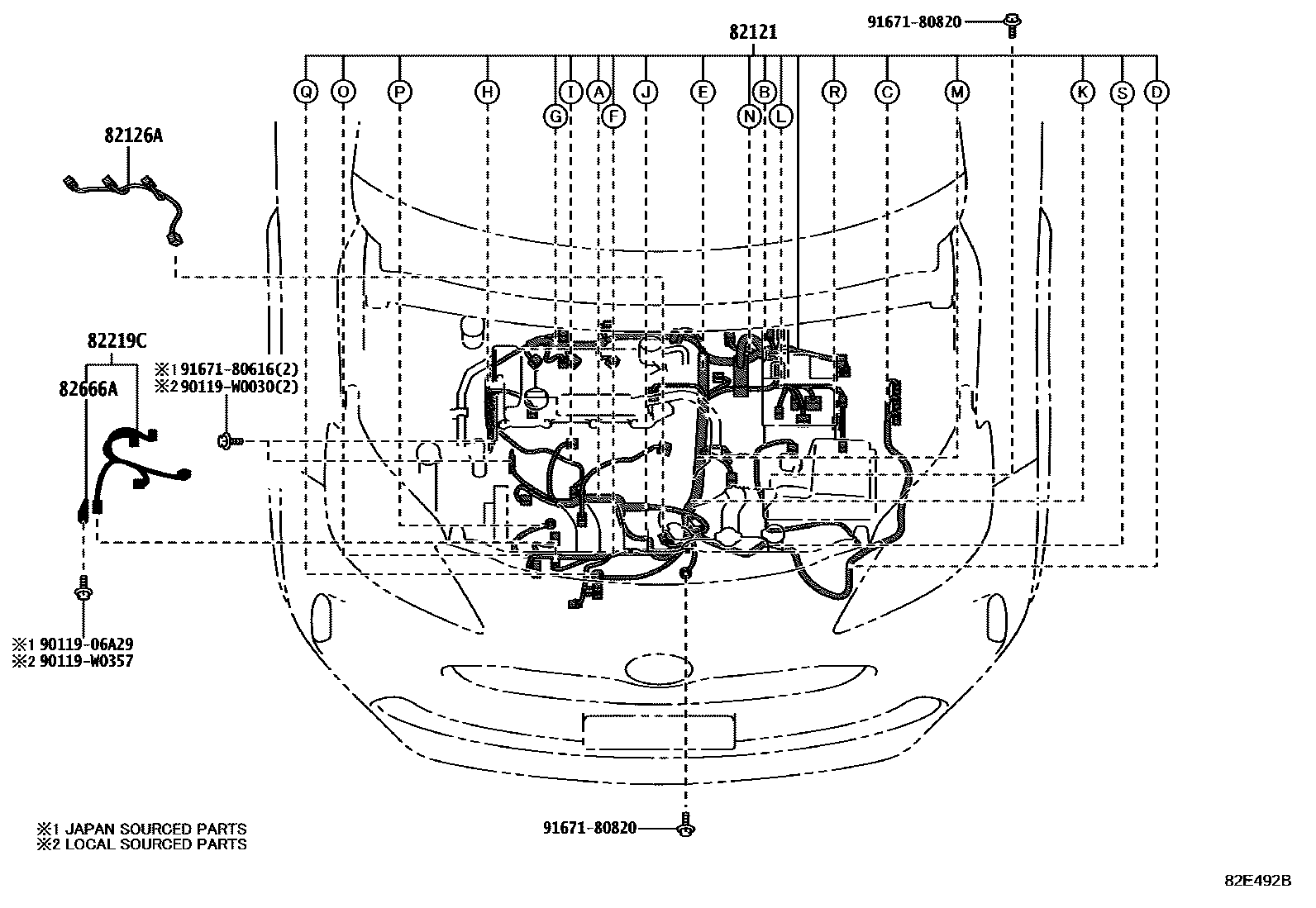

线束和卡夹 — 82E492B (202107 – 999999)

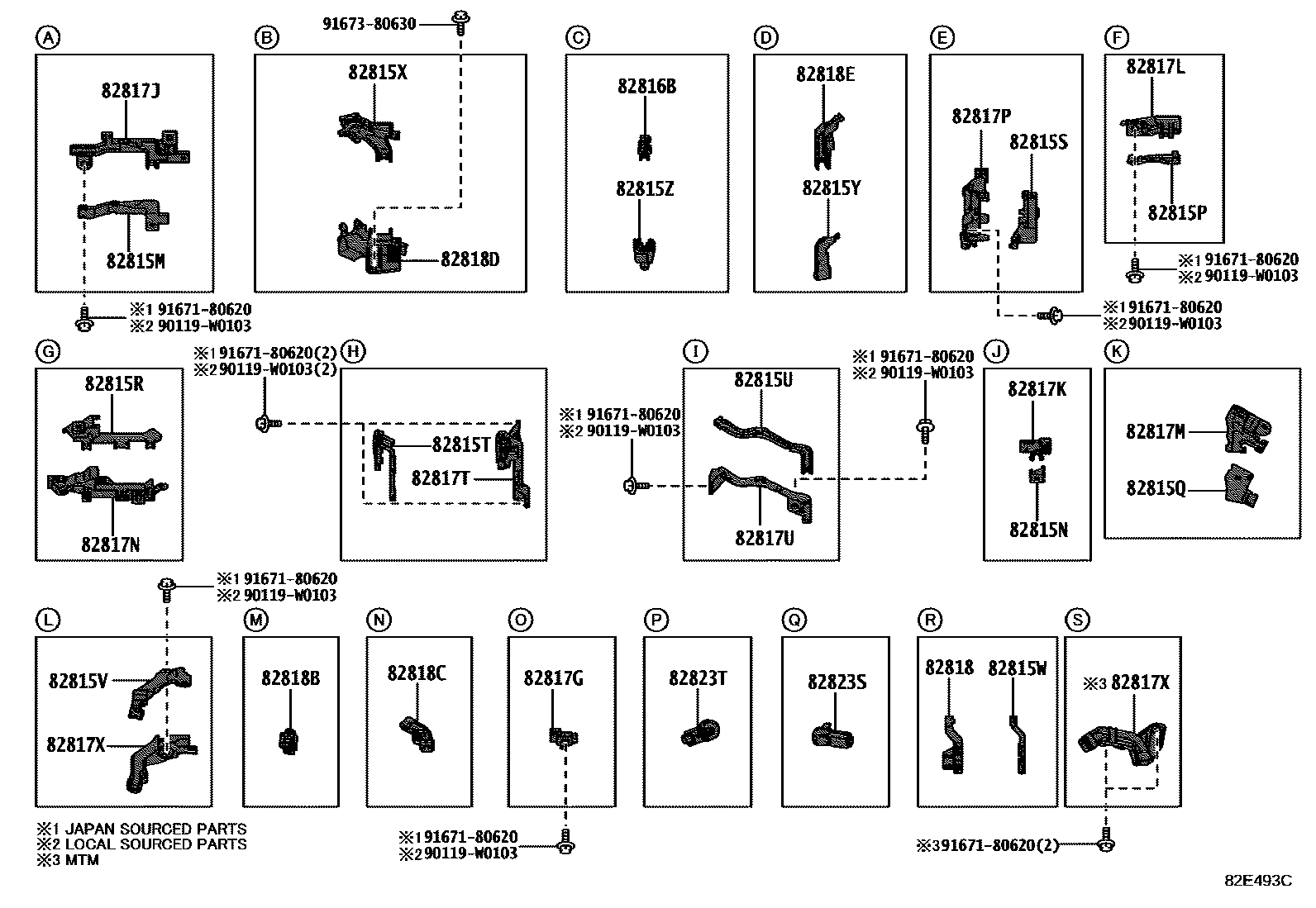

线束和卡夹 — 82E493C (202107 – 999999)

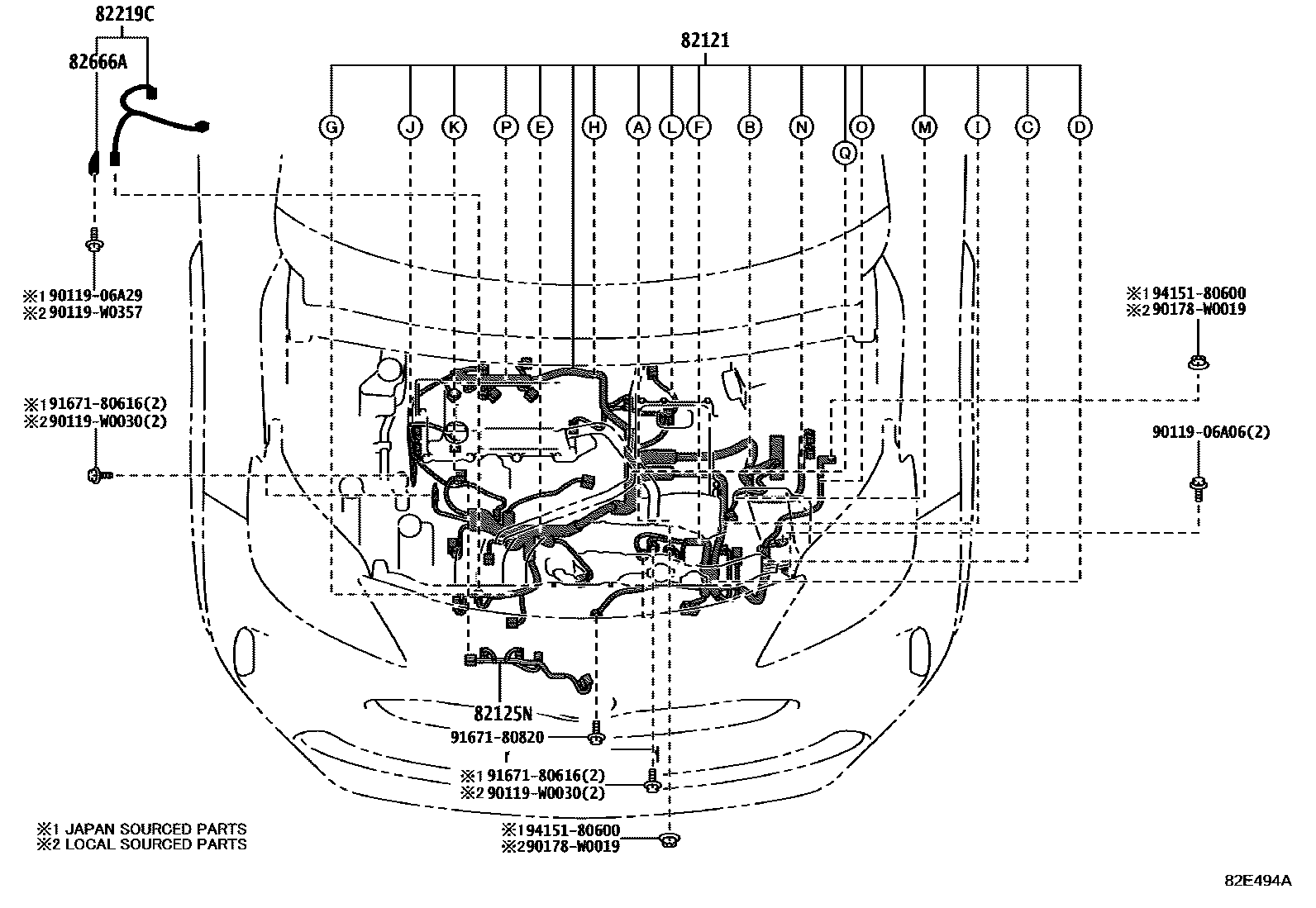

线束和卡夹 — 82E494A (202107 – 999999)

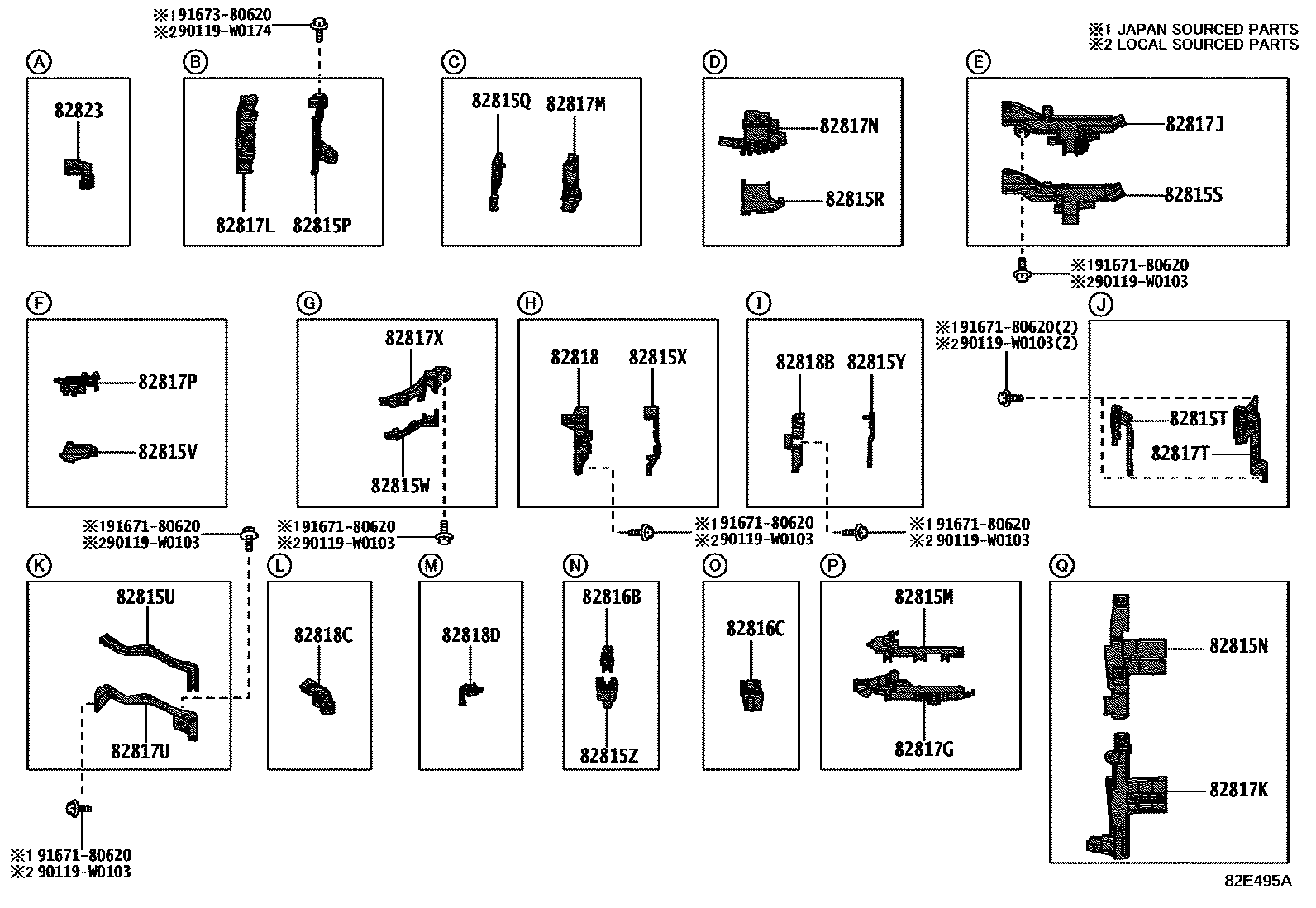

线束和卡夹 — 82E495A (202107 – 999999)

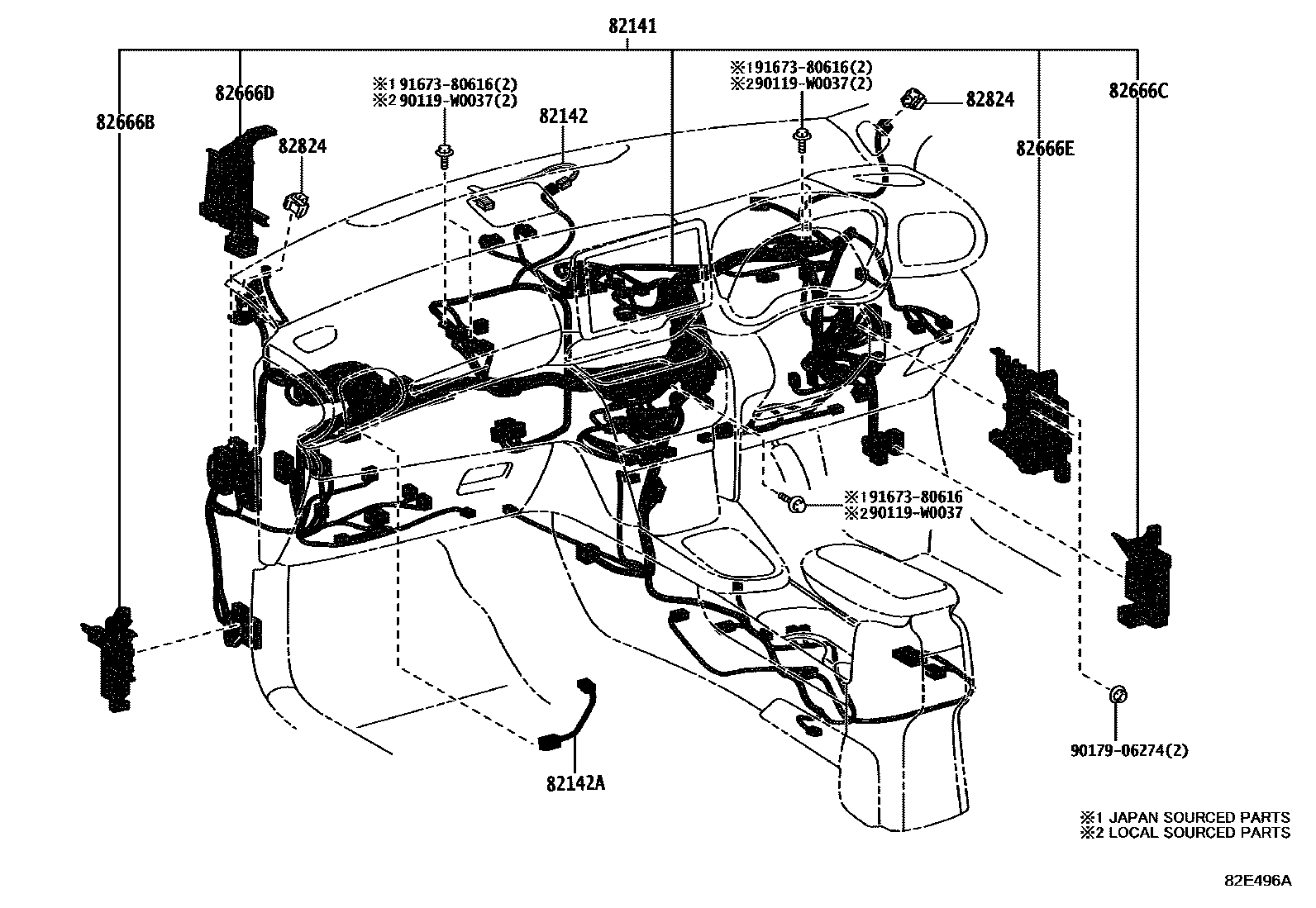

线束和卡夹 — 82E496A (202107 – 999999)

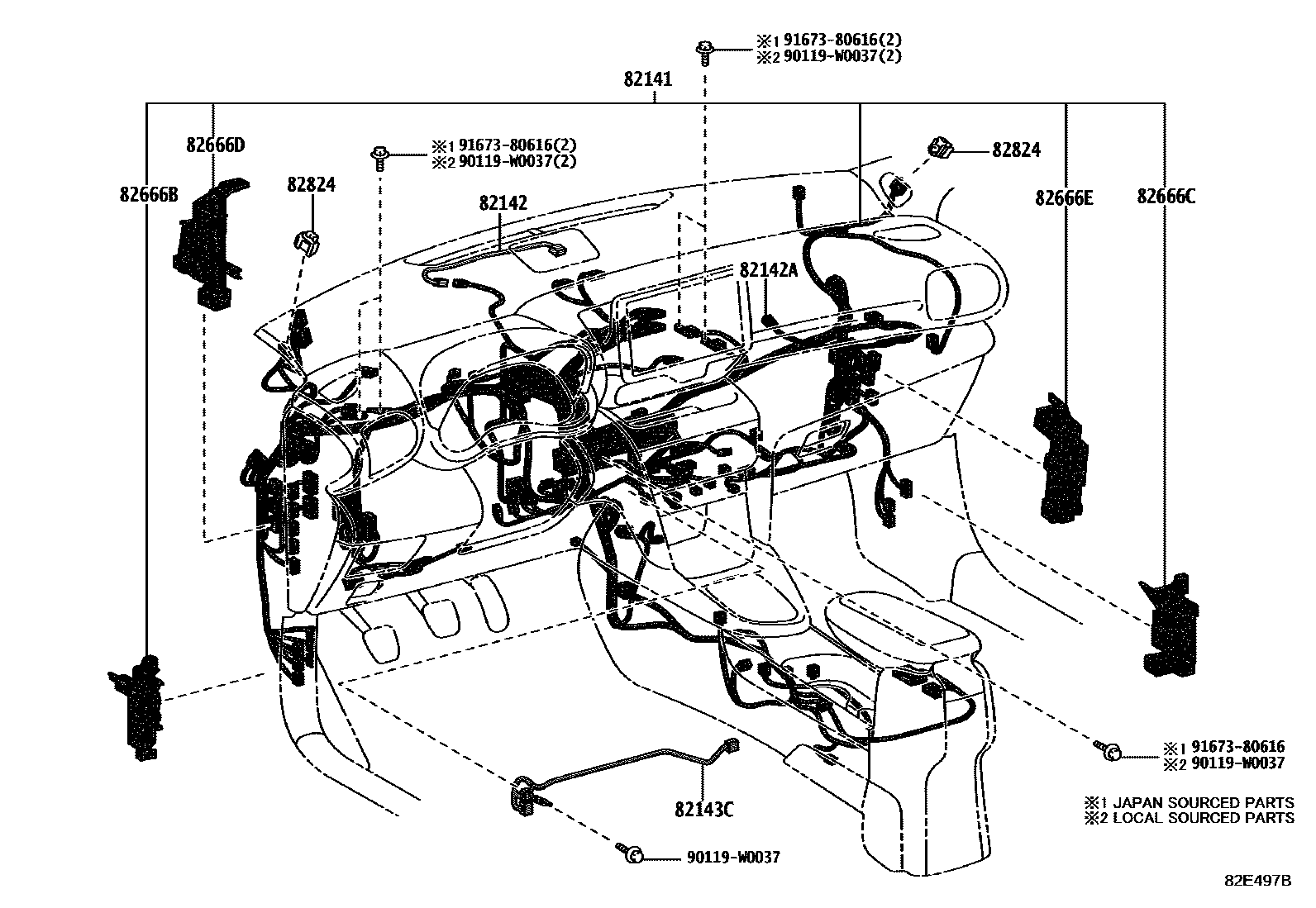

线束和卡夹 — 82E497B (202107 – 999999)

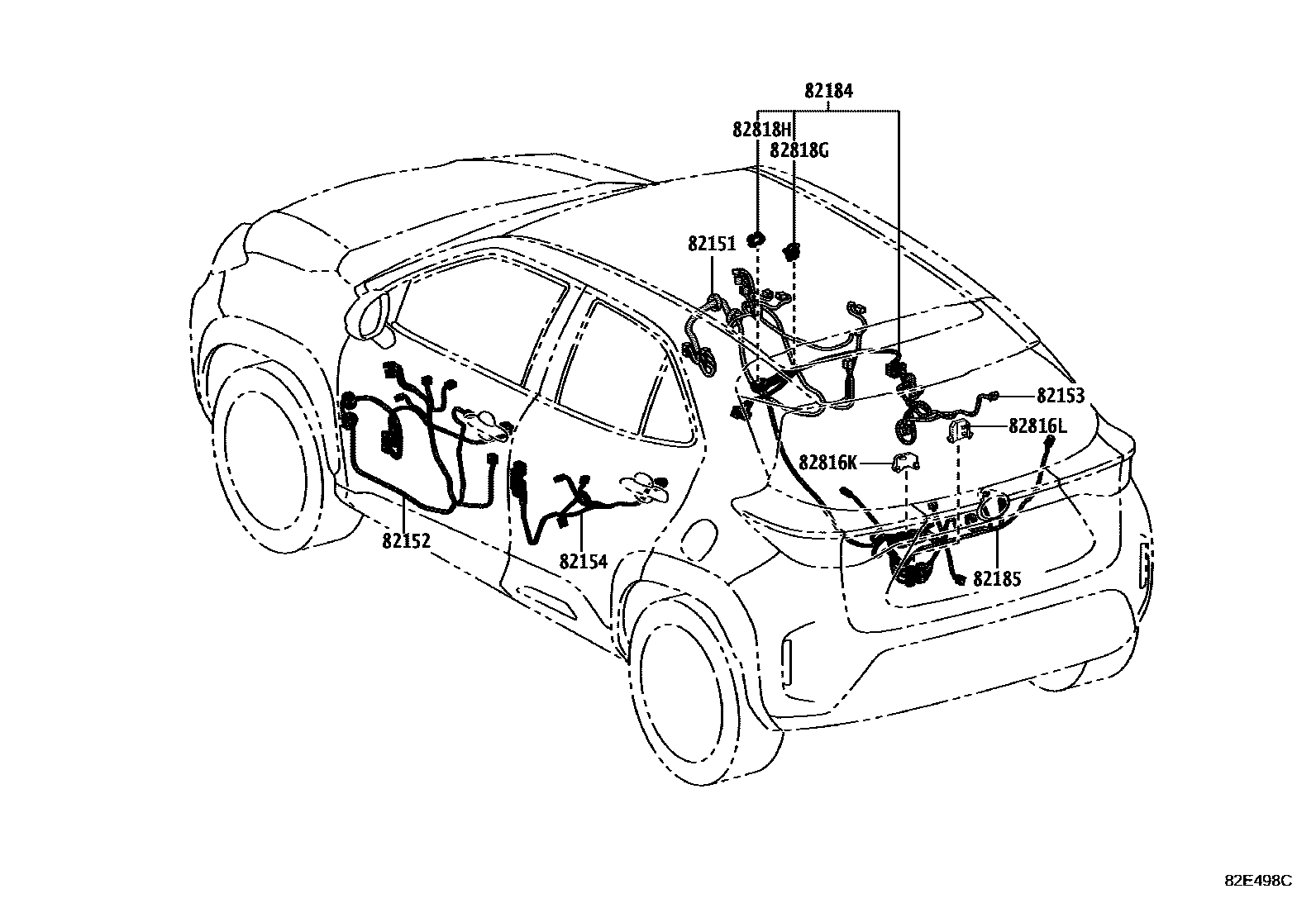

线束和卡夹 — 82E498C (202107 – 999999)

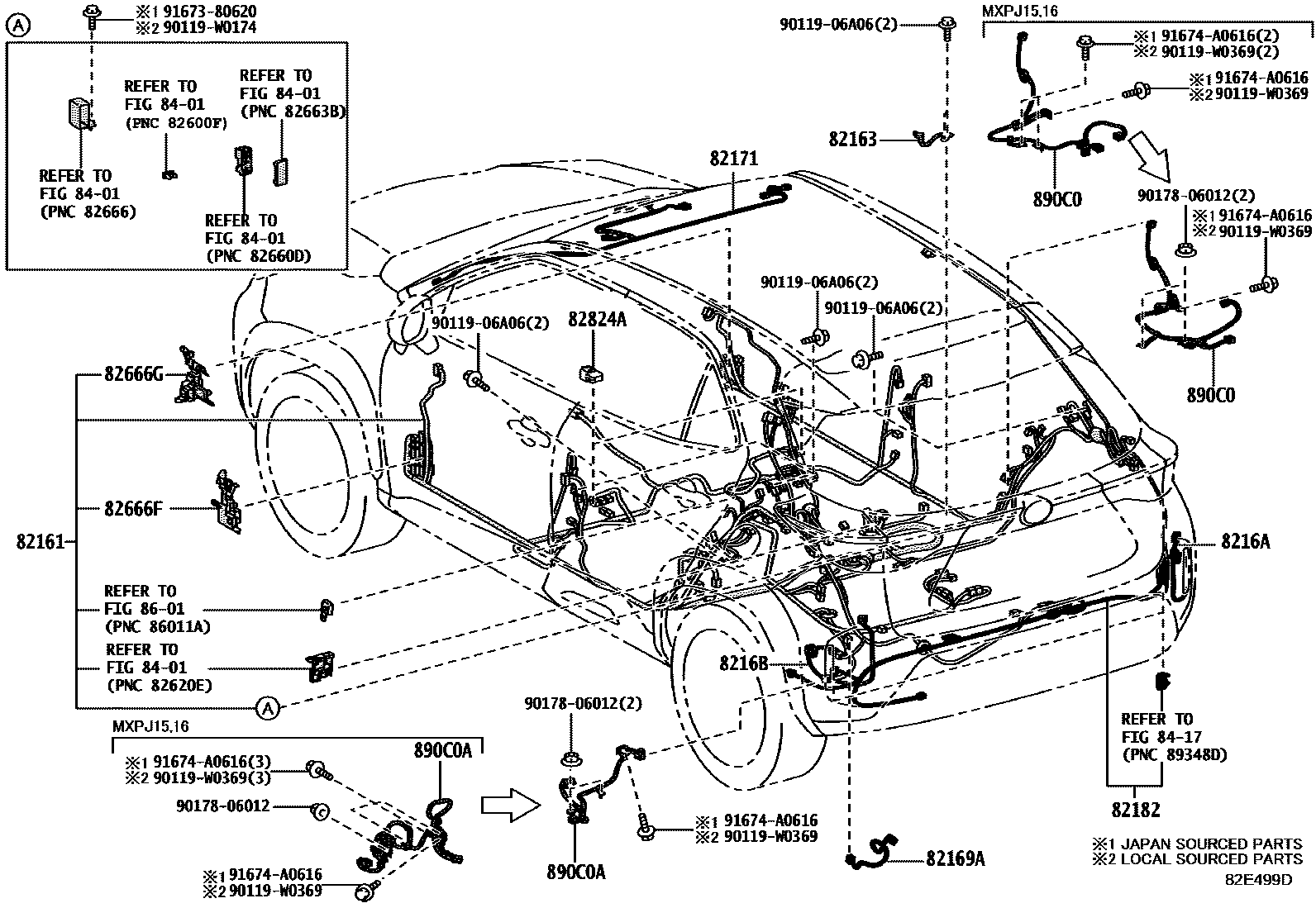

线束和卡夹 — 82E499D (202107 – 999999)

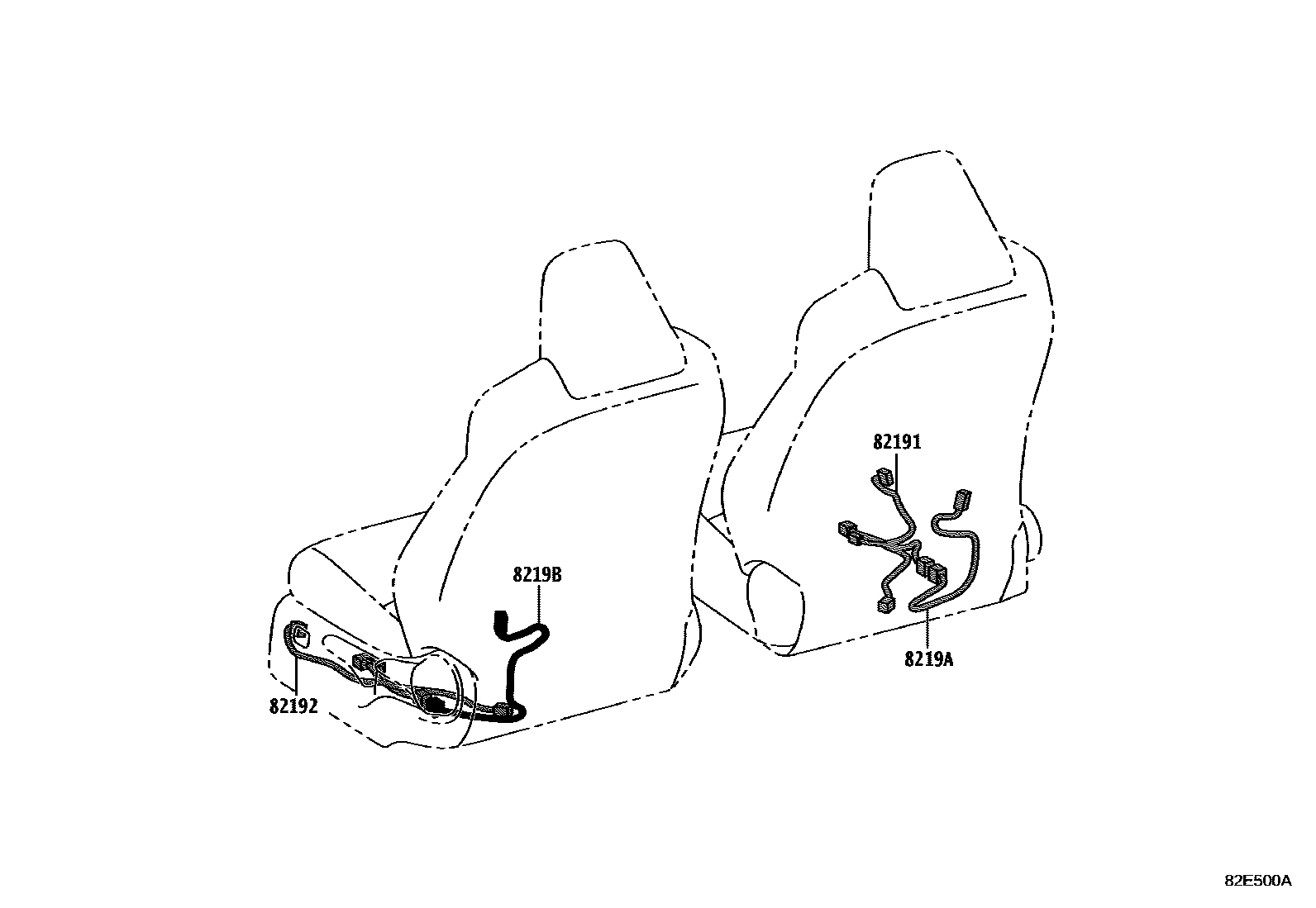

线束和卡夹 — 82E500A (202107 – 999999)

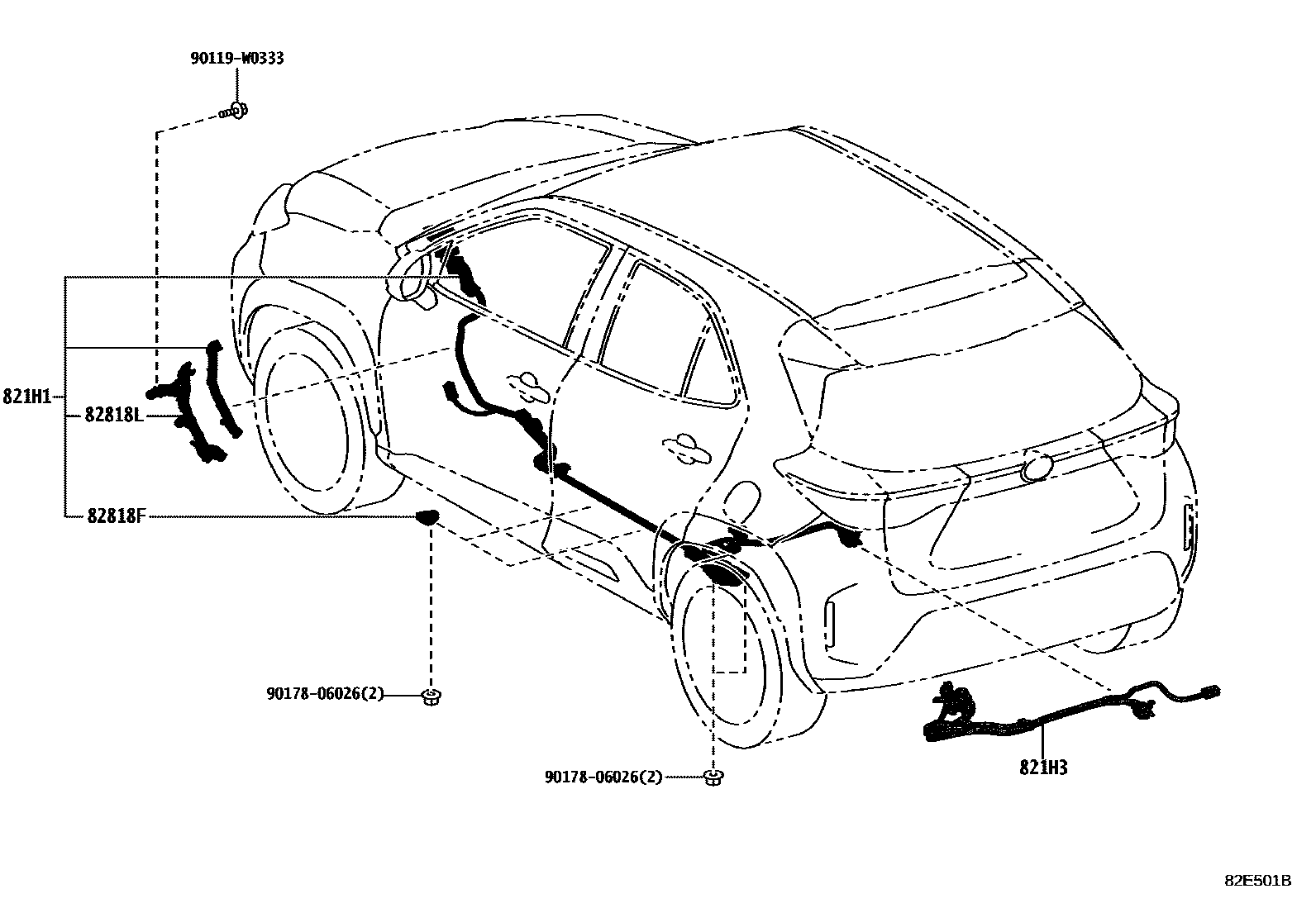

线束和卡夹 — 82E501B (202107 – 999999)

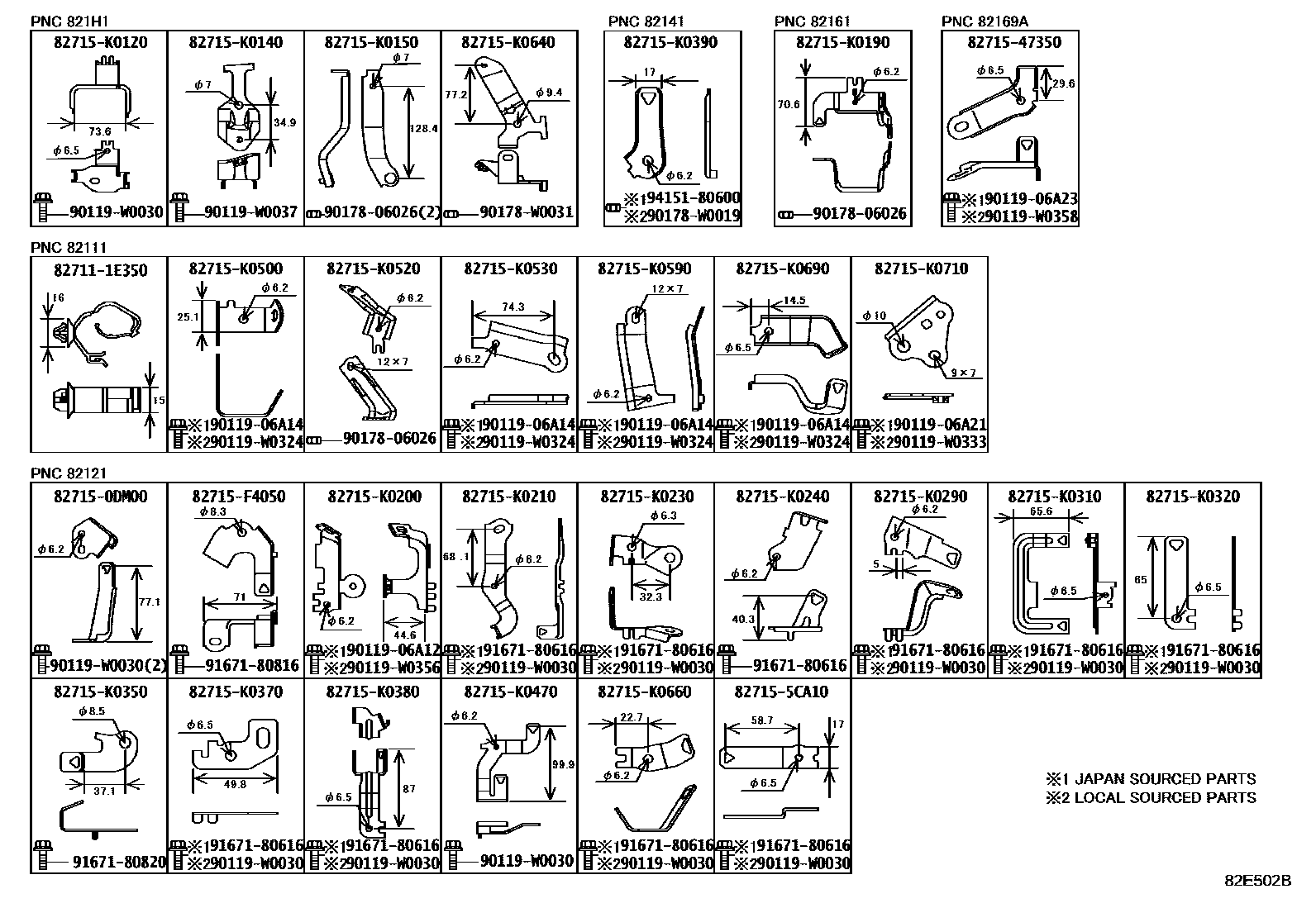

线束和卡夹 — 82E502B (202107 – 999999)

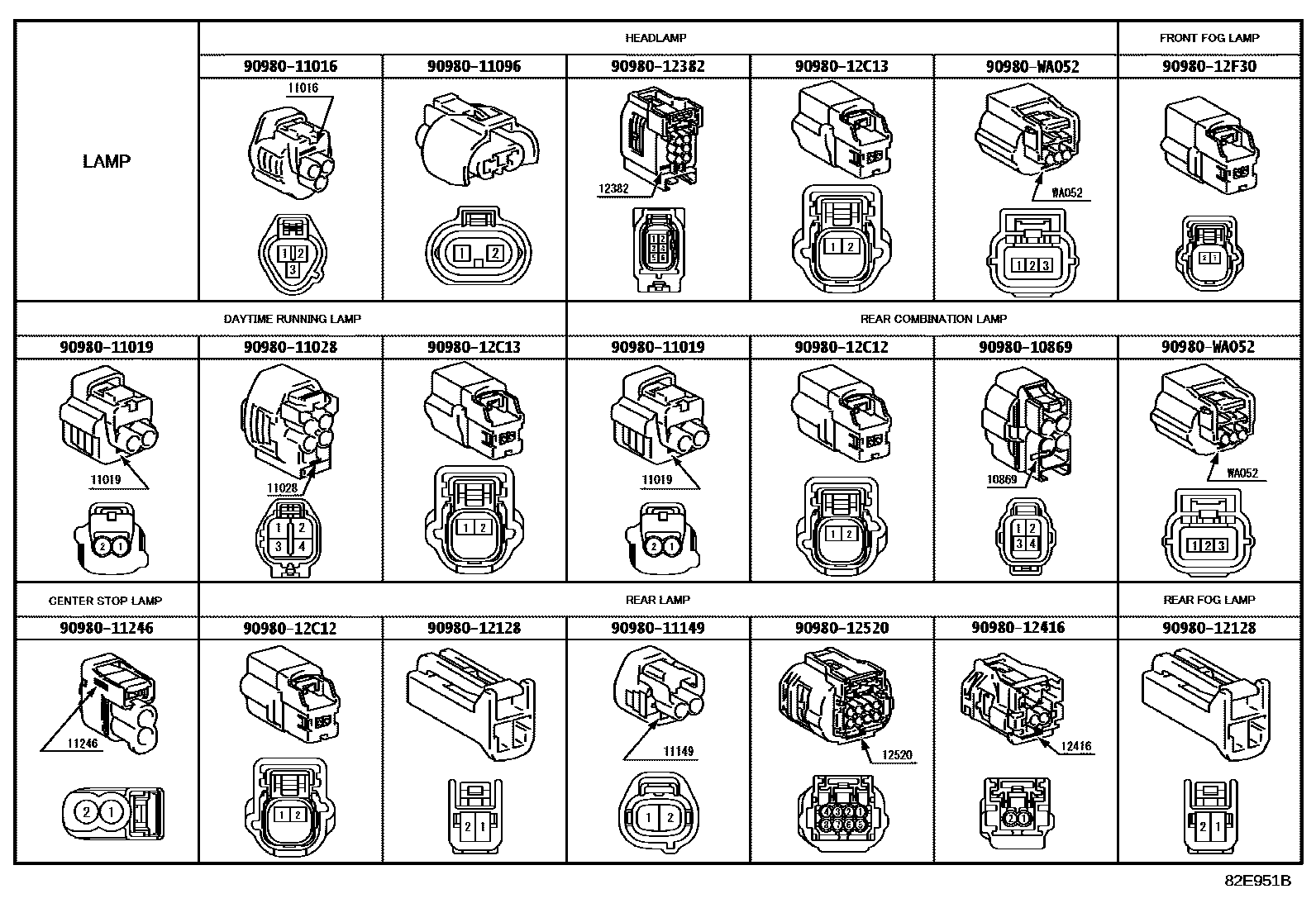

线束和卡夹 — 82E951B (202107 – 999999)

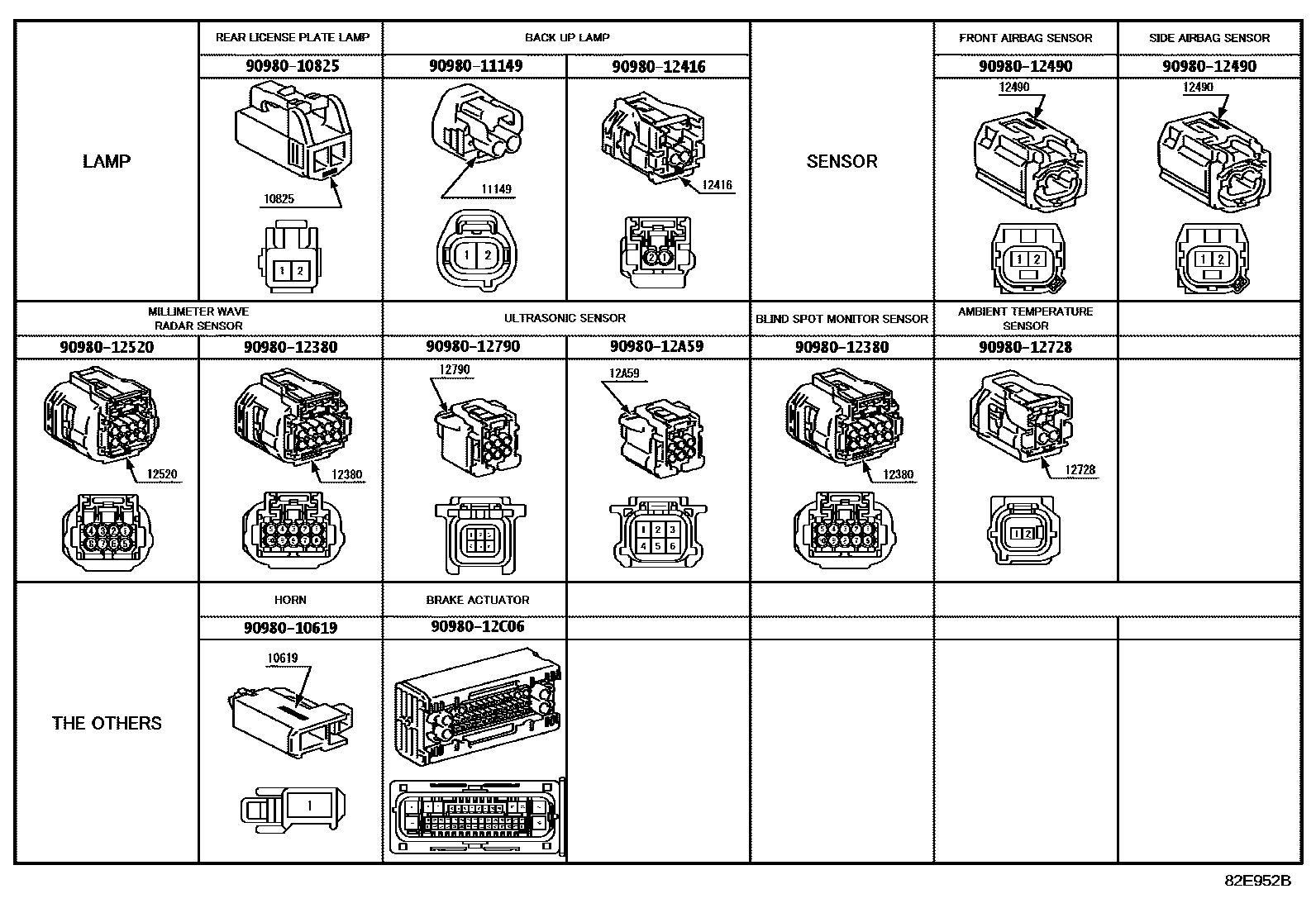

线束和卡夹 — 82E952B (202107 – 999999)

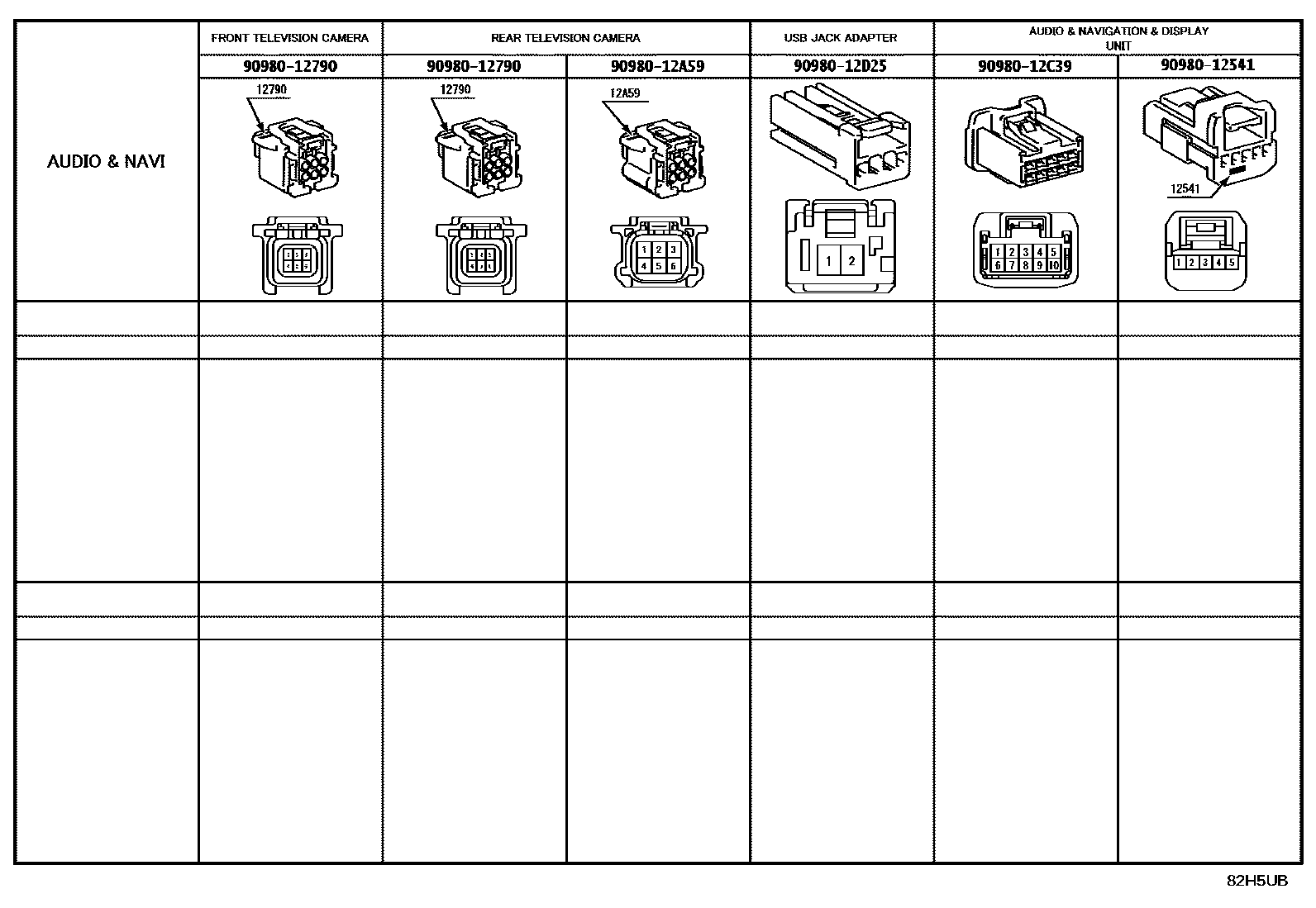

线束和卡夹 — 82H5UB (202107 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 82111 | Engine room main wiring harness | 82111-F5J90 · 82111-F5K00 · 82111-F5K20 · 82111-F5K21 · 82111-F5K30 · 82111-F5K40 · 82111-F5K50 · 82111-F5K51 · 82111-F5K60 · 82111-F5K70 · 82111-F5K80 · 82111-F5K81 · 82111-F5K90 · 82111-F5L00 · 82111-F5L10 · 82111-F5L11 · 82111-F5L20 · 82111-F5L30 · 82111-F5L40 · 82111-F5L60 · 82111-F5L70 · 82111-F5L80 · 82111-F5L90 · 82111-F5M00 · 82111-F5M10 · 82111-F5M20 |
