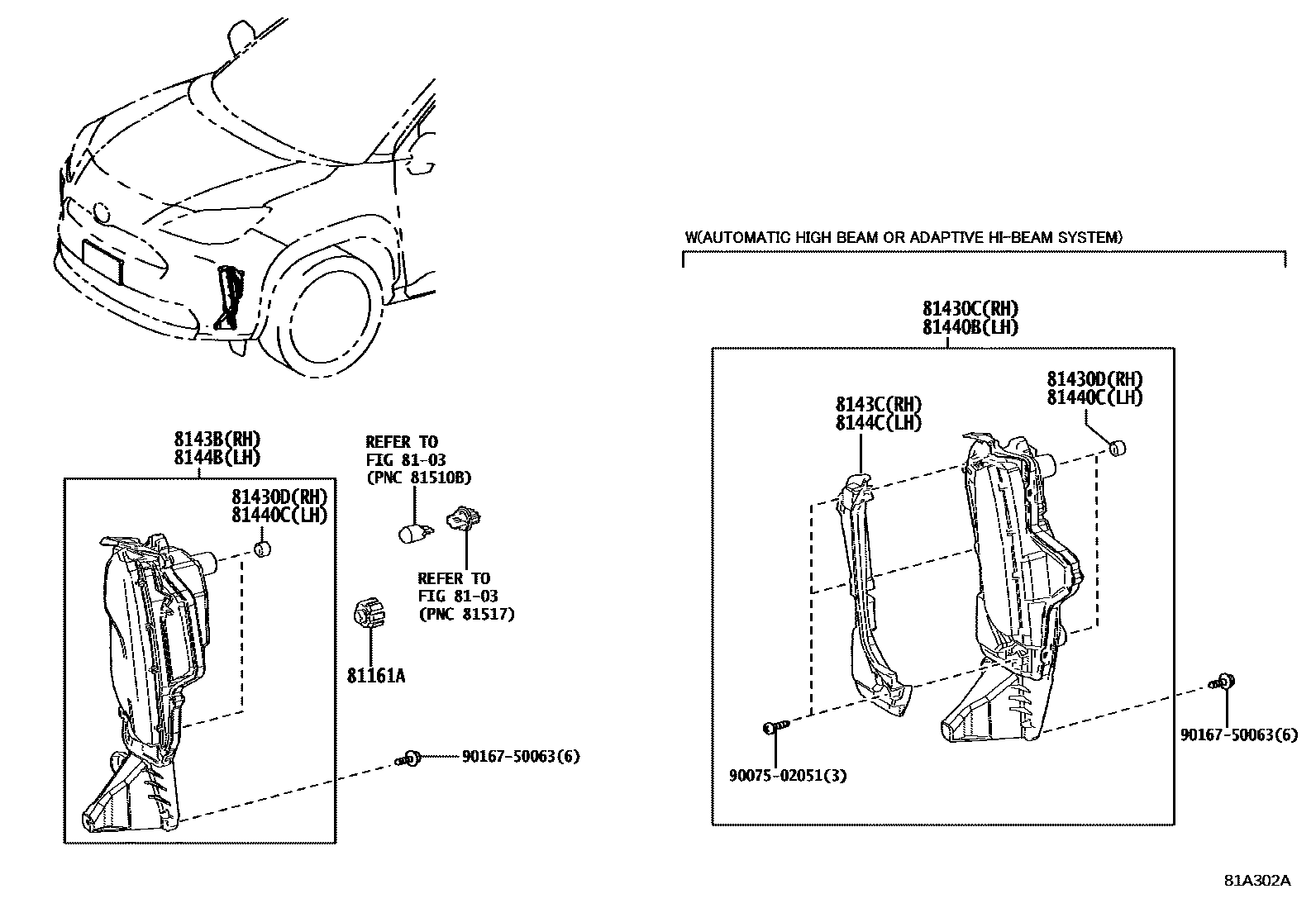

Toyota YARIS 日间行车照明灯或照明灯 — Figure 8119
Toyota YARIS EPC diagram 8119, 日间行车照明灯或照明灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81161A | LED, ECLAIRAGE DE JOUR | 8158A-12260 |
| 81430C | Right daytime running light assembly | 81430-0D170 |
| 81430D | CACHE, ECLAIRAGE DE JOUR, MD | 90075-15509 |
| 8143B | LENTILLE ET CORPS, ECLAIRAGE DE JOUR, MD | 8143B-0D160 |
| 8143C | CACHE, ECLAIRAGE DE JOUR, MD | 8143C-0D170 |
| 81440B | Left side daytime running light assembly | 81440-0D170 |
| 81440C | CACHE, ECLAIRAGE DE JOUR, MG | 90075-15509 |
| 8144B | LENTILLE ET CORPS, ECLAIRAGE DE JOUR, MG | 8144B-0D160 |
| 8144C | CACHE, ECLAIRAGE DE JOUR, MG | 8144C-0D170 |
