Toyota YARIS 后组合灯 — Figure 8111

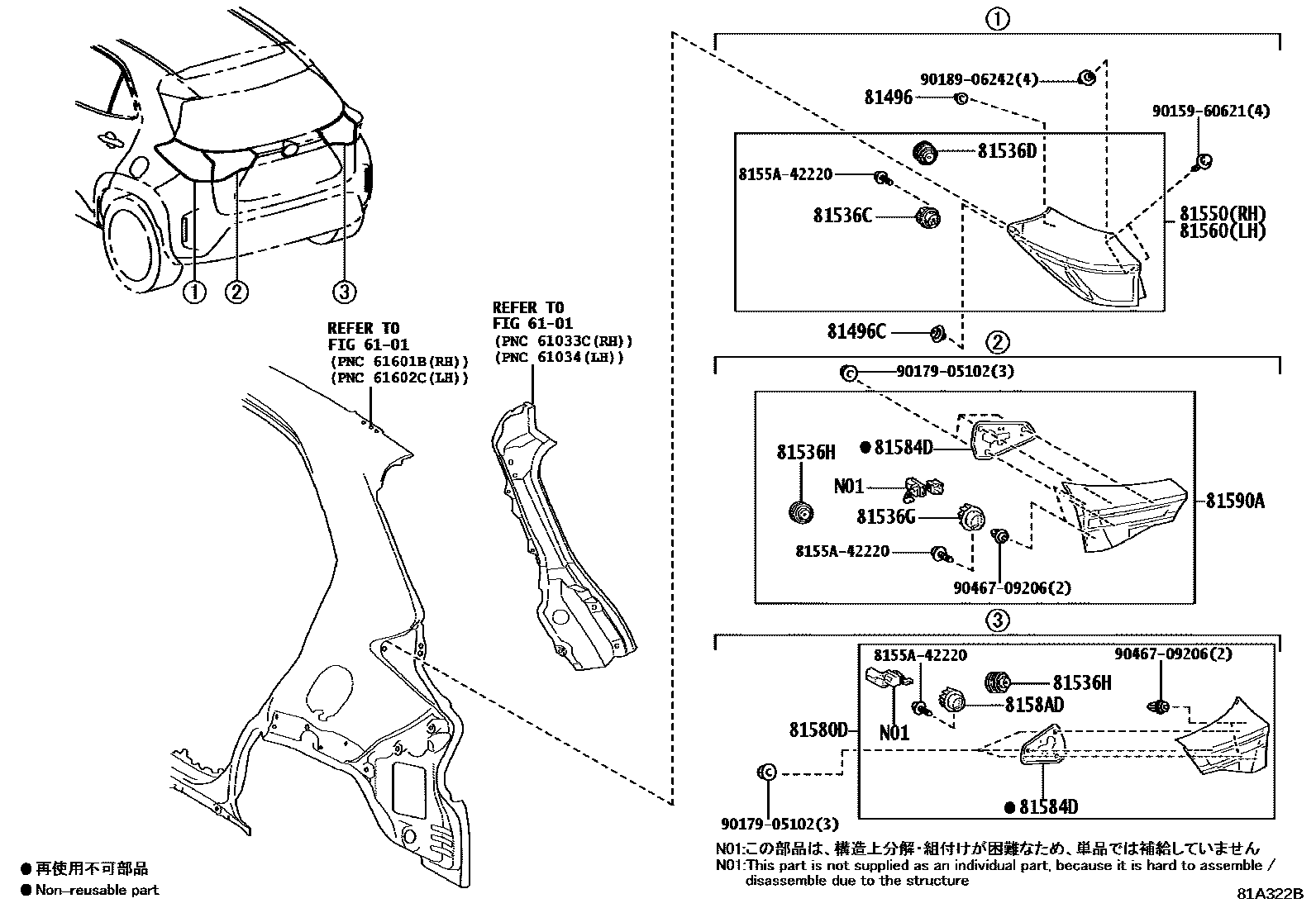

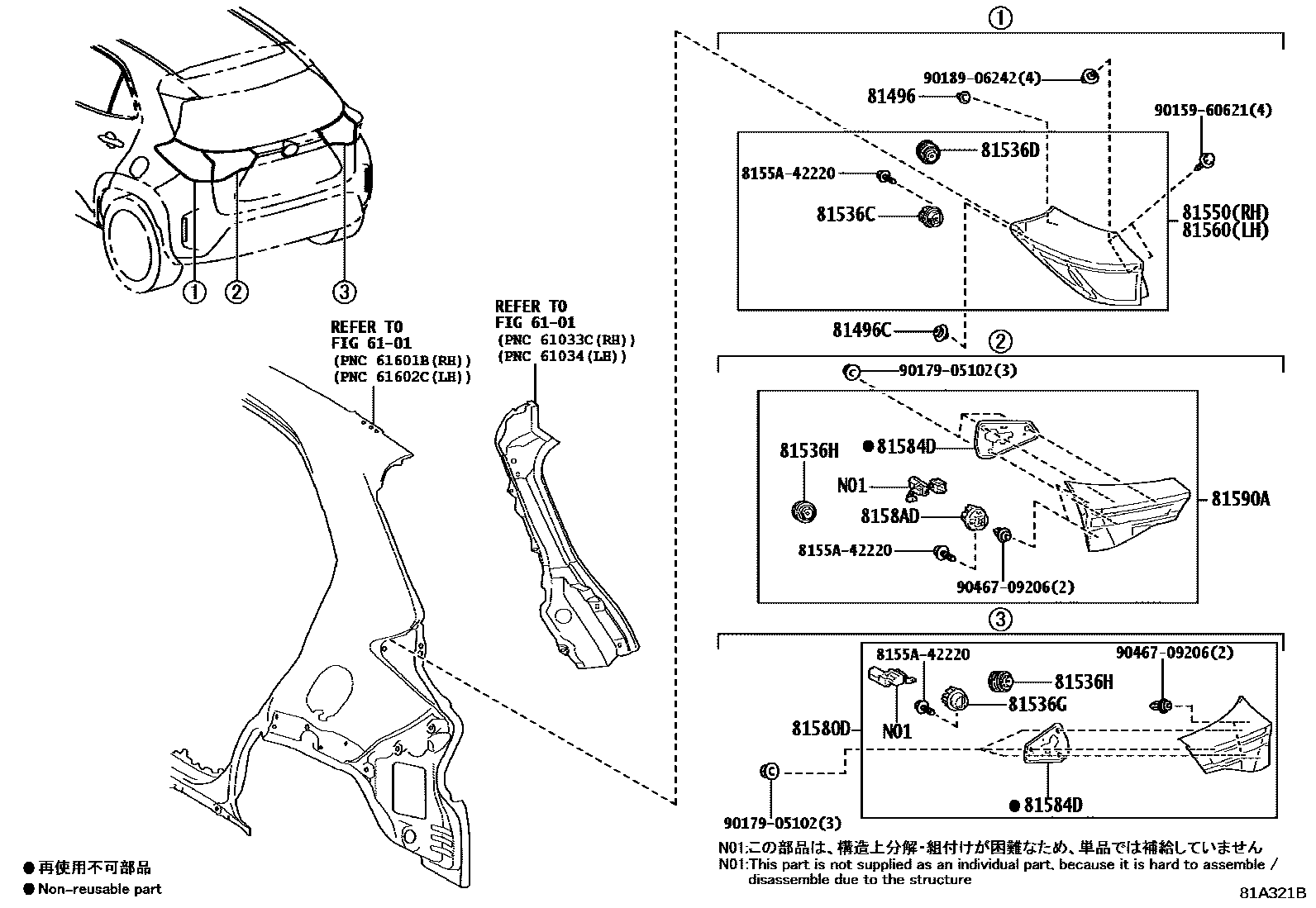

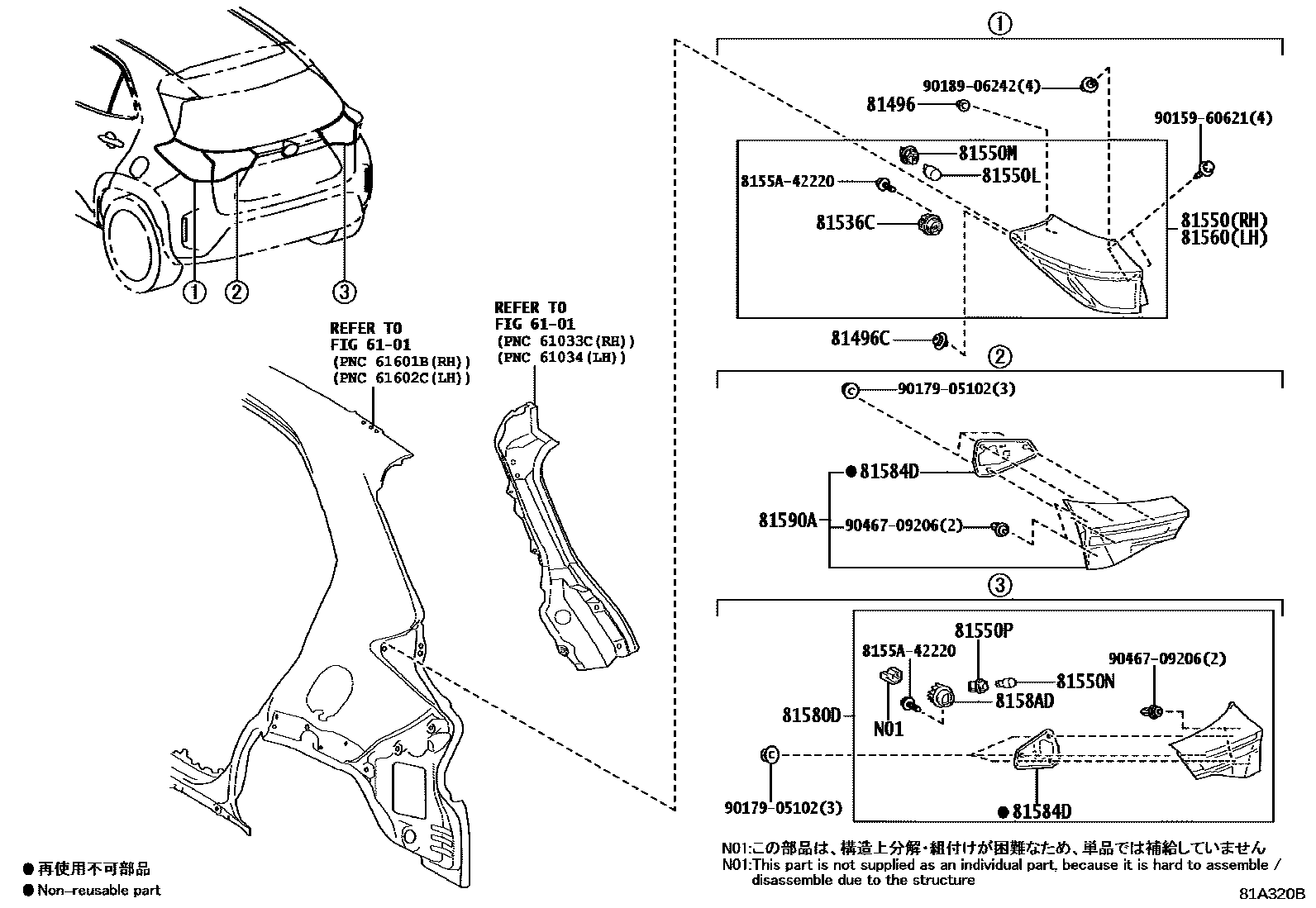

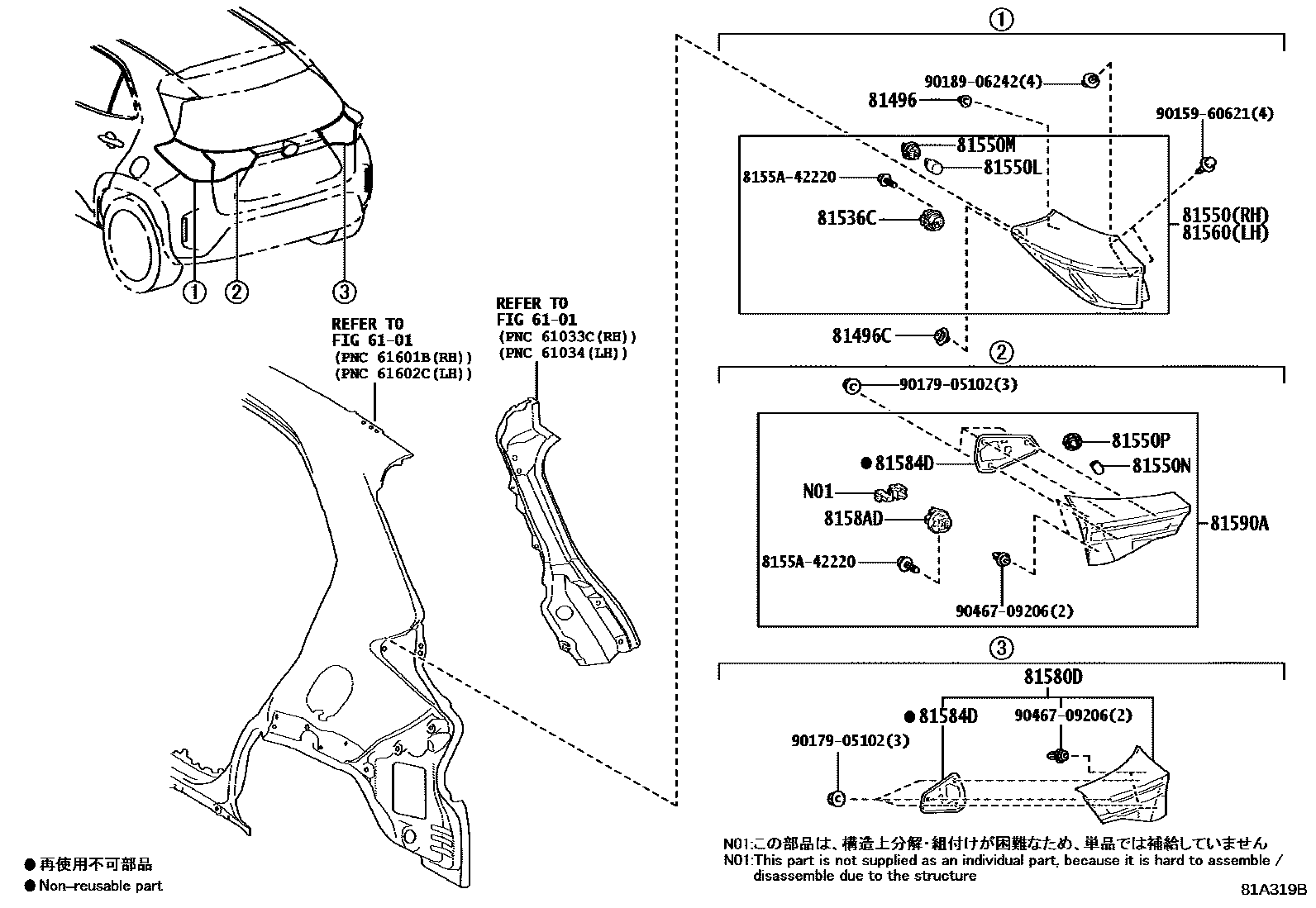

Toyota YARIS EPC diagram 8111, 后组合灯, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536C | LED, FEU ARR & STOP | 81536-42230 |
| 81536D | LED, FEU ARR | 81536-52E60 |
| 81536G | LED, FEU RECUL | 8159A-52420 |
| 81536H | LED, FEU ARR, NO.2 | 81536-52E50 |
| 81550 | Right rear combination light assembly | 81550-0DE10 · 81550-0DE20 |
| 81550L | Rear turn signal light bulb | 90981-WF006 |
| 81550M | Rear turn signal lamp holder | 81515-42050 |
| 81550N | reversing light bulb | 90011-11058 |
| 81550P | Reversing light lamp holder | 81615-12590 |
| 81560 | Left rear combination light assembly | 81560-0DE10 · 81560-0DE20 |
| 81580D | Right rear light assembly | 81580-0D140 · 81580-0DB50 · 81580-0DB60 · 81580-0DB70 · 81580-0DB80 |
| 81584D | rear light gasket | 81584-0DB50 · 81584-0DB70 |
| 8158AD | LED, FEU ANTIBROUILLARD ARR | 8158A-52410 |
| 81590A | Left rear light assembly | 81590-0D070 · 81590-0DB50 · 81590-0DB60 · 81590-0DB70 · 81590-0DB80 |
