Toyota YARIS accelerator pedal connecting rod — Figure 7801

Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

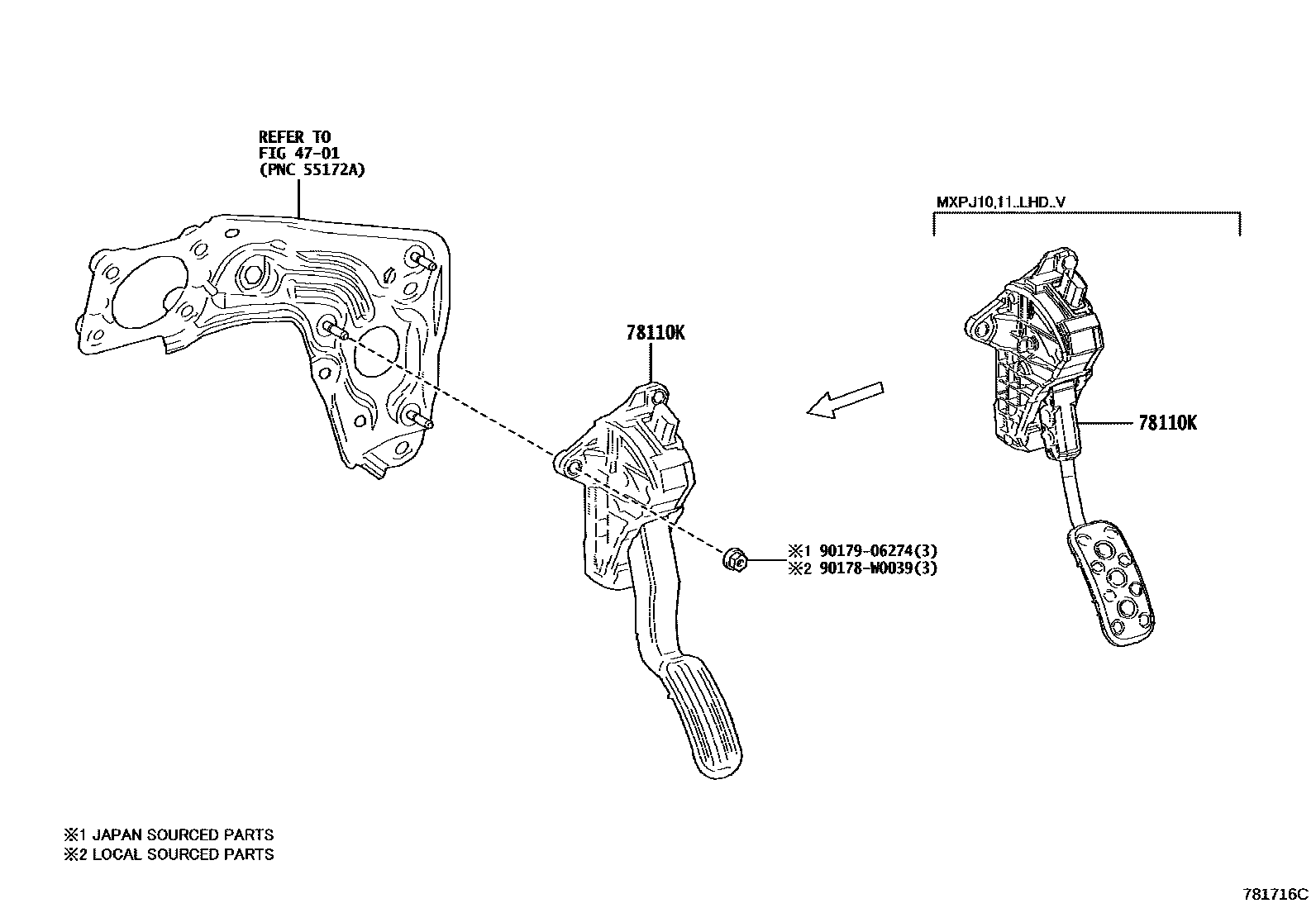

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781716C
accelerator pedal connecting rod — 781716C (202107 – 999999)

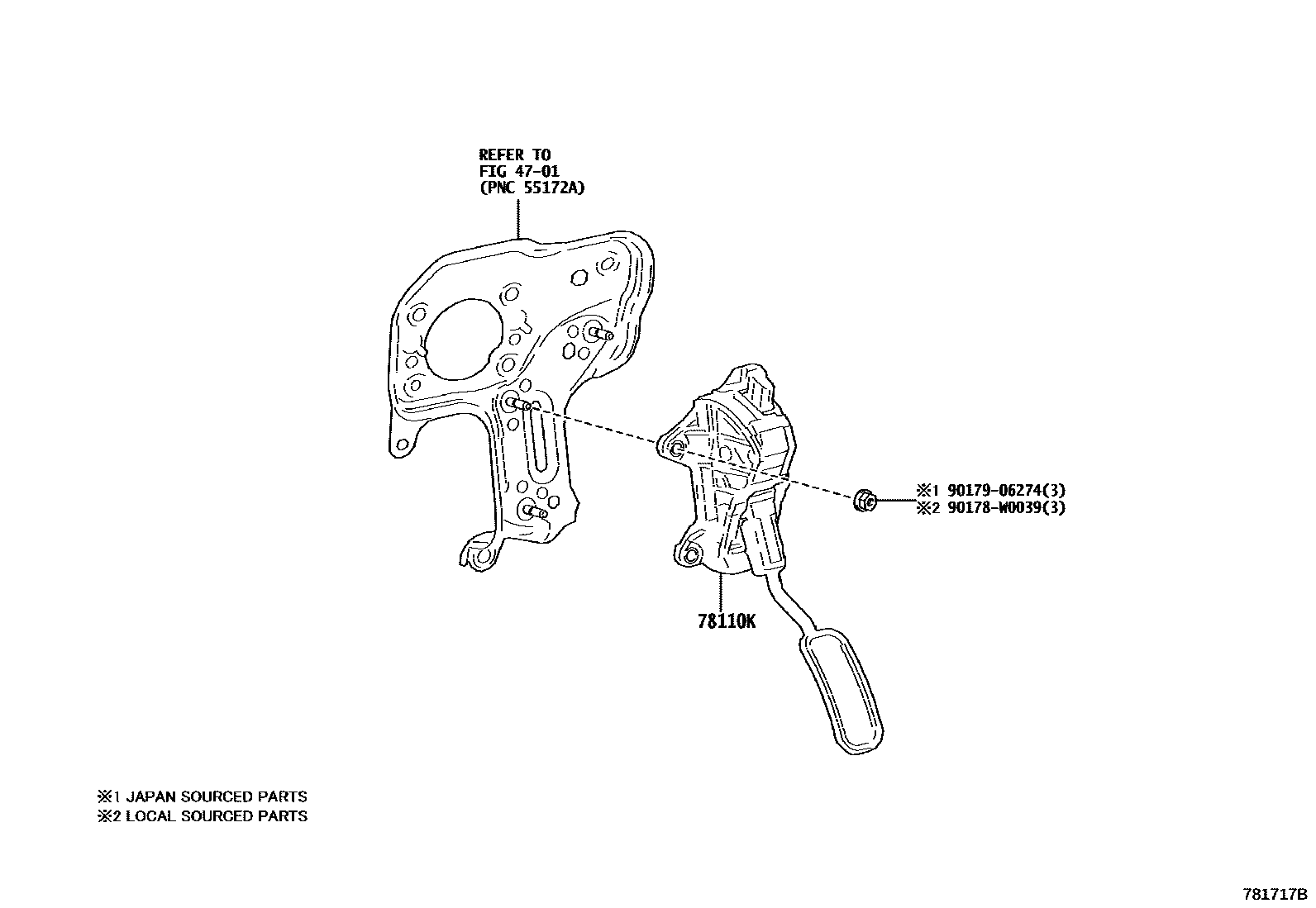

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781717B
accelerator pedal connecting rod — 781717B (202107 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-0D280 · 78110-0D290 · 78110-0D300 · 78110-K0020 · 78110-K0030
