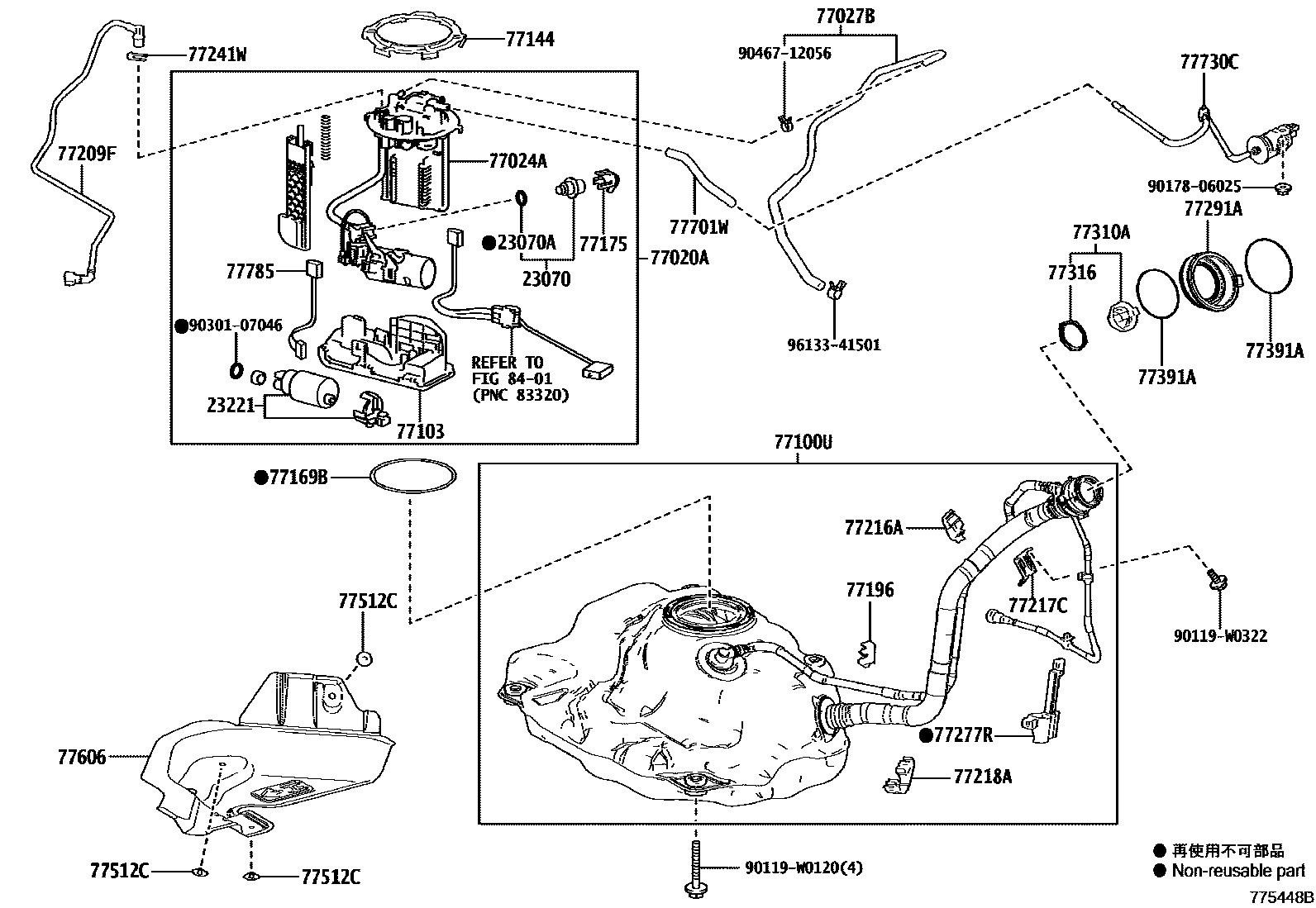

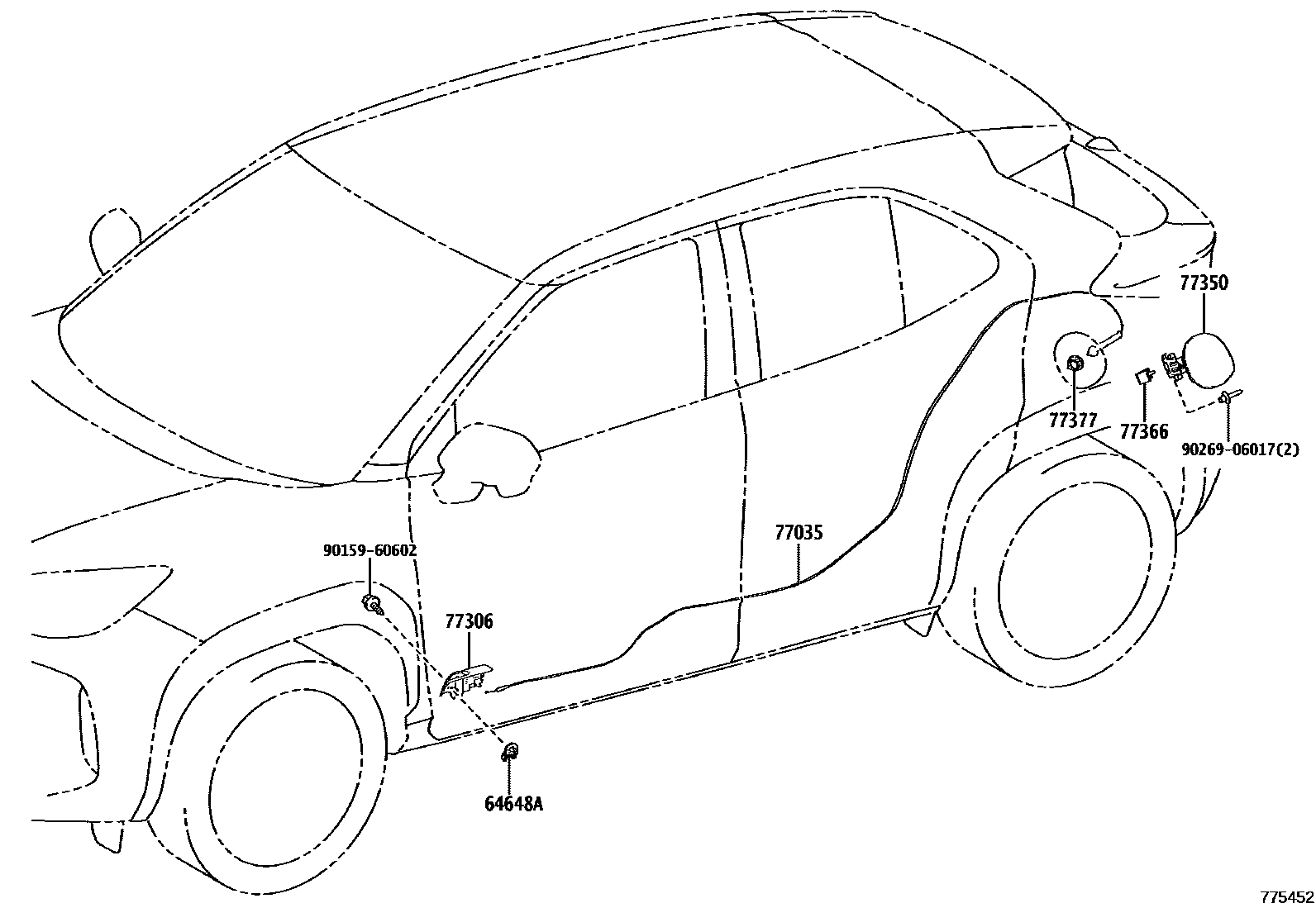

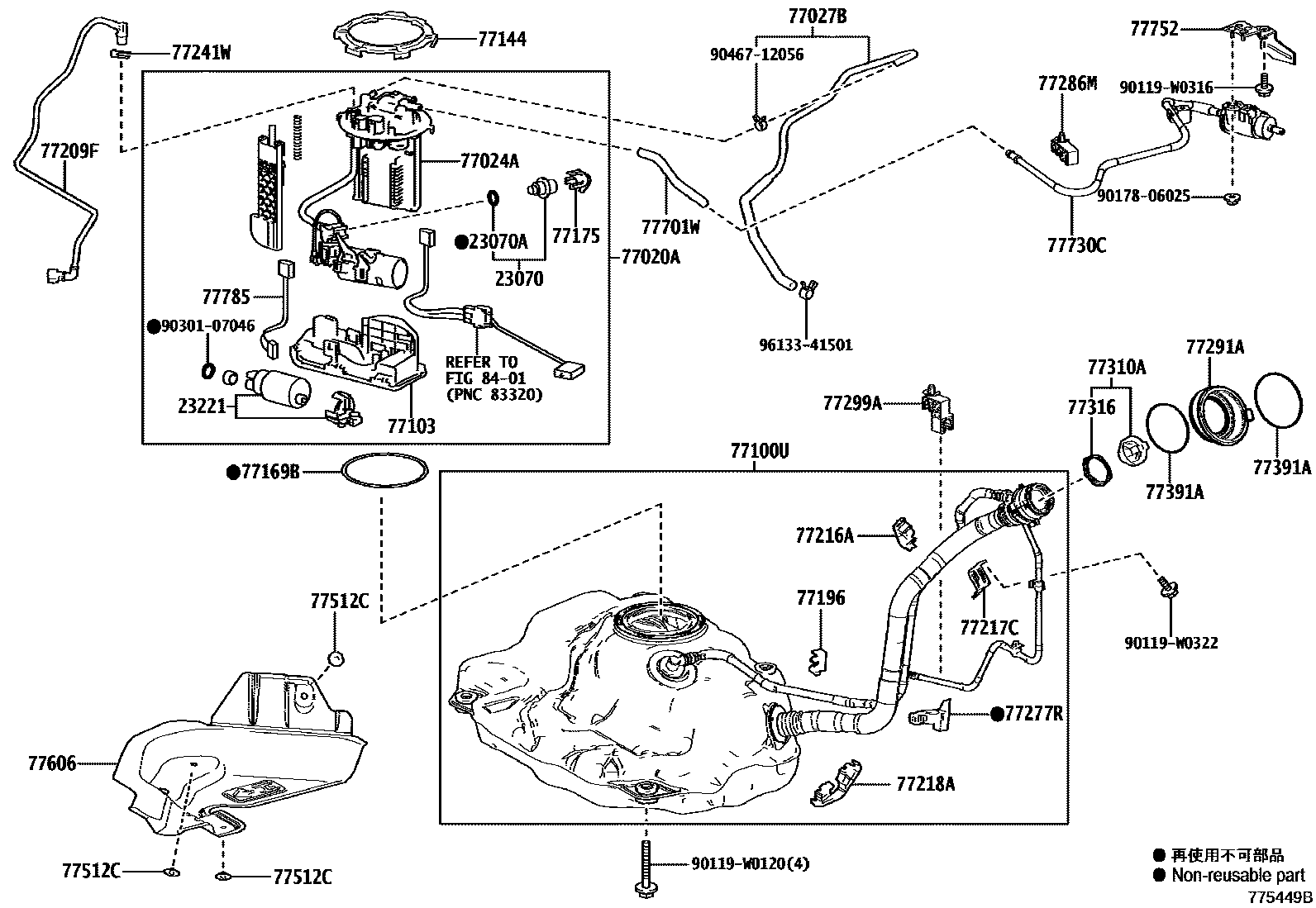

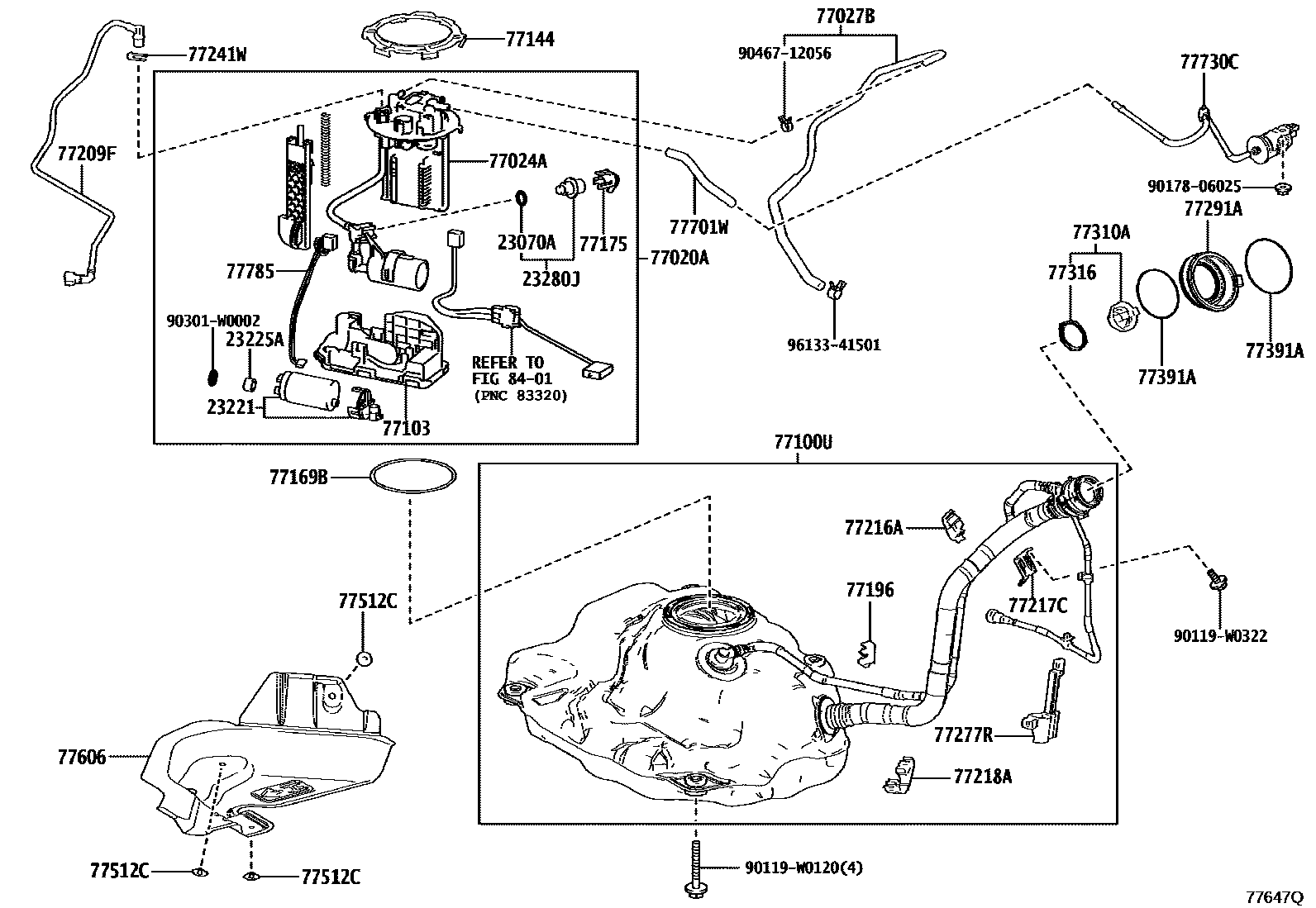

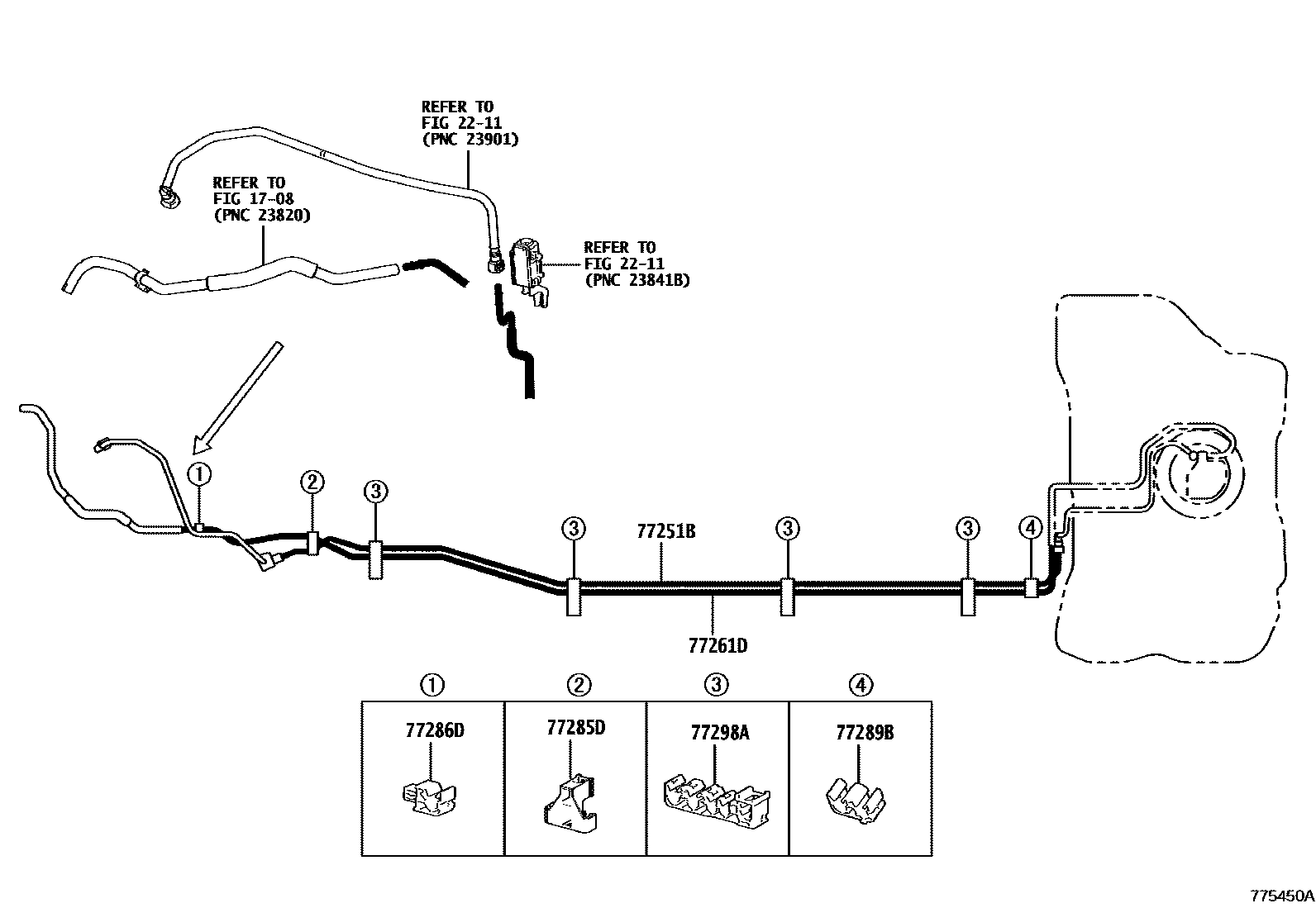

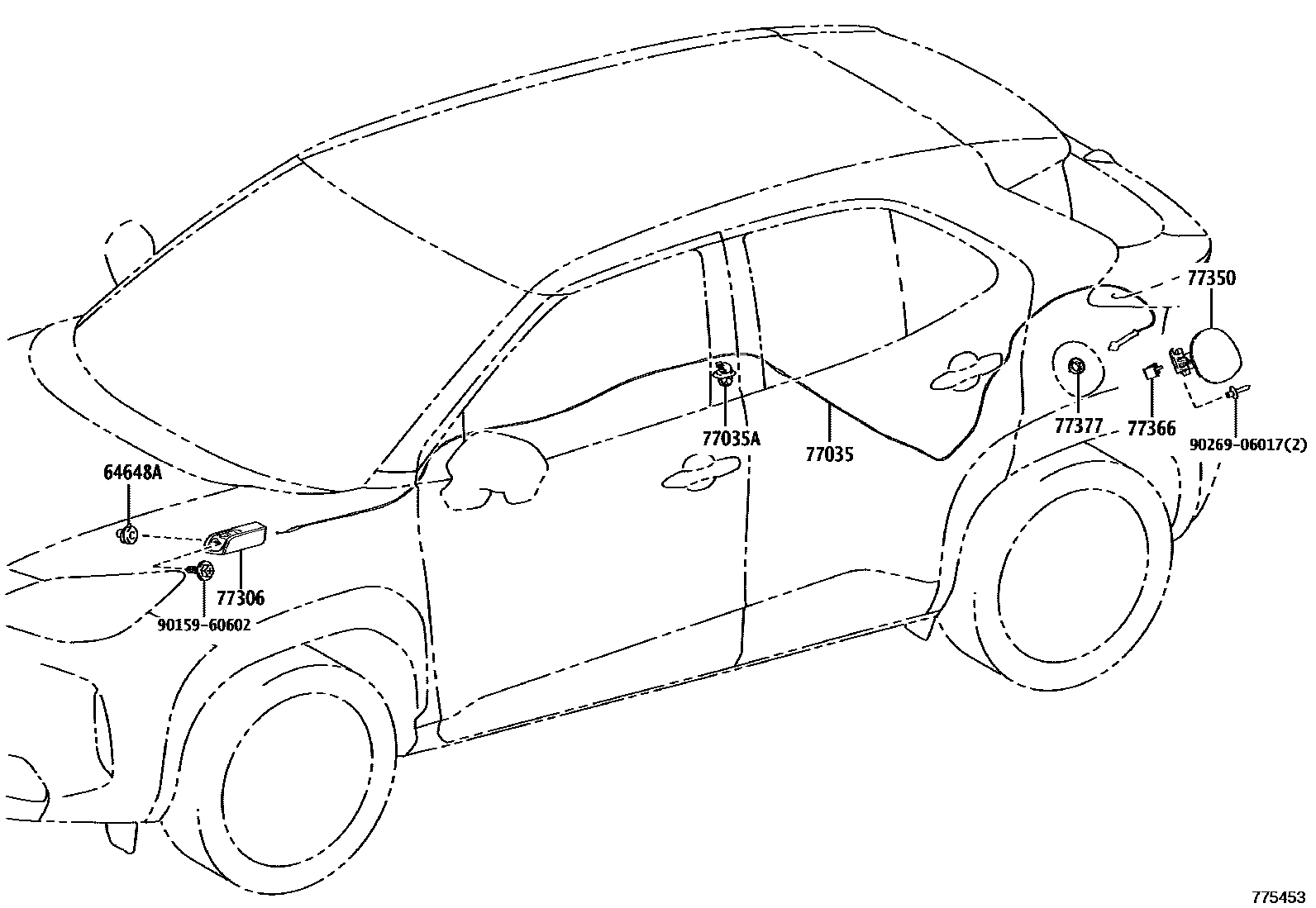

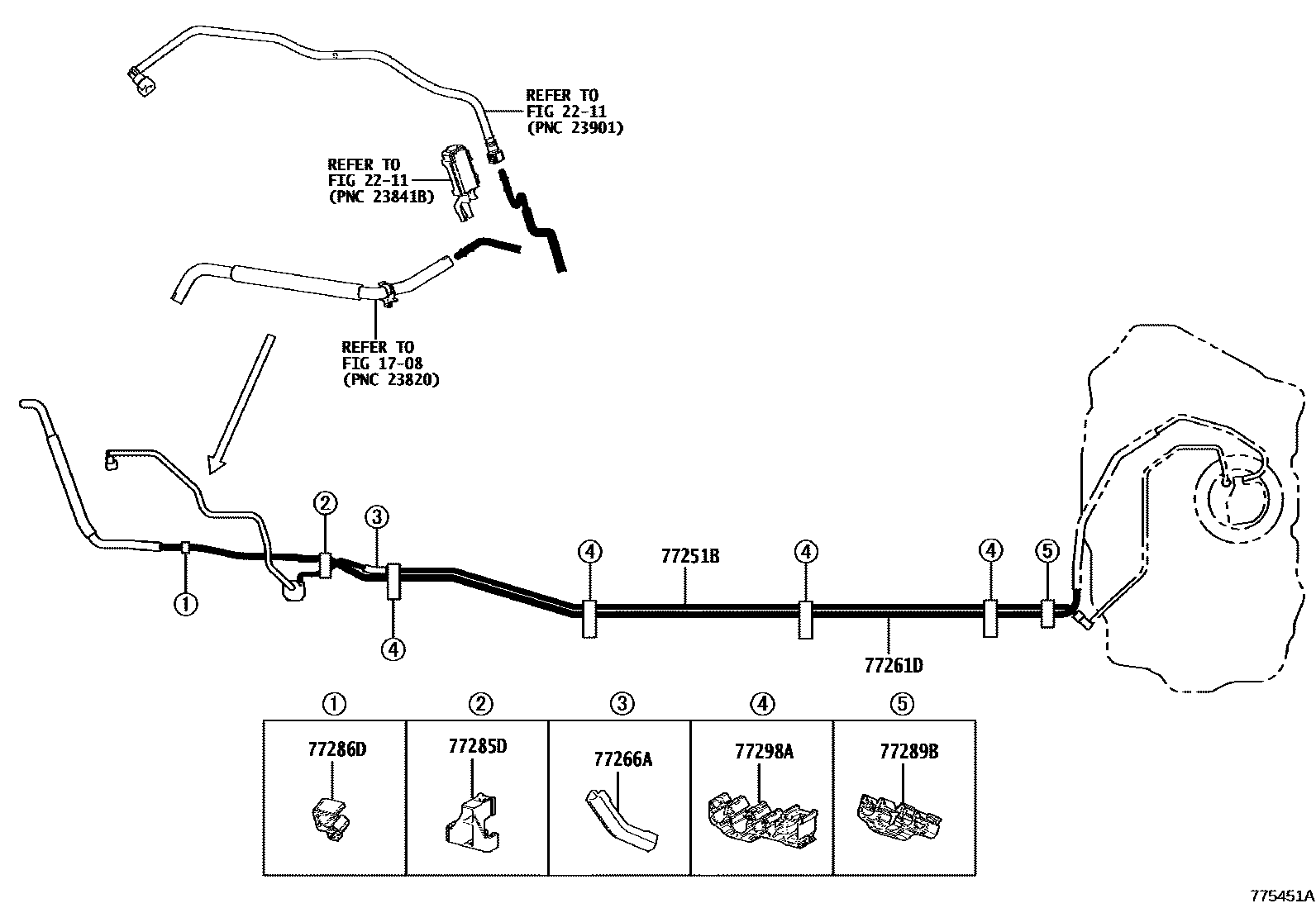

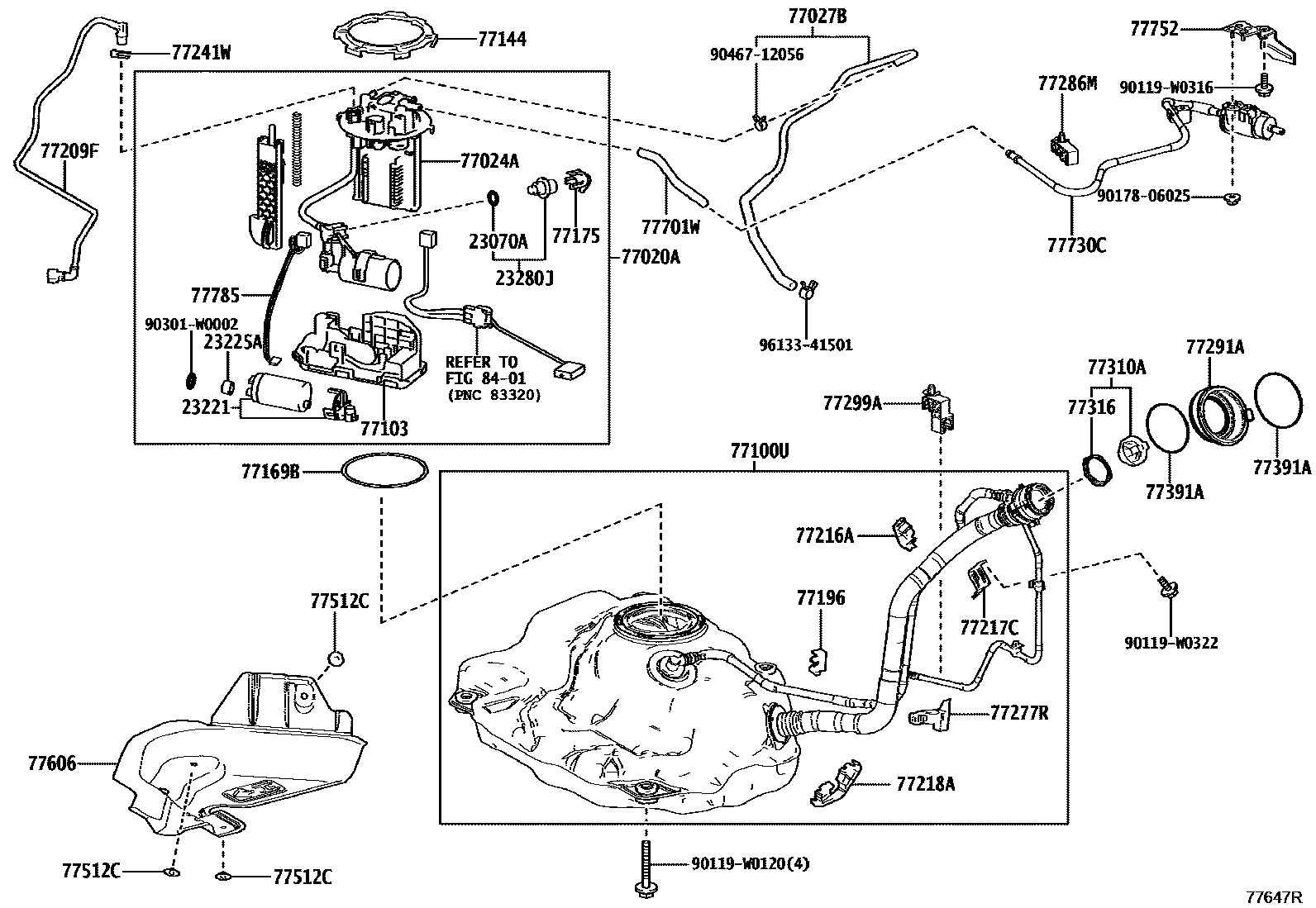

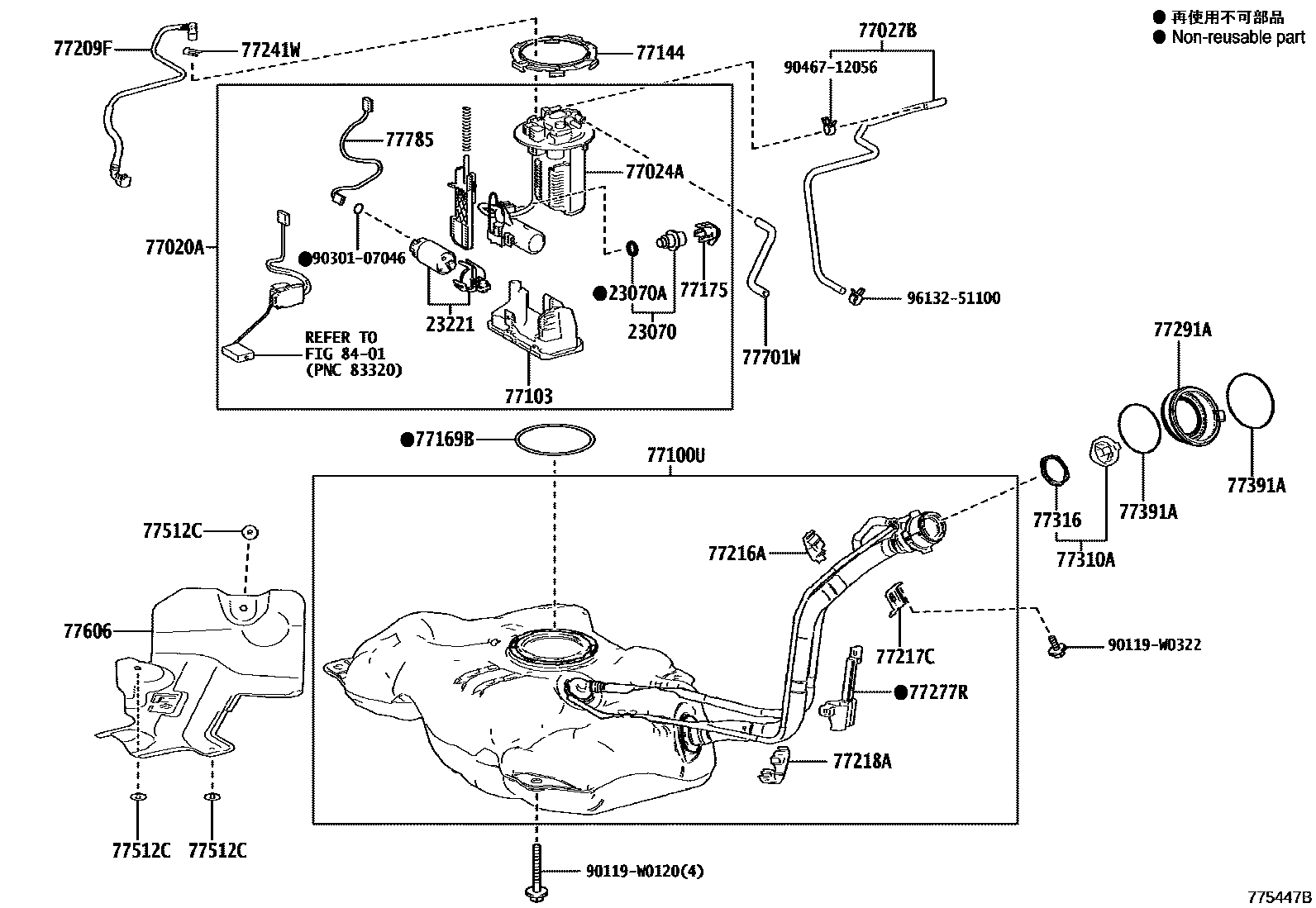

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 9 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23210-0T010 · 23210-0T040 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23280J | Fuel pressure regulator assembly | 23280-15050 |
| 64648A | Trunk door lock opener seal | 64648-K0010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D280 · 77020-K0050 · 77020-K0080 |
| 77024A | Fuel absorber sub-assembly | 77024-0D150 · 77024-K0010 · 77024-K0030 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-K0040 · 77027-K0050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D440 · 77035-0D660 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100U | Fuel tank sub-assembly | 77001-0D490 · 77001-0D500 · 77001-0D510 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-F4070 · 77103-K0010 · 77103-K0030 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-0D170 · 77169-47040 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02050 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-52010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-K0040 · 77209-K0060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-K0020 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-0D250 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-0D100 · 77218-K0030 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-K0040 · 77251-K0050 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-K0050 · 77261-K0060 |
| 77266A | No. 1 fuel line protection device | 77266-K0010 |
| 77277R | Fuel tank filler pipe protection device | 77277-52120 · 77277-52130 |
| 77285D | No. 1 fuel pipe clamp | 77285-52170 · 77285-52180 |
| 77286D | No. 2 fuel pipe clamp | 77286-52230 · 77286-52240 |
| 77286M | No. 6 fuel pipe clamp | 77299-52130 |
| 77289B | No. 3 fuel pipe clamp | 77289-52190 · 77289-52200 |
| 77291A | Fuel tank filler pipe cover | 77291-K2010 |
| 77298A | No. 4 fuel pipe clamp | 77298-52090 · 77298-52100 |
| 77299A | No. 5 fuel pipe clamp | 77299-52120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 · 77306-12020 |
| 77310A | Fuel tank cap assembly | 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-K2010 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-12090 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-K0060 · 77606-K0090 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-K0040 · 77701-K0050 |
| 77730C | ENS. CARTOUCHE, CHARBON, NO.2 | 77730-52010 · 77730-52020 |
| 77752 | Carbon canister base bracket | 77752-52070 |
| 77785 | fuel pump wiring harness | 77785-52120 · 77785-52150 · 77785-76010 |
